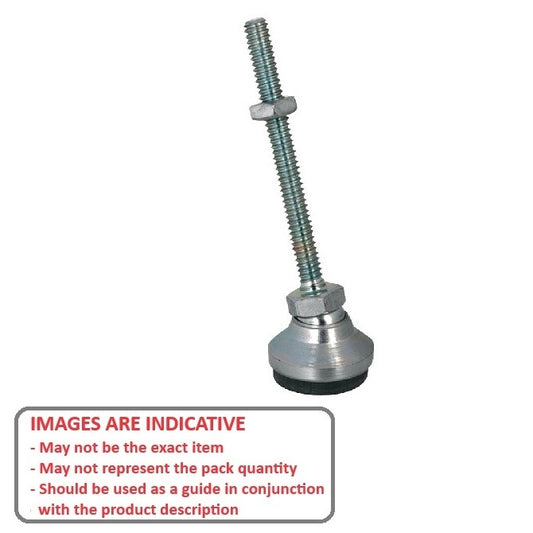

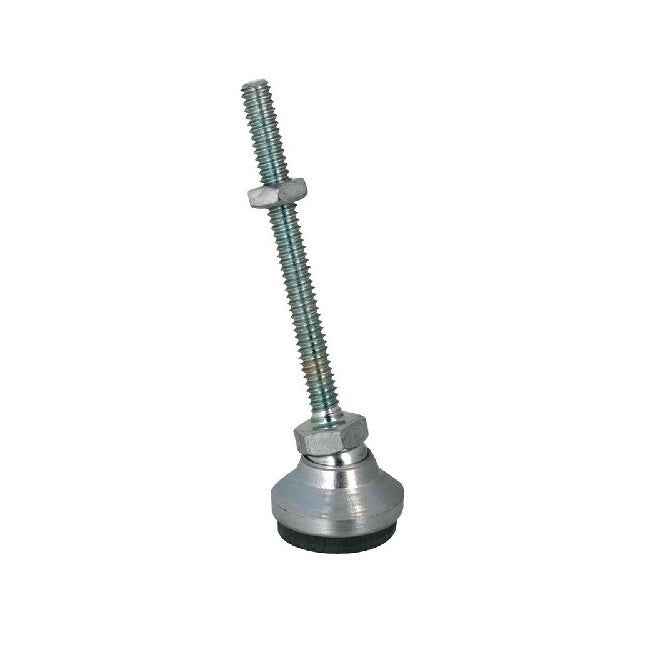

Collection: Mounts - Levelling Studded - Swivel - Clear Chromate

Mounts (With Images)

Levelling Studded

Swivel

26 Products in this selection

This is a combined category of Clear Chromate Swivel Levelling Studded Mounts.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - Clear Chromate. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Thread Length (F) 25.4 mm	Base Height (E) 2.78 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-048F-025-CCC Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-048F-025-CCC Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
MSM-048F-025-CCC --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel MSM-048F-025-CCC --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 2.78 mm	Overall Height 64.3 mm
Material: Steel Load Rating: 315 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-048F-051-CCC Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 64.3 mm Load Rating: 315 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-048F-051-CCC Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each View the product page first if you are unsure.
MSM-048F-051-CCC --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel MSM-048F-051-CCC --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.9 mm _{(0.705 in.)}	Thread Length (F) 31.8 mm	Base Height (E) 3.97 mm	Overall Height 49.7 mm
Material: Steel Load Rating: 500 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-064C-032-CCC (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $821.32 AUD Regular price Sale price $821.32 AUD Unit price per Per 25
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.9 mm _{(0.705 in.)}	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 49.7 mm Load Rating: 500 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-064C-032-CCC (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $821.32 AUD Regular price Sale price $821.32 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-064C-032-CCC (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel MSM-064C-032-CCC (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Regular price $821.32 AUD Regular price Sale price $821.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.9 mm _{(0.705 in.)}	Thread Length (F) 63.5 mm	Base Height (E) 3.97 mm	Overall Height 81.4 mm
Material: Steel Load Rating: 500 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-064C-064-CCC Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.9 mm _{(0.705 in.)}	Thread Length (F) 63.5 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 81.4 mm Load Rating: 500 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-064C-064-CCC Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-064C-064-CCC --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel MSM-064C-064-CCC --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x17.9 mm - Steel Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 128.2 mm _{(5.047 in.)}	Thread Length (F) 31.8 mm	Base Height (E) 7.14 mm	Overall Height 160.0 mm
Material: Steel Load Rating: 360 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-064C-032-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $769.86 AUD Regular price Sale price $769.86 AUD Unit price per Per 25
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 128.2 mm _{(5.047 in.)}	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 7.14 mm Overall Height: 160.0 mm Load Rating: 360 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-064C-032-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $769.86 AUD Regular price Sale price $769.86 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-064C-032-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel MSM-064C-032-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Regular price $769.86 AUD Regular price Sale price $769.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 128.2 mm _{(5.047 in.)}	Thread Length (F) 63.5 mm	Base Height (E) 7.14 mm	Overall Height 191.7 mm
Material: Steel Load Rating: 360 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-064C-064-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $961.05 AUD Regular price Sale price $961.05 AUD Unit price per Per 25
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 128.2 mm _{(5.047 in.)}	Thread Length (F) 63.5 mm
Material: Steel Base Height (E): 7.14 mm Overall Height: 191.7 mm Load Rating: 360 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-064C-064-CCCRP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $961.05 AUD Regular price Sale price $961.05 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-064C-064-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel MSM-064C-064-CCCRP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x128.2 mm - Steel Regular price $961.05 AUD Regular price Sale price $961.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 4.76 mm	Overall Height 123.8 mm
Material: Steel Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-095C-102-CCC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 123.8 mm Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-095C-102-CCC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-102-CCC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel MSM-095C-102-CCC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-095C-051-CCC (25 Pcs) Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $959.32 AUD Regular price Sale price $959.32 AUD Unit price per Per 25
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-095C-051-CCC (25 Pcs) Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $959.32 AUD Regular price Sale price $959.32 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-095C-051-CCC (25 Pcs) --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel MSM-095C-051-CCC (25 Pcs) --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm - Steel Regular price $959.32 AUD Regular price Sale price $959.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 7.93 mm	Overall Height 127.0 mm
Material: Steel Load Rating: 1300 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-095C-102-CCCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.93 mm Overall Height: 127.0 mm Load Rating: 1300 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-095C-102-CCCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-102-CCCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel MSM-095C-102-CCCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 22.0 mm _{(0.866 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 5.00 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-100M-051-CCC (25 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $946.59 AUD Regular price Sale price $946.59 AUD Unit price per Per 25
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 22.0 mm _{(0.866 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 5.00 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-100M-051-CCC (25 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $946.59 AUD Regular price Sale price $946.59 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-100M-051-CCC (25 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Steel MSM-100M-051-CCC (25 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 32x22 mm - Steel Regular price $946.59 AUD Regular price Sale price $946.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm _{(1.89 in.)}	Foot Height (C) 29.0 mm _{(1.142 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 6.00 mm	Overall Height 80.0 mm
Material: Steel Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-120M-051-CCC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $69.77 AUD Regular price Sale price $69.77 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm _{(1.89 in.)}	Foot Height (C) 29.0 mm _{(1.142 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 6.00 mm Overall Height: 80.0 mm Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-120M-051-CCC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $69.77 AUD Regular price Sale price $69.77 AUD Unit price per Each View the product page first if you are unsure.
MSM-120M-051-CCC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm - Steel MSM-120M-051-CCC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm - Steel Regular price $69.77 AUD Regular price Sale price $69.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 6.35 mm	Overall Height 130.2 mm
Material: Steel Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-127C-102-CCC (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,655.41 AUD Regular price Sale price $1,655.41 AUD Unit price per Per 25
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 130.2 mm Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-127C-102-CCC (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,655.41 AUD Regular price Sale price $1,655.41 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-127C-102-CCC (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel MSM-127C-102-CCC (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Regular price $1,655.41 AUD Regular price Sale price $1,655.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Steel Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-127C-051-CCC Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-127C-051-CCC Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-127C-051-CCC --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel MSM-127C-051-CCC --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 9.53 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 1730 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-127C-102-CCCRP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 9.53 mm Overall Height: 133.4 mm Load Rating: 1730 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-127C-102-CCCRP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-127C-102-CCCRP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel MSM-127C-102-CCCRP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-159C-102-CCC (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,320.86 AUD Regular price Sale price $2,320.86 AUD Unit price per Per 25
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 133.4 mm Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-159C-102-CCC (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,320.86 AUD Regular price Sale price $2,320.86 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-159C-102-CCC (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel MSM-159C-102-CCC (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Regular price $2,320.86 AUD Regular price Sale price $2,320.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-159C-051-CCC Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $59.41 AUD Regular price Sale price $59.41 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-159C-051-CCC Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $59.41 AUD Regular price Sale price $59.41 AUD Unit price per Each View the product page first if you are unsure.
MSM-159C-051-CCC --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel MSM-159C-051-CCC --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel Regular price $59.41 AUD Regular price Sale price $59.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 11.10 mm	Overall Height 136.5 mm
Material: Steel Load Rating: 2100 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-159C-102-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 11.10 mm Overall Height: 136.5 mm Load Rating: 2100 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-159C-102-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Each View the product page first if you are unsure.
MSM-159C-102-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel MSM-159C-102-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Regular price $106.05 AUD Regular price Sale price $106.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 11.10 mm	Overall Height 85.7 mm
Material: Steel Load Rating: 2100 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-159C-051-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 11.10 mm Overall Height: 85.7 mm Load Rating: 2100 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-159C-051-CCCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Each View the product page first if you are unsure.
MSM-159C-051-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel MSM-159C-051-CCCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 32.0 mm _{(1.26 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 8.00 mm	Overall Height 83.0 mm
Material: Steel Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-160M-051-CCC Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $97.86 AUD Regular price Sale price $97.86 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 32.0 mm _{(1.26 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 8.00 mm Overall Height: 83.0 mm Load Rating: 2720 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-160M-051-CCC Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $97.86 AUD Regular price Sale price $97.86 AUD Unit price per Each View the product page first if you are unsure.
MSM-160M-051-CCC --- Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel MSM-160M-051-CCC --- Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel Regular price $97.86 AUD Regular price Sale price $97.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 12.70 mm	Overall Height 139.7 mm
Material: Steel Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-191C-102-CCC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 139.7 mm Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-191C-102-CCC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Each View the product page first if you are unsure.
MSM-191C-102-CCC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel MSM-191C-102-CCC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 12.70 mm	Overall Height 88.9 mm
Material: Steel Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-191C-051-CCC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 88.9 mm Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-191C-051-CCC Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Each View the product page first if you are unsure.
MSM-191C-051-CCC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel MSM-191C-051-CCC --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel Regular price $161.77 AUD Regular price Sale price $161.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 41.3 mm _{(1.626 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 15.88 mm	Overall Height 142.9 mm
Material: Steel Load Rating: 2520 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-191C-102-CCCRP Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $139.32 AUD Regular price Sale price $139.32 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 41.3 mm _{(1.626 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 15.88 mm Overall Height: 142.9 mm Load Rating: 2520 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber Padded
Part Number: MSM-191C-102-CCCRP Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $139.32 AUD Regular price Sale price $139.32 AUD Unit price per Each View the product page first if you are unsure.
MSM-191C-102-CCCRP --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel MSM-191C-102-CCCRP --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x41.3 mm - Steel Regular price $139.32 AUD Regular price Sale price $139.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm _{(2.992 in.)}	Foot Height (C) 38.0 mm _{(1.496 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 13.00 mm	Overall Height 89.0 mm
Material: Steel Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-200M-051-CCC Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Each
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm _{(2.992 in.)}	Foot Height (C) 38.0 mm _{(1.496 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 13.00 mm Overall Height: 89.0 mm Load Rating: 3270 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-200M-051-CCC Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Each View the product page first if you are unsure.
MSM-200M-051-CCC --- Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel MSM-200M-051-CCC --- Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel Regular price $129.59 AUD Regular price Sale price $129.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 47.6 mm _{(1.874 in.)}	Thread Length (F) 108.0 mm	Base Height (E) 10.32 mm	Overall Height 155.6 mm
Material: Steel Load Rating: 9980 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-254C-108-CCC (25 Pcs) Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $5,590.05 AUD Regular price Sale price $5,590.05 AUD Unit price per Per 25
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 47.6 mm _{(1.874 in.)}	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 155.6 mm Load Rating: 9980 Kg Finish: Clear Chromate Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Part Number: MSM-254C-108-CCC (25 Pcs) Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $5,590.05 AUD Regular price Sale price $5,590.05 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-254C-108-CCC (25 Pcs) --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel MSM-254C-108-CCC (25 Pcs) --- Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel Regular price $5,590.05 AUD Regular price Sale price $5,590.05 AUD Unit price per Out of stock! Backorder Now
