Collection: Mounts - Levelling Studded - Swivel - Black Chromate - Rubber Padded

Mounts (With Images)

Levelling Studded

Swivel

Black Chromate

Rubber Padded
Standard

36 Products in this selection

Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - Black Chromate - Rubber Padded. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height	Indicative Image

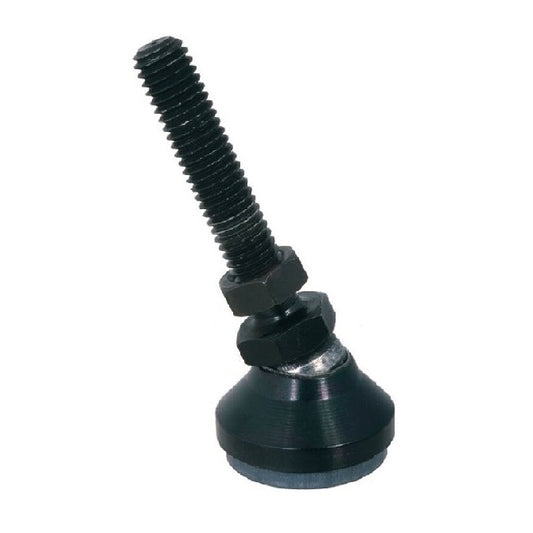

Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 31.8 mm	Base Height (E) 7.14 mm	Overall Height 52.8 mm
Material: Steel Load Rating: 360 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-CBCRP (250 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $15,937.41 AUD Regular price Sale price $15,937.41 AUD Unit price per Per 500
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 7.14 mm Overall Height: 52.8 mm Load Rating: 360 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-CBCRP (250 Pcs) Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $15,937.41 AUD Regular price Sale price $15,937.41 AUD Unit price per Per 500 View the product page first if you are unsure.
MSM-064C-032-CBCRP (250 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Steel MSM-064C-032-CBCRP (250 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Steel Regular price $15,937.41 AUD Regular price Sale price $15,937.41 AUD Unit price per Out of stock! Backorder Now

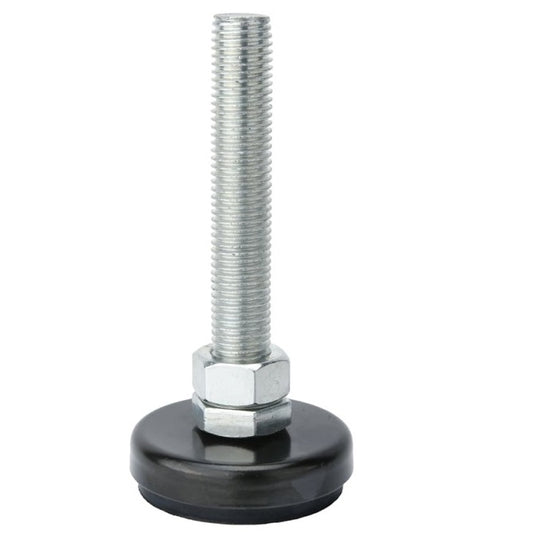

Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 22.50 mm _{(0.886 in.)}	Thread Length (F) 60.00 mm	Base Height (E) 17.00 mm	Overall Height 82.5 mm
Material: Steel Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MLM-080M-060-CZRP Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 22.50 mm _{(0.886 in.)}	Thread Length (F) 60.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 82.5 mm Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MLM-080M-060-CZRP Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-080M-060-CZRP --- Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel MLM-080M-060-CZRP --- Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 22.50 mm _{(0.886 in.)}	Thread Length (F) 60.00 mm	Base Height (E) 17.00 mm	Overall Height 82.5 mm
Material: Steel Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MLM-080M-060-S4RP (4 Pcs) Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $27.95 AUD Regular price Sale price $27.95 AUD Unit price per Per 4
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 22.50 mm _{(0.886 in.)}	Thread Length (F) 60.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 82.5 mm Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MLM-080M-060-S4RP (4 Pcs) Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $27.95 AUD Regular price Sale price $27.95 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-080M-060-S4RP (4 Pcs) --- Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel MLM-080M-060-S4RP (4 Pcs) --- Levelling Studded Mounts - M8 -8x1.25mm- 40x22.5 mm - Steel Regular price $27.95 AUD Regular price Sale price $27.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 127.0 mm
Material: Steel Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-CBCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.77 AUD Regular price Sale price $38.77 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 127.0 mm Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-CBCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.77 AUD Regular price Sale price $38.77 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-102-CBCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel MSM-095C-102-CBCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Regular price $38.77 AUD Regular price Sale price $38.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 76.2 mm
Material: Steel Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-CBCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.94 mm Overall Height: 76.2 mm Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-CBCRP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-051-CBCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel MSM-095C-051-CBCRP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Steel Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 25.0 mm _{(0.984 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 8.00 mm	Overall Height 76.0 mm
Material: Steel Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 17.000 mm
Part Number: MSM-100M-051-CBCRP Levelling Studded Mounts - M10 -10x1.5mm- 32x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.23 AUD Regular price Sale price $38.23 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 25.0 mm _{(0.984 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 8.00 mm Overall Height: 76.0 mm Load Rating: 1270 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 17.000 mm
Part Number: MSM-100M-051-CBCRP Levelling Studded Mounts - M10 -10x1.5mm- 32x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.23 AUD Regular price Sale price $38.23 AUD Unit price per Each View the product page first if you are unsure.
MSM-100M-051-CBCRP --- Levelling Studded Mounts - M10 -10x1.5mm- 32x25 mm - Steel MSM-100M-051-CBCRP --- Levelling Studded Mounts - M10 -10x1.5mm- 32x25 mm - Steel Regular price $38.23 AUD Regular price Sale price $38.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 24.00 mm _{(0.945 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 104.0 mm
Material: Steel Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-S4RP (4 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Per 4
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 24.00 mm _{(0.945 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 104.0 mm Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-S4RP (4 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-100M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel MLM-100M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 24.00 mm _{(0.945 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 104.0 mm
Material: Steel Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-CZRP Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 40.00 mm _{(1.575 in.)}	Foot Height (C) 24.00 mm _{(0.945 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 104.0 mm Load Rating: 350 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-CZRP Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
MLM-100M-080-CZRP --- Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel MLM-100M-080-CZRP --- Levelling Studded Mounts - M10 -10x1.5mm- 40x24 mm - Steel Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 17.00 mm	Overall Height 125.0 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-CZRP Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 125.0 mm Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-CZRP Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each View the product page first if you are unsure.
MLM-120M-100-CZRP --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel MLM-120M-100-CZRP --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 17.00 mm	Overall Height 125.0 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-S4RP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Per 4
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 125.0 mm Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-S4RP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-120M-100-S4RP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel MLM-120M-100-S4RP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 105.0 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-S4RP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Per 4
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 105.0 mm Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-S4RP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-120M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel MLM-120M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 105.0 mm
Material: Steel Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-CZRP Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 25.00 mm _{(0.984 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 105.0 mm Load Rating: 400 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-CZRP Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
MLM-120M-080-CZRP --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel MLM-120M-080-CZRP --- Levelling Studded Mounts - M12 -12x1.75mm- 50x25 mm - Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 9.53 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 1700 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-CBCRP (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,636.50 AUD Regular price Sale price $1,636.50 AUD Unit price per Per 25
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 9.53 mm Overall Height: 133.4 mm Load Rating: 1700 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-CBCRP (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,636.50 AUD Regular price Sale price $1,636.50 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-127C-102-CBCRP (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel MSM-127C-102-CBCRP (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Regular price $1,636.50 AUD Regular price Sale price $1,636.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 9.53 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 1700 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-CBCRP (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,468.50 AUD Regular price Sale price $1,468.50 AUD Unit price per Per 25
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 9.53 mm Overall Height: 82.6 mm Load Rating: 1700 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-CBCRP (25 Pcs) Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1,468.50 AUD Regular price Sale price $1,468.50 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-127C-051-CBCRP (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel MSM-127C-051-CBCRP (25 Pcs) --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel Regular price $1,468.50 AUD Regular price Sale price $1,468.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 11.11 mm	Overall Height 136.5 mm
Material: Steel Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CBCRP (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,071.86 AUD Regular price Sale price $2,071.86 AUD Unit price per Per 25
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 11.11 mm Overall Height: 136.5 mm Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CBCRP (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,071.86 AUD Regular price Sale price $2,071.86 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-159C-102-CBCRP (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel MSM-159C-102-CBCRP (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Regular price $2,071.86 AUD Regular price Sale price $2,071.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 11.11 mm	Overall Height 85.7 mm
Material: Steel Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CBCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 11.11 mm Overall Height: 85.7 mm Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CBCRP Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each View the product page first if you are unsure.
MSM-159C-051-CBCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel MSM-159C-051-CBCRP --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 17.00 mm	Overall Height 127.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 127.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-100-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-100-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 17.00 mm	Overall Height 127.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Per 4
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 127.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-160M-100-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-100-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 150.00 mm	Base Height (E) 17.00 mm	Overall Height 177.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 4
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 150.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 177.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-160M-150-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-150-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 150.00 mm	Base Height (E) 17.00 mm	Overall Height 177.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 150.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 177.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-150-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-150-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 107.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-080-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 4
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 107.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-080-S4RP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 4 View the product page first if you are unsure.
MLM-160M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-080-S4RP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 17.00 mm	Overall Height 107.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-080-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 27.00 mm _{(1.063 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 107.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-080-CZRP Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-080-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel MLM-160M-080-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 60x27 mm - Steel Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 35.0 mm _{(1.378 in.)}	Thread Length (F) 51.0 mm	Base Height (E) 11.00 mm	Overall Height 86.0 mm
Material: Steel Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 24.000 mm
Part Number: MSM-160M-051-CBCRP Levelling Studded Mounts - M16 -16x2mm- 64x35 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 35.0 mm _{(1.378 in.)}	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 11.00 mm Overall Height: 86.0 mm Load Rating: 2040 Kg Finish: Black Chromate Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 24.000 mm
Part Number: MSM-160M-051-CBCRP Levelling Studded Mounts - M16 -16x2mm- 64x35 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Each View the product page first if you are unsure.
MSM-160M-051-CBCRP --- Levelling Studded Mounts - M16 -16x2mm- 64x35 mm - Steel MSM-160M-051-CBCRP --- Levelling Studded Mounts - M16 -16x2mm- 64x35 mm - Steel Regular price $103.41 AUD Regular price Sale price $103.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 80.00 mm _{(3.15 in.)}	Foot Height (C) 29.00 mm _{(1.142 in.)}	Thread Length (F) 120.00 mm	Base Height (E) 17.00 mm	Overall Height 149.0 mm
Material: Steel Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-120-CZRP Levelling Studded Mounts - M16 -16x2mm- 80x29 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 80.00 mm _{(3.15 in.)}	Foot Height (C) 29.00 mm _{(1.142 in.)}	Thread Length (F) 120.00 mm
Material: Steel Base Height (E): 17.00 mm Overall Height: 149.0 mm Load Rating: 450 Kg Finish: Zinc Plated Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MLM-160M-120-CZRP Levelling Studded Mounts - M16 -16x2mm- 80x29 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-160M-120-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 80x29 mm - Steel MLM-160M-120-CZRP --- Levelling Studded Mounts - M16 -16x2mm- 80x29 mm - Steel Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
