Collection: Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber Padded

Mounts (With Images)

Levelling Studded

Swivel

303 Stainless

Acetal Base
Rubber Padded
Standard

40 Products in this selection

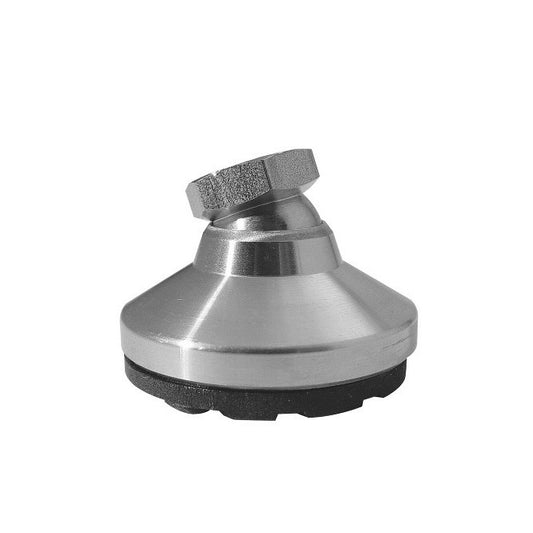

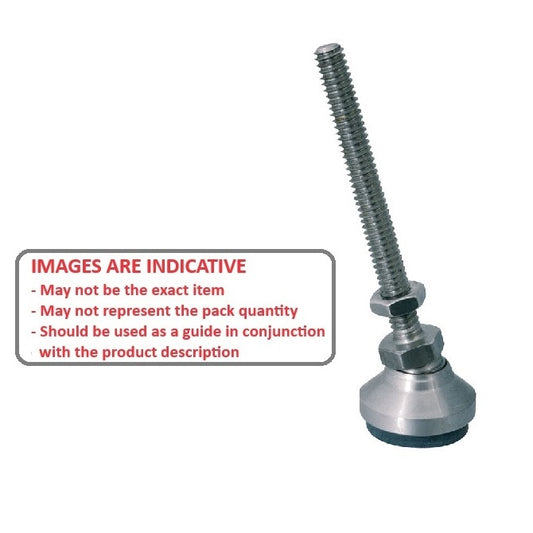

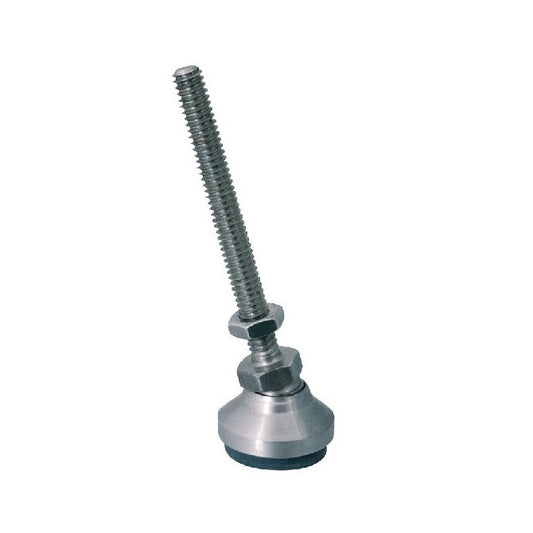

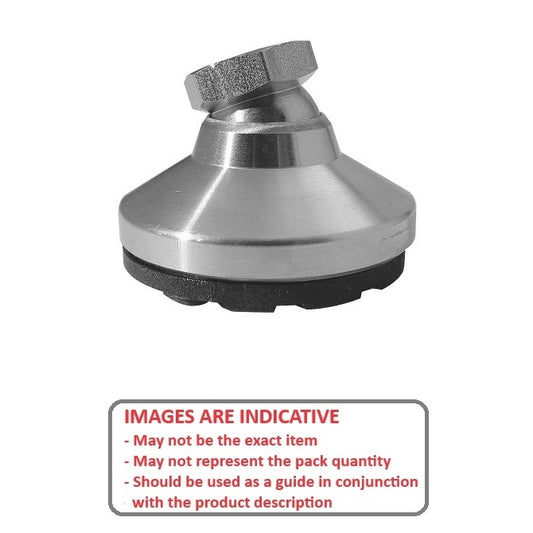

Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber Padded. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 16.7 mm _{(0.657 in.)}	Thread Length (F) 25.4 mm	Base Height (E) 5.95 mm	Overall Height 42.1 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 290 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3RP Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x16.7 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 16.7 mm _{(0.657 in.)}	Thread Length (F) 25.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 5.95 mm Overall Height: 42.1 mm Load Rating: 290 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 9.525 mm
Part Number: MSM-048F-025-S3RP Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x16.7 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-048F-025-S3RP --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x16.7 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-048F-025-S3RP --- Levelling Studded Mounts - 10-32 UNF -4.76mm- 19.1x16.7 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 31.8 mm	Base Height (E) 7.14 mm	Overall Height 52.8 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3RP Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.59 AUD Regular price Sale price $38.59 AUD Unit price per Each
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 31.8 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.14 mm Overall Height: 52.8 mm Load Rating: 450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-032-S3RP Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $38.59 AUD Regular price Sale price $38.59 AUD Unit price per Each View the product page first if you are unsure.
MSM-064C-032-S3RP --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-064C-032-S3RP --- Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $38.59 AUD Regular price Sale price $38.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 63.5 mm	Base Height (E) 7.14 mm	Overall Height 84.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 360 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-S3RP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $992.86 AUD Regular price Sale price $992.86 AUD Unit price per Per 25
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 63.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.14 mm Overall Height: 84.5 mm Load Rating: 360 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.700 mm
Part Number: MSM-064C-064-S3RP (25 Pcs) Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $992.86 AUD Regular price Sale price $992.86 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-064C-064-S3RP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-064C-064-S3RP (25 Pcs) --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x21 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $992.86 AUD Regular price Sale price $992.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.0 mm _{(0.984 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 32.0 mm	Base Height (E) 7.00 mm	Overall Height 53.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 340 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.000 mm
Part Number: MSM-080M-032-S3RP (25 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $881.68 AUD Regular price Sale price $881.68 AUD Unit price per Per 25
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.0 mm _{(0.984 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Thread Length (F) 32.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.00 mm Overall Height: 53.0 mm Load Rating: 340 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.000 mm
Part Number: MSM-080M-032-S3RP (25 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $881.68 AUD Regular price Sale price $881.68 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-080M-032-S3RP (25 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-080M-032-S3RP (25 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $881.68 AUD Regular price Sale price $881.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 34.50 mm _{(1.358 in.)}	Thread Length (F) 50.00 mm	Base Height (E) 26.00 mm	Overall Height 84.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 400 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MSM-080M-050-S4RP Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 34.50 mm _{(1.358 in.)}	Thread Length (F) 50.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 26.00 mm Overall Height: 84.5 mm Load Rating: 400 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MSM-080M-050-S4RP Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each View the product page first if you are unsure.
MSM-080M-050-S4RP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-080M-050-S4RP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 34.50 mm _{(1.358 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 26.00 mm	Overall Height 114.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 400 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MSM-080M-080-S4RP Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm _{(1.969 in.)}	Foot Height (C) 34.50 mm _{(1.358 in.)}	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 26.00 mm Overall Height: 114.5 mm Load Rating: 400 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 13.00 mm
Part Number: MSM-080M-080-S4RP Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
MSM-080M-080-S4RP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-080M-080-S4RP --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x34.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 127.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-S3RP Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $56.41 AUD Regular price Sale price $56.41 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 101.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Overall Height: 127.0 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-102-S3RP Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $56.41 AUD Regular price Sale price $56.41 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-102-S3RP --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-095C-102-S3RP --- Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $56.41 AUD Regular price Sale price $56.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 76.2 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3RP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.86 AUD Regular price Sale price $45.86 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 25.4 mm _{(1 in.)}	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Overall Height: 76.2 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.875 mm
Part Number: MSM-095C-051-S3RP Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.86 AUD Regular price Sale price $45.86 AUD Unit price per Each View the product page first if you are unsure.
MSM-095C-051-S3RP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-095C-051-S3RP --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $45.86 AUD Regular price Sale price $45.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 27.50 mm	Overall Height 136.0 mm
Material: Steel Load Rating: 500 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-100-CZRP (4 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 60x36 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Per 4
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 27.50 mm Overall Height: 136.0 mm Load Rating: 500 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-100-CZRP (4 Pcs) Levelling Studded Mounts - M10 -10x1.5mm- 60x36 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-100M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 60x36 mm - Steel MSM-100M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M10 -10x1.5mm- 60x36 mm - Steel Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 27.50 mm	Overall Height 136.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-100-S4RP Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 27.50 mm Overall Height: 136.0 mm Load Rating: 500 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-100-S4RP Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Each View the product page first if you are unsure.
MSM-100M-100-S4RP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-100M-100-S4RP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $22.86 AUD Regular price Sale price $22.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 27.50 mm	Overall Height 116.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 50 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-080-S4RP Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $22.41 AUD Regular price Sale price $22.41 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 27.50 mm Overall Height: 116.0 mm Load Rating: 50 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-080-S4RP Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $22.41 AUD Regular price Sale price $22.41 AUD Unit price per Each View the product page first if you are unsure.
MSM-100M-080-S4RP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-100M-080-S4RP --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $22.41 AUD Regular price Sale price $22.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 27.50 mm	Overall Height 116.0 mm
Material: Steel Load Rating: 50 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-080-CZRP (4 Pcs) Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 4
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 36.00 mm _{(1.417 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 27.50 mm Overall Height: 116.0 mm Load Rating: 50 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 17.00 mm
Part Number: MSM-100M-080-CZRP (4 Pcs) Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-100M-080-CZRP (4 Pcs) --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Steel MSM-100M-080-CZRP (4 Pcs) --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x36 mm - Steel Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 28.50 mm	Overall Height 137.0 mm
Material: Steel Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-100-CZRP (4 Pcs) Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Per 4
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 28.50 mm Overall Height: 137.0 mm Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-100-CZRP (4 Pcs) Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-120M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel MSM-120M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 28.50 mm	Overall Height 137.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-100-S4RP Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 28.50 mm Overall Height: 137.0 mm Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-100-S4RP Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each View the product page first if you are unsure.
MSM-120M-100-S4RP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-120M-100-S4RP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 120.00 mm	Base Height (E) 28.50 mm	Overall Height 157.0 mm
Material: Steel Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-120-CZRP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $47.32 AUD Regular price Sale price $47.32 AUD Unit price per Per 4
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 120.00 mm
Material: Steel Base Height (E): 28.50 mm Overall Height: 157.0 mm Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-120-CZRP (4 Pcs) Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $47.32 AUD Regular price Sale price $47.32 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-120M-120-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Steel MSM-120M-120-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Steel Regular price $47.32 AUD Regular price Sale price $47.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 120.00 mm	Base Height (E) 28.50 mm	Overall Height 157.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-120-S4RP Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 120.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 28.50 mm Overall Height: 157.0 mm Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-120-S4RP Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each View the product page first if you are unsure.
MSM-120M-120-S4RP --- Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-120M-120-S4RP --- Levelling Studded Mounts - M12 -12x1.75mm- 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 28.50 mm	Overall Height 117.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-080-S4RP Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $23.41 AUD Regular price Sale price $23.41 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 28.50 mm Overall Height: 117.0 mm Load Rating: 600 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-080-S4RP Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $23.41 AUD Regular price Sale price $23.41 AUD Unit price per Each View the product page first if you are unsure.
MSM-120M-080-S4RP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-120M-080-S4RP --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $23.41 AUD Regular price Sale price $23.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 80.00 mm	Base Height (E) 28.50 mm	Overall Height 117.0 mm
Material: Steel Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-080-CZRP (4 Pcs) Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $45.41 AUD Regular price Sale price $45.41 AUD Unit price per Per 4
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 37.00 mm _{(1.457 in.)}	Thread Length (F) 80.00 mm
Material: Steel Base Height (E): 28.50 mm Overall Height: 117.0 mm Load Rating: 600 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 19.00 mm
Part Number: MSM-120M-080-CZRP (4 Pcs) Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $45.41 AUD Regular price Sale price $45.41 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-120M-080-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel MSM-120M-080-CZRP (4 Pcs) --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm - Steel Regular price $45.41 AUD Regular price Sale price $45.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 9.53 mm	Overall Height 133.4 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1560 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S3RP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $84.50 AUD Regular price Sale price $84.50 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 101.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 9.53 mm Overall Height: 133.4 mm Load Rating: 1560 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-102-S3RP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $84.50 AUD Regular price Sale price $84.50 AUD Unit price per Each View the product page first if you are unsure.
MSM-127C-102-S3RP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-127C-102-S3RP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $84.50 AUD Regular price Sale price $84.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 9.53 mm	Overall Height 82.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-S3RP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $80.68 AUD Regular price Sale price $80.68 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 9.53 mm Overall Height: 82.6 mm Load Rating: 1700 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.050 mm
Part Number: MSM-127C-051-S3RP Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $80.68 AUD Regular price Sale price $80.68 AUD Unit price per Each View the product page first if you are unsure.
MSM-127C-051-S3RP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-127C-051-S3RP --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $80.68 AUD Regular price Sale price $80.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm	Base Height (E) 11.11 mm	Overall Height 85.7 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-S3RP (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,695.86 AUD Regular price Sale price $2,695.86 AUD Unit price per Per 25
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 34.9 mm _{(1.374 in.)}	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 11.11 mm Overall Height: 85.7 mm Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-S3RP (25 Pcs) Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2,695.86 AUD Regular price Sale price $2,695.86 AUD Unit price per Per 25 View the product page first if you are unsure.
MSM-159C-051-S3RP (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSM-159C-051-S3RP (25 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $2,695.86 AUD Regular price Sale price $2,695.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 30.50 mm	Overall Height 139.0 mm
Material: Steel Load Rating: 700 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-100-CZRP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Per 4
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 100.00 mm
Material: Steel Base Height (E): 30.50 mm Overall Height: 139.0 mm Load Rating: 700 Kg Finish: Zinc Plated Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-100-CZRP (4 Pcs) Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Per 4 View the product page first if you are unsure.
MSM-160M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Steel MSM-160M-100-CZRP (4 Pcs) --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Steel Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 100.00 mm	Base Height (E) 30.50 mm	Overall Height 139.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 700 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-100-S4RP Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 30.50 mm Overall Height: 139.0 mm Load Rating: 700 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-100-S4RP Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-160M-100-S4RP --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-160M-100-S4RP --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 120.00 mm	Base Height (E) 30.50 mm	Overall Height 159.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 700 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-120-S4RP Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm _{(2.362 in.)}	Foot Height (C) 39.00 mm _{(1.535 in.)}	Thread Length (F) 120.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 30.50 mm Overall Height: 159.0 mm Load Rating: 700 Kg Pad Thickness: 8.50 mm Pad Material: Rubber Hex Flats (B): 24.00 mm
Part Number: MSM-160M-120-S4RP Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
MSM-160M-120-S4RP --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MSM-160M-120-S4RP --- Levelling Studded Mounts - M16 -16x2mm- 60x39 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
