Collection: Mounts - Levelling Studded - Hygienic - 304 Stainless

Mounts (With Images)

Levelling Studded

Hygienic

304 Stainless
Anchoring

22 Products in this selection

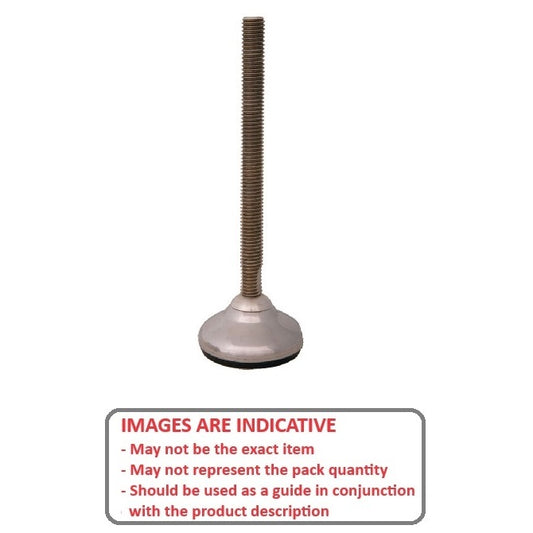

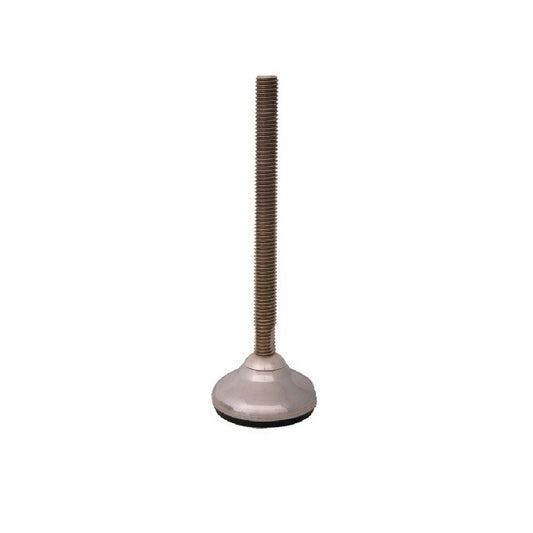

Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
Rubber base is vulcanised to the housing and contains no voids for a completely hygienic seal.
Full range of motion up to 10 degrees.
Pivot provides secure footing and vibration control.
Meets USDA requirements for food processing equipment.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Hygienic - 304 Stainless. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 33.0 mm	Overall Height 134.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-127C-102-S4HY Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $63.14 AUD Regular price Sale price $63.14 AUD Unit price per Each
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 101.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 134.6 mm Load Rating: 500 Kg
Part Number: MLM-127C-102-S4HY Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $63.14 AUD Regular price Sale price $63.14 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-102-S4HY --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-102-S4HY --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $63.14 AUD Regular price Sale price $63.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 33.0 mm	Overall Height 185.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-127C-152-S4HY-060 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 185.4 mm Load Rating: 500 Kg
Part Number: MLM-127C-152-S4HY-060 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-152-S4HY-060 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-152-S4HY-060 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $99.05 AUD Regular price Sale price $99.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 31.0 mm	Overall Height 132.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-127C-102-S4HY-080 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $144.05 AUD Regular price Sale price $144.05 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 101.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 132.6 mm Load Rating: 1000 Kg
Part Number: MLM-127C-102-S4HY-080 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $144.05 AUD Regular price Sale price $144.05 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-102-S4HY-080 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-102-S4HY-080 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $144.05 AUD Regular price Sale price $144.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 31.0 mm	Overall Height 183.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-127C-152-S4HY-080 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $124.32 AUD Regular price Sale price $124.32 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 183.4 mm Load Rating: 1000 Kg
Part Number: MLM-127C-152-S4HY-080 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $124.32 AUD Regular price Sale price $124.32 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-152-S4HY-080 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-152-S4HY-080 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $124.32 AUD Regular price Sale price $124.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 101.6 mm	Base Height (E) 34.0 mm	Overall Height 135.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-127C-102-S4HY-100 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $210.32 AUD Regular price Sale price $210.32 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 101.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 135.6 mm Load Rating: 1500 Kg
Part Number: MLM-127C-102-S4HY-100 Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $210.32 AUD Regular price Sale price $210.32 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-102-S4HY-100 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-102-S4HY-100 --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $210.32 AUD Regular price Sale price $210.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 34.0 mm	Overall Height 186.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-127C-152-S4HY Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $211.68 AUD Regular price Sale price $211.68 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 186.4 mm Load Rating: 1500 Kg
Part Number: MLM-127C-152-S4HY Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $211.68 AUD Regular price Sale price $211.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-127C-152-S4HY --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-127C-152-S4HY --- Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $211.68 AUD Regular price Sale price $211.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 33.0 mm	Overall Height 185.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-159C-152-S4HY-060 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.05 AUD Regular price Sale price $113.05 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 185.4 mm Load Rating: 500 Kg
Part Number: MLM-159C-152-S4HY-060 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.05 AUD Regular price Sale price $113.05 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-152-S4HY-060 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-152-S4HY-060 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $113.05 AUD Regular price Sale price $113.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 33.0 mm	Overall Height 236.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-159C-203-S4HY-060 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 236.2 mm Load Rating: 500 Kg
Part Number: MLM-159C-203-S4HY-060 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-203-S4HY-060 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-203-S4HY-060 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 31.0 mm	Overall Height 183.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-159C-152-S4HY-080 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 183.4 mm Load Rating: 1000 Kg
Part Number: MLM-159C-152-S4HY-080 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-152-S4HY-080 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-152-S4HY-080 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 31.0 mm	Overall Height 234.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-159C-203-S4HY-080 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $157.77 AUD Regular price Sale price $157.77 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 234.2 mm Load Rating: 1000 Kg
Part Number: MLM-159C-203-S4HY-080 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $157.77 AUD Regular price Sale price $157.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-203-S4HY-080 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-203-S4HY-080 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $157.77 AUD Regular price Sale price $157.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 34.0 mm	Overall Height 186.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-159C-152-S4HY-100 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $216.23 AUD Regular price Sale price $216.23 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 186.4 mm Load Rating: 1500 Kg
Part Number: MLM-159C-152-S4HY-100 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $216.23 AUD Regular price Sale price $216.23 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-152-S4HY-100 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-152-S4HY-100 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $216.23 AUD Regular price Sale price $216.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 34.0 mm	Overall Height 237.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-159C-203-S4HY-100 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 237.2 mm Load Rating: 1500 Kg
Part Number: MLM-159C-203-S4HY-100 Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Each View the product page first if you are unsure.
MLM-159C-203-S4HY-100 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-159C-203-S4HY-100 --- Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 33.0 mm	Overall Height 185.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-191C-152-S4HY-060 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $122.59 AUD Regular price Sale price $122.59 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 185.4 mm Load Rating: 500 Kg
Part Number: MLM-191C-152-S4HY-060 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $122.59 AUD Regular price Sale price $122.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-152-S4HY-060 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-152-S4HY-060 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $122.59 AUD Regular price Sale price $122.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 33.0 mm	Overall Height 236.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-191C-203-S4HY-060 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $140.86 AUD Regular price Sale price $140.86 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 236.2 mm Load Rating: 500 Kg
Part Number: MLM-191C-203-S4HY-060 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $140.86 AUD Regular price Sale price $140.86 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-203-S4HY-060 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-203-S4HY-060 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $140.86 AUD Regular price Sale price $140.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 31.0 mm	Overall Height 183.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-191C-152-S4HY Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 183.4 mm Load Rating: 1000 Kg
Part Number: MLM-191C-152-S4HY Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-152-S4HY --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-152-S4HY --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 31.0 mm	Overall Height 234.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-191C-203-S4HY-080 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $184.32 AUD Regular price Sale price $184.32 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 234.2 mm Load Rating: 1000 Kg
Part Number: MLM-191C-203-S4HY-080 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $184.32 AUD Regular price Sale price $184.32 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-203-S4HY-080 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-203-S4HY-080 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $184.32 AUD Regular price Sale price $184.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 34.0 mm	Overall Height 186.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-191C-152-S4HY-100 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 186.4 mm Load Rating: 1500 Kg
Part Number: MLM-191C-152-S4HY-100 Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-152-S4HY-100 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-152-S4HY-100 --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 34.0 mm	Overall Height 237.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1500 Kg
Part Number: MLM-191C-203-S4HY Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $238.59 AUD Regular price Sale price $238.59 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 100.1 mm _{(3.941 in.)}	Foot Height (C) 34.0 mm _{(1.339 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 34.0 mm Overall Height: 237.2 mm Load Rating: 1500 Kg
Part Number: MLM-191C-203-S4HY Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $238.59 AUD Regular price Sale price $238.59 AUD Unit price per Each View the product page first if you are unsure.
MLM-191C-203-S4HY --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-191C-203-S4HY --- Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x34 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $238.59 AUD Regular price Sale price $238.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 33.0 mm	Overall Height 185.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-222C-152-S4HY-060 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $149.77 AUD Regular price Sale price $149.77 AUD Unit price per Each
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 185.4 mm Load Rating: 500 Kg
Part Number: MLM-222C-152-S4HY-060 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $149.77 AUD Regular price Sale price $149.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-222C-152-S4HY-060 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-222C-152-S4HY-060 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $149.77 AUD Regular price Sale price $149.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 33.0 mm	Overall Height 236.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg
Part Number: MLM-222C-203-S4HY-060 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $170.23 AUD Regular price Sale price $170.23 AUD Unit price per Each
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 59.9 mm _{(2.358 in.)}	Foot Height (C) 33.0 mm _{(1.299 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 33.0 mm Overall Height: 236.2 mm Load Rating: 500 Kg
Part Number: MLM-222C-203-S4HY-060 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $170.23 AUD Regular price Sale price $170.23 AUD Unit price per Each View the product page first if you are unsure.
MLM-222C-203-S4HY-060 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-222C-203-S4HY-060 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 59.9x33 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $170.23 AUD Regular price Sale price $170.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm	Base Height (E) 31.0 mm	Overall Height 183.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-222C-152-S4HY-080 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $191.77 AUD Regular price Sale price $191.77 AUD Unit price per Each
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 152.4 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 183.4 mm Load Rating: 1000 Kg
Part Number: MLM-222C-152-S4HY-080 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $191.77 AUD Regular price Sale price $191.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-222C-152-S4HY-080 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-222C-152-S4HY-080 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $191.77 AUD Regular price Sale price $191.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm	Base Height (E) 31.0 mm	Overall Height 234.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 1000 Kg
Part Number: MLM-222C-203-S4HY-080 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $206.77 AUD Regular price Sale price $206.77 AUD Unit price per Each
Thread Size (A) 7/8-9 UNC (22.23mm)	Base Diameter (D) 80.0 mm _{(3.15 in.)}	Foot Height (C) 31.0 mm _{(1.22 in.)}	Thread Length (F) 203.2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 31.0 mm Overall Height: 234.2 mm Load Rating: 1000 Kg
Part Number: MLM-222C-203-S4HY-080 Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $206.77 AUD Regular price Sale price $206.77 AUD Unit price per Each View the product page first if you are unsure.
MLM-222C-203-S4HY-080 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 MLM-222C-203-S4HY-080 --- Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 80x31 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $206.77 AUD Regular price Sale price $206.77 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Mounts - Levelling Studded - Hygienic - 304 Stainless

Filter

Filter

Subscribe to our emails
