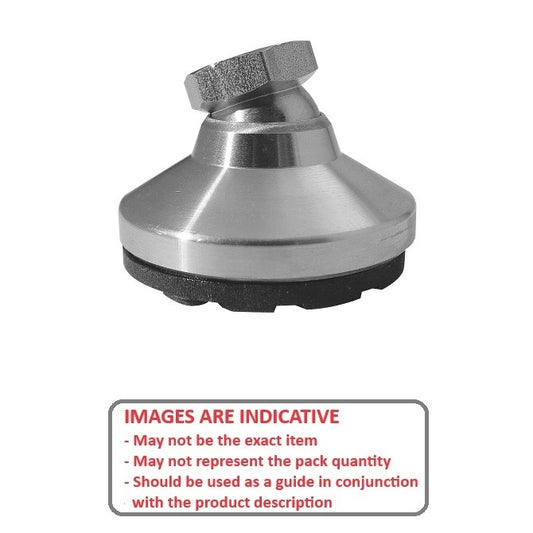

Mounts - Levelling Socket - Swivel - 316 Stainless

2 Products in this selection
  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Socket - Swivel - 316 Stainless. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Load Rating: 240 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S6RP Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$25.41 AUD
$25.41 AUD
Each
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Base Height (E): 2.79 mm    Load Rating: 240 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S6RP Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$25.41 AUD
$25.41 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm

(4 in.)
Foot Height (C)
47.6
mm

(1.874 in.)
Min. Thread Depth
20.6
mm
Base Height (E)
13.49
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Load Rating: 6800 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S6RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$359.50 AUD
$359.50 AUD
Each
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm

(4 in.)
Foot Height (C)
47.6
mm

(1.874 in.)
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Base Height (E): 13.49 mm    Load Rating: 6800 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S6RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$359.50 AUD
$359.50 AUD
Each
View the product page first if you are unsure.
