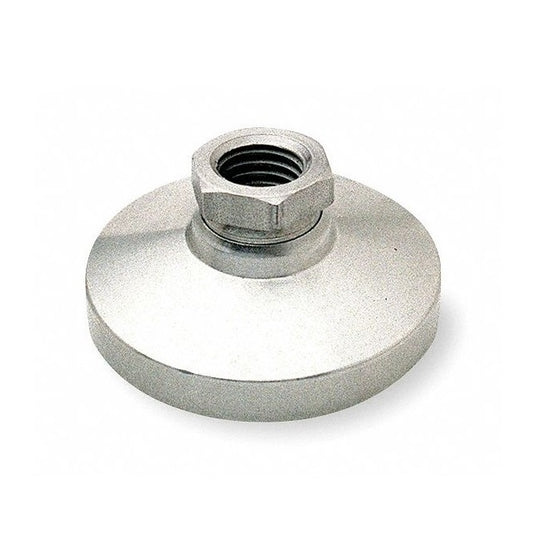

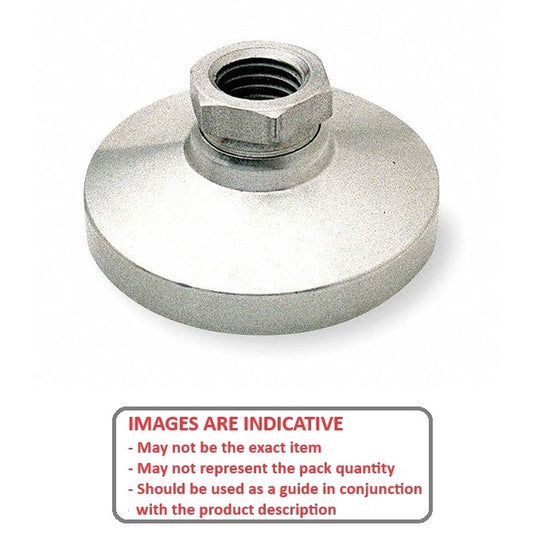

Mounts - Levelling Socket - Swivel - 303 Stainless - Standard

13 Products in this selection
  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Socket - Swivel - 303 Stainless - Standard. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 315 Kg    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3 (25 Pcs) Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$475.41 AUD
$475.41 AUD
Per 25
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel
Material: Stainless Steel    Base Height (E): 2.79 mm    Load Rating: 315 Kg    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3 (25 Pcs) Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$475.41 AUD
$475.41 AUD
Per 25
View the product page first if you are unsure.
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm

(0.748 in.)
Foot Height (C)
13.0
mm

(0.512 in.)
Min. Thread Depth
4.0
mm
Base Height (E)
3.00
mm
Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 315 Kg    Hex Flats (B): 10.00 mm
Part Number: MSF-060M-S3-040 Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$17.68 AUD
$17.68 AUD
Each
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.0
mm

(0.748 in.)
Foot Height (C)
13.0
mm

(0.512 in.)
Min. Thread Depth
4.0
mm
Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.00 mm    Load Rating: 315 Kg    Hex Flats (B): 10.00 mm
Part Number: MSF-060M-S3-040 Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$17.68 AUD
$17.68 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
5.8
mm
Base Height (E)
2.80
mm
Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 240 Kg    Hex Flats (B): 10.00 mm
Part Number: MSF-060M-S3-058 Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$21.68 AUD
$21.68 AUD
Each
Thread Size (A)
M6 (6x1mm)
Base Diameter (D)
19.1
mm

(0.752 in.)
Foot Height (C)
13.5
mm

(0.531 in.)
Min. Thread Depth
5.8
mm
Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.80 mm    Load Rating: 240 Kg    Hex Flats (B): 10.00 mm
Part Number: MSF-060M-S3-058 Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$21.68 AUD
$21.68 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm

(1 in.)
Foot Height (C)
17.8
mm

(0.701 in.)
Min. Thread Depth
7.9
mm
Base Height (E)
3.81
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 500 Kg    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3 Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$31.95 AUD
$31.95 AUD
Each
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
25.4
mm

(1 in.)
Foot Height (C)
17.8
mm

(0.701 in.)
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel
Material: Stainless Steel    Base Height (E): 3.81 mm    Load Rating: 500 Kg    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3 Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$31.95 AUD
$31.95 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M8 (8x1.25mm)
Base Diameter (D)
25.4
mm

(1 in.)
Foot Height (C)
17.8
mm

(0.701 in.)
Min. Thread Depth
7.9
mm
Base Height (E)
3.80
mm
Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 540 Kg    Hex Flats (B): 13.00 mm
Part Number: MSF-080M-S3 Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$32.86 AUD
$32.86 AUD
Each
Thread Size (A)
M8 (8x1.25mm)
Base Diameter (D)
25.4
mm

(1 in.)
Foot Height (C)
17.8
mm

(0.701 in.)
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.80 mm    Load Rating: 540 Kg    Hex Flats (B): 13.00 mm
Part Number: MSF-080M-S3 Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$32.86 AUD
$32.86 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm

(1.26 in.)
Foot Height (C)
22.0
mm

(0.866 in.)
Min. Thread Depth
9.7
mm
Base Height (E)
5.00
mm
Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1700 Kg    Hex Flats (B): 17.00 mm
Part Number: MSF-100M-S3 Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$39.41 AUD
$39.41 AUD
Each
Thread Size (A)
M10 (10x1.5mm)
Base Diameter (D)
32.0
mm

(1.26 in.)
Foot Height (C)
22.0
mm

(0.866 in.)
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 5.00 mm    Load Rating: 1700 Kg    Hex Flats (B): 17.00 mm
Part Number: MSF-100M-S3 Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$39.41 AUD
$39.41 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M12 (12x1.75mm)
Base Diameter (D)
48.0
mm

(1.89 in.)
Foot Height (C)
29.0
mm

(1.142 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
6.00
mm
Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1750 Kg    Hex Flats (B): 19.00 mm
Part Number: MSF-120M-S3 Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.32 AUD
$65.32 AUD
Each
Thread Size (A)
M12 (12x1.75mm)
Base Diameter (D)
48.0
mm

(1.89 in.)
Foot Height (C)
29.0
mm

(1.142 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 6.00 mm    Load Rating: 1750 Kg    Hex Flats (B): 19.00 mm
Part Number: MSF-120M-S3 Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.32 AUD
$65.32 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm

(1.874 in.)
Foot Height (C)
28.6
mm

(1.126 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
6.35
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 2270 Kg    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.05 AUD
$65.05 AUD
Each
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
47.6
mm

(1.874 in.)
Foot Height (C)
28.6
mm

(1.126 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel
Material: Stainless Steel    Base Height (E): 6.35 mm    Load Rating: 2270 Kg    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.05 AUD
$65.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm

(2.5 in.)
Foot Height (C)
31.8
mm

(1.252 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
7.94
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 2720 Kg    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-S3 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$88.77 AUD
$88.77 AUD
Each
Thread Size (A)
5/8-11 UNC (15.88mm)
Base Diameter (D)
63.5
mm

(2.5 in.)
Foot Height (C)
31.8
mm

(1.252 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel
Material: Stainless Steel    Base Height (E): 7.94 mm    Load Rating: 2720 Kg    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-S3 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$88.77 AUD
$88.77 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M16 (16x2mm)
Base Diameter (D)
64.0
mm

(2.52 in.)
Foot Height (C)
32.0
mm

(1.26 in.)
Min. Thread Depth
11.0
mm
Base Height (E)
8.00
mm
Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 2700 Kg    Hex Flats (B): 22.00 mm
Part Number: MSF-160M-S3 Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$111.50 AUD
$111.50 AUD
Each
Thread Size (A)
M16 (16x2mm)
Base Diameter (D)
64.0
mm

(2.52 in.)
Foot Height (C)
32.0
mm

(1.26 in.)
Min. Thread Depth
11.0
mm
Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 8.00 mm    Load Rating: 2700 Kg    Hex Flats (B): 22.00 mm
Part Number: MSF-160M-S3 Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$111.50 AUD
$111.50 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Min. Thread Depth
15.8
mm
Base Height (E)
12.70
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 3350 Kg    Hex Flats (B): 26.99 mm
Part Number: MSF-191C-S3 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$159.14 AUD
$159.14 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Min. Thread Depth
15.8
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel
Material: Stainless Steel    Base Height (E): 12.70 mm    Load Rating: 3350 Kg    Hex Flats (B): 26.99 mm
Part Number: MSF-191C-S3 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$159.14 AUD
$159.14 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M20 (20x2.5mm)
Base Diameter (D)
76.0
mm

(2.992 in.)
Foot Height (C)
38.0
mm

(1.496 in.)
Min. Thread Depth
15.7
mm
Base Height (E)
13.00
mm
Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 3270 Kg    Hex Flats (B): 30.00 mm
Part Number: MSF-200M-S3 Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$178.05 AUD
$178.05 AUD
Each
Thread Size (A)
M20 (20x2.5mm)
Base Diameter (D)
76.0
mm

(2.992 in.)
Foot Height (C)
38.0
mm

(1.496 in.)
Min. Thread Depth
15.7
mm
Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 13.00 mm    Load Rating: 3270 Kg    Hex Flats (B): 30.00 mm
Part Number: MSF-200M-S3 Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$178.05 AUD
$178.05 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
M24 (24x3mm)
Base Diameter (D)
102.0
mm

(4.016 in.)
Foot Height (C)
48.0
mm

(1.89 in.)
Min. Thread Depth
20.6
mm
Base Height (E)
10.00
mm
Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 7660 Kg    Hex Flats (B): 35.00 mm
Part Number: MSF-240M-S3 Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$254.50 AUD
$254.50 AUD
Each
Thread Size (A)
M24 (24x3mm)
Base Diameter (D)
102.0
mm

(4.016 in.)
Foot Height (C)
48.0
mm

(1.89 in.)
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 10.00 mm    Load Rating: 7660 Kg    Hex Flats (B): 35.00 mm
Part Number: MSF-240M-S3 Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$254.50 AUD
$254.50 AUD
Each
View the product page first if you are unsure.
