| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Min. Thread Depth | Base Height (E) | Overall Height |

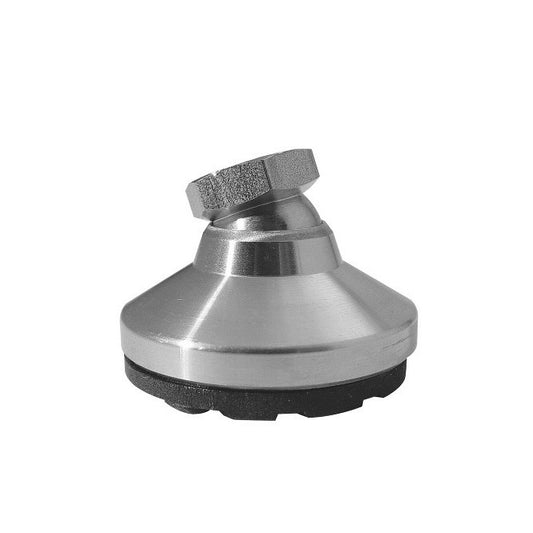

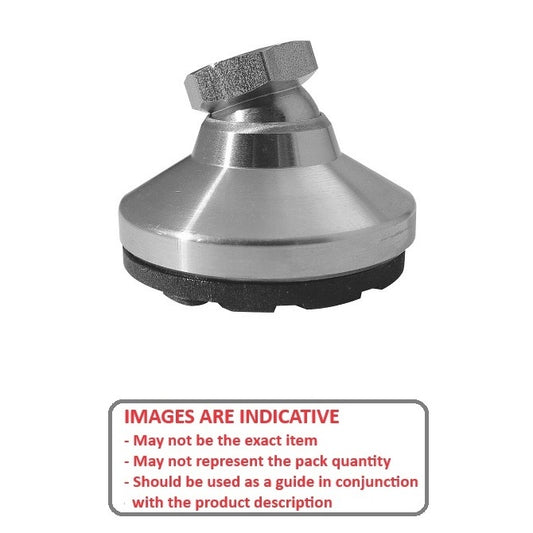

Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Base Diameter (D)
25.4
mm (1 in.) |
Foot Height (C)
17.8
mm (0.701 in.) |
Min. Thread Depth
7.9
mm |
Base Height (E)
3.81
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.7 mm | ||||||
|
Part Number: MSF-064C-S3RP Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
12 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025 Regular price
$28.41 AUD
Regular price
Unit price
per
Each
|
||||||
| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Min. Thread Depth |
Indicative Image |
||
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Base Diameter (D)
25.4
mm (1 in.) |
Foot Height (C)
17.8
mm (0.701 in.) |
Min. Thread Depth
7.9
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.81 mm Load Rating: 450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.7 mm | ||||||
|
Part Number: MSF-064C-S3RP Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
12 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025 Regular price
$28.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Base Diameter (D)
25.0
mm (0.984 in.) |
Foot Height (C)
21.0
mm (0.827 in.) |
Min. Thread Depth
8.0
mm |
Base Height (E)
7.00
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 340 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.00 mm | ||||||
|
Part Number: MSF-080M-S3RP Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Base Diameter (D)
25.0
mm (0.984 in.) |
Foot Height (C)
21.0
mm (0.827 in.) |
Min. Thread Depth
8.0
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.00 mm Load Rating: 340 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 12.00 mm | ||||||
|
Part Number: MSF-080M-S3RP Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
3/8-16 UNC (9.53mm)
|
Base Diameter (D)
31.8
mm (1.252 in.) |
Foot Height (C)
22.2
mm (0.874 in.) |
Min. Thread Depth
9.7
mm |
Base Height (E)
4.76
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.88 mm | ||||||
|
Part Number: MSF-095C-S3RP Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$23.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
3/8-16 UNC (9.53mm)
|
Base Diameter (D)
31.8
mm (1.252 in.) |
Foot Height (C)
22.2
mm (0.874 in.) |
Min. Thread Depth
9.7
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 4.76 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 15.88 mm | ||||||
|
Part Number: MSF-095C-S3RP Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$23.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Base Diameter (D)
32.0
mm (1.26 in.) |
Foot Height (C)
25.0
mm (0.984 in.) |
Min. Thread Depth
10.0
mm |
Base Height (E)
8.00
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 16.00 mm | ||||||
|
Part Number: MSF-100M-S3RP Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Base Diameter (D)
32.0
mm (1.26 in.) |
Foot Height (C)
25.0
mm (0.984 in.) |
Min. Thread Depth
10.0
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 8.00 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 16.00 mm | ||||||
|
Part Number: MSF-100M-S3RP Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
1/2-13 UNC (12.7mm)
|
Base Diameter (D)
47.6
mm (1.874 in.) |
Foot Height (C)
28.6
mm (1.126 in.) |
Min. Thread Depth
11.2
mm |
Base Height (E)
6.35
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.05 mm | ||||||
|
Part Number: MSF-127C-S3RP Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$70.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
1/2-13 UNC (12.7mm)
|
Base Diameter (D)
47.6
mm (1.874 in.) |
Foot Height (C)
28.6
mm (1.126 in.) |
Min. Thread Depth
11.2
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.35 mm Load Rating: 1700 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 19.05 mm | ||||||
|
Part Number: MSF-127C-S3RP Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$70.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (2.5 in.) |
Foot Height (C)
31.8
mm (1.252 in.) |
Min. Thread Depth
11.2
mm |
Base Height (E)
7.94
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.23 mm | ||||||
|
Part Number: MSF-159C-S3RP Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$103.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (2.5 in.) |
Foot Height (C)
31.8
mm (1.252 in.) |
Min. Thread Depth
11.2
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.23 mm | ||||||
|
Part Number: MSF-159C-S3RP Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$103.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
M16 (16x2mm)
|
Base Diameter (D)
64.0
mm (2.52 in.) |
Foot Height (C)
35.0
mm (1.378 in.) |
Min. Thread Depth
11.0
mm |
Base Height (E)
11.00
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.00 mm | ||||||
|
Part Number: MSF-160M-S3RP Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$101.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
M16 (16x2mm)
|
Base Diameter (D)
64.0
mm (2.52 in.) |
Foot Height (C)
35.0
mm (1.378 in.) |
Min. Thread Depth
11.0
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 11.00 mm Load Rating: 2040 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 22.00 mm | ||||||
|
Part Number: MSF-160M-S3RP Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$101.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (3 in.) |
Foot Height (C)
38.1
mm (1.5 in.) |
Min. Thread Depth
15.8
mm |
Base Height (E)
12.70
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 26.99 mm | ||||||
|
Part Number: MSF-191C-S3RP Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
2 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025 Regular price
$148.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (3 in.) |
Foot Height (C)
38.1
mm (1.5 in.) |
Min. Thread Depth
15.8
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 12.70 mm Load Rating: 2450 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 26.99 mm | ||||||
|
Part Number: MSF-191C-S3RP Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
2 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025 Regular price
$148.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (A)
1-8 UNC (25.4mm)
|
Base Diameter (D)
101.6
mm (4 in.) |
Foot Height (C)
47.6
mm (1.874 in.) |
Min. Thread Depth
20.6
mm |
Base Height (E)
13.49
mm |
|
|
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 9530 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 34.93 mm | ||||||
|
Part Number: MSF-254C-S3RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$252.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (A)
1-8 UNC (25.4mm)
|
Base Diameter (D)
101.6
mm (4 in.) |
Foot Height (C)
47.6
mm (1.874 in.) |
Min. Thread Depth
20.6
mm |
|
||
| Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 13.49 mm Load Rating: 9530 Kg Pad Thickness: 3.2 mm Pad Material: Elastomer Hex Flats (B): 34.93 mm | ||||||
|
Part Number: MSF-254C-S3RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025 Regular price
$252.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
