Collection: Mounts - Levelling Socket - Swivel - 303 Stainless

Mounts (With Images)

Levelling Socket

Swivel

303 Stainless

22 Products in this selection

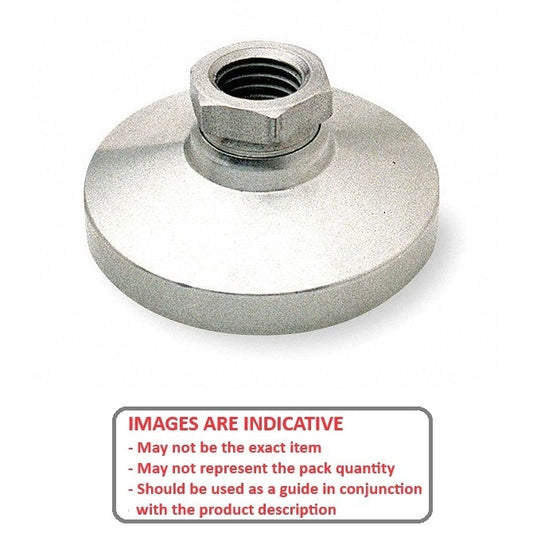

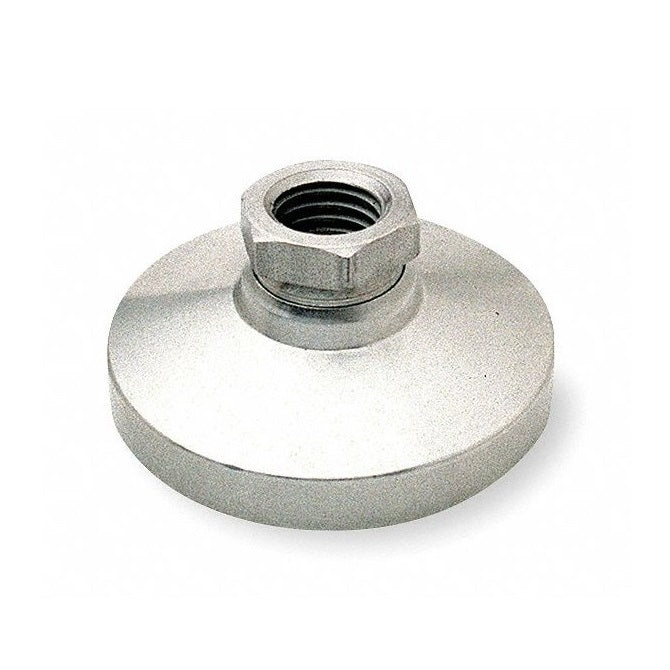

This is a combined category of 303 Stainless Swivel Levelling Socket Mounts.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Socket - Swivel - 303 Stainless. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Min. Thread Depth	Base Height (E)
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Min. Thread Depth 4.3 mm	Base Height (E) 2.79 mm
Material: Stainless Steel Load Rating: 315 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-048F-S3 (25 Pcs) Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $475.41 AUD Regular price Sale price $475.41 AUD Unit price per Per 25
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Min. Thread Depth	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Min. Thread Depth 4.3 mm
Material: Stainless Steel Base Height (E): 2.79 mm Load Rating: 315 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-048F-S3 (25 Pcs) Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $475.41 AUD Regular price Sale price $475.41 AUD Unit price per Per 25 View the product page first if you are unsure.
MSF-048F-S3 (25 Pcs) --- Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel MSF-048F-S3 (25 Pcs) --- Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel Regular price $475.41 AUD Regular price Sale price $475.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.0 mm _{(0.748 in.)}	Foot Height (C) 13.0 mm _{(0.512 in.)}	Min. Thread Depth 4.0 mm	Base Height (E) 3.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 315 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-060M-S3-040 Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.0 mm _{(0.748 in.)}	Foot Height (C) 13.0 mm _{(0.512 in.)}	Min. Thread Depth 4.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.00 mm Load Rating: 315 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-060M-S3-040 Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each View the product page first if you are unsure.
MSF-060M-S3-040 --- Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-060M-S3-040 --- Levelling Socket Mounts - M6 -6x1mm- 19x13 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Min. Thread Depth 5.8 mm	Base Height (E) 2.80 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 240 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-060M-S3-058 Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Each
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm _{(0.752 in.)}	Foot Height (C) 13.5 mm _{(0.531 in.)}	Min. Thread Depth 5.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 2.80 mm Load Rating: 240 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-060M-S3-058 Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Each View the product page first if you are unsure.
MSF-060M-S3-058 --- Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-060M-S3-058 --- Levelling Socket Mounts - M6 -6x1mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm	Base Height (E) 3.81 mm
Material: Stainless Steel Load Rating: 500 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-064C-S3 Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Each
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm
Material: Stainless Steel Base Height (E): 3.81 mm Load Rating: 500 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-064C-S3 Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Each View the product page first if you are unsure.
MSF-064C-S3 --- Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel MSF-064C-S3 --- Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm	Base Height (E) 3.81 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 450 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded

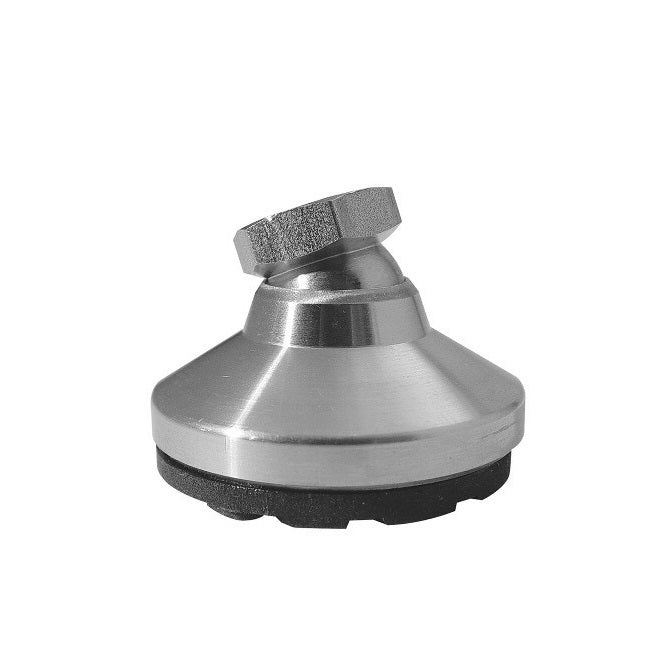

Part Number: MSF-064C-S3RP Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 12 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.81 mm Load Rating: 450 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-064C-S3RP Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 12 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each View the product page first if you are unsure.
MSF-064C-S3RP --- Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale MSF-064C-S3RP --- Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per 12 Available Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.0 mm _{(0.984 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Min. Thread Depth 8.0 mm	Base Height (E) 7.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 340 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-080M-S3RP Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.0 mm _{(0.984 in.)}	Foot Height (C) 21.0 mm _{(0.827 in.)}	Min. Thread Depth 8.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.00 mm Load Rating: 340 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-080M-S3RP Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each View the product page first if you are unsure.
MSF-080M-S3RP --- Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-080M-S3RP --- Levelling Socket Mounts - M8 -8x1.25mm- 25x21 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm	Base Height (E) 3.80 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 540 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-080M-S3 Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Each
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm _{(1 in.)}	Foot Height (C) 17.8 mm _{(0.701 in.)}	Min. Thread Depth 7.9 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.80 mm Load Rating: 540 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-080M-S3 Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Each View the product page first if you are unsure.
MSF-080M-S3 --- Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-080M-S3 --- Levelling Socket Mounts - M8 -8x1.25mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Min. Thread Depth 9.7 mm	Base Height (E) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-095C-S3RP Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm _{(1.252 in.)}	Foot Height (C) 22.2 mm _{(0.874 in.)}	Min. Thread Depth 9.7 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 4.76 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-095C-S3RP Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each View the product page first if you are unsure.
MSF-095C-S3RP --- Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-095C-S3RP --- Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 22.0 mm _{(0.866 in.)}	Min. Thread Depth 9.7 mm	Base Height (E) 5.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-100M-S3 Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 22.0 mm _{(0.866 in.)}	Min. Thread Depth 9.7 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 5.00 mm Load Rating: 1700 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-100M-S3 Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each View the product page first if you are unsure.
MSF-100M-S3 --- Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-100M-S3 --- Levelling Socket Mounts - M10 -10x1.5mm- 32x22 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 25.0 mm _{(0.984 in.)}	Min. Thread Depth 10.0 mm	Base Height (E) 8.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1270 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-100M-S3RP Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm _{(1.26 in.)}	Foot Height (C) 25.0 mm _{(0.984 in.)}	Min. Thread Depth 10.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 8.00 mm Load Rating: 1270 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-100M-S3RP Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each View the product page first if you are unsure.
MSF-100M-S3RP --- Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-100M-S3RP --- Levelling Socket Mounts - M10 -10x1.5mm- 32x25 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm _{(1.89 in.)}	Foot Height (C) 29.0 mm _{(1.142 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1750 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-120M-S3 Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Each
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm _{(1.89 in.)}	Foot Height (C) 29.0 mm _{(1.142 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.00 mm Load Rating: 1750 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-120M-S3 Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Each View the product page first if you are unsure.
MSF-120M-S3 --- Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-120M-S3 --- Levelling Socket Mounts - M12 -12x1.75mm- 48x29 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $65.32 AUD Regular price Sale price $65.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 6.35 mm
Material: Stainless Steel Load Rating: 2270 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-127C-S3 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel Base Height (E): 6.35 mm Load Rating: 2270 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-127C-S3 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Each View the product page first if you are unsure.
MSF-127C-S3 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel MSF-127C-S3 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-127C-S3RP Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $70.05 AUD Regular price Sale price $70.05 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.35 mm Load Rating: 1700 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-127C-S3RP Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $70.05 AUD Regular price Sale price $70.05 AUD Unit price per Each View the product page first if you are unsure.
MSF-127C-S3RP --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-127C-S3RP --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $70.05 AUD Regular price Sale price $70.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2040 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-159C-S3RP Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $103.59 AUD Regular price Sale price $103.59 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Load Rating: 2040 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-159C-S3RP Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $103.59 AUD Regular price Sale price $103.59 AUD Unit price per Each View the product page first if you are unsure.
MSF-159C-S3RP --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-159C-S3RP --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $103.59 AUD Regular price Sale price $103.59 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 7.94 mm
Material: Stainless Steel Load Rating: 2720 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-159C-S3 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel Base Height (E): 7.94 mm Load Rating: 2720 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-159C-S3 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Each View the product page first if you are unsure.
MSF-159C-S3 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel MSF-159C-S3 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 32.0 mm _{(1.26 in.)}	Min. Thread Depth 11.0 mm	Base Height (E) 8.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2700 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-160M-S3 Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 32.0 mm _{(1.26 in.)}	Min. Thread Depth 11.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 8.00 mm Load Rating: 2700 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-160M-S3 Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Each View the product page first if you are unsure.
MSF-160M-S3 --- Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-160M-S3 --- Levelling Socket Mounts - M16 -16x2mm- 64x32 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 35.0 mm _{(1.378 in.)}	Min. Thread Depth 11.0 mm	Base Height (E) 11.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2040 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-160M-S3RP Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Each
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm _{(2.52 in.)}	Foot Height (C) 35.0 mm _{(1.378 in.)}	Min. Thread Depth 11.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 11.00 mm Load Rating: 2040 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-160M-S3RP Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Each View the product page first if you are unsure.
MSF-160M-S3RP --- Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-160M-S3RP --- Levelling Socket Mounts - M16 -16x2mm- 64x35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm	Base Height (E) 12.70 mm
Material: Stainless Steel Load Rating: 3350 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-191C-S3 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $159.14 AUD Regular price Sale price $159.14 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm
Material: Stainless Steel Base Height (E): 12.70 mm Load Rating: 3350 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-191C-S3 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $159.14 AUD Regular price Sale price $159.14 AUD Unit price per Each View the product page first if you are unsure.
MSF-191C-S3 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel MSF-191C-S3 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel Regular price $159.14 AUD Regular price Sale price $159.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm	Base Height (E) 12.70 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2450 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-191C-S3RP Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $148.41 AUD Regular price ~~$178.09 AUD~~ Sale price $148.41 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 12.70 mm Load Rating: 2450 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-191C-S3RP Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $148.41 AUD Regular price ~~$178.09 AUD~~ Sale price $148.41 AUD Unit price per Each View the product page first if you are unsure.
MSF-191C-S3RP --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale MSF-191C-S3RP --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $148.41 AUD Regular price ~~$178.09 AUD~~ Sale price $148.41 AUD Unit price per 2 Available Now Sale
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm _{(2.992 in.)}	Foot Height (C) 38.0 mm _{(1.496 in.)}	Min. Thread Depth 15.7 mm	Base Height (E) 13.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 3270 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-200M-S3 Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $178.05 AUD Regular price Sale price $178.05 AUD Unit price per Each
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm _{(2.992 in.)}	Foot Height (C) 38.0 mm _{(1.496 in.)}	Min. Thread Depth 15.7 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 13.00 mm Load Rating: 3270 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-200M-S3 Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $178.05 AUD Regular price Sale price $178.05 AUD Unit price per Each View the product page first if you are unsure.
MSF-200M-S3 --- Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-200M-S3 --- Levelling Socket Mounts - M20 -20x2.5mm- 76x38 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $178.05 AUD Regular price Sale price $178.05 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm _{(4.016 in.)}	Foot Height (C) 48.0 mm _{(1.89 in.)}	Min. Thread Depth 20.6 mm	Base Height (E) 10.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 7660 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-240M-S3 Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $254.50 AUD Regular price Sale price $254.50 AUD Unit price per Each
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm _{(4.016 in.)}	Foot Height (C) 48.0 mm _{(1.89 in.)}	Min. Thread Depth 20.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 10.00 mm Load Rating: 7660 Kg Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Standard
Part Number: MSF-240M-S3 Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $254.50 AUD Regular price Sale price $254.50 AUD Unit price per Each View the product page first if you are unsure.
MSF-240M-S3 --- Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-240M-S3 --- Levelling Socket Mounts - M24 -24x3mm- 102x48 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $254.50 AUD Regular price Sale price $254.50 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 47.6 mm _{(1.874 in.)}	Min. Thread Depth 20.6 mm	Base Height (E) 13.49 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 9530 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-254C-S3RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $252.23 AUD Regular price Sale price $252.23 AUD Unit price per Each
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 47.6 mm _{(1.874 in.)}	Min. Thread Depth 20.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 13.49 mm Load Rating: 9530 Kg Pad Thickness: 3.2 mm Category: Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded
Part Number: MSF-254C-S3RP Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $252.23 AUD Regular price Sale price $252.23 AUD Unit price per Each View the product page first if you are unsure.
MSF-254C-S3RP --- Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 MSF-254C-S3RP --- Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $252.23 AUD Regular price Sale price $252.23 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Mounts - Levelling Socket - Swivel - 303 Stainless

Filter

Filter

Subscribe to our emails
