Collection: Mounts - Levelling Socket - Standard

Mounts (With Images)

Levelling Socket

Standard

Swivel

9 Products in this selection

This is a combined category of Standard Levelling Socket Mounts.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:

A more concise listing may be found on the Smallparts store at Mounts - Levelling Socket - Standard. Smallparts promote the most popular MBA products.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Min. Thread Depth	Base Height (E)	Overall Height
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 6.35 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Load Rating: 2270 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless

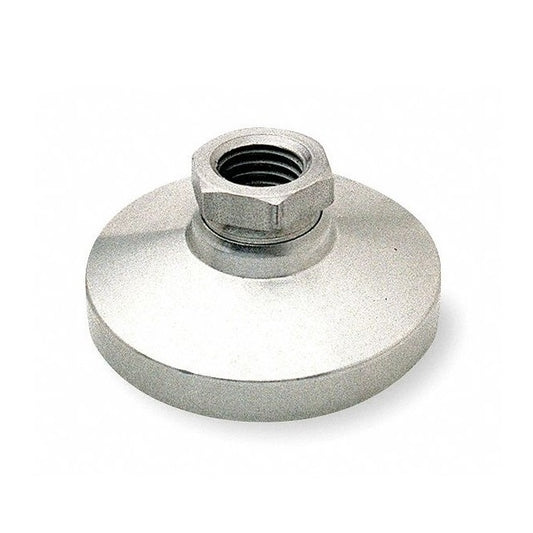

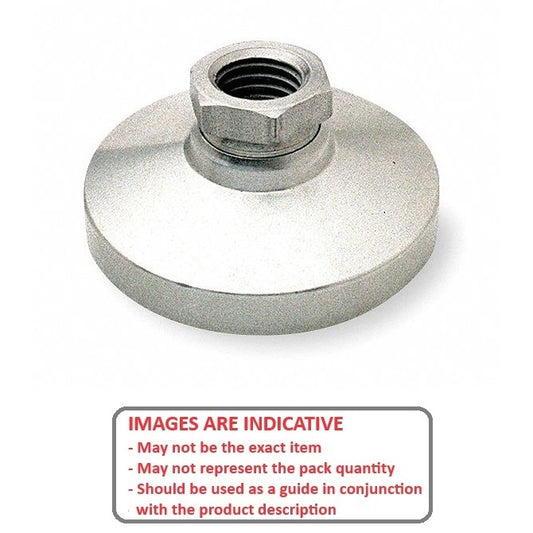

Part Number: MLF-127C-S6 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Min. Thread Depth	Indicative Image
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm _{(1.874 in.)}	Foot Height (C) 28.6 mm _{(1.126 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Base Height (E): 6.35 mm Load Rating: 2270 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless
Part Number: MLF-127C-S6 Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each View the product page first if you are unsure.
MLF-127C-S6 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10 MLF-127C-S6 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}			Overall Height 34.29 mm

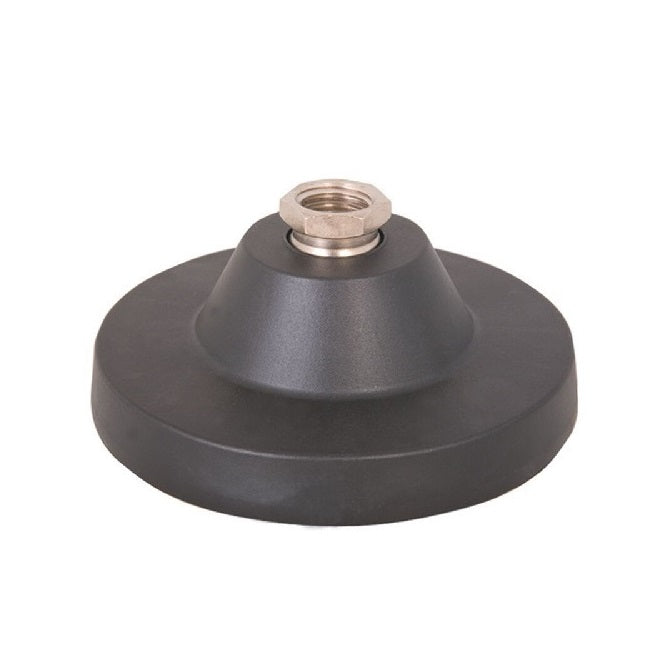

Material: Stainless Steel Load Rating: 1180 Kg Category: Mounts - Levelling Socket - Standard - Nylon

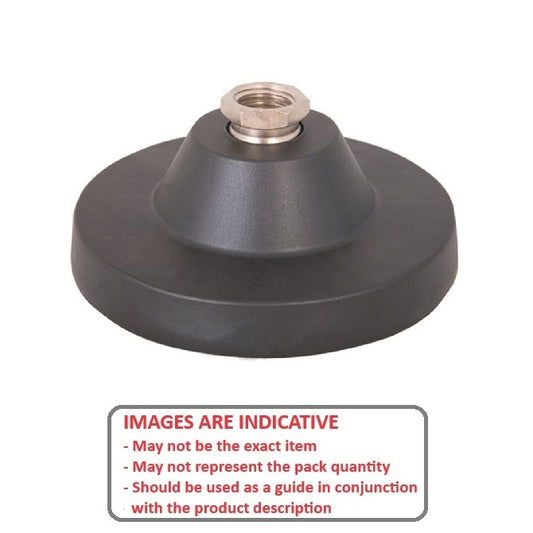

Part Number: MLF-127C-S3NY-2LH Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}
Material: Stainless Steel Overall Height: 34.29 mm Load Rating: 1180 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-127C-S3NY-2LH Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Each View the product page first if you are unsure.
MLF-127C-S3NY-2LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel MLF-127C-S3NY-2LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}			Overall Height 34.29 mm
Material: Stainless Steel Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-127C-S3NY-0LH Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Each
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}
Material: Stainless Steel Overall Height: 34.29 mm Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-127C-S3NY-0LH Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Each View the product page first if you are unsure.
MLF-127C-S3NY-0LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel MLF-127C-S3NY-0LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel Regular price $68.14 AUD Regular price Sale price $68.14 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm	Base Height (E) 7.94 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Load Rating: 2720 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless
Part Number: MLF-159C-S6 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $116.32 AUD Regular price Sale price $116.32 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm _{(2.5 in.)}	Foot Height (C) 31.8 mm _{(1.252 in.)}	Min. Thread Depth 11.2 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Base Height (E): 7.94 mm Load Rating: 2720 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless
Part Number: MLF-159C-S6 Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $116.32 AUD Regular price Sale price $116.32 AUD Unit price per Each View the product page first if you are unsure.
MLF-159C-S6 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10 MLF-159C-S6 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10 Regular price $116.32 AUD Regular price Sale price $116.32 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}			Overall Height 34.29 mm
Material: Stainless Steel Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-159C-S3NY-0LH Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $72.68 AUD Regular price Sale price $72.68 AUD Unit price per Each
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}
Material: Stainless Steel Overall Height: 34.29 mm Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-159C-S3NY-0LH Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $72.68 AUD Regular price Sale price $72.68 AUD Unit price per Each View the product page first if you are unsure.
MLF-159C-S3NY-0LH --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel MLF-159C-S3NY-0LH --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel Regular price $72.68 AUD Regular price Sale price $72.68 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm	Base Height (E) 12.70 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Load Rating: 3350 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless
Part Number: MLF-191C-S6 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $173.23 AUD Regular price Sale price $173.23 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm _{(3 in.)}	Foot Height (C) 38.1 mm _{(1.5 in.)}	Min. Thread Depth 15.8 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Base Height (E): 12.70 mm Load Rating: 3350 Kg Category: Mounts - Levelling Socket - Standard - 316 Stainless
Part Number: MLF-191C-S6 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $173.23 AUD Regular price Sale price $173.23 AUD Unit price per Each View the product page first if you are unsure.
MLF-191C-S6 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10 MLF-191C-S6 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10 Regular price $173.23 AUD Regular price Sale price $173.23 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}			Overall Height 34.29 mm
Material: Stainless Steel Load Rating: 1180 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-2LH Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $73.41 AUD Regular price Sale price $73.41 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}
Material: Stainless Steel Overall Height: 34.29 mm Load Rating: 1180 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-2LH Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $73.41 AUD Regular price Sale price $73.41 AUD Unit price per Each View the product page first if you are unsure.
MLF-191C-S3NY-2LH --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel MLF-191C-S3NY-2LH --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Regular price $73.41 AUD Regular price Sale price $73.41 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}			Overall Height 34.29 mm
Material: Stainless Steel Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-0LH-102 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.77 AUD Regular price Sale price $65.77 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 101.6 mm _{(4 in.)}	Foot Height (C) 18.5 mm _{(0.728 in.)}
Material: Stainless Steel Overall Height: 34.29 mm Load Rating: 1170 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-0LH-102 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $65.77 AUD Regular price Sale price $65.77 AUD Unit price per Each View the product page first if you are unsure.
MLF-191C-S3NY-0LH-102 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel MLF-191C-S3NY-0LH-102 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel Regular price $65.77 AUD Regular price Sale price $65.77 AUD Unit price per Out of stock! Backorder Now
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 113.8 mm _{(4.48 in.)}	Foot Height (C) 45.0 mm _{(1.772 in.)}			Overall Height 57.40 mm
Material: Steel Load Rating: 900 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-0LH-114 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $104.14 AUD Regular price Sale price $104.14 AUD Unit price per Each
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 113.8 mm _{(4.48 in.)}	Foot Height (C) 45.0 mm _{(1.772 in.)}
Material: Steel Overall Height: 57.40 mm Load Rating: 900 Kg Category: Mounts - Levelling Socket - Standard - Nylon
Part Number: MLF-191C-S3NY-0LH-114 Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $104.14 AUD Regular price Sale price $104.14 AUD Unit price per Each View the product page first if you are unsure.
MLF-191C-S3NY-0LH-114 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel MLF-191C-S3NY-0LH-114 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel Regular price $104.14 AUD Regular price Sale price $104.14 AUD Unit price per Out of stock! Backorder Now

Collection: Mounts - Levelling Socket - Standard

Filter:

MLF-127C-S6 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-127C-S6 --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-127C-S3NY-2LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel

MLF-127C-S3NY-2LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel

MLF-127C-S3NY-0LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel

MLF-127C-S3NY-0LH --- Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel

MLF-159C-S6 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-159C-S6 --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-159C-S3NY-0LH --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel

MLF-159C-S3NY-0LH --- Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 101.6x18.5 mm - Stainless Steel

MLF-191C-S6 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-191C-S6 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Stainless Steel 316 Similar to A4, 18-10

MLF-191C-S3NY-2LH --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel

MLF-191C-S3NY-2LH --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel

MLF-191C-S3NY-0LH-102 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel

MLF-191C-S3NY-0LH-102 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 101.6x18.5 mm - Stainless Steel

MLF-191C-S3NY-0LH-114 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel

MLF-191C-S3NY-0LH-114 --- Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 113.8x45 mm - Steel
