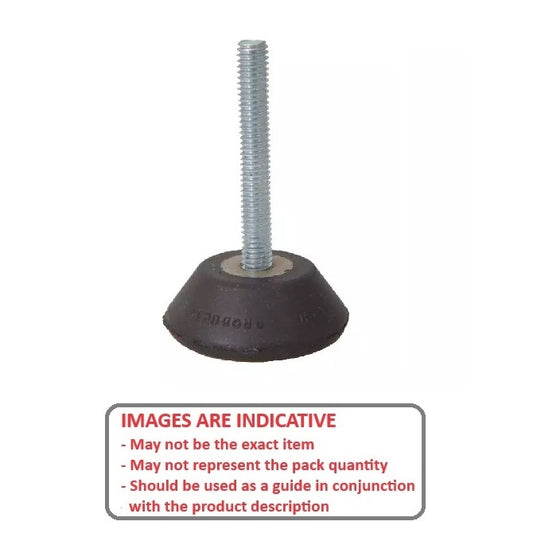

Mounts - Levelling Bonded Neoprene - With Stud

8 Products in this selection
  • Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Bonded Neoprene - With Stud. Smallparts promote the most popular MBA products.
Load Min Load Deflection Max Load Deflection Thread Thread Length Base Diameter Indicative
Load
2.5 to 15.8
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Thread Length
66.7
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 2.5 to 15.8 Kg 1.27x6.35 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-553-ARS Levelling Bonded Neoprene Mounts - 2.5 to 15.8 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$63.86 AUD
$63.86 AUD
Each
Load Min Load Deflection Max Load Deflection Thread Indicative
Load
2.5 to 15.8
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Levelling Bonded Neoprene Mounts - 2.5 to 15.8 Kg 1.27x6.35 mm
Thread Length: 66.7 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-553-ARS Levelling Bonded Neoprene Mounts - 2.5 to 15.8 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$63.86 AUD
$63.86 AUD
Each
View the product page first if you are unsure.
Load
4.5 to 18.0
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Thread Length
63.5
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 4.5 to 18.0 Kg 2.032x5.08 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-601-ARS Levelling Bonded Neoprene Mounts - 4.5 to 18.0 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$74.05 AUD
$74.05 AUD
Each
Load
4.5 to 18.0
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Levelling Bonded Neoprene Mounts - 4.5 to 18.0 Kg 2.032x5.08 mm
Thread Length: 63.5 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-601-ARS Levelling Bonded Neoprene Mounts - 4.5 to 18.0 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$74.05 AUD
$74.05 AUD
Each
View the product page first if you are unsure.
Load
9.0 to 29.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Thread Length
66.7
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 9.0 to 29.0 Kg 1.27x6.35 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-555-ARS Levelling Bonded Neoprene Mounts - 9.0 to 29.0 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$63.68 AUD
$63.68 AUD
Each
Load
9.0 to 29.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Levelling Bonded Neoprene Mounts - 9.0 to 29.0 Kg 1.27x6.35 mm
Thread Length: 66.7 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-555-ARS Levelling Bonded Neoprene Mounts - 9.0 to 29.0 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$63.68 AUD
$63.68 AUD
Each
View the product page first if you are unsure.
Load
13.5 to 36.0
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Thread Length
63.5
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 13.5 to 36.0 Kg 2.032x5.08 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-602-ARS Levelling Bonded Neoprene Mounts - 13.5 to 36.0 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$71.14 AUD
$71.14 AUD
Each
Load
13.5 to 36.0
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Levelling Bonded Neoprene Mounts - 13.5 to 36.0 Kg 2.032x5.08 mm
Thread Length: 63.5 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-602-ARS Levelling Bonded Neoprene Mounts - 13.5 to 36.0 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$71.14 AUD
$71.14 AUD
Each
View the product page first if you are unsure.
Load
22.0 to 59.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Thread Length
66.7
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-557-ARS Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$50.14 AUD
$50.14 AUD
Each
Load
22.0 to 59.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
6.350
mm

(0.25 in.)
Thread
3/16-16
Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm
Thread Length: 66.7 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-557-ARS Levelling Bonded Neoprene Mounts - 22.0 to 59.0 Kg 1.27x6.35 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$50.14 AUD
$50.14 AUD
Each
View the product page first if you are unsure.
Load
27.0 to 136.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Thread Length
63.5
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 27.0 to 136.0 Kg 1.27x5.08 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-608-ARS Levelling Bonded Neoprene Mounts - 27.0 to 136.0 Kg 1.27x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$68.41 AUD
$68.41 AUD
Each
Load
27.0 to 136.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Levelling Bonded Neoprene Mounts - 27.0 to 136.0 Kg 1.27x5.08 mm
Thread Length: 63.5 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-608-ARS Levelling Bonded Neoprene Mounts - 27.0 to 136.0 Kg 1.27x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$68.41 AUD
$68.41 AUD
Each
View the product page first if you are unsure.
Load
31.0 to 81.5
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Thread Length
63.5
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 31.0 to 81.5 Kg 2.032x5.08 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-603-ARS Levelling Bonded Neoprene Mounts - 31.0 to 81.5 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$71.41 AUD
$71.41 AUD
Each
Load
31.0 to 81.5
Kg
Min Load Deflection
2.032
mm

(0.08 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Levelling Bonded Neoprene Mounts - 31.0 to 81.5 Kg 2.032x5.08 mm
Thread Length: 63.5 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-603-ARS Levelling Bonded Neoprene Mounts - 31.0 to 81.5 Kg 2.032x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$71.41 AUD
$71.41 AUD
Each
View the product page first if you are unsure.
Load
67.0 to 272.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Thread Length
63.5
mm
Base Diameter
55.6
mm
Levelling Bonded Neoprene Mounts - 67.0 to 272.0 Kg 1.27x5.08 mm
Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-609-ARS Levelling Bonded Neoprene Mounts - 67.0 to 272.0 Kg 1.27x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$44.23 AUD
$44.23 AUD
Each
Load
67.0 to 272.0
Kg
Min Load Deflection
1.270
mm

(0.05 in.)
Max Load Deflection
5.080
mm

(0.2 in.)
Thread
1/2-13
Levelling Bonded Neoprene Mounts - 67.0 to 272.0 Kg 1.27x5.08 mm
Thread Length: 63.5 mm    Base Diameter: 55.6 mm    Foot Height: 20.6 mm    Top Diameter: 34.9 mm
Part Number: TMF-609-ARS Levelling Bonded Neoprene Mounts - 67.0 to 272.0 Kg 1.27x5.08 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$44.23 AUD
$44.23 AUD
Each
View the product page first if you are unsure.
