Collection: Mounts - Bumpers - Neoprene Springs

Mounts (With Images)

Bumpers

Neoprene Springs
Urethane Springs

25 Products in this selection

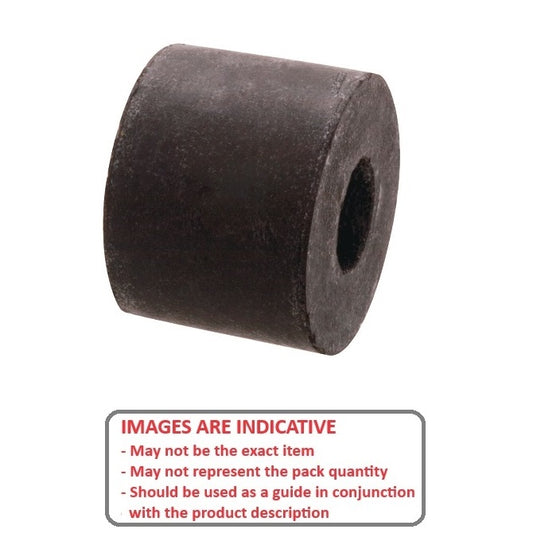

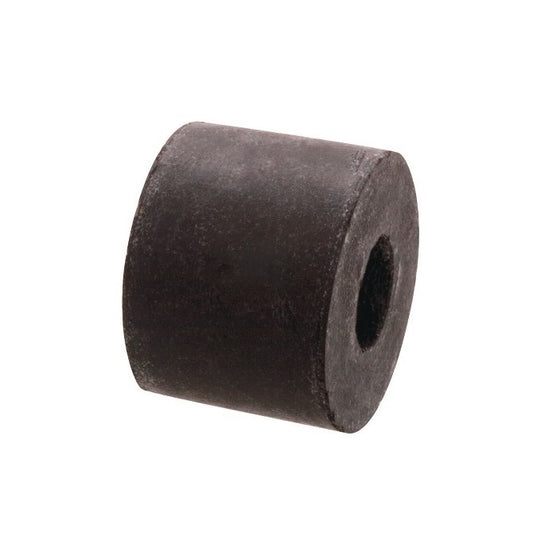

Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
Major advantages include high loads, increased durability, better performance, no maintenance and long life.

Additional resources:
Spings Catalogue PDF

A more concise listing may be found on the Smallparts store at Mounts - Bumpers - Neoprene Springs. Smallparts promote the most popular MBA products.

Outside Diameter (A)	Inside Diameter (B)	Free Length (L)	Spring Rate	Max. Rec. Deflection	Approx. Load at Max Deflection	Indicative Image
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 11.9 mm _{(0.469 in.)}	Spring Rate 76.4 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 4.32 mm	Approx. Load at Max Deflection 26.9 Kg
Material: Neoprene Rubber
Part Number: CSN-0160-012 Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each
Outside Diameter (A)	Inside Diameter (B)	Free Length (L)	Spring Rate	Indicative Image
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 11.9 mm _{(0.469 in.)}	Spring Rate 76.4 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 4.32 mm Approx. Load at Max Deflection: 26.9 Kg
Part Number: CSN-0160-012 Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each View the product page first if you are unsure.
CSN-0160-012 --- Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber CSN-0160-012 --- Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 15.9 mm _{(0.626 in.)}	Spring Rate 61.8 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 5.59 mm	Approx. Load at Max Deflection 28.7 Kg
Material: Neoprene Rubber
Part Number: CSN-0160-016 Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $46.41 AUD Regular price Sale price $46.41 AUD Unit price per Each
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 15.9 mm _{(0.626 in.)}	Spring Rate 61.8 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 5.59 mm Approx. Load at Max Deflection: 28.7 Kg
Part Number: CSN-0160-016 Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $46.41 AUD Regular price Sale price $46.41 AUD Unit price per Each View the product page first if you are unsure.
CSN-0160-016 --- Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber CSN-0160-016 --- Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber Regular price $46.41 AUD Regular price Sale price $46.41 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 51.1 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 6.86 mm	Approx. Load at Max Deflection 29.9 Kg
Material: Neoprene Rubber
Part Number: CSN-0160-020 Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Each
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 51.1 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 6.86 mm Approx. Load at Max Deflection: 29.9 Kg
Part Number: CSN-0160-020 Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Each View the product page first if you are unsure.
CSN-0160-020 --- Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber CSN-0160-020 --- Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 41.3 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 8.64 mm	Approx. Load at Max Deflection 31.0 Kg
Material: Neoprene Rubber
Part Number: CSN-0160-025 Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Each
Outside Diameter (A) 16.00 mm _{(0.63 in.)}	Inside Diameter (B) 6.4 mm _{(0.252 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 41.3 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 8.64 mm Approx. Load at Max Deflection: 31.0 Kg
Part Number: CSN-0160-025 Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Each View the product page first if you are unsure.
CSN-0160-025 --- Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber CSN-0160-025 --- Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 15.9 mm _{(0.626 in.)}	Spring Rate 106.8 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 5.59 mm	Approx. Load at Max Deflection 49.6 Kg
Material: Neoprene Rubber
Part Number: CSN-0200-016 Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Each
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 15.9 mm _{(0.626 in.)}	Spring Rate 106.8 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 5.59 mm Approx. Load at Max Deflection: 49.6 Kg
Part Number: CSN-0200-016 Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Each View the product page first if you are unsure.
CSN-0200-016 --- Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber CSN-0200-016 --- Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber Regular price $54.68 AUD Regular price Sale price $54.68 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 84.4 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 7.11 mm	Approx. Load at Max Deflection 49.3 Kg
Material: Neoprene Rubber
Part Number: CSN-0200-020 Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $66.86 AUD Regular price Sale price $66.86 AUD Unit price per Each
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 84.4 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 7.11 mm Approx. Load at Max Deflection: 49.3 Kg
Part Number: CSN-0200-020 Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $66.86 AUD Regular price Sale price $66.86 AUD Unit price per Each View the product page first if you are unsure.
CSN-0200-020 --- Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber CSN-0200-020 --- Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber Regular price $66.86 AUD Regular price Sale price $66.86 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 66.7 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 8.89 mm	Approx. Load at Max Deflection 49.6 Kg
Material: Neoprene Rubber
Part Number: CSN-0200-025 Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Each
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 66.7 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 8.89 mm Approx. Load at Max Deflection: 49.6 Kg
Part Number: CSN-0200-025 Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Each View the product page first if you are unsure.
CSN-0200-025 --- Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber CSN-0200-025 --- Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 50.3 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 11.18 mm	Approx. Load at Max Deflection 47.0 Kg
Material: Neoprene Rubber
Part Number: CSN-0200-032 Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $53.50 AUD Regular price Sale price $53.50 AUD Unit price per Each
Outside Diameter (A) 20.00 mm _{(0.787 in.)}	Inside Diameter (B) 8.4 mm _{(0.331 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 50.3 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 11.18 mm Approx. Load at Max Deflection: 47.0 Kg
Part Number: CSN-0200-032 Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $53.50 AUD Regular price Sale price $53.50 AUD Unit price per Each View the product page first if you are unsure.
CSN-0200-032 --- Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber CSN-0200-032 --- Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber Regular price $53.50 AUD Regular price Sale price $53.50 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 2.5 mm _{(0.098 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 91.8 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 11.18 mm	Approx. Load at Max Deflection 85.5 Kg
Material: Neoprene Rubber
Part Number: CSN-0254-032 Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 2.5 mm _{(0.098 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 91.8 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 11.18 mm Approx. Load at Max Deflection: 85.5 Kg
Part Number: CSN-0254-032 Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each View the product page first if you are unsure.
CSN-0254-032 --- Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber CSN-0254-032 --- Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 137.8 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 7.11 mm	Approx. Load at Max Deflection 80.2 Kg
Material: Neoprene Rubber
Part Number: CSN-0254-020 Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $61.95 AUD Regular price Sale price $61.95 AUD Unit price per Each
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 19.8 mm _{(0.78 in.)}	Spring Rate 137.8 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 7.11 mm Approx. Load at Max Deflection: 80.2 Kg
Part Number: CSN-0254-020 Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $61.95 AUD Regular price Sale price $61.95 AUD Unit price per Each View the product page first if you are unsure.
CSN-0254-020 --- Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber CSN-0254-020 --- Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber Regular price $61.95 AUD Regular price Sale price $61.95 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 104.7 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 8.89 mm	Approx. Load at Max Deflection 78.0 Kg
Material: Neoprene Rubber
Part Number: CSN-0254-025 Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 25.4 mm _{(1 in.)}	Spring Rate 104.7 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 8.89 mm Approx. Load at Max Deflection: 78.0 Kg
Part Number: CSN-0254-025 Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each View the product page first if you are unsure.
CSN-0254-025 --- Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber CSN-0254-025 --- Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 39.7 mm _{(1.563 in.)}	Spring Rate 77.1 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 13.97 mm	Approx. Load at Max Deflection 90.0 Kg
Material: Neoprene Rubber
Part Number: CSN-0254-040 Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each
Outside Diameter (A) 25.40 mm _{(1 in.)}	Inside Diameter (B) 10.4 mm _{(0.409 in.)}	Free Length (L) 39.7 mm _{(1.563 in.)}	Spring Rate 77.1 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 13.97 mm Approx. Load at Max Deflection: 90.0 Kg
Part Number: CSN-0254-040 Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each View the product page first if you are unsure.
CSN-0254-040 --- Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber CSN-0254-040 --- Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 180.6 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 11.18 mm	Approx. Load at Max Deflection 168.3 Kg
Material: Neoprene Rubber
Part Number: CSN-0318-032 Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $92.32 AUD Regular price Sale price $92.32 AUD Unit price per Each
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 180.6 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 11.18 mm Approx. Load at Max Deflection: 168.3 Kg
Part Number: CSN-0318-032 Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $92.32 AUD Regular price Sale price $92.32 AUD Unit price per Each View the product page first if you are unsure.
CSN-0318-032 --- Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber CSN-0318-032 --- Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber Regular price $92.32 AUD Regular price Sale price $92.32 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 40.1 mm _{(1.579 in.)}	Spring Rate 145.0 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 13.97 mm	Approx. Load at Max Deflection 175.8 Kg
Material: Neoprene Rubber
Part Number: CSN-0318-040 Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Each
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 40.1 mm _{(1.579 in.)}	Spring Rate 145.0 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 13.97 mm Approx. Load at Max Deflection: 175.8 Kg
Part Number: CSN-0318-040 Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Each View the product page first if you are unsure.
CSN-0318-040 --- Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber CSN-0318-040 --- Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber Regular price $119.59 AUD Regular price Sale price $119.59 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 50.0 mm _{(1.969 in.)}	Spring Rate 114.0 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 17.53 mm	Approx. Load at Max Deflection 170.2 Kg
Material: Neoprene Rubber
Part Number: CSN-0318-050 Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $124.68 AUD Regular price Sale price $124.68 AUD Unit price per Each
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 50.0 mm _{(1.969 in.)}	Spring Rate 114.0 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 17.53 mm Approx. Load at Max Deflection: 170.2 Kg
Part Number: CSN-0318-050 Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $124.68 AUD Regular price Sale price $124.68 AUD Unit price per Each View the product page first if you are unsure.
CSN-0318-050 --- Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber CSN-0318-050 --- Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber Regular price $124.68 AUD Regular price Sale price $124.68 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 90.5 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 22.10 mm	Approx. Load at Max Deflection 168.7 Kg
Material: Neoprene Rubber
Part Number: CSN-0318-064 Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $151.23 AUD Regular price Sale price $151.23 AUD Unit price per Each
Outside Diameter (A) 31.80 mm _{(1.252 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 90.5 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 22.10 mm Approx. Load at Max Deflection: 168.7 Kg
Part Number: CSN-0318-064 Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $151.23 AUD Regular price Sale price $151.23 AUD Unit price per Each View the product page first if you are unsure.
CSN-0318-064 --- Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber CSN-0318-064 --- Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber Regular price $151.23 AUD Regular price Sale price $151.23 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 313.5 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 11.18 mm	Approx. Load at Max Deflection 292.2 Kg
Material: Neoprene Rubber
Part Number: CSN-0396-032 Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Each
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 31.8 mm _{(1.252 in.)}	Spring Rate 313.5 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 11.18 mm Approx. Load at Max Deflection: 292.2 Kg
Part Number: CSN-0396-032 Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Each View the product page first if you are unsure.
CSN-0396-032 --- Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber CSN-0396-032 --- Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 40.1 mm _{(1.579 in.)}	Spring Rate 252.0 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 13.97 mm	Approx. Load at Max Deflection 304.6 Kg
Material: Neoprene Rubber
Part Number: CSN-0396-040 Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $141.77 AUD Regular price Sale price $141.77 AUD Unit price per Each
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 40.1 mm _{(1.579 in.)}	Spring Rate 252.0 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 13.97 mm Approx. Load at Max Deflection: 304.6 Kg
Part Number: CSN-0396-040 Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $141.77 AUD Regular price Sale price $141.77 AUD Unit price per Each View the product page first if you are unsure.
CSN-0396-040 --- Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber CSN-0396-040 --- Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber Regular price $141.77 AUD Regular price Sale price $141.77 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 50.0 mm _{(1.969 in.)}	Spring Rate 201.0 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 17.53 mm	Approx. Load at Max Deflection 300.1 Kg
Material: Neoprene Rubber
Part Number: CSN-0396-050 Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Each
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 50.0 mm _{(1.969 in.)}	Spring Rate 201.0 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 17.53 mm Approx. Load at Max Deflection: 300.1 Kg
Part Number: CSN-0396-050 Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Each View the product page first if you are unsure.
CSN-0396-050 --- Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber CSN-0396-050 --- Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber Regular price $164.59 AUD Regular price Sale price $164.59 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 163.0 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 22.10 mm	Approx. Load at Max Deflection 304.2 Kg
Material: Neoprene Rubber
Part Number: CSN-0396-064 Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Each
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 163.0 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 22.10 mm Approx. Load at Max Deflection: 304.2 Kg
Part Number: CSN-0396-064 Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Each View the product page first if you are unsure.
CSN-0396-064 --- Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber CSN-0396-064 --- Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 80.2 mm _{(3.157 in.)}	Spring Rate 130.3 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 27.94 mm	Approx. Load at Max Deflection 309.8 Kg
Material: Neoprene Rubber
Part Number: CSN-0396-080 Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.23 AUD Regular price Sale price $113.23 AUD Unit price per Each
Outside Diameter (A) 39.60 mm _{(1.559 in.)}	Inside Diameter (B) 13.5 mm _{(0.531 in.)}	Free Length (L) 80.2 mm _{(3.157 in.)}	Spring Rate 130.3 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 27.94 mm Approx. Load at Max Deflection: 309.8 Kg
Part Number: CSN-0396-080 Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.23 AUD Regular price Sale price $113.23 AUD Unit price per Each View the product page first if you are unsure.
CSN-0396-080 --- Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber CSN-0396-080 --- Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber Regular price $113.23 AUD Regular price Sale price $113.23 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 50.80 mm _{(2 in.)}	Inside Diameter (B) 16.8 mm _{(0.661 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 259.5 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 22.10 mm	Approx. Load at Max Deflection 484.1 Kg
Material: Neoprene Rubber
Part Number: CSN-0508-064 Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $241.32 AUD Regular price Sale price $241.32 AUD Unit price per Each
Outside Diameter (A) 50.80 mm _{(2 in.)}	Inside Diameter (B) 16.8 mm _{(0.661 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 259.5 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 22.10 mm Approx. Load at Max Deflection: 484.1 Kg
Part Number: CSN-0508-064 Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $241.32 AUD Regular price Sale price $241.32 AUD Unit price per Each View the product page first if you are unsure.
CSN-0508-064 --- Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber CSN-0508-064 --- Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber Regular price $241.32 AUD Regular price Sale price $241.32 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 63.50 mm _{(2.5 in.)}	Inside Diameter (B) 16.8 mm _{(0.661 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 400.3 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 22.10 mm	Approx. Load at Max Deflection 746.5 Kg
Material: Neoprene Rubber
Part Number: CSN-0635-064 Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $332.41 AUD Regular price Sale price $332.41 AUD Unit price per Each
Outside Diameter (A) 63.50 mm _{(2.5 in.)}	Inside Diameter (B) 16.8 mm _{(0.661 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 400.3 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 22.10 mm Approx. Load at Max Deflection: 746.5 Kg
Part Number: CSN-0635-064 Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $332.41 AUD Regular price Sale price $332.41 AUD Unit price per Each View the product page first if you are unsure.
CSN-0635-064 --- Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber CSN-0635-064 --- Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber Regular price $332.41 AUD Regular price Sale price $332.41 AUD Unit price per Out of stock! Backorder Now
Outside Diameter (A) 80.00 mm _{(3.15 in.)}	Inside Diameter (B) 21.1 mm _{(0.831 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 800.7 N/mm Deflection +/- 20 Perc	Max. Rec. Deflection 22.10 mm	Approx. Load at Max Deflection 1493.0 Kg
Material: Neoprene Rubber
Part Number: CSN-0800-064 Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $266.05 AUD Regular price Sale price $266.05 AUD Unit price per Each
Outside Diameter (A) 80.00 mm _{(3.15 in.)}	Inside Diameter (B) 21.1 mm _{(0.831 in.)}	Free Length (L) 63.5 mm _{(2.5 in.)}	Spring Rate 800.7 N/mm Deflection +/- 20 Perc
Material: Neoprene Rubber Max. Rec. Deflection: 22.10 mm Approx. Load at Max Deflection: 1493.0 Kg
Part Number: CSN-0800-064 Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $266.05 AUD Regular price Sale price $266.05 AUD Unit price per Each View the product page first if you are unsure.
CSN-0800-064 --- Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber CSN-0800-064 --- Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber Regular price $266.05 AUD Regular price Sale price $266.05 AUD Unit price per Out of stock! Backorder Now
