Redi-Rail Roller Guides

5 Products in this selection

Match carriage and rail by rail widh
Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.

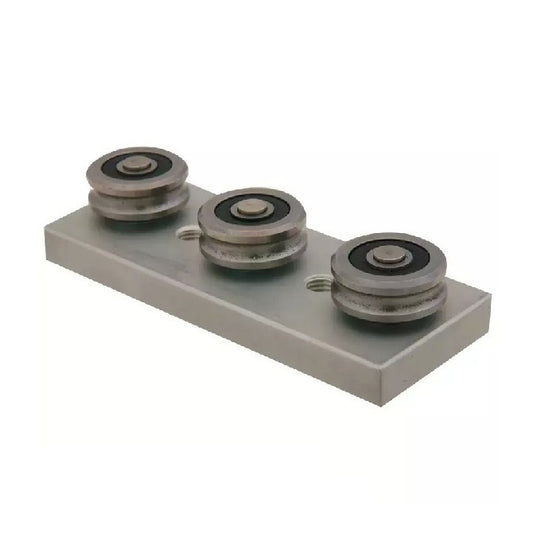

A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
Rollers made from 52100 hardened steel, lubricated and sealed.
Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

Additional resources:

A more concise listing may be found on the Smallparts store at Linear - Redi-Rail Roller Guides. Smallparts promote the most popular MBA products.

Fits Rail Width (B)	Overall Height (A)	Length (D)	Rail Width (E)	Mounting Hole (G)	Thread Size (Y)
Fits Rail Width (B) 30.0 mm _{(1.181 in.)}	Overall Height (A) 28.0 mm _{(1.102 in.)}	Length (D) 86.000 mm _{(3.386 in.)}	Rail Width (E) 25.400 mm	Mounting Hole (G) 26.000 mm	Thread Size (Y) M5 x 0.80

Part Number: PBC-625RS Redi-Rail Roller Guides Linear - 30x28x86 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $536.41 AUD Regular price Sale price $536.41 AUD Unit price per Each

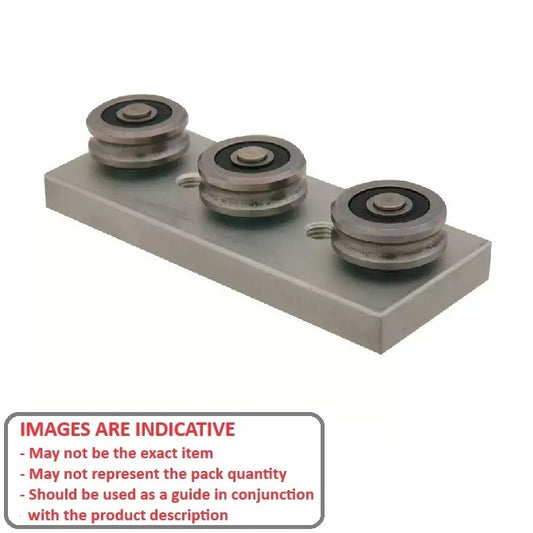

Fits Rail Width (B)	Overall Height (A)	Length (D)	Rail Width (E)	Indicative Image
