Collection: Linear - Redi-Rail Rail

Linear (With Images)

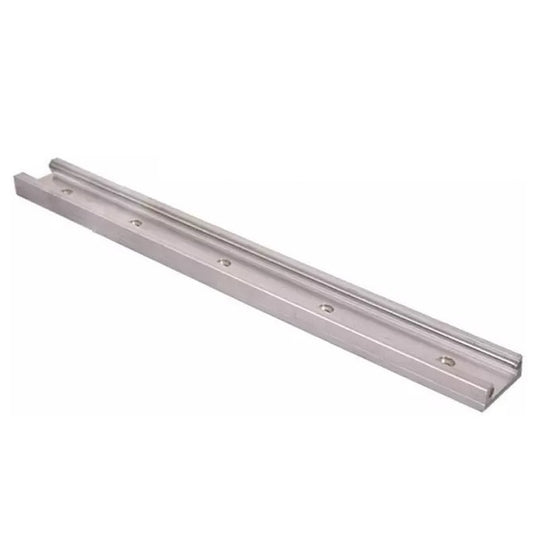

Redi-Rail Rail

15 Products in this selection

Match carriage and rail by rail widh
Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
Rollers made from 52100 hardened steel, lubricated and sealed.
Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

Additional resources:

A more concise listing may be found on the Smallparts store at Linear - Redi-Rail Rail. Smallparts promote the most popular MBA products.

Width (B)	Length	Height (F)	Bolt Distance from End (S)	Bolt Spacing (T)	Bolt Size (X)
Width (B) 30.0 mm _{(1.181 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M5 (5x0.8mm)
No. Of Holes: 8.000
Part Number: PBC-700RS Redi-Rail Rail Linear - 30x480x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Each

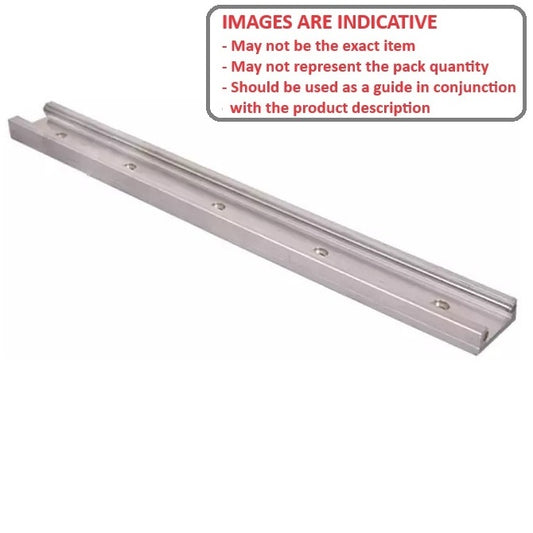

Width (B)	Length	Height (F)	Bolt Distance from End (S)	Indicative Image
Width (B) 30.0 mm _{(1.181 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 8.000
Part Number: PBC-700RS Redi-Rail Rail Linear - 30x480x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Each View the product page first if you are unsure.
PBC-700RS --- Redi-Rail Rail Linear - 30x480x16 mm PBC-700RS --- Redi-Rail Rail Linear - 30x480x16 mm Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Out of stock! Backorder Now
Width (B) 30.0 mm _{(1.181 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M5 (5x0.8mm)
No. Of Holes: 12.000
Part Number: PBC-705RS Redi-Rail Rail Linear - 30x720x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $428.32 AUD Regular price Sale price $428.32 AUD Unit price per Each
Width (B) 30.0 mm _{(1.181 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 12.000
Part Number: PBC-705RS Redi-Rail Rail Linear - 30x720x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $428.32 AUD Regular price Sale price $428.32 AUD Unit price per Each View the product page first if you are unsure.
PBC-705RS --- Redi-Rail Rail Linear - 30x720x16 mm PBC-705RS --- Redi-Rail Rail Linear - 30x720x16 mm Regular price $428.32 AUD Regular price Sale price $428.32 AUD Unit price per Out of stock! Backorder Now
Width (B) 30.0 mm _{(1.181 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M5 (5x0.8mm)
No. Of Holes: 16.000
Part Number: PBC-710RS Redi-Rail Rail Linear - 30x960x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $570.50 AUD Regular price Sale price $570.50 AUD Unit price per Each
Width (B) 30.0 mm _{(1.181 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 16.000 mm _{(0.63 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 16.000
Part Number: PBC-710RS Redi-Rail Rail Linear - 30x960x16 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $570.50 AUD Regular price Sale price $570.50 AUD Unit price per Each View the product page first if you are unsure.
PBC-710RS --- Redi-Rail Rail Linear - 30x960x16 mm PBC-710RS --- Redi-Rail Rail Linear - 30x960x16 mm Regular price $570.50 AUD Regular price Sale price $570.50 AUD Unit price per Out of stock! Backorder Now
Width (B) 33.528 mm _{(1.32 in.)}	Length 304.8 mm _{(12 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 19.050 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) No.10
No. Of Holes: 4.000
Part Number: PBC-650RS Redi-Rail Rail Linear - 33.528x304.8x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $175.05 AUD Regular price Sale price $175.05 AUD Unit price per Each
Width (B) 33.528 mm _{(1.32 in.)}	Length 304.8 mm _{(12 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 19.050 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 4.000
Part Number: PBC-650RS Redi-Rail Rail Linear - 33.528x304.8x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $175.05 AUD Regular price Sale price $175.05 AUD Unit price per Each View the product page first if you are unsure.
PBC-650RS --- Redi-Rail Rail Linear - 33.528x304.8x15.24 mm PBC-650RS --- Redi-Rail Rail Linear - 33.528x304.8x15.24 mm Regular price $175.05 AUD Regular price Sale price $175.05 AUD Unit price per Out of stock! Backorder Now
Width (B) 33.528 mm _{(1.32 in.)}	Length 609.6 mm _{(24 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 38.100 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) No.10
No. Of Holes: 7.000
Part Number: PBC-655RS Redi-Rail Rail Linear - 33.528x609.6x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $228.86 AUD Regular price Sale price $228.86 AUD Unit price per Each
Width (B) 33.528 mm _{(1.32 in.)}	Length 609.6 mm _{(24 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 38.100 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 7.000
Part Number: PBC-655RS Redi-Rail Rail Linear - 33.528x609.6x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $228.86 AUD Regular price Sale price $228.86 AUD Unit price per Each View the product page first if you are unsure.
PBC-655RS --- Redi-Rail Rail Linear - 33.528x609.6x15.24 mm PBC-655RS --- Redi-Rail Rail Linear - 33.528x609.6x15.24 mm Regular price $228.86 AUD Regular price Sale price $228.86 AUD Unit price per Out of stock! Backorder Now
Width (B) 33.528 mm _{(1.32 in.)}	Length 914.4 mm _{(36 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 12.700 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) No.10
No. Of Holes: 11.000
Part Number: PBC-660RS Redi-Rail Rail Linear - 33.528x914.4x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $337.50 AUD Regular price Sale price $337.50 AUD Unit price per Each
Width (B) 33.528 mm _{(1.32 in.)}	Length 914.4 mm _{(36 in.)}	Height (F) 15.240 mm _{(0.6 in.)}	Bolt Distance from End (S) 12.700 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 11.000
Part Number: PBC-660RS Redi-Rail Rail Linear - 33.528x914.4x15.24 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $337.50 AUD Regular price Sale price $337.50 AUD Unit price per Each View the product page first if you are unsure.
PBC-660RS --- Redi-Rail Rail Linear - 33.528x914.4x15.24 mm PBC-660RS --- Redi-Rail Rail Linear - 33.528x914.4x15.24 mm Regular price $337.50 AUD Regular price Sale price $337.50 AUD Unit price per Out of stock! Backorder Now
Width (B) 45.0 mm _{(1.772 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M6
No. Of Holes: 8.000
Part Number: PBC-715RS Redi-Rail Rail Linear - 45x480x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $341.68 AUD Regular price Sale price $341.68 AUD Unit price per Each
Width (B) 45.0 mm _{(1.772 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 8.000
Part Number: PBC-715RS Redi-Rail Rail Linear - 45x480x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $341.68 AUD Regular price Sale price $341.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-715RS --- Redi-Rail Rail Linear - 45x480x20.5 mm PBC-715RS --- Redi-Rail Rail Linear - 45x480x20.5 mm Regular price $341.68 AUD Regular price Sale price $341.68 AUD Unit price per Out of stock! Backorder Now
Width (B) 45.0 mm _{(1.772 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M6
No. Of Holes: 12.000
Part Number: PBC-720RS Redi-Rail Rail Linear - 45x720x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $508.68 AUD Regular price Sale price $508.68 AUD Unit price per Each
Width (B) 45.0 mm _{(1.772 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 12.000
Part Number: PBC-720RS Redi-Rail Rail Linear - 45x720x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $508.68 AUD Regular price Sale price $508.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-720RS --- Redi-Rail Rail Linear - 45x720x20.5 mm PBC-720RS --- Redi-Rail Rail Linear - 45x720x20.5 mm Regular price $508.68 AUD Regular price Sale price $508.68 AUD Unit price per Out of stock! Backorder Now
Width (B) 45.0 mm _{(1.772 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm	Bolt Spacing (T) 60.000 mm	Bolt Size (X) M6
No. Of Holes: 16.000
Part Number: PBC-725RS Redi-Rail Rail Linear - 45x960x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $677.68 AUD Regular price Sale price $677.68 AUD Unit price per Each
Width (B) 45.0 mm _{(1.772 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 20.500 mm _{(0.807 in.)}	Bolt Distance from End (S) 30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 16.000
Part Number: PBC-725RS Redi-Rail Rail Linear - 45x960x20.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $677.68 AUD Regular price Sale price $677.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-725RS --- Redi-Rail Rail Linear - 45x960x20.5 mm PBC-725RS --- Redi-Rail Rail Linear - 45x960x20.5 mm Regular price $677.68 AUD Regular price Sale price $677.68 AUD Unit price per Out of stock! Backorder Now
Width (B) 48.514 mm _{(1.91 in.)}	Length 304.8 mm _{(12 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 19.050 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) 1/4 UNC
No. Of Holes: 4.000
Part Number: PBC-665RS Redi-Rail Rail Linear - 48.514x304.8x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $234.05 AUD Regular price Sale price $234.05 AUD Unit price per Each
Width (B) 48.514 mm _{(1.91 in.)}	Length 304.8 mm _{(12 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 19.050 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 4.000
Part Number: PBC-665RS Redi-Rail Rail Linear - 48.514x304.8x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $234.05 AUD Regular price Sale price $234.05 AUD Unit price per Each View the product page first if you are unsure.
PBC-665RS --- Redi-Rail Rail Linear - 48.514x304.8x19.05 mm PBC-665RS --- Redi-Rail Rail Linear - 48.514x304.8x19.05 mm Regular price $234.05 AUD Regular price Sale price $234.05 AUD Unit price per Out of stock! Backorder Now
Width (B) 48.514 mm _{(1.91 in.)}	Length 609.6 mm _{(24 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 38.100 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) 1/4 UNC
No. Of Holes: 7.000
Part Number: PBC-670RS Redi-Rail Rail Linear - 48.514x609.6x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $447.32 AUD Regular price Sale price $447.32 AUD Unit price per Each
Width (B) 48.514 mm _{(1.91 in.)}	Length 609.6 mm _{(24 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 38.100 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 7.000
Part Number: PBC-670RS Redi-Rail Rail Linear - 48.514x609.6x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $447.32 AUD Regular price Sale price $447.32 AUD Unit price per Each View the product page first if you are unsure.
PBC-670RS --- Redi-Rail Rail Linear - 48.514x609.6x19.05 mm PBC-670RS --- Redi-Rail Rail Linear - 48.514x609.6x19.05 mm Regular price $447.32 AUD Regular price Sale price $447.32 AUD Unit price per Out of stock! Backorder Now
Width (B) 48.514 mm _{(1.91 in.)}	Length 914.4 mm _{(36 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 12.700 mm	Bolt Spacing (T) 88.900 mm	Bolt Size (X) 1/4 UNC
No. Of Holes: 11.000
Part Number: PBC-675RS Redi-Rail Rail Linear - 48.514x914.4x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $702.14 AUD Regular price Sale price $702.14 AUD Unit price per Each
Width (B) 48.514 mm _{(1.91 in.)}	Length 914.4 mm _{(36 in.)}	Height (F) 19.050 mm _{(0.75 in.)}	Bolt Distance from End (S) 12.700 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 11.000
Part Number: PBC-675RS Redi-Rail Rail Linear - 48.514x914.4x19.05 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $702.14 AUD Regular price Sale price $702.14 AUD Unit price per Each View the product page first if you are unsure.
PBC-675RS --- Redi-Rail Rail Linear - 48.514x914.4x19.05 mm PBC-675RS --- Redi-Rail Rail Linear - 48.514x914.4x19.05 mm Regular price $702.14 AUD Regular price Sale price $702.14 AUD Unit price per Out of stock! Backorder Now
Width (B) 65.0 mm _{(2.559 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm	Bolt Spacing (T) 80.000 mm	Bolt Size (X) M6
No. Of Holes: 6.000
Part Number: PBC-730RS Redi-Rail Rail Linear - 65x480x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $506.68 AUD Regular price Sale price $506.68 AUD Unit price per Each
Width (B) 65.0 mm _{(2.559 in.)}	Length 480.0 mm _{(18.898 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 6.000
Part Number: PBC-730RS Redi-Rail Rail Linear - 65x480x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $506.68 AUD Regular price Sale price $506.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-730RS --- Redi-Rail Rail Linear - 65x480x27 mm PBC-730RS --- Redi-Rail Rail Linear - 65x480x27 mm Regular price $506.68 AUD Regular price Sale price $506.68 AUD Unit price per Out of stock! Backorder Now
Width (B) 65.0 mm _{(2.559 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm	Bolt Spacing (T) 80.000 mm	Bolt Size (X) M6
No. Of Holes: 9.000
Part Number: PBC-735RS Redi-Rail Rail Linear - 65x720x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $758.95 AUD Regular price Sale price $758.95 AUD Unit price per Each
Width (B) 65.0 mm _{(2.559 in.)}	Length 720.0 mm _{(28.346 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 9.000
Part Number: PBC-735RS Redi-Rail Rail Linear - 65x720x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $758.95 AUD Regular price Sale price $758.95 AUD Unit price per Each View the product page first if you are unsure.
PBC-735RS --- Redi-Rail Rail Linear - 65x720x27 mm PBC-735RS --- Redi-Rail Rail Linear - 65x720x27 mm Regular price $758.95 AUD Regular price Sale price $758.95 AUD Unit price per Out of stock! Backorder Now
Width (B) 65.0 mm _{(2.559 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm	Bolt Spacing (T) 80.000 mm	Bolt Size (X) M6
No. Of Holes: 12.000
Part Number: PBC-740RS Redi-Rail Rail Linear - 65x960x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,019.23 AUD Regular price Sale price $1,019.23 AUD Unit price per Each
Width (B) 65.0 mm _{(2.559 in.)}	Length 960.0 mm _{(37.795 in.)}	Height (F) 27.000 mm _{(1.063 in.)}	Bolt Distance from End (S) 40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 12.000
Part Number: PBC-740RS Redi-Rail Rail Linear - 65x960x27 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,019.23 AUD Regular price Sale price $1,019.23 AUD Unit price per Each View the product page first if you are unsure.
PBC-740RS --- Redi-Rail Rail Linear - 65x960x27 mm PBC-740RS --- Redi-Rail Rail Linear - 65x960x27 mm Regular price $1,019.23 AUD Regular price Sale price $1,019.23 AUD Unit price per Out of stock! Backorder Now
