Collection: Knobs - Ball - Female Threaded - Phenolic - Shank Type

Knobs (With Images)

Ball

Female Threaded

Phenolic

Shank Type
Standard

10 Products in this selection

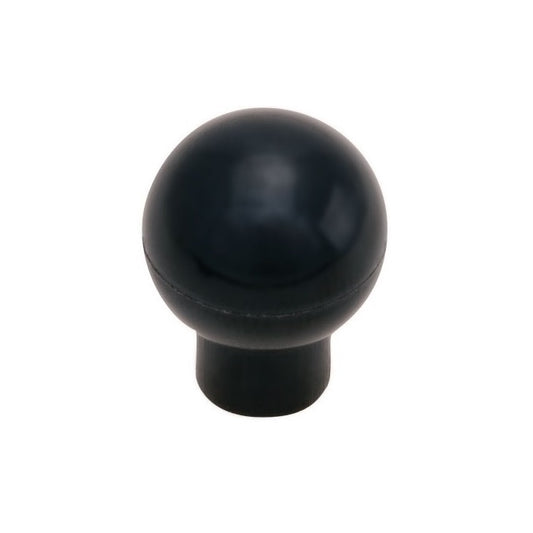

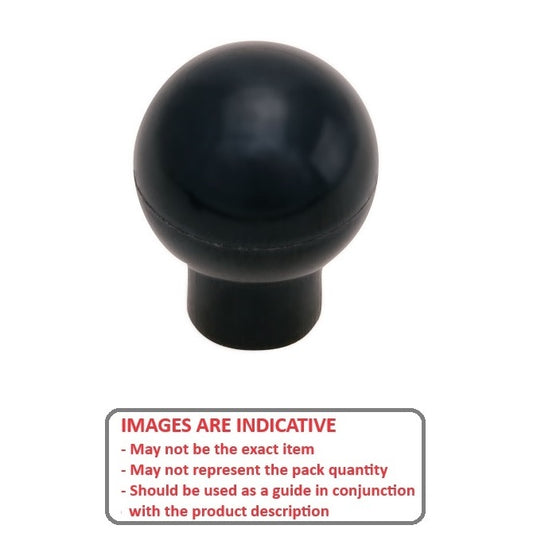

Moulded from black phenolic resin.
Phenolic Ball Knobs with Shanks. To Screw onto threads.

Additional resources:
Knobs PDF Quick Guide by Thread Size

A more concise listing may be found on the Smallparts store at Knobs - Ball - Female Threaded - Phenolic - Shank Type. Smallparts promote the most popular MBA products.

Thread or Hole Size	Diameter	Thread Depth (C)	Colour	Style
Thread or Hole Size 8-32 UNC (4.17mm)	Diameter 16.89 mm	Thread Depth (C) 6.4 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 9.53 mm Height (B): 22.23 mm
Part Number: KF042-017-TPHS Ball Knobs - 8-32 UNC -4.17mm- 16.89x6.4 mm - Phenolic 1 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each
Thread or Hole Size	Diameter	Thread Depth (C)	Colour	Indicative Image
Thread or Hole Size 8-32 UNC (4.17mm)	Diameter 16.89 mm	Thread Depth (C) 6.4 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 9.53 mm Height (B): 22.23 mm
Part Number: KF042-017-TPHS Ball Knobs - 8-32 UNC -4.17mm- 16.89x6.4 mm - Phenolic 1 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
KF042-017-TPHS --- Ball Knobs - 8-32 UNC -4.17mm- 16.89x6.4 mm - Phenolic KF042-017-TPHS --- Ball Knobs - 8-32 UNC -4.17mm- 16.89x6.4 mm - Phenolic Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 1 Available Now
Thread or Hole Size 10-32 UNF (4.76mm)	Diameter 16.89 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 9.53 mm Height (B): 22.23 mm
Part Number: KF048F-017-TPHS Ball Knobs - 10-32 UNF -4.76mm- 16.89 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Each
Thread or Hole Size 10-32 UNF (4.76mm)	Diameter 16.89 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 9.53 mm Height (B): 22.23 mm
Part Number: KF048F-017-TPHS Ball Knobs - 10-32 UNF -4.76mm- 16.89 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Each View the product page first if you are unsure.
KF048F-017-TPHS --- Ball Knobs - 10-32 UNF -4.76mm- 16.89 - - - Phenolic KF048F-017-TPHS --- Ball Knobs - 10-32 UNF -4.76mm- 16.89 - - - Phenolic Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 1/4-20 UNC (6.35mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF064C-032-TPHS Ball Knobs - 1/4-20 UNC -6.35mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each
Thread or Hole Size 1/4-20 UNC (6.35mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF064C-032-TPHS Ball Knobs - 1/4-20 UNC -6.35mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each View the product page first if you are unsure.
KF064C-032-TPHS --- Ball Knobs - 1/4-20 UNC -6.35mm- 31.75 - - - Phenolic KF064C-032-TPHS --- Ball Knobs - 1/4-20 UNC -6.35mm- 31.75 - - - Phenolic Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 1/4-20 UNC (6.35mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Tapped Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF064C-038-TPHS Ball Knobs - 1/4-20 UNC -6.35mm- 38.1 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each
Thread or Hole Size 1/4-20 UNC (6.35mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Tapped Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF064C-038-TPHS Ball Knobs - 1/4-20 UNC -6.35mm- 38.1 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each View the product page first if you are unsure.
KF064C-038-TPHS --- Ball Knobs - 1/4-20 UNC -6.35mm- 38.1 - - - Phenolic KF064C-038-TPHS --- Ball Knobs - 1/4-20 UNC -6.35mm- 38.1 - - - Phenolic Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 5/16-18 UNC (7.94mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF079C-032-TPHS Ball Knobs - 5/16-18 UNC -7.94mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each
Thread or Hole Size 5/16-18 UNC (7.94mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF079C-032-TPHS Ball Knobs - 5/16-18 UNC -7.94mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
KF079C-032-TPHS --- Ball Knobs - 5/16-18 UNC -7.94mm- 31.75 - - - Phenolic KF079C-032-TPHS --- Ball Knobs - 5/16-18 UNC -7.94mm- 31.75 - - - Phenolic Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 5/16-18 UNC (7.94mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF079C-038-TPHS Ball Knobs - 5/16-18 UNC -7.94mm- 38.1 - - - Phenolic 6 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each
Thread or Hole Size 5/16-18 UNC (7.94mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF079C-038-TPHS Ball Knobs - 5/16-18 UNC -7.94mm- 38.1 - - - Phenolic 6 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each View the product page first if you are unsure.
KF079C-038-TPHS --- Ball Knobs - 5/16-18 UNC -7.94mm- 38.1 - - - Phenolic Sale KF079C-038-TPHS --- Ball Knobs - 5/16-18 UNC -7.94mm- 38.1 - - - Phenolic Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per 6 Available Now Sale
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Tapped Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF095C-032-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 31.75 mm
Material: Phenolic Thread Type: Tapped Shank Height (D): 6.35 Shank Diameter (C): 13.49 mm Height (B): 38.1 mm
Part Number: KF095C-032-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 31.75 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Each View the product page first if you are unsure.
KF095C-032-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 31.75 - - - Phenolic KF095C-032-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 31.75 - - - Phenolic Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF095C-038-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 38.1 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 38.10 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 7.94 Shank Diameter (C): 15.88 mm Height (B): 46.04 mm
Part Number: KF095C-038-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 38.1 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
KF095C-038-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 38.1 - - - Phenolic KF095C-038-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 38.1 - - - Phenolic Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 43.66 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 12.70 Shank Diameter (C): 19.84 mm Height (B): 28.58 mm
Part Number: KF095C-044-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 43.66 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each
Thread or Hole Size 3/8-16 UNC (9.53mm)	Diameter 43.66 mm
Material: Phenolic Thread Type: Brass Shank Height (D): 12.70 Shank Diameter (C): 19.84 mm Height (B): 28.58 mm
Part Number: KF095C-044-TPHS Ball Knobs - 3/8-16 UNC -9.53mm- 43.66 - - - Phenolic Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Each View the product page first if you are unsure.
KF095C-044-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 43.66 - - - Phenolic KF095C-044-TPHS --- Ball Knobs - 3/8-16 UNC -9.53mm- 43.66 - - - Phenolic Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
Thread or Hole Size 1/2-13 UNC (12.7mm)	Diameter 43.66 mm
Material: Phenolic Thread Type: Moulded Shank Height (D): 12.70 Shank Diameter (C): 19.84 mm Height (B): 28.58 mm
Part Number: KF127C-044-TPHS Ball Knobs - 1/2-13 UNC -12.7mm- 43.66 - - - Phenolic 19 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $9.32 AUD Regular price ~~$11.18 AUD~~ Sale price $9.32 AUD Unit price per Each
Thread or Hole Size 1/2-13 UNC (12.7mm)	Diameter 43.66 mm
Material: Phenolic Thread Type: Moulded Shank Height (D): 12.70 Shank Diameter (C): 19.84 mm Height (B): 28.58 mm
Part Number: KF127C-044-TPHS Ball Knobs - 1/2-13 UNC -12.7mm- 43.66 - - - Phenolic 19 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $9.32 AUD Regular price ~~$11.18 AUD~~ Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
KF127C-044-TPHS --- Ball Knobs - 1/2-13 UNC -12.7mm- 43.66 - - - Phenolic Sale KF127C-044-TPHS --- Ball Knobs - 1/2-13 UNC -12.7mm- 43.66 - - - Phenolic Regular price $9.32 AUD Regular price ~~$11.18 AUD~~ Sale price $9.32 AUD Unit price per 19 Available Now Sale
