Collection: Inserts - Rivet Nuts - Klik - Standard

Inserts (With Images)

Rivet Nuts

Klik

Ribbed
Standard
Threadsert

6 Products in this selection

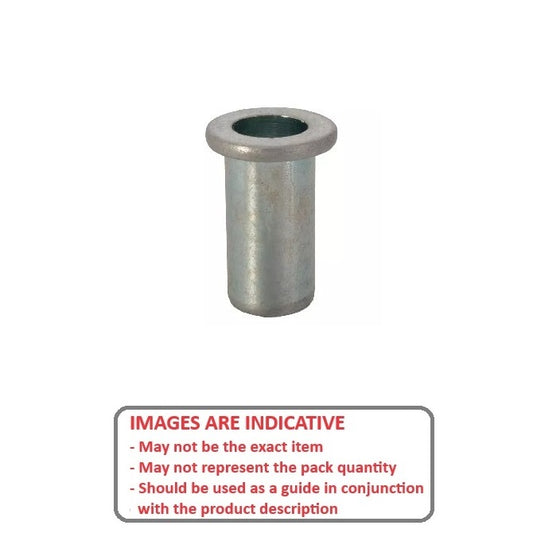

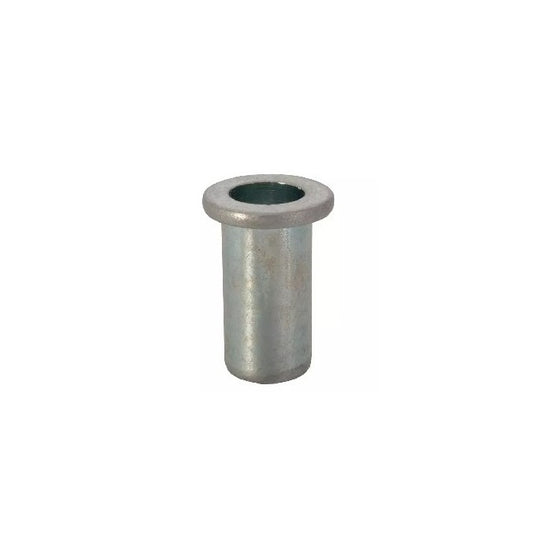

Individual Inserts for use with the Klik Thread Setter Tool
These threaded inserts can be used in blind or through hole applications. Featuring a heavy duty thread profile and increased thickness in the collapse area.
Steel with cadmium plating.

Additional resources:

A more concise listing may be found on the Smallparts store at Inserts - Rivet Nuts - Klik - Standard. Smallparts promote the most popular MBA products.

Internal Thread	Drill Hole Size	Grip Range	Body Diameter (D)	Flange Diameter (F)	C
Internal Thread 8-32 UNC (4.17mm)	Drill Hole Size 5.61 mm _{(0.221 in.)}	Grip Range 1.90 - 3.55 mm _{(0.075 in.)}	Body Diameter (D) 5.61 mm	Flange Diameter (F) 9.07 mm	C 12.700 mm
B: 0.813 mm E: 8.001 mm
Part Number: IN-RIV-042C-036 Rivet Nuts Inserts - 8-32 UNC -4.17mm- 5.61 - 1.90 - 3.55 5 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per Each
Internal Thread	Drill Hole Size	Grip Range	Body Diameter (D)	Indicative Image
Internal Thread 8-32 UNC (4.17mm)	Drill Hole Size 5.61 mm _{(0.221 in.)}	Grip Range 1.90 - 3.55 mm _{(0.075 in.)}	Body Diameter (D) 5.61 mm
Flange Diameter (F): 9.07 mm C: 12.700 mm B: 0.813 mm E: 8.001 mm
Part Number: IN-RIV-042C-036 Rivet Nuts Inserts - 8-32 UNC -4.17mm- 5.61 - 1.90 - 3.55 5 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per Each View the product page first if you are unsure.
IN-RIV-042C-036 --- Rivet Nuts Inserts - 8-32 UNC -4.17mm- 5.61 - 1.90 - 3.55 IN-RIV-042C-036 --- Rivet Nuts Inserts - 8-32 UNC -4.17mm- 5.61 - 1.90 - 3.55 Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per 5 Available Now
Internal Thread 10-32 UNF (4.76mm)	Drill Hole Size 6.35 mm _{(0.25 in.)}	Grip Range 0.25 - 2.03 mm _{(0.01 in.)}	Body Diameter (D) 6.35 mm	Flange Diameter (F) 10.31 mm	C 13.487 mm
B: 0.965 mm E: 9.652 mm
Part Number: IN-RIV-048F-020 Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 0.25 - 2.03 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each
Internal Thread 10-32 UNF (4.76mm)	Drill Hole Size 6.35 mm _{(0.25 in.)}	Grip Range 0.25 - 2.03 mm _{(0.01 in.)}	Body Diameter (D) 6.35 mm
Flange Diameter (F): 10.31 mm C: 13.487 mm B: 0.965 mm E: 9.652 mm
Part Number: IN-RIV-048F-020 Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 0.25 - 2.03 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each View the product page first if you are unsure.
IN-RIV-048F-020 --- Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 0.25 - 2.03 IN-RIV-048F-020 --- Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 0.25 - 2.03 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Out of stock! Backorder Now
Internal Thread 10-32 UNF (4.76mm)	Drill Hole Size 6.35 mm _{(0.25 in.)}	Grip Range 2.03 - 3.32 mm _{(0.08 in.)}	Body Diameter (D) 6.35 mm	Flange Diameter (F) 10.31 mm	C 15.088 mm
B: 0.965 mm E: 9.906 mm
Part Number: IN-RIV-048F-033 Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 2.03 - 3.32 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each
Internal Thread 10-32 UNF (4.76mm)	Drill Hole Size 6.35 mm _{(0.25 in.)}	Grip Range 2.03 - 3.32 mm _{(0.08 in.)}	Body Diameter (D) 6.35 mm
Flange Diameter (F): 10.31 mm C: 15.088 mm B: 0.965 mm E: 9.906 mm
Part Number: IN-RIV-048F-033 Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 2.03 - 3.32 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each View the product page first if you are unsure.
IN-RIV-048F-033 --- Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 2.03 - 3.32 IN-RIV-048F-033 --- Rivet Nuts Inserts - 10-32 UNF -4.76mm- 6.35 - 2.03 - 3.32 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Out of stock! Backorder Now
Internal Thread 1/4-20 UNC (6.35mm)	Drill Hole Size 8.43 mm _{(0.332 in.)}	Grip Range 0.50 - 2.83 mm _{(0.02 in.)}	Body Diameter (D) 8.43 mm	Flange Diameter (F) 12.06 mm	C 15.900 mm
B: 1.473 mm E: 11.430 mm
Part Number: IN-RIV-064C-028 (5 Pcs) Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 0.50 - 2.83 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 5
Internal Thread 1/4-20 UNC (6.35mm)	Drill Hole Size 8.43 mm _{(0.332 in.)}	Grip Range 0.50 - 2.83 mm _{(0.02 in.)}	Body Diameter (D) 8.43 mm
Flange Diameter (F): 12.06 mm C: 15.900 mm B: 1.473 mm E: 11.430 mm
Part Number: IN-RIV-064C-028 (5 Pcs) Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 0.50 - 2.83 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 5 View the product page first if you are unsure.
IN-RIV-064C-028 (5 Pcs) --- Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 0.50 - 2.83 IN-RIV-064C-028 (5 Pcs) --- Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 0.50 - 2.83 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Internal Thread 1/4-20 UNC (6.35mm)	Drill Hole Size 8.43 mm _{(0.332 in.)}	Grip Range 2.03 - 3.56 mm _{(0.08 in.)}	Body Diameter (D) 8.43 mm	Flange Diameter (F) 12.06 mm	C 17.450 mm
B: 1.473 mm E: 11.430 mm
Part Number: IN-RIV-064C-036 Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 2.03 - 3.56 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Each
Internal Thread 1/4-20 UNC (6.35mm)	Drill Hole Size 8.43 mm _{(0.332 in.)}	Grip Range 2.03 - 3.56 mm _{(0.08 in.)}	Body Diameter (D) 8.43 mm
Flange Diameter (F): 12.06 mm C: 17.450 mm B: 1.473 mm E: 11.430 mm
Part Number: IN-RIV-064C-036 Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 2.03 - 3.56 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Each View the product page first if you are unsure.
IN-RIV-064C-036 --- Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 2.03 - 3.56 IN-RIV-064C-036 --- Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 8.43 - 2.03 - 3.56 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Out of stock! Backorder Now
Internal Thread 5/16-18 UNC (7.94mm)	Drill Hole Size 10.49 mm _{(0.413 in.)}	Grip Range 0.76 - 3.18 mm _{(0.03 in.)}	Body Diameter (D) 10.49 mm	Flange Diameter (F) 16.89 mm	C 19.050 mm
B: 1.575 mm E: 12.827 mm
Part Number: IN-RIV-079C-032 (5 Pcs) Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 10.49 - 0.76 - 3.18 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each
Internal Thread 5/16-18 UNC (7.94mm)	Drill Hole Size 10.49 mm _{(0.413 in.)}	Grip Range 0.76 - 3.18 mm _{(0.03 in.)}	Body Diameter (D) 10.49 mm
Flange Diameter (F): 16.89 mm C: 19.050 mm B: 1.575 mm E: 12.827 mm
Part Number: IN-RIV-079C-032 (5 Pcs) Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 10.49 - 0.76 - 3.18 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each View the product page first if you are unsure.
IN-RIV-079C-032 (5 Pcs) --- Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 10.49 - 0.76 - 3.18 IN-RIV-079C-032 (5 Pcs) --- Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 10.49 - 0.76 - 3.18 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Out of stock! Backorder Now
