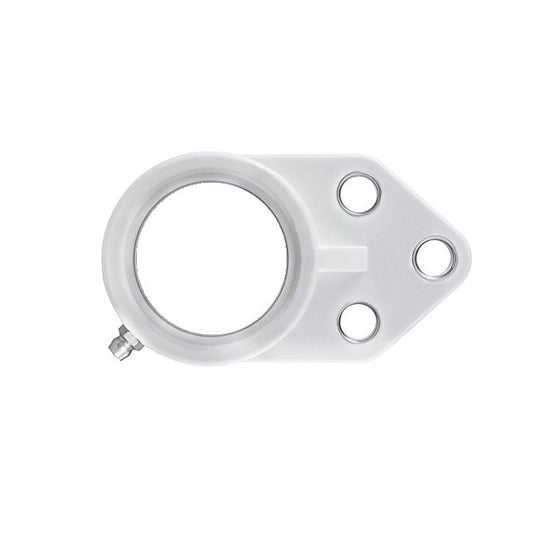

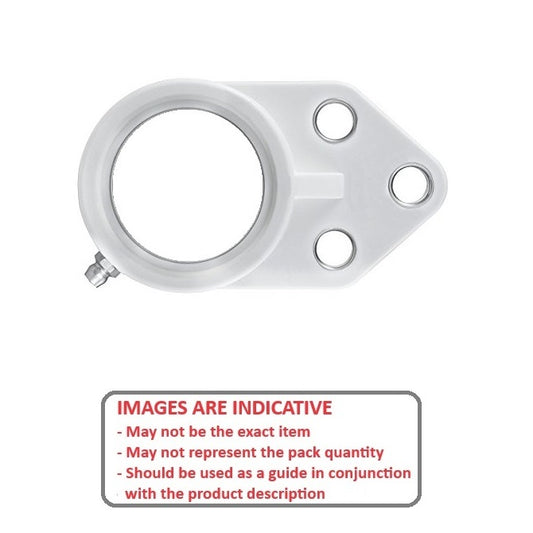

Housings - Flanged 3 Bolt Bracket Plastic

1 Item Available
  • Load and speed capability depend on the bearing used.
  • Use with steel bearing inserts for plastic housings.
Miniature Bearings Australia (Minibearings)

Additional resources:
A more concise listing may be found on the Smallparts store at Housings - Flanged 3 Bolt Bracket Plastic. Smallparts promote the most popular MBA products.
Height (H) Bolt Centres to Brg Centre (h) Bolt Hole Centres (e) Bolt Hole Centres (j) Base to Bearing Centre (i) Base Thickness (g) Indicative
Height (H)
110
mm

(4.331 in.)
Bolt Centres to Brg Centre (h)
42
mm

(1.654 in.)
Bolt Hole Centres (e)
32
mm

(1.26 in.)
Bolt Hole Centres (j)
27
mm
Base to Bearing Centre (i)
15
mm
Base Thickness (g)
13
mm
Flanged 3 Bolt Bracket Plastic Housings - 110x42x32 mm
To Suit Bearing: UC204 - S6-UC204 - S440-UC204    Bolt Hole Size: 5/16 Inch mm    Overall Thickness No Brg (l): 25.5 mm    Overall Width (b): 62 mm
Part Number: FB204PE Flanged 3 Bolt Bracket Plastic Housings - 110x42x32 mm
Out of Stock | Backorder Now | Orders can be expected around Sat, Jul 19, 2025
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Height (H) Bolt Centres to Brg Centre (h) Bolt Hole Centres (e) Bolt Hole Centres (j) Indicative
Height (H)
110
mm

(4.331 in.)
Bolt Centres to Brg Centre (h)
42
mm

(1.654 in.)
Bolt Hole Centres (e)
32
mm

(1.26 in.)
Bolt Hole Centres (j)
27
mm
Flanged 3 Bolt Bracket Plastic Housings - 110x42x32 mm
Base to Bearing Centre (i): 15 mm    Base Thickness (g): 13 mm    To Suit Bearing: UC204 - S6-UC204 - S440-UC204    Bolt Hole Size: 5/16 Inch mm    Overall Thickness No Brg (l): 25.5 mm    Overall Width (b): 62 mm
Part Number: FB204PE Flanged 3 Bolt Bracket Plastic Housings - 110x42x32 mm
Out of Stock | Backorder Now | Orders can be expected around Sat, Jul 19, 2025
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
View the product page first if you are unsure.
