Collection: Gears - Spur - Standard - Module 1 - Steel

Gears (With Images)

Spur

Standard

Module 1

Steel

215 Products in this selection

PCD in mm = No. of Teeth. 20 Degree Pressure Angle
The diameter increases by 1mm per tooth
Module 1. Approximately 3.14mm between the teeth.

Additional resources:

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - Module 1 - Steel. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.00 mm H7 _{(0.197 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-100-050-C Spur Gears - 14 tooth - 14x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.00 mm H7 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-100-050-C Spur Gears - 14 tooth - 14x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each View the product page first if you are unsure.
G014B-014-M1-100-050-C --- Spur Gears - 14 tooth - 14x5 mm - S45C Steel G014B-014-M1-100-050-C --- Spur Gears - 14 tooth - 14x5 mm - S45C Steel Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-080-050-C Spur Gears - 14 tooth - 14x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G014B-014-M1-080-050-C Spur Gears - 14 tooth - 14x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each View the product page first if you are unsure.
G014B-014-M1-080-050-C --- Spur Gears - 14 tooth - 14x5 mm - S45C Steel G014B-014-M1-080-050-C --- Spur Gears - 14 tooth - 14x5 mm - S45C Steel Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 16.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G014B-14-M1-080-050-C-ND Spur Gears - 14 tooth - 14x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 16.000 mm

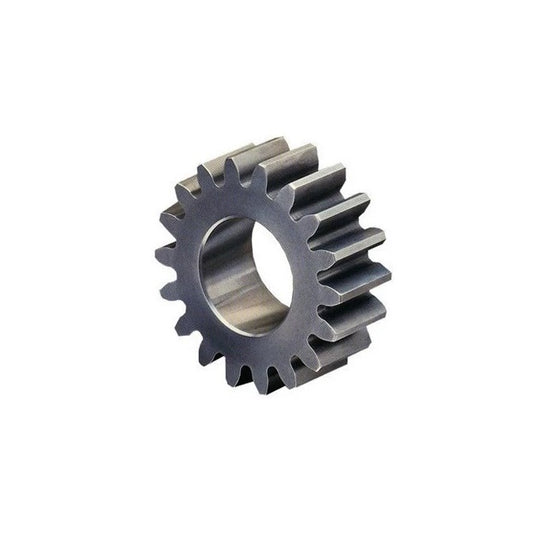

Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G014B-14-M1-080-050-C-ND Spur Gears - 14 tooth - 14x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 16.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G014B-14-M1-080-060-C-ND Spur Gears - 14 tooth - 14x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 14	Pitch Circle Diameter (PD) 14.00 mm _{(0.551 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 16.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G014B-14-M1-080-060-C-ND Spur Gears - 14 tooth - 14x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-100-050-C Spur Gears - 15 tooth - 15x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-100-050-C Spur Gears - 15 tooth - 15x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Each View the product page first if you are unsure.
G015B-015-M1-100-050-C --- Spur Gears - 15 tooth - 15x5 mm - S45C Steel G015B-015-M1-100-050-C --- Spur Gears - 15 tooth - 15x5 mm - S45C Steel Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-080-050-C Spur Gears - 15 tooth - 15x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G015B-015-M1-080-050-C Spur Gears - 15 tooth - 15x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each View the product page first if you are unsure.
G015B-015-M1-080-050-C --- Spur Gears - 15 tooth - 15x5 mm - S45C Steel G015B-015-M1-080-050-C --- Spur Gears - 15 tooth - 15x5 mm - S45C Steel Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 17.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-050-C-ND Spur Gears - 15 tooth - 15x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-050-C-ND Spur Gears - 15 tooth - 15x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 17.000 mm	Face Width (FW) 12.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-120-060-C-ND Spur Gears - 15 tooth - 15x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel Face Width (FW): 12.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-120-060-C-ND Spur Gears - 15 tooth - 15x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 17.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-060-C-ND Spur Gears - 15 tooth - 15x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-060-C-ND Spur Gears - 15 tooth - 15x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 17.000 mm	Face Width (FW) 8.000 mm
Material: Carbon Steel Locking Method: No Set Screw Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-080-C-PD Spur Gears - 15 tooth - 15x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 15	Pitch Circle Diameter (PD) 15.00 mm _{(0.591 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 17.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Locking Method: No Set Screw Quality: ISO 8 - ( AGMA 9 )
Part Number: G015B-15-M1-080-080-C-PD Spur Gears - 15 tooth - 15x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-100-050-C Spur Gears - 16 tooth - 16x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-100-050-C Spur Gears - 16 tooth - 16x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each View the product page first if you are unsure.
G016B-016-M1-100-050-C --- Spur Gears - 16 tooth - 16x5 mm - S45C Steel G016B-016-M1-100-050-C --- Spur Gears - 16 tooth - 16x5 mm - S45C Steel Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-080-050-C Spur Gears - 16 tooth - 16x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G016B-016-M1-080-050-C Spur Gears - 16 tooth - 16x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
G016B-016-M1-080-050-C --- Spur Gears - 16 tooth - 16x5 mm - S45C Steel G016B-016-M1-080-050-C --- Spur Gears - 16 tooth - 16x5 mm - S45C Steel Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 18.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-080-050-C-ND Spur Gears - 16 tooth - 16x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 18.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-080-050-C-ND Spur Gears - 16 tooth - 16x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 18.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-080-060-C-ND Spur Gears - 16 tooth - 16x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 18.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-080-060-C-ND Spur Gears - 16 tooth - 16x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 18.000 mm	Face Width (FW) 12.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-120-080-C-ND Spur Gears - 16 tooth - 16x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 16	Pitch Circle Diameter (PD) 16.00 mm _{(0.63 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 18.000 mm
Material: Carbon Steel Face Width (FW): 12.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G016B-16-M1-120-080-C-ND Spur Gears - 16 tooth - 16x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 17	Pitch Circle Diameter (PD) 17.00 mm _{(0.669 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G017B-017-M1-080-050-C Spur Gears - 17 tooth - 17x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.00 mm _{(0.669 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G017B-017-M1-080-050-C Spur Gears - 17 tooth - 17x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each View the product page first if you are unsure.
G017B-017-M1-080-050-C --- Spur Gears - 17 tooth - 17x5 mm - S45C Steel G017B-017-M1-080-050-C --- Spur Gears - 17 tooth - 17x5 mm - S45C Steel Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-080-050-C-ND Spur Gears - 18 tooth - 18x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-080-050-C-ND Spur Gears - 18 tooth - 18x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G018B-018-M1-100-060-C Spur Gears - 18 tooth - 18x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G018B-018-M1-100-060-C Spur Gears - 18 tooth - 18x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each View the product page first if you are unsure.
G018B-018-M1-100-060-C --- Spur Gears - 18 tooth - 18x6 mm - S45C Steel G018B-018-M1-100-060-C --- Spur Gears - 18 tooth - 18x6 mm - S45C Steel Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-080-060-C-ND Spur Gears - 18 tooth - 18x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-080-060-C-ND Spur Gears - 18 tooth - 18x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Locking Method: No Set Screw Quality: ISO 5 - Ground
Part Number: G018B-18-M1-100-080-C-PD Spur Gears - 18 tooth - 18x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Locking Method: No Set Screw Quality: ISO 5 - Ground
Part Number: G018B-18-M1-100-080-C-PD Spur Gears - 18 tooth - 18x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 12.000 mm	Type Hubless
Material: Carbon Steel Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-120-080-C-ND Spur Gears - 18 tooth - 18x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 12.000 mm Type: Hubless Locking Method: None Quality: ISO 8 - ( AGMA 9 )
Part Number: G018B-18-M1-120-080-C-ND Spur Gears - 18 tooth - 18x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 19	Pitch Circle Diameter (PD) 19.00 mm _{(0.748 in.)}	Bore (d) 6.00 mm H7 _{(0.236 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G019B-019-M1-080-060-C Spur Gears - 19 tooth - 19x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each
Teeth 19	Pitch Circle Diameter (PD) 19.00 mm _{(0.748 in.)}	Bore (d) 6.00 mm H7 _{(0.236 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G019B-019-M1-080-060-C Spur Gears - 19 tooth - 19x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each View the product page first if you are unsure.
G019B-019-M1-080-060-C --- Spur Gears - 19 tooth - 19x6 mm - S45C Steel G019B-019-M1-080-060-C --- Spur Gears - 19 tooth - 19x6 mm - S45C Steel Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm _{(0.787 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-100-050-C Spur Gears - 20 tooth - 20x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm _{(0.787 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-100-050-C Spur Gears - 20 tooth - 20x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each View the product page first if you are unsure.
G020B-020-M1-100-050-C --- Spur Gears - 20 tooth - 20x5 mm - S45C Steel G020B-020-M1-100-050-C --- Spur Gears - 20 tooth - 20x5 mm - S45C Steel Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm _{(0.787 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}		Face Width (FW) 12.00 mm
Material: S45C Steel Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-120-060-C Spur Gears - 20 tooth - 20x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 20.00 mm _{(0.787 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}
Material: S45C Steel Face Width (FW): 12.00 mm Locking Method: None Hardness: Unhardened Quality: Commercial
Part Number: G020B-020-M1-120-060-C Spur Gears - 20 tooth - 20x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each View the product page first if you are unsure.

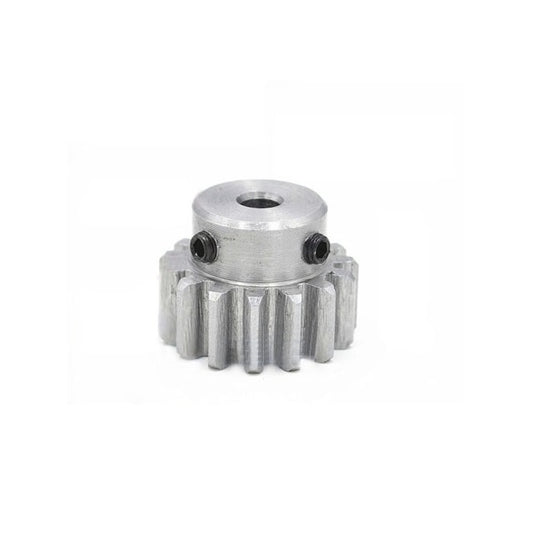

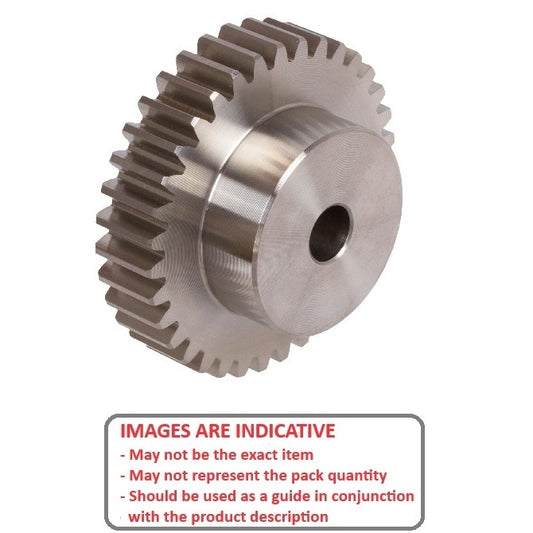

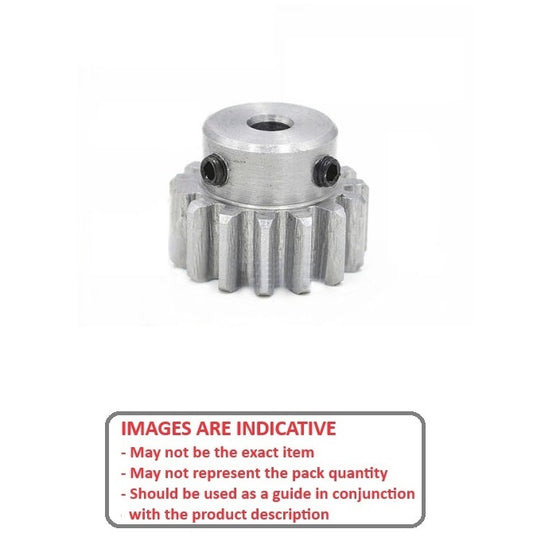

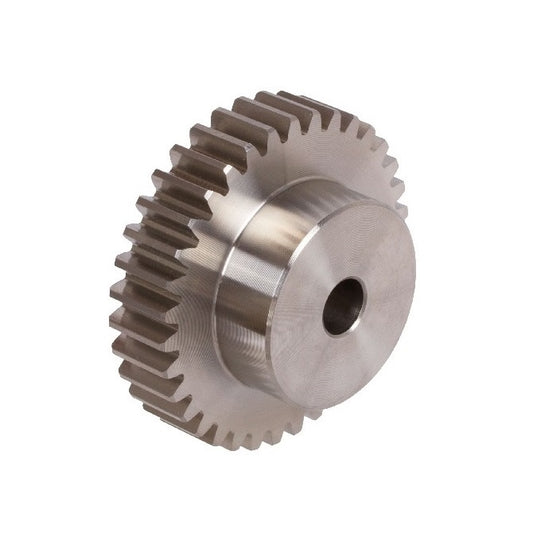

G020B-020-M1-120-060-C --- Spur Gears - 20 tooth - 20x6 mm - S45C Steel G020B-020-M1-120-060-C --- Spur Gears - 20 tooth - 20x6 mm - S45C Steel Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
