Gears - Spur - Standard - Module 0.5 - Plastic - With Insert

2 Products in this selection
  • PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.
  • The diameter increases by 0.5mm per tooth
  • Module 0.5. Approximately 1.57mm between the teeth.
Additional resources:
Module 0.5 Gear Racks
A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - Module 0.5 - Plastic - With Insert. Smallparts promote the most popular MBA products.
Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Teeth
21
Pitch Circle Diameter (PD)
10.50
mm

(0.413 in.)
Bore (d)
3.000
mm

(0.118 in.)
Outside Diameter (OD)
11.500
mm
Face Width (FW)
3.000
mm

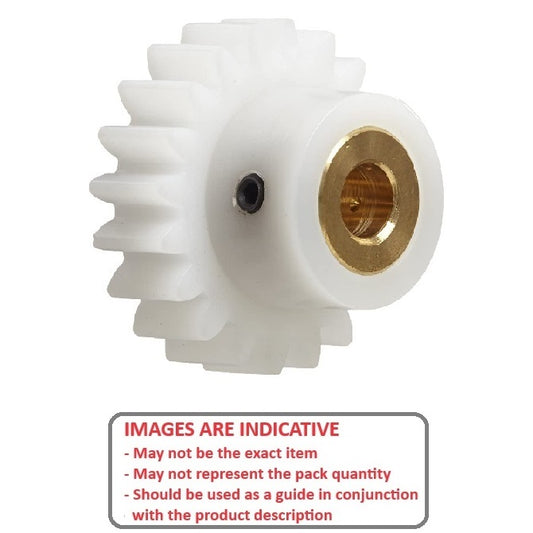

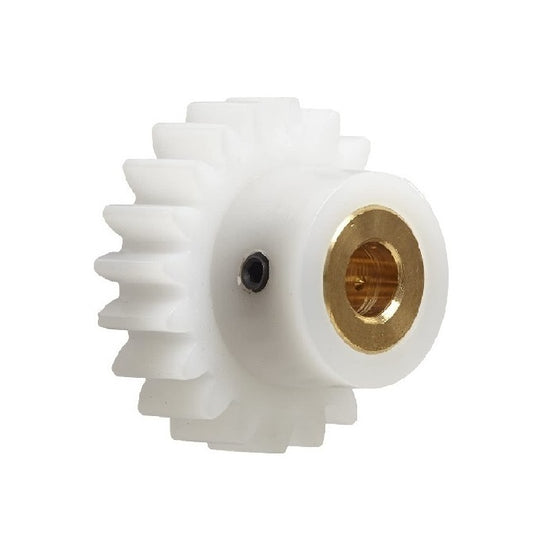

Spur Gears - 21 tooth - 10.5x3 mm - Acetal - Brass Insert
Material: Acetal - Brass Insert    Hub Diameter (D1): 8.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G011B-21-M05-030-030-AB-G Spur Gears - 21 tooth - 10.5x3 mm - Acetal - Brass Insert
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Teeth
21
Pitch Circle Diameter (PD)
10.50
mm

(0.413 in.)
Bore (d)
3.000
mm

(0.118 in.)
Outside Diameter (OD)
11.500
mm
Spur Gears - 21 tooth - 10.5x3 mm - Acetal - Brass Insert
Material: Acetal - Brass Insert    Face Width (FW): 3.000 mm    Hub Diameter (D1): 8.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G011B-21-M05-030-030-AB-G Spur Gears - 21 tooth - 10.5x3 mm - Acetal - Brass Insert
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Each
Teeth
24
Pitch Circle Diameter (PD)
12.00
mm

(0.472 in.)
Bore (d)
4.000
mm

(0.157 in.)
Outside Diameter (OD)
13.000
mm
Face Width (FW)
3.000
mm
Spur Gears - 24 tooth - 12x4 mm - Acetal - Brass Insert
Material: Acetal - Brass Insert    Hub Diameter (D1): 10.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G012B-24-M05-030-040-AB-G Spur Gears - 24 tooth - 12x4 mm - Acetal - Brass Insert
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Teeth
24
Pitch Circle Diameter (PD)
12.00
mm

(0.472 in.)
Bore (d)
4.000
mm

(0.157 in.)
Outside Diameter (OD)
13.000
mm
Spur Gears - 24 tooth - 12x4 mm - Acetal - Brass Insert
Material: Acetal - Brass Insert    Face Width (FW): 3.000 mm    Hub Diameter (D1): 10.00 mm    Hub Projection (HL): 7.00 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G012B-24-M05-030-040-AB-G Spur Gears - 24 tooth - 12x4 mm - Acetal - Brass Insert
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
