Gears - Spur - Hubless - Module 0.8

1 Item Available
This is a combined category of Module 0.8 Hubless Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Gears - Spur - Hubless - Module 0.8. Smallparts promote the most popular MBA products.
Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Teeth
132
Pitch Circle Diameter (PD)
105.60
mm

(4.157 in.)
Bore (d)
10.000
mm

(0.394 in.)
Outside Diameter (OD)
107.20
mm
Face Width (FW)
3.00
mm
Type
Hubless

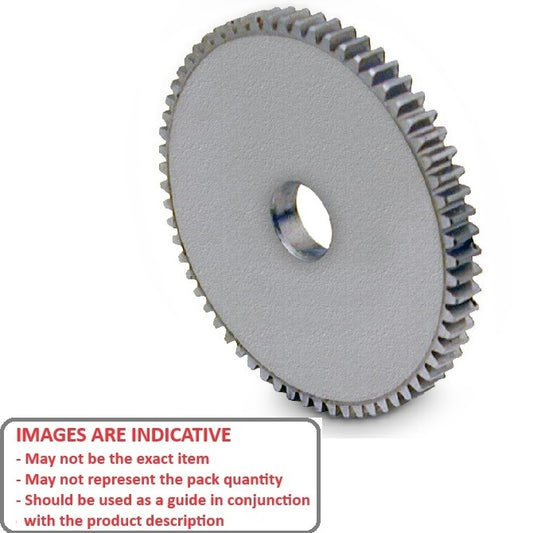

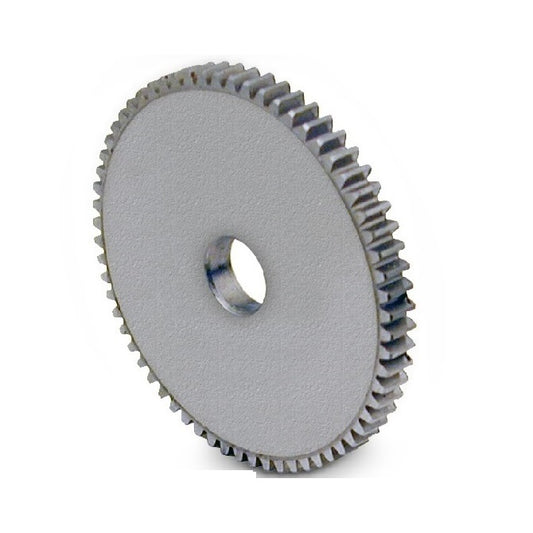

Spur Gears - 132 tooth - 105.6x10 mm - Aluminium Alloy 2024
Material: Aluminium Alloy 2024    Locking Method: None
Category: Gears - Spur - Hubless - Module 0.8 - Aluminium
Part Number: G106B-132-M08-030-100-AL-N Spur Gears - 132 tooth - 105.6x10 mm - Aluminium Alloy 2024
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Teeth
132
Pitch Circle Diameter (PD)
105.60
mm

(4.157 in.)
Bore (d)
10.000
mm

(0.394 in.)
Outside Diameter (OD)
107.20
mm
Spur Gears - 132 tooth - 105.6x10 mm - Aluminium Alloy 2024
Material: Aluminium Alloy 2024    Face Width (FW): 3.00 mm    Type: Hubless    Locking Method: None
Category: Gears - Spur - Hubless - Module 0.8 - Aluminium
Part Number: G106B-132-M08-030-100-AL-N Spur Gears - 132 tooth - 105.6x10 mm - Aluminium Alloy 2024
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
