Collection: Gears - Spur - Hubbed - 48DP

Gears -> Spur -> Hubbed -> 48DP

There are 77 products in the sub-categories of Gears - Spur - Hubbed - 48DP. Scroll down or follow the link to Gears - Spur - Hubbed - 48DP in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of spur gears.

There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
Be sure to match the pitch type and tooth angle when selecting spur gears.
An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

48DP Gear Racks

A more concise listing may be found in the Gears - Spur - Hubbed - 48DP category on the Small Parts & Bearings online store.

Number of Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type

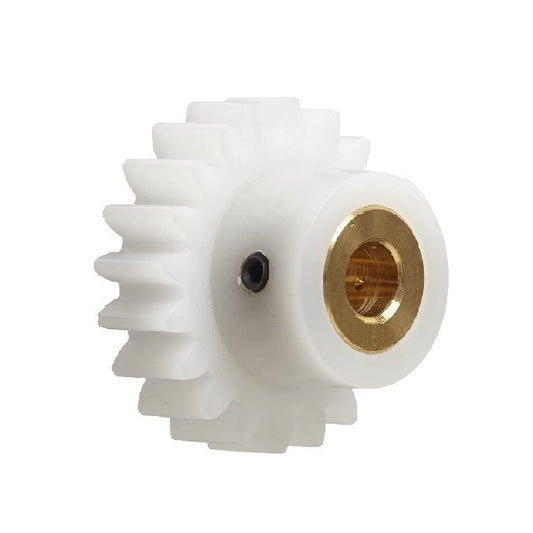

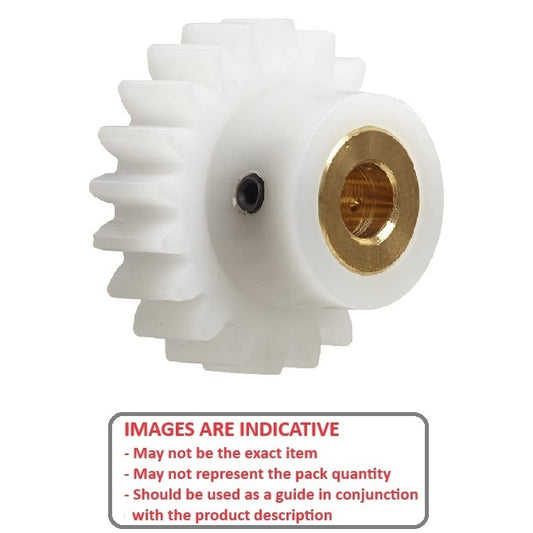

Number of Teeth 12	Pitch Circle Diameter (PD) 9.525 mm (Equiv. 0.375 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.13 mm	Face Width (FW) 4.76 mm	Type Hubbed

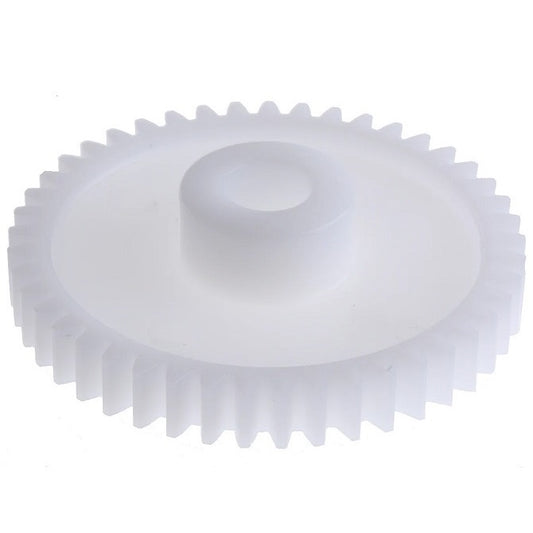

Material: Acetal - Brass insert Hub Diameter (D1): 7.14 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-012-D32-048-032-AB-G Spur Gears - 12 tooth - 9.525x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Number of Teeth 12	Pitch Circle Diameter (PD) 9.525 mm (Equiv. 0.375 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.13 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Type: Hubbed Hub Diameter (D1): 7.14 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-012-D32-048-032-AB-G Spur Gears - 12 tooth - 9.525x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G010B-012-D32-048-032-AB-G --- Spur Gears - 12 tooth - 9.525x3.175 mm Hubbed - Acetal - Brass insert Gear G010B-012-D32-048-032-AB-G --- Spur Gears - 12 tooth - 9.525x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 14	Pitch Circle Diameter (PD) 11.125 mm (Equiv. 0.438 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.70 mm	Face Width (FW) 4.76 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 7.95 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-014-D32-048-032-AB-G Spur Gears - 14 tooth - 11.125x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 14	Pitch Circle Diameter (PD) 11.125 mm (Equiv. 0.438 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.70 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Type: Hubbed Hub Diameter (D1): 7.95 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-014-D32-048-032-AB-G Spur Gears - 14 tooth - 11.125x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G011B-014-D32-048-032-AB-G --- Spur Gears - 14 tooth - 11.125x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G011B-014-D32-048-032-AB-G --- Spur Gears - 14 tooth - 11.125x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 16	Pitch Circle Diameter (PD) 12.700 mm (Equiv. 0.5 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.30 mm	Face Width (FW) 4.76 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-016-D32-048-032-AB-G Spur Gears - 16 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 16	Pitch Circle Diameter (PD) 12.700 mm (Equiv. 0.5 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.30 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Type: Hubbed Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-016-D32-048-032-AB-G Spur Gears - 16 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G013B-016-D32-048-032-AB-G --- Spur Gears - 16 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G013B-016-D32-048-032-AB-G --- Spur Gears - 16 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Pitch Circle Diameter (PD) 9.53 mm (Equiv. 0.375 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 10.574 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-018-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Pitch Circle Diameter (PD) 9.53 mm (Equiv. 0.375 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 10.574 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-018-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G010B-018-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G010B-018-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 18	Pitch Circle Diameter (PD) 14.275 mm (Equiv. 0.562 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 15.88 mm	Face Width (FW) 4.76 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-018-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Pitch Circle Diameter (PD) 14.275 mm (Equiv. 0.562 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 15.88 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Type: Hubbed Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-018-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G014B-018-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G014B-018-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 19	Pitch Circle Diameter (PD) 10.06 mm (Equiv. 0.396 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.107 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-019-D48-032-032-AB-G Spur Gears - 19 tooth - 10.06x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Pitch Circle Diameter (PD) 10.06 mm (Equiv. 0.396 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.107 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-019-D48-032-032-AB-G Spur Gears - 19 tooth - 10.06x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G010B-019-D48-032-032-AB-G --- Spur Gears - 19 tooth - 10.06x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G010B-019-D48-032-032-AB-G --- Spur Gears - 19 tooth - 10.06x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Out of stock! Backorder Now Sale

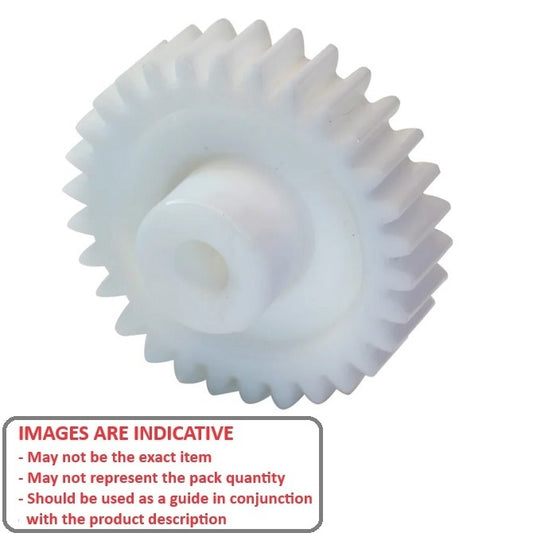

Number of Teeth 19	Pitch Circle Diameter (PD) 10.06 mm (Equiv. 0.396 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 11.107 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-019-D48-032-040-A-P Spur Gears - 19 tooth - 10.06x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 19	Pitch Circle Diameter (PD) 10.06 mm (Equiv. 0.396 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 11.107 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G010B-019-D48-032-040-A-P Spur Gears - 19 tooth - 10.06x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G010B-019-D48-032-040-A-P --- Spur Gears - 19 tooth - 10.06x3.97 mm Hubbed - Acetal Gear Sale G010B-019-D48-032-040-A-P --- Spur Gears - 19 tooth - 10.06x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Pitch Circle Diameter (PD) 10.59 mm (Equiv. 0.417 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.641 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-020-D48-032-032-AB-G Spur Gears - 20 tooth - 10.59x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Pitch Circle Diameter (PD) 10.59 mm (Equiv. 0.417 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 11.641 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-020-D48-032-032-AB-G Spur Gears - 20 tooth - 10.59x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G011B-020-D48-032-032-AB-G --- Spur Gears - 20 tooth - 10.59x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G011B-020-D48-032-032-AB-G --- Spur Gears - 20 tooth - 10.59x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Pitch Circle Diameter (PD) 10.59 mm (Equiv. 0.417 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 11.641 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-020-D48-032-040-A-P Spur Gears - 20 tooth - 10.59x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Pitch Circle Diameter (PD) 10.59 mm (Equiv. 0.417 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 11.641 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-020-D48-032-040-A-P Spur Gears - 20 tooth - 10.59x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G011B-020-D48-032-040-A-P --- Spur Gears - 20 tooth - 10.59x3.97 mm Hubbed - Acetal Gear Sale G011B-020-D48-032-040-A-P --- Spur Gears - 20 tooth - 10.59x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 20	Pitch Circle Diameter (PD) 15.875 mm (Equiv. 0.625 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Outside Diameter (OD) 17.48 mm	Face Width (FW) 4.76 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G016B-020-D32-048-064-AB-G Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 20	Pitch Circle Diameter (PD) 15.875 mm (Equiv. 0.625 in.)	Bore (d) 6.350 mm (Equiv. 0.25 in.)	Outside Diameter (OD) 17.48 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Type: Hubbed Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G016B-020-D32-048-064-AB-G Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G016B-020-D32-048-064-AB-G --- Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Acetal - Brass insert Gear Sale G016B-020-D32-048-064-AB-G --- Spur Gears - 20 tooth - 15.875x6.35 mm Hubbed - Acetal - Brass insert Gear Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Pitch Circle Diameter (PD) 11.13 mm (Equiv. 0.438 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.174 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-021-D48-032-032-AB-G Spur Gears - 21 tooth - 11.13x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Pitch Circle Diameter (PD) 11.13 mm (Equiv. 0.438 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.174 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-021-D48-032-032-AB-G Spur Gears - 21 tooth - 11.13x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G011B-021-D48-032-032-AB-G --- Spur Gears - 21 tooth - 11.13x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G011B-021-D48-032-032-AB-G --- Spur Gears - 21 tooth - 11.13x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 21	Pitch Circle Diameter (PD) 11.13 mm (Equiv. 0.438 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 12.174 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-021-D48-032-040-A-P Spur Gears - 21 tooth - 11.13x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 21	Pitch Circle Diameter (PD) 11.13 mm (Equiv. 0.438 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 12.174 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G011B-021-D48-032-040-A-P Spur Gears - 21 tooth - 11.13x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G011B-021-D48-032-040-A-P --- Spur Gears - 21 tooth - 11.13x3.97 mm Hubbed - Acetal Gear Sale G011B-021-D48-032-040-A-P --- Spur Gears - 21 tooth - 11.13x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Pitch Circle Diameter (PD) 11.63 mm (Equiv. 0.458 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.682 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-022-D48-032-032-AB-G Spur Gears - 22 tooth - 11.63x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Pitch Circle Diameter (PD) 11.63 mm (Equiv. 0.458 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 12.682 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-022-D48-032-032-AB-G Spur Gears - 22 tooth - 11.63x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G012B-022-D48-032-032-AB-G --- Spur Gears - 22 tooth - 11.63x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G012B-022-D48-032-032-AB-G --- Spur Gears - 22 tooth - 11.63x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 22	Pitch Circle Diameter (PD) 11.63 mm (Equiv. 0.458 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 12.682 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-022-D48-032-040-A-P Spur Gears - 22 tooth - 11.63x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 22	Pitch Circle Diameter (PD) 11.63 mm (Equiv. 0.458 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 12.682 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-022-D48-032-040-A-P Spur Gears - 22 tooth - 11.63x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G012B-022-D48-032-040-A-P --- Spur Gears - 22 tooth - 11.63x3.97 mm Hubbed - Acetal Gear Sale G012B-022-D48-032-040-A-P --- Spur Gears - 22 tooth - 11.63x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Pitch Circle Diameter (PD) 12.17 mm (Equiv. 0.479 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 13.216 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-023-D48-032-032-AB-G Spur Gears - 23 tooth - 12.17x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Pitch Circle Diameter (PD) 12.17 mm (Equiv. 0.479 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 13.216 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-023-D48-032-032-AB-G Spur Gears - 23 tooth - 12.17x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G012B-023-D48-032-032-AB-G --- Spur Gears - 23 tooth - 12.17x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G012B-023-D48-032-032-AB-G --- Spur Gears - 23 tooth - 12.17x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 23	Pitch Circle Diameter (PD) 12.17 mm (Equiv. 0.479 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 13.216 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-023-D48-032-040-A-P Spur Gears - 23 tooth - 12.17x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 23	Pitch Circle Diameter (PD) 12.17 mm (Equiv. 0.479 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 13.216 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G012B-023-D48-032-040-A-P Spur Gears - 23 tooth - 12.17x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G012B-023-D48-032-040-A-P --- Spur Gears - 23 tooth - 12.17x3.97 mm Hubbed - Acetal Gear Sale G012B-023-D48-032-040-A-P --- Spur Gears - 23 tooth - 12.17x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Pitch Circle Diameter (PD) 12.70 mm (Equiv. 0.5 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 13.749 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-024-D48-032-032-AB-G Spur Gears - 24 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Pitch Circle Diameter (PD) 12.70 mm (Equiv. 0.5 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 13.749 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-024-D48-032-032-AB-G Spur Gears - 24 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G013B-024-D48-032-032-AB-G --- Spur Gears - 24 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G013B-024-D48-032-032-AB-G --- Spur Gears - 24 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 24	Pitch Circle Diameter (PD) 12.70 mm (Equiv. 0.5 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 13.749 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-024-D48-032-040-A-P Spur Gears - 24 tooth - 12.7x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 24	Pitch Circle Diameter (PD) 12.70 mm (Equiv. 0.5 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 13.749 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-024-D48-032-040-A-P Spur Gears - 24 tooth - 12.7x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G013B-024-D48-032-040-A-P --- Spur Gears - 24 tooth - 12.7x3.97 mm Hubbed - Acetal Gear Sale G013B-024-D48-032-040-A-P --- Spur Gears - 24 tooth - 12.7x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.282 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-032-AB-G Spur Gears - 25 tooth - 13.23x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.95 AUD Regular price ~~$15.55 AUD~~ Sale price $12.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.282 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-032-AB-G Spur Gears - 25 tooth - 13.23x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.95 AUD Regular price ~~$15.55 AUD~~ Sale price $12.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G013B-025-D48-032-032-AB-G --- Spur Gears - 25 tooth - 13.23x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G013B-025-D48-032-032-AB-G --- Spur Gears - 25 tooth - 13.23x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.95 AUD Regular price ~~$15.55 AUD~~ Sale price $12.95 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 14.282 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-040-A-P Spur Gears - 25 tooth - 13.23x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 14.282 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-040-A-P Spur Gears - 25 tooth - 13.23x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G013B-025-D48-032-040-A-P --- Spur Gears - 25 tooth - 13.23x3.97 mm Hubbed - Acetal Gear Sale G013B-025-D48-032-040-A-P --- Spur Gears - 25 tooth - 13.23x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale

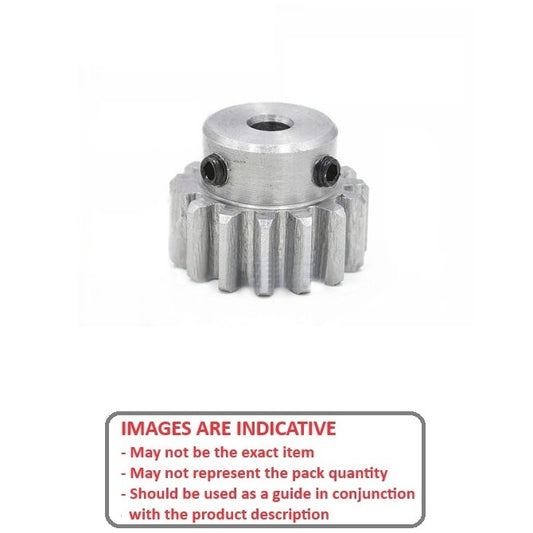

Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 4.762 mm (Equiv. 0.187 in.)	Outside Diameter (OD) 14.277 mm	Face Width (FW) 3.18 mm	Type Hubbed

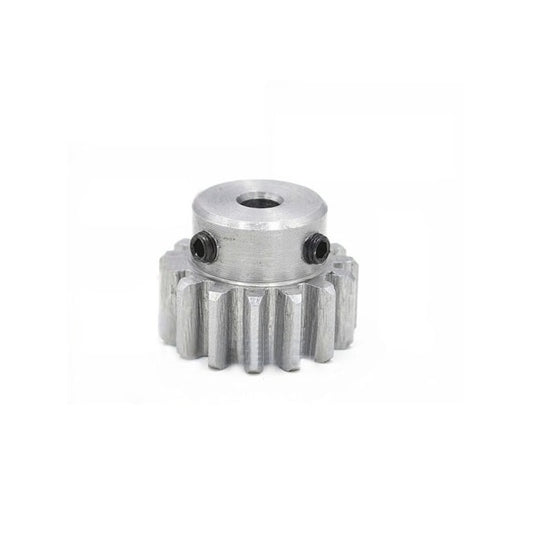

Material: Aluminium Alloy 2024 Hub Diameter (D1): 9.53 mm Hub Projection (HL): 5.54 mm Locking Method: Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-048-AL-G Spur Gears - 25 tooth - 13.23x4.762 mm Hubbed - Aluminium Alloy 2024 Gear 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth 25	Pitch Circle Diameter (PD) 13.23 mm (Equiv. 0.521 in.)	Bore (d) 4.762 mm (Equiv. 0.187 in.)	Outside Diameter (OD) 14.277 mm
Material: Aluminium Alloy 2024 Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 9.53 mm Hub Projection (HL): 5.54 mm Locking Method: Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G013B-025-D48-032-048-AL-G Spur Gears - 25 tooth - 13.23x4.762 mm Hubbed - Aluminium Alloy 2024 Gear 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
G013B-025-D48-032-048-AL-G --- Spur Gears - 25 tooth - 13.23x4.762 mm Hubbed - Aluminium Alloy 2024 Gear Sale G013B-025-D48-032-048-AL-G --- Spur Gears - 25 tooth - 13.23x4.762 mm Hubbed - Aluminium Alloy 2024 Gear Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 1 Available Now Sale
Number of Teeth 26	Pitch Circle Diameter (PD) 13.767 mm (Equiv. 0.542 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.81 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-026-D48-032-032-AB-G Spur Gears - 26 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Pitch Circle Diameter (PD) 13.767 mm (Equiv. 0.542 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 14.81 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree

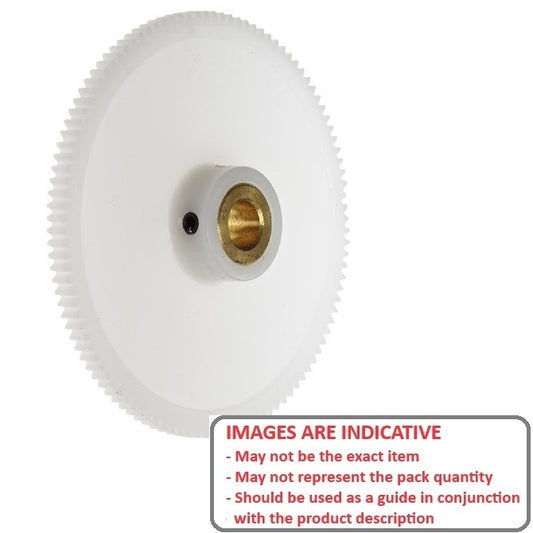

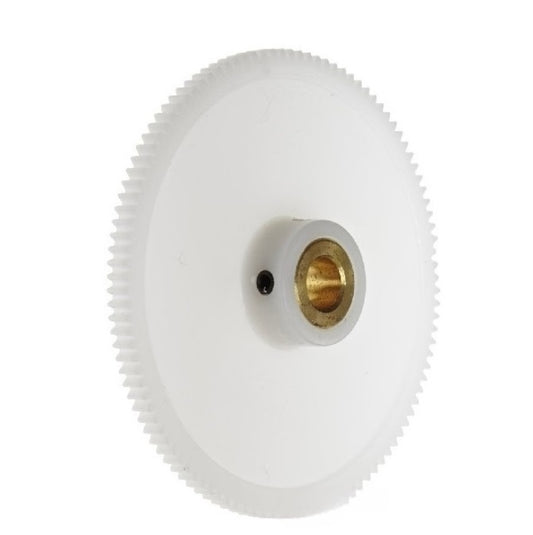

Part Number: G014B-026-D48-032-032-AB-G Spur Gears - 26 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G014B-026-D48-032-032-AB-G --- Spur Gears - 26 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G014B-026-D48-032-032-AB-G --- Spur Gears - 26 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 26	Pitch Circle Diameter (PD) 13.77 mm (Equiv. 0.542 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 14.816 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree

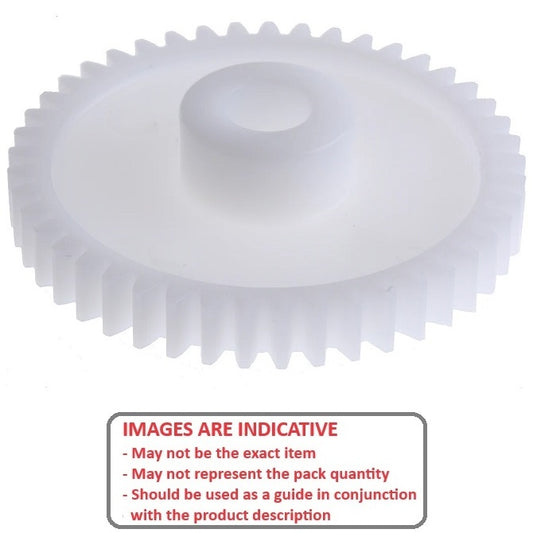

Part Number: G014B-026-D48-032-040-A-P Spur Gears - 26 tooth - 13.77x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 26	Pitch Circle Diameter (PD) 13.77 mm (Equiv. 0.542 in.)	Bore (d) 3.970 mm (Equiv. 0.156 in.)	Outside Diameter (OD) 14.816 mm
Material: Acetal Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-026-D48-032-040-A-P Spur Gears - 26 tooth - 13.77x3.97 mm Hubbed - Acetal Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G014B-026-D48-032-040-A-P --- Spur Gears - 26 tooth - 13.77x3.97 mm Hubbed - Acetal Gear Sale G014B-026-D48-032-040-A-P --- Spur Gears - 26 tooth - 13.77x3.97 mm Hubbed - Acetal Gear Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Out of stock! Backorder Now Sale
Number of Teeth 27	Pitch Circle Diameter (PD) 13.767 mm (Equiv. 0.542 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 15.34 mm	Face Width (FW) 3.18 mm	Type Hubbed
Material: Acetal - Brass insert Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-027-D48-032-032-AB-G Spur Gears - 27 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Number of Teeth 27	Pitch Circle Diameter (PD) 13.767 mm (Equiv. 0.542 in.)	Bore (d) 3.175 mm (Equiv. 0.125 in.)	Outside Diameter (OD) 15.34 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Type: Hubbed Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Hubbed - 48DP - 20 Degree
Part Number: G014B-027-D48-032-032-AB-G Spur Gears - 27 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 15, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
G014B-027-D48-032-032-AB-G --- Spur Gears - 27 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Sale G014B-027-D48-032-032-AB-G --- Spur Gears - 27 tooth - 13.767x3.175 mm Hubbed - Acetal - Brass insert Gear Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Gears - Spur - Hubbed - 48DP

Category Details

Filter

Filter

Subscribe to our emails
