Gears - Rack - Imperial - 96DP - Stainless

2 Products in this selection
This is a combined category of Stainless 96DP Imperial Rack Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Spur Gears
A more concise listing may be found on the Smallparts store at Gears - Rack - Imperial - 96DP - Stainless. Smallparts promote the most popular MBA products.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative
Length (L)
76.2
mm

(3 in.)
Face Width (fw)
4.242
mm

(0.167 in.)
Height (h)
9.017
mm

(0.355 in.)
Pitch Type
96DP
mm
Pitch Height (ph)
8.753 °
Pressure Angle
20

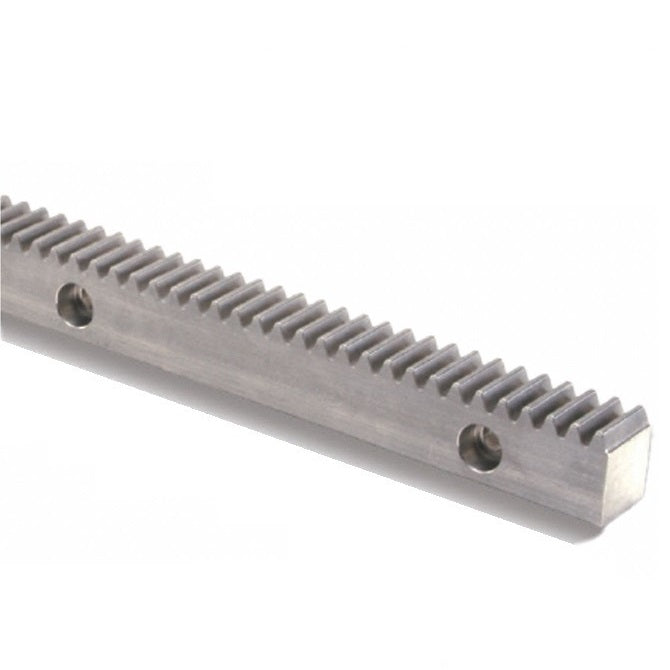

1176463 | GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base    Shape: Rectangular    Hole Centre Distance (C.D.): 22.23 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Length (L)
76.2
mm

(3 in.)
Face Width (fw)
4.242
mm

(0.167 in.)
Height (h)
9.017
mm

(0.355 in.)
Pitch Type
96DP
mm
1176463 | GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Pitch Height (ph): 8.753 °    Pressure Angle: 20    Precision: Precision    Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base    Shape: Rectangular    Hole Centre Distance (C.D.): 22.23 mm
Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Length (L)
279.40
mm

(11 in.)
Face Width (fw)
4.242
mm

(0.167 in.)
Height (h)
9.017
mm

(0.355 in.)
Pitch Type
96DP
mm
Pitch Height (ph)
8.753 °
Pressure Angle
20

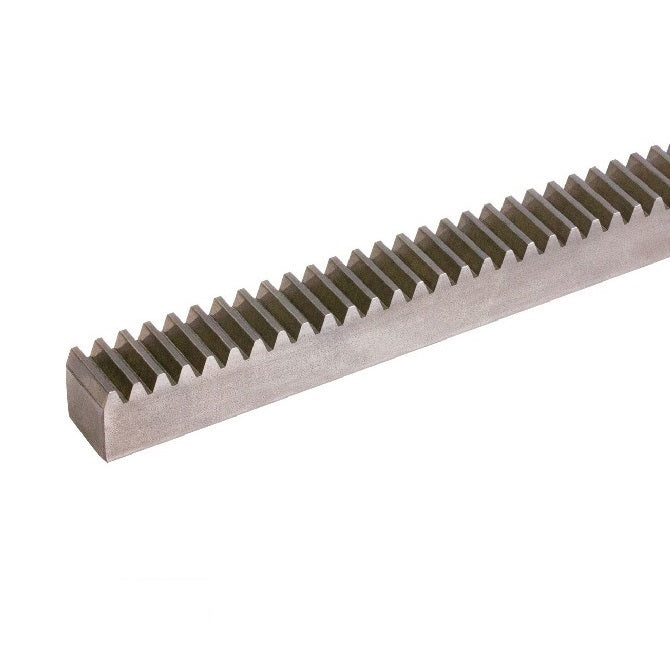

1212122 | GR-D96-04-0279-09-S41 --- Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Hole Details (H.D): None    Shape: Rectangular
Category: Gears - Rack - Imperial - 96DP - Stainless - Plain
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 01, 2025
$225.68 AUD
$225.68 AUD
Each
Length (L)
279.40
mm

(11 in.)
Face Width (fw)
4.242
mm

(0.167 in.)
Height (h)
9.017
mm

(0.355 in.)
Pitch Type
96DP
mm
1212122 | GR-D96-04-0279-09-S41 --- Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Pitch Height (ph): 8.753 °    Pressure Angle: 20    Precision: Precision    Mounting Hole Details (H.D): None    Shape: Rectangular
Category: Gears - Rack - Imperial - 96DP - Stainless - Plain
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 01, 2025
$225.68 AUD
$225.68 AUD
Each
View the product page first if you are unsure.
