23 Products in this selection

This is a combined category of Imperial Rack Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spur Gears

A more concise listing may be found on the Smallparts store at Gears - Rack - Imperial. Smallparts promote the most popular MBA products.

Length (L)	Face Width (fw)	Height (h)	Pitch Type	Pitch Height (ph)	Pressure Angle
Length (L) 76.2 mm _{(3 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 9.017 mm _{(0.355 in.)}	Pitch Type 96DP mm	Pitch Height (ph) 8.753 °	Pressure Angle 20

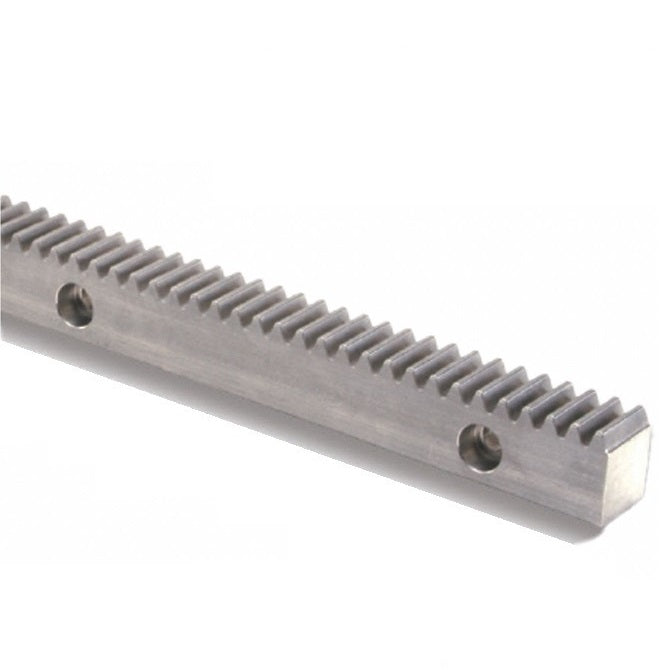

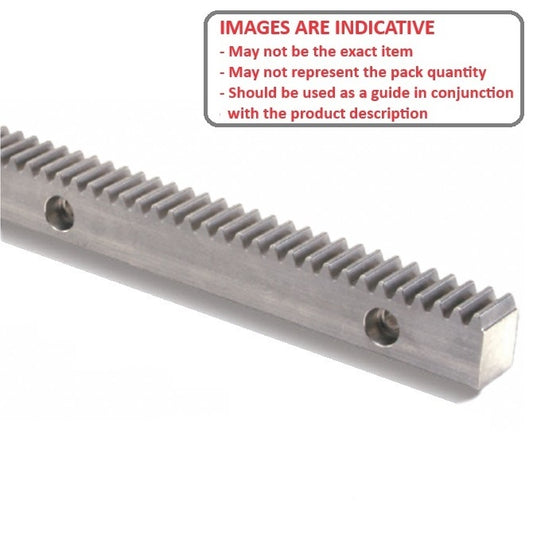

Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base Category: Gears - Rack - Imperial - 96DP
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $40.00 AUD Regular price ~~$76.00 AUD~~ Sale price $40.00 AUD Unit price per Each
Length (L)	Face Width (fw)	Height (h)	Pitch Type	Indicative Image
Length (L) 76.2 mm _{(3 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 9.017 mm _{(0.355 in.)}	Pitch Type 96DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 8.753 ° Pressure Angle: 20 Mounting Holes: 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base Category: Gears - Rack - Imperial - 96DP
Part Number: GR-D96-04-0076-09-S41MS Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $40.00 AUD Regular price ~~$76.00 AUD~~ Sale price $40.00 AUD Unit price per Each
GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 Sale GR-D96-04-0076-09-S41MS --- Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $40.00 AUD Regular price ~~$76.00 AUD~~ Sale price $40.00 AUD Unit price per 1 Available Now Sale
Length (L) 279.40 mm _{(11 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 9.017 mm _{(0.355 in.)}	Pitch Type 96DP mm	Pitch Height (ph) 8.753 °	Pressure Angle 20

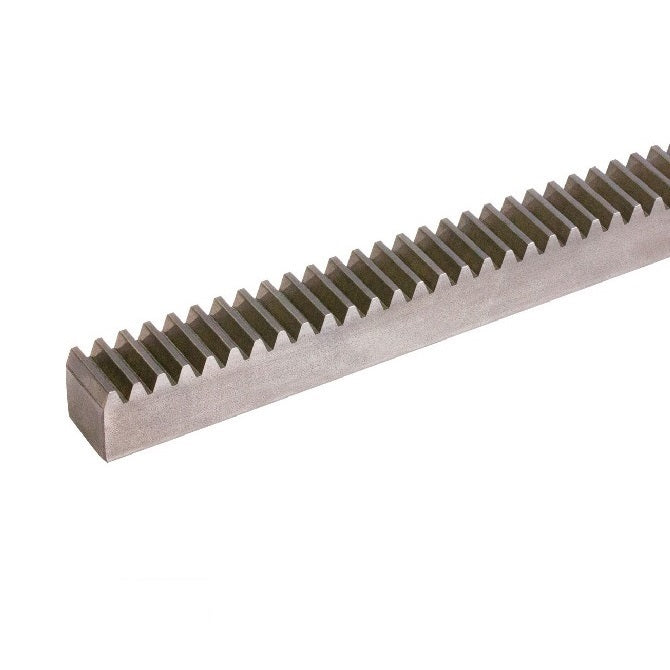

Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: None Category: Gears - Rack - Imperial - 96DP
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Each
Length (L) 279.40 mm _{(11 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 9.017 mm _{(0.355 in.)}	Pitch Type 96DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 8.753 ° Pressure Angle: 20 Mounting Holes: None Category: Gears - Rack - Imperial - 96DP
Part Number: GR-D96-04-0279-09-S41 Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Each View the product page first if you are unsure.
GR-D96-04-0279-09-S41 --- Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 GR-D96-04-0279-09-S41 --- Rack Gears - 279.4x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $225.68 AUD Regular price Sale price $225.68 AUD Unit price per Out of stock! Backorder Now
Length (L) 279.40 mm _{(11 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 64DP mm	Pitch Height (ph) 11.796 °	Pressure Angle 20
Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: None Category: Gears - Rack - Imperial - 64DP Stainless
Part Number: GR-D64-04-0279-12-S41 Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $228.23 AUD Regular price Sale price $228.23 AUD Unit price per Each
Length (L) 279.40 mm _{(11 in.)}	Face Width (fw) 4.242 mm _{(0.167 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 64DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 11.796 ° Pressure Angle: 20 Mounting Holes: None Category: Gears - Rack - Imperial - 64DP Stainless
Part Number: GR-D64-04-0279-12-S41 Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $228.23 AUD Regular price Sale price $228.23 AUD Unit price per Each View the product page first if you are unsure.
GR-D64-04-0279-12-S41 --- Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42 GR-D64-04-0279-12-S41 --- Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $228.23 AUD Regular price Sale price $228.23 AUD Unit price per 1 Available Now
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 3.175 mm _{(0.125 in.)}	Height (h) 3.175 mm _{(0.125 in.)}	Pitch Type 48DP - 14.5 PA mm	Pitch Height (ph) 2.779 °	Pressure Angle 14.5

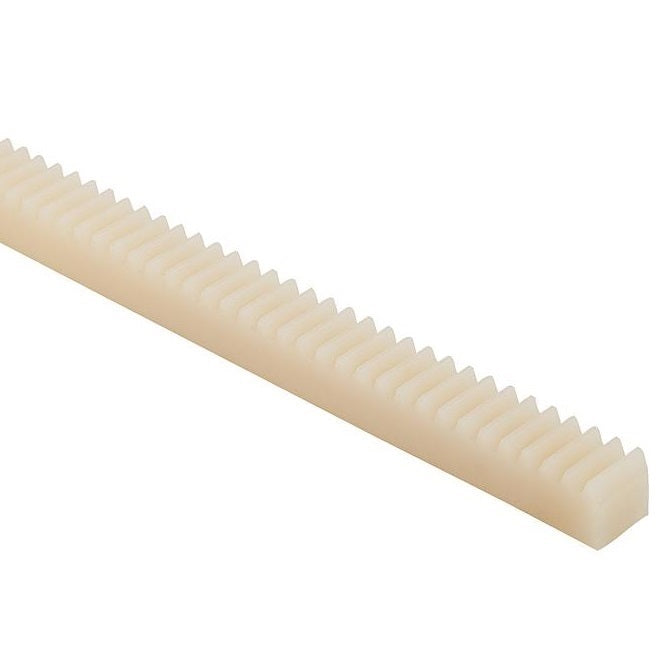

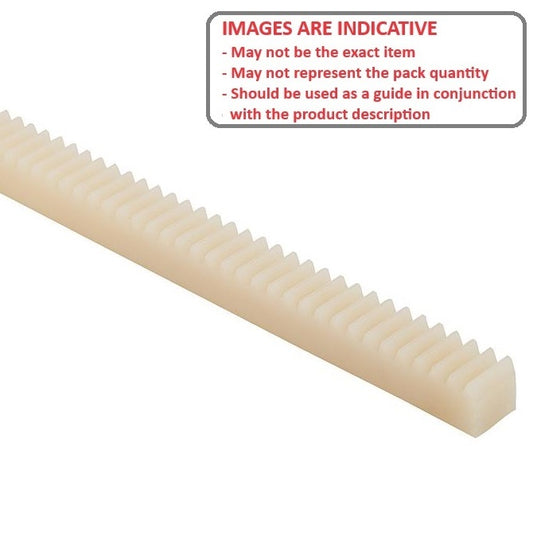

Material: Nylon 101 Mounting Holes: None Category: Gears - Rack - Imperial - 48DP
Part Number: GR-V48-03-0305-03-N Rack Gears - 304.8x3.175x3.175 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Each
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 3.175 mm _{(0.125 in.)}	Height (h) 3.175 mm _{(0.125 in.)}	Pitch Type 48DP - 14.5 PA mm
Material: Nylon 101 Pitch Height (ph): 2.779 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 48DP
Part Number: GR-V48-03-0305-03-N Rack Gears - 304.8x3.175x3.175 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Each View the product page first if you are unsure.
GR-V48-03-0305-03-N --- Rack Gears - 304.8x3.175x3.175 mm - Nylon 101 GR-V48-03-0305-03-N --- Rack Gears - 304.8x3.175x3.175 mm - Nylon 101 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Out of stock! Backorder Now
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 4.762 mm _{(0.187 in.)}	Height (h) 4.762 mm _{(0.187 in.)}	Pitch Type 32DP - 14.5 PA mm	Pitch Height (ph) 3.970 °	Pressure Angle 14.5
Material: Nylon 101 Mounting Holes: None Category: Gears - Rack - Imperial - 32DP
Part Number: GR-V32-05-0305-05-N Rack Gears - 304.8x4.762x4.762 mm - Nylon 101 4 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 4.762 mm _{(0.187 in.)}	Height (h) 4.762 mm _{(0.187 in.)}	Pitch Type 32DP - 14.5 PA mm
Material: Nylon 101 Pitch Height (ph): 3.970 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 32DP
Part Number: GR-V32-05-0305-05-N Rack Gears - 304.8x4.762x4.762 mm - Nylon 101 4 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Each View the product page first if you are unsure.
GR-V32-05-0305-05-N --- Rack Gears - 304.8x4.762x4.762 mm - Nylon 101 GR-V32-05-0305-05-N --- Rack Gears - 304.8x4.762x4.762 mm - Nylon 101 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per 4 Available Now
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 6.350 mm _{(0.25 in.)}	Height (h) 6.350 mm _{(0.25 in.)}	Pitch Type 24DP - 14.5 PA mm	Pitch Height (ph) 5.159 °	Pressure Angle 14.5
Material: Nylon 101 Mounting Holes: None Category: Gears - Rack - Imperial - 24DP
Part Number: GR-V24-06-0305-06-N Rack Gears - 304.8x6.35x6.35 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Each
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 6.350 mm _{(0.25 in.)}	Height (h) 6.350 mm _{(0.25 in.)}	Pitch Type 24DP - 14.5 PA mm
Material: Nylon 101 Pitch Height (ph): 5.159 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 24DP
Part Number: GR-V24-06-0305-06-N Rack Gears - 304.8x6.35x6.35 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Each View the product page first if you are unsure.
GR-V24-06-0305-06-N --- Rack Gears - 304.8x6.35x6.35 mm - Nylon 101 GR-V24-06-0305-06-N --- Rack Gears - 304.8x6.35x6.35 mm - Nylon 101 Regular price $11.50 AUD Regular price Sale price $11.50 AUD Unit price per Out of stock! Backorder Now
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 7.938 mm _{(0.313 in.)}	Height (h) 7.938 mm _{(0.313 in.)}	Pitch Type 16DP - 14.5 PA mm	Pitch Height (ph) 6.350 °	Pressure Angle 14.5
Material: Nylon 101 Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-08-0305-08-N Rack Gears - 304.8x7.938x7.938 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Each
Length (L) 304.80 mm _{(12 in.)}	Face Width (fw) 7.938 mm _{(0.313 in.)}	Height (h) 7.938 mm _{(0.313 in.)}	Pitch Type 16DP - 14.5 PA mm
Material: Nylon 101 Pitch Height (ph): 6.350 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-08-0305-08-N Rack Gears - 304.8x7.938x7.938 mm - Nylon 101 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Each View the product page first if you are unsure.
GR-V16-08-0305-08-N --- Rack Gears - 304.8x7.938x7.938 mm - Nylon 101 GR-V16-08-0305-08-N --- Rack Gears - 304.8x7.938x7.938 mm - Nylon 101 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Out of stock! Backorder Now
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 24DP mm	Pitch Height (ph) 11.133 °	Pressure Angle 20
Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: None Category: Gears - Rack - Imperial - 24DP
Part Number: GR-D24-06-0457-12-S4 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $313.14 AUD Regular price Sale price $313.14 AUD Unit price per Each
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 24DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 11.133 ° Pressure Angle: 20 Mounting Holes: None Category: Gears - Rack - Imperial - 24DP
Part Number: GR-D24-06-0457-12-S4 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $313.14 AUD Regular price Sale price $313.14 AUD Unit price per Each View the product page first if you are unsure.
GR-D24-06-0457-12-S4 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 GR-D24-06-0457-12-S4 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $313.14 AUD Regular price Sale price $313.14 AUD Unit price per 1 Available Now
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 32DP mm	Pitch Height (ph) 11.397 °	Pressure Angle 20
Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: None Category: Gears - Rack - Imperial - 32DP
Part Number: GR-D32-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $280.95 AUD Regular price Sale price $280.95 AUD Unit price per Each
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 32DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 11.397 ° Pressure Angle: 20 Mounting Holes: None Category: Gears - Rack - Imperial - 32DP
Part Number: GR-D32-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $280.95 AUD Regular price Sale price $280.95 AUD Unit price per Each View the product page first if you are unsure.
GR-D32-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 GR-D32-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $280.95 AUD Regular price Sale price $280.95 AUD Unit price per 1 Available Now
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 48DP mm	Pitch Height (ph) 11.664 °	Pressure Angle 20
Material: Stainless Steel AISI 416 Rc 36-42 Mounting Holes: None Category: Gears - Rack - Imperial - 48DP
Part Number: GR-D48-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $279.23 AUD Regular price Sale price $279.23 AUD Unit price per Each
Length (L) 457.20 mm _{(18 in.)}	Face Width (fw) 5.842 mm _{(0.23 in.)}	Height (h) 12.192 mm _{(0.48 in.)}	Pitch Type 48DP mm
Material: Stainless Steel AISI 416 Rc 36-42 Pitch Height (ph): 11.664 ° Pressure Angle: 20 Mounting Holes: None Category: Gears - Rack - Imperial - 48DP
Part Number: GR-D48-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 1 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $279.23 AUD Regular price Sale price $279.23 AUD Unit price per Each View the product page first if you are unsure.
GR-D48-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 GR-D48-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42 Regular price $279.23 AUD Regular price Sale price $279.23 AUD Unit price per 1 Available Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 9.525 mm _{(0.375 in.)}	Height (h) 9.525 mm _{(0.375 in.)}	Pitch Type 20DP - 14.5 PA mm	Pitch Height (ph) 8.255 °	Pressure Angle 14.5

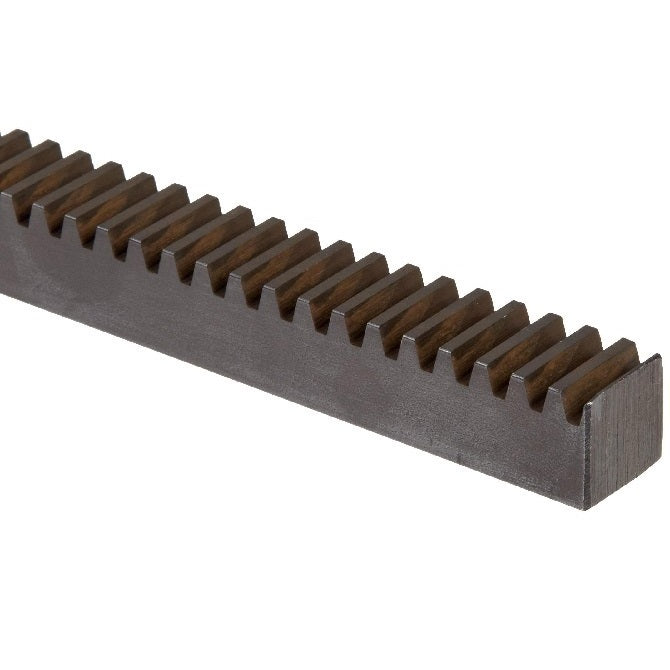

Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 20DP
Part Number: GR-V20-10-1219-10-C Rack Gears - 1219.2x9.525x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $666.86 AUD Regular price Sale price $666.86 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 9.525 mm _{(0.375 in.)}	Height (h) 9.525 mm _{(0.375 in.)}	Pitch Type 20DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 8.255 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 20DP
Part Number: GR-V20-10-1219-10-C Rack Gears - 1219.2x9.525x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $666.86 AUD Regular price Sale price $666.86 AUD Unit price per Each View the product page first if you are unsure.
GR-V20-10-1219-10-C --- Rack Gears - 1219.2x9.525x9.525 mm - Steel GR-V20-10-1219-10-C --- Rack Gears - 1219.2x9.525x9.525 mm - Steel Regular price $666.86 AUD Regular price Sale price $666.86 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 12.7 mm _{(0.5 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 16DP - 14.5 PA mm	Pitch Height (ph) 11.125 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-13-1219-13-C Rack Gears - 1219.2x12.7x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $647.95 AUD Regular price Sale price $647.95 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 12.7 mm _{(0.5 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 16DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 11.125 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-13-1219-13-C Rack Gears - 1219.2x12.7x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $647.95 AUD Regular price Sale price $647.95 AUD Unit price per Each View the product page first if you are unsure.
GR-V16-13-1219-13-C --- Rack Gears - 1219.2x12.7x12.7 mm - Steel GR-V16-13-1219-13-C --- Rack Gears - 1219.2x12.7x12.7 mm - Steel Regular price $647.95 AUD Regular price Sale price $647.95 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 12DP - 14.5 PA mm	Pitch Height (ph) 10.592 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1219-13-C Rack Gears - 1219.2x19.05x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $684.86 AUD Regular price Sale price $684.86 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 12DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 10.592 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1219-13-C Rack Gears - 1219.2x19.05x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $684.86 AUD Regular price Sale price $684.86 AUD Unit price per Each View the product page first if you are unsure.
GR-V12-19-1219-13-C --- Rack Gears - 1219.2x19.05x12.7 mm - Steel GR-V12-19-1219-13-C --- Rack Gears - 1219.2x19.05x12.7 mm - Steel Regular price $684.86 AUD Regular price Sale price $684.86 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 12DP - 14.5 PA mm	Pitch Height (ph) 16.942 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1219-19-C Rack Gears - 1219.2x19.05x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $806.77 AUD Regular price Sale price $806.77 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 12DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 16.942 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1219-19-C Rack Gears - 1219.2x19.05x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $806.77 AUD Regular price Sale price $806.77 AUD Unit price per Each View the product page first if you are unsure.
GR-V12-19-1219-19-C --- Rack Gears - 1219.2x19.05x19.05 mm - Steel GR-V12-19-1219-19-C --- Rack Gears - 1219.2x19.05x19.05 mm - Steel Regular price $806.77 AUD Regular price Sale price $806.77 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 15.875 mm _{(0.625 in.)}	Pitch Type 10DP - 14.5 PA mm	Pitch Height (ph) 13.335 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1219-16-C Rack Gears - 1219.2x25.4x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $951.95 AUD Regular price Sale price $951.95 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 15.875 mm _{(0.625 in.)}	Pitch Type 10DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 13.335 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1219-16-C Rack Gears - 1219.2x25.4x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $951.95 AUD Regular price Sale price $951.95 AUD Unit price per Each View the product page first if you are unsure.
GR-V10-25-1219-16-C --- Rack Gears - 1219.2x25.4x15.875 mm - Steel GR-V10-25-1219-16-C --- Rack Gears - 1219.2x25.4x15.875 mm - Steel Regular price $951.95 AUD Regular price Sale price $951.95 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 25.400 mm _{(1 in.)}	Pitch Type 10DP - 14.5 PA mm	Pitch Height (ph) 22.860 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1219-25-C Rack Gears - 1219.2x25.4x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $720.41 AUD Regular price Sale price $720.41 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 25.400 mm _{(1 in.)}	Pitch Type 10DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 22.860 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1219-25-C Rack Gears - 1219.2x25.4x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $720.41 AUD Regular price Sale price $720.41 AUD Unit price per Each View the product page first if you are unsure.
GR-V10-25-1219-25-C --- Rack Gears - 1219.2x25.4x25.4 mm - Steel GR-V10-25-1219-25-C --- Rack Gears - 1219.2x25.4x25.4 mm - Steel Regular price $720.41 AUD Regular price Sale price $720.41 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 31.75 mm _{(1.25 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 8DP - 14.5 PA mm	Pitch Height (ph) 15.875 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 8DP Steel
Part Number: GR-V8-32-1219-19-C Rack Gears - 1219.2x31.75x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $740.68 AUD Regular price Sale price $740.68 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 31.75 mm _{(1.25 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 8DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 15.875 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 8DP Steel
Part Number: GR-V8-32-1219-19-C Rack Gears - 1219.2x31.75x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $740.68 AUD Regular price Sale price $740.68 AUD Unit price per Each View the product page first if you are unsure.
GR-V8-32-1219-19-C --- Rack Gears - 1219.2x31.75x19.05 mm - Steel GR-V8-32-1219-19-C --- Rack Gears - 1219.2x31.75x19.05 mm - Steel Regular price $740.68 AUD Regular price Sale price $740.68 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 31.75 mm _{(1.25 in.)}	Height (h) 31.750 mm _{(1.25 in.)}	Pitch Type 8DP - 14.5 PA mm	Pitch Height (ph) 28.575 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 8DP Steel
Part Number: GR-V8-32-1219-32-C Rack Gears - 1219.2x31.75x31.75 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,151.41 AUD Regular price Sale price $1,151.41 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 31.75 mm _{(1.25 in.)}	Height (h) 31.750 mm _{(1.25 in.)}	Pitch Type 8DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 28.575 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 8DP Steel
Part Number: GR-V8-32-1219-32-C Rack Gears - 1219.2x31.75x31.75 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,151.41 AUD Regular price Sale price $1,151.41 AUD Unit price per Each View the product page first if you are unsure.
GR-V8-32-1219-32-C --- Rack Gears - 1219.2x31.75x31.75 mm - Steel GR-V8-32-1219-32-C --- Rack Gears - 1219.2x31.75x31.75 mm - Steel Regular price $1,151.41 AUD Regular price Sale price $1,151.41 AUD Unit price per Out of stock! Backorder Now
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 38.1 mm _{(1.5 in.)}	Height (h) 25.400 mm _{(1 in.)}	Pitch Type 6DP - 14.5 PA mm	Pitch Height (ph) 21.158 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 6DP Steel
Part Number: GR-V6-38-1219-25-C Rack Gears - 1219.2x38.1x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,581.86 AUD Regular price Sale price $1,581.86 AUD Unit price per Each
Length (L) 1219.2 mm _{(48 in.)}	Face Width (fw) 38.1 mm _{(1.5 in.)}	Height (h) 25.400 mm _{(1 in.)}	Pitch Type 6DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 21.158 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 6DP Steel
Part Number: GR-V6-38-1219-25-C Rack Gears - 1219.2x38.1x25.4 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,581.86 AUD Regular price Sale price $1,581.86 AUD Unit price per Each View the product page first if you are unsure.
GR-V6-38-1219-25-C --- Rack Gears - 1219.2x38.1x25.4 mm - Steel GR-V6-38-1219-25-C --- Rack Gears - 1219.2x38.1x25.4 mm - Steel Regular price $1,581.86 AUD Regular price Sale price $1,581.86 AUD Unit price per Out of stock! Backorder Now
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 9.525 mm _{(0.375 in.)}	Height (h) 9.525 mm _{(0.375 in.)}	Pitch Type 20DP - 14.5 PA mm	Pitch Height (ph) 8.255 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 20DP
Part Number: GR-V20-10-1829-10-C Rack Gears - 1828.8x9.525x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $883.41 AUD Regular price Sale price $883.41 AUD Unit price per Each
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 9.525 mm _{(0.375 in.)}	Height (h) 9.525 mm _{(0.375 in.)}	Pitch Type 20DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 8.255 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 20DP
Part Number: GR-V20-10-1829-10-C Rack Gears - 1828.8x9.525x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $883.41 AUD Regular price Sale price $883.41 AUD Unit price per Each View the product page first if you are unsure.
GR-V20-10-1829-10-C --- Rack Gears - 1828.8x9.525x9.525 mm - Steel GR-V20-10-1829-10-C --- Rack Gears - 1828.8x9.525x9.525 mm - Steel Regular price $883.41 AUD Regular price Sale price $883.41 AUD Unit price per Out of stock! Backorder Now
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 12.7 mm _{(0.5 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 16DP - 14.5 PA mm	Pitch Height (ph) 11.125 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-13-1829-13-C Rack Gears - 1828.8x12.7x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $993.95 AUD Regular price Sale price $993.95 AUD Unit price per Each
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 12.7 mm _{(0.5 in.)}	Height (h) 12.700 mm _{(0.5 in.)}	Pitch Type 16DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 11.125 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 16DP
Part Number: GR-V16-13-1829-13-C Rack Gears - 1828.8x12.7x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $993.95 AUD Regular price Sale price $993.95 AUD Unit price per Each View the product page first if you are unsure.
GR-V16-13-1829-13-C --- Rack Gears - 1828.8x12.7x12.7 mm - Steel GR-V16-13-1829-13-C --- Rack Gears - 1828.8x12.7x12.7 mm - Steel Regular price $993.95 AUD Regular price Sale price $993.95 AUD Unit price per Out of stock! Backorder Now
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 12DP - 14.5 PA mm	Pitch Height (ph) 16.942 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1829-19-C Rack Gears - 1828.8x19.05x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $747.86 AUD Regular price Sale price $747.86 AUD Unit price per Each
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 19.05 mm _{(0.75 in.)}	Height (h) 19.050 mm _{(0.75 in.)}	Pitch Type 12DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 16.942 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 12DP Steel
Part Number: GR-V12-19-1829-19-C Rack Gears - 1828.8x19.05x19.05 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $747.86 AUD Regular price Sale price $747.86 AUD Unit price per Each View the product page first if you are unsure.
GR-V12-19-1829-19-C --- Rack Gears - 1828.8x19.05x19.05 mm - Steel GR-V12-19-1829-19-C --- Rack Gears - 1828.8x19.05x19.05 mm - Steel Regular price $747.86 AUD Regular price Sale price $747.86 AUD Unit price per Out of stock! Backorder Now
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 15.875 mm _{(0.625 in.)}	Pitch Type 10DP - 14.5 PA mm	Pitch Height (ph) 13.335 °	Pressure Angle 14.5
Material: Steel Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1829-16-C Rack Gears - 1828.8x25.4x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,265.68 AUD Regular price Sale price $1,265.68 AUD Unit price per Each
Length (L) 1828.8 mm _{(72 in.)}	Face Width (fw) 25.4 mm _{(1 in.)}	Height (h) 15.875 mm _{(0.625 in.)}	Pitch Type 10DP - 14.5 PA mm
Material: Steel Pitch Height (ph): 13.335 ° Pressure Angle: 14.5 Mounting Holes: None Category: Gears - Rack - Imperial - 10DP
Part Number: GR-V10-25-1829-16-C Rack Gears - 1828.8x25.4x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $1,265.68 AUD Regular price Sale price $1,265.68 AUD Unit price per Each View the product page first if you are unsure.
GR-V10-25-1829-16-C --- Rack Gears - 1828.8x25.4x15.875 mm - Steel GR-V10-25-1829-16-C --- Rack Gears - 1828.8x25.4x15.875 mm - Steel Regular price $1,265.68 AUD Regular price Sale price $1,265.68 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Gears - Rack - Imperial

Filter

Filter

Subscribe to our emails
