Gears - Pinion Wire 32 DP

1 Item Available
  • Brass and carbon steel.
  • Please note that very thin pinion wire may not be supplied perfectly straight. Pinion wire is meant to be cut into much smaller pieces to make pinion gears so the slight bends in the long length will have no effect on the intended use.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • DP is Diametrical Pitch
Additional resources:
A more concise listing may be found on the Smallparts store at Gears - Pinion Wire 32 DP. Smallparts promote the most popular MBA products.
Teeth Outside Diameter (OD) Length (L) Pressure Angle Indicative
Teeth
9
Outside Diameter (OD)
8.738
mm

(0.344 in.)
Length (L)
300
mm

(11.811 in.)
Pressure Angle
20 °

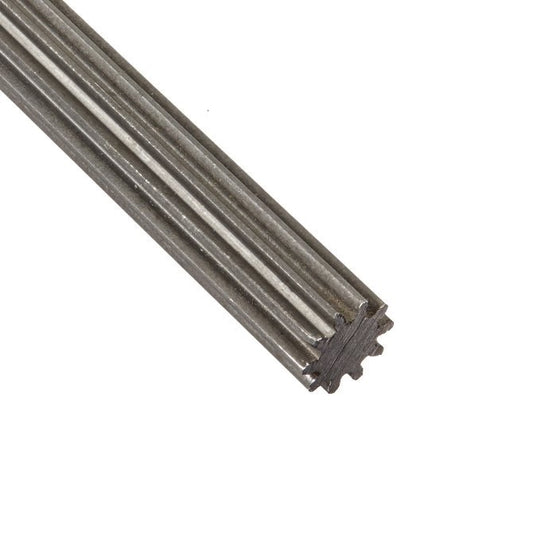

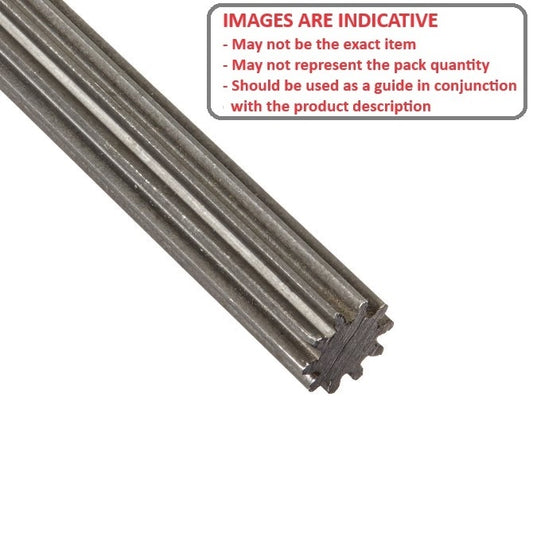

Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel
Material: Carbon steel    Pitch Diameter (PD): 7.14 mm
Part Number: G007L-09-D32-0300-C (Length) Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel
3 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$70.00 AUD
$133.00 AUD $70.00 AUD
Per Length
Teeth Outside Diameter (OD) Length (L) Pressure Angle Indicative
Teeth
9
Outside Diameter (OD)
8.738
mm

(0.344 in.)
Length (L)
300
mm

(11.811 in.)
Pressure Angle
20 °
Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel
Material: Carbon steel    Pitch Diameter (PD): 7.14 mm
Part Number: G007L-09-D32-0300-C (Length) Pinion Wire 32DP Gears - 9 tooth - 8.738x300 mm - Carbon steel
3 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$70.00 AUD
$133.00 AUD $70.00 AUD
Per Length
