Gearmotors - DC PM - Size 70x114

1 Item Available
  • Permanent Magnet.
  • Max. Allowable Radial Load: 100N (10mm from mounting surface).
  • Max. Allowable Axial Load: 30N.
  • Axial Play: 0.05 - 0.6mm. Allowable Temperature Range: -20oC to +60oC.
  • Integral CD PM Motor - Brush type commutation - 12 segment commutator - RFI protection standard.
  • Gear train with steel and high quality plastic gears - Terminal dimensions 4.8 x 0.8 - Weight: 1200g.
Additional resources:
A more concise listing may be found on the Smallparts store at Gearmotors - DC PM - Size 70x114. Smallparts promote the most popular MBA products.
Voltage Rated Torque Rated Speed Rated Current No Load Speed Terminal Resistance Indicative
Voltage
24V
DC
Rated Torque
3300
mNm
Rated Speed
23.5
rpm
Rated Current
1250
mA
No Load Speed
31
rpm
Terminal Resistance
7.60
 Ohms

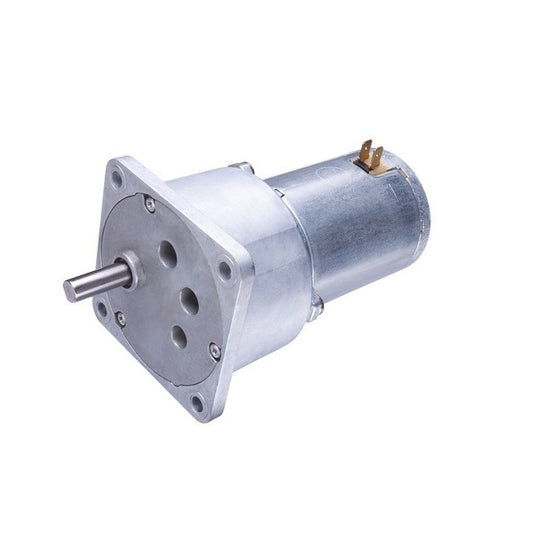

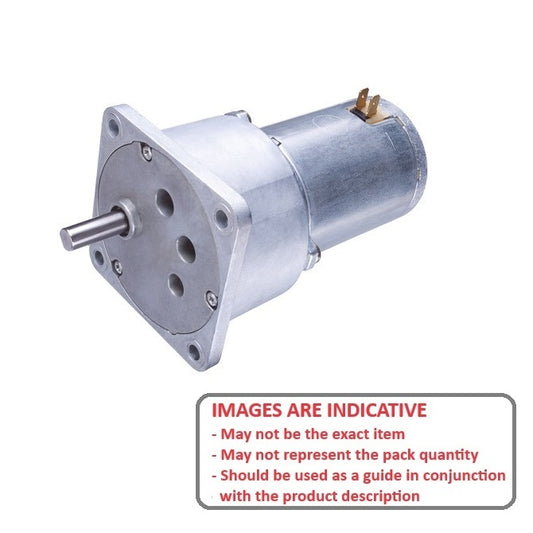

DC PM Gearmotors - 24V DC 3300 mNm - 23.5 rpm
Gear Ratio : 96.5 : 1    Gear Stages : 4
Part Number: 1.61.050.466 DC PM Gearmotors - 24V DC 3300 mNm - 23.5 rpm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$250.00 AUD
$475.00 AUD $250.00 AUD
Each
Voltage Rated Torque Rated Speed Rated Current Indicative
Voltage
24V
DC
Rated Torque
3300
mNm
Rated Speed
23.5
rpm
Rated Current
1250
mA
DC PM Gearmotors - 24V DC 3300 mNm - 23.5 rpm
No Load Speed: 31 rpm    Terminal Resistance: 7.60  Ohms    Gear Ratio : 96.5 : 1    Gear Stages : 4
Part Number: 1.61.050.466 DC PM Gearmotors - 24V DC 3300 mNm - 23.5 rpm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$250.00 AUD
$475.00 AUD $250.00 AUD
Each
