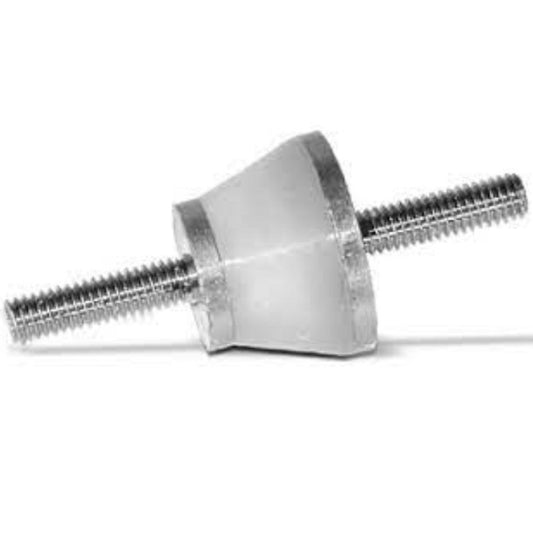

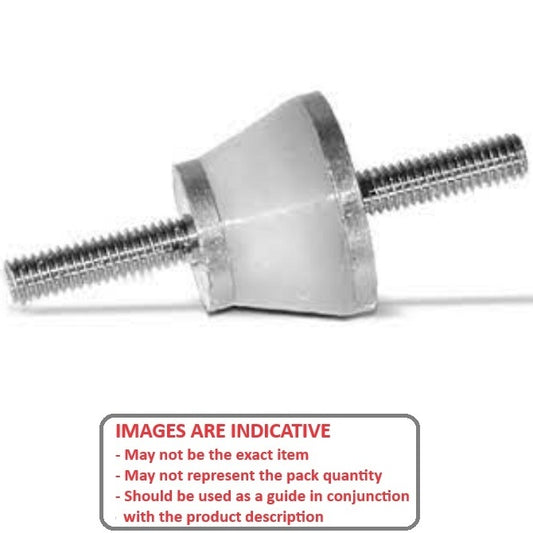

Dampers - Double Studded Silicone

1 Item Available
  • Damps low frequency vibrations. Vibration dampening
  • Use for compression only.
Additional resources:
A more concise listing may be found on the Smallparts store at Dampers - Double Studded Silicone. Smallparts promote the most popular MBA products.
Optimum Load Resonance Point Resonance Magnification Recommended Frequency Body Height (h) Body End Dia. (d1/d2) Indicative
Optimum Load
0.8 to 2.0
kg
Resonance Point
14 to 12
Hz
Resonance Magnification
13 to 12
dB
Recommended Frequency
20.00
Hz
Body Height (h)
18.00
mm
Body End Dia. (d1/d2)
20 ~ 25
mm
1002628 | DDSS-008-18-M6 --- Double Studded Silicone Dampers - 0.8 to 2.0 kg 14 to 12 Hz - 13 to 12
Thread: M6    Thread Length (e): 20.00 mm    Stud Material: Brass Nickle Plate
Part Number: DDSS-008-18-M6 Double Studded Silicone Dampers - 0.8 to 2.0 kg 14 to 12 Hz - 13 to 12
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
Optimum Load Resonance Point Resonance Magnification Recommended Frequency Indicative
Optimum Load
0.8 to 2.0
kg
Resonance Point
14 to 12
Hz
Resonance Magnification
13 to 12
dB
Recommended Frequency
20.00
Hz
1002628 | DDSS-008-18-M6 --- Double Studded Silicone Dampers - 0.8 to 2.0 kg 14 to 12 Hz - 13 to 12
Body Height (h): 18.00 mm    Body End Dia. (d1/d2): 20 ~ 25 mm    Thread: M6    Thread Length (e): 20.00 mm    Stud Material: Brass Nickle Plate
Part Number: DDSS-008-18-M6 Double Studded Silicone Dampers - 0.8 to 2.0 kg 14 to 12 Hz - 13 to 12
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
