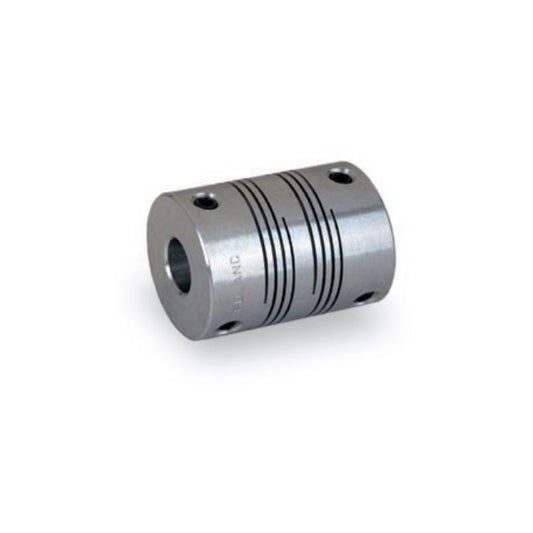

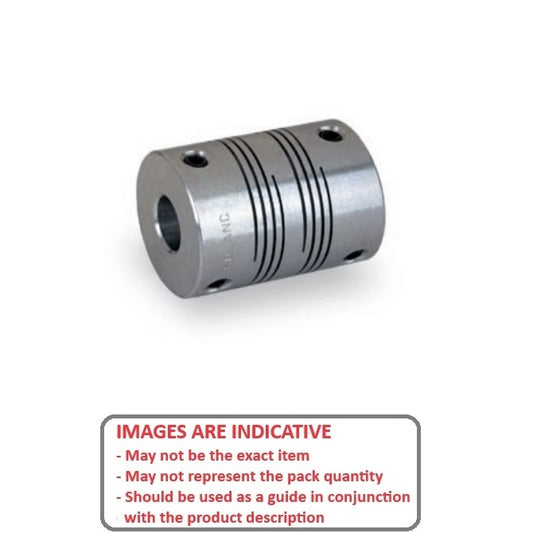

Couplings - Spiral 6 Beam - Aluminium Set Screw Type

2 Products in this selection
  • Pilot Bore size not toleranced.
  • Finished Bore sizes to +0.03/0.00.
Additional resources:
A more concise listing may be found on the Smallparts store at Couplings - Spiral 6 Beam - Aluminium Set Screw Type. Smallparts promote the most popular MBA products.
Bore (B) Bore (B) OD Finished Bore Max. Bore Length Indicative
Bore (B)
1.500
mm
Bore (B)
2.000 Pilot Bore
mm
OD
12.70
mm
Max. Bore
6.35
mm
Length
12.70
mm
1038997 | CP-015-020-13-013-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.5 2.000 Pilot Bore 12.7 mm - Aluminium
Material: Aluminium    Max. Angular Offset: 3 Deg    Max Parallel Offset: 0.07 mm    Hub Type: Set Screw    Torsional Stiffness: 1.5 N.m/Rad
Part Number: CP-015-020-13-013-H-B6-AL-G Spiral 6 Beam Couplings - 1.5 2.000 Pilot Bore 12.7 mm - Aluminium
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$45.00 AUD
$85.50 AUD $45.00 AUD
Each
Bore (B) Bore (B) OD Finished Bore Indicative
Bore (B)
1.500
mm
Bore (B)
2.000 Pilot Bore
mm
OD
12.70
mm
1038997 | CP-015-020-13-013-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.5 2.000 Pilot Bore 12.7 mm - Aluminium
Material: Aluminium    Max. Bore: 6.35 mm    Length: 12.70 mm    Max. Angular Offset: 3 Deg    Max Parallel Offset: 0.07 mm    Hub Type: Set Screw    Torsional Stiffness: 1.5 N.m/Rad
Part Number: CP-015-020-13-013-H-B6-AL-G Spiral 6 Beam Couplings - 1.5 2.000 Pilot Bore 12.7 mm - Aluminium
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$45.00 AUD
$85.50 AUD $45.00 AUD
Each
Bore (B)
1.600
mm
Bore (B)
2.900 Pilot Bore
mm
OD
9.52
mm
Max. Bore
4.76
mm
Length
19.56
mm
1039836 | CP-016-029-10-020-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.6 2.900 Pilot Bore 9.52 mm - Aluminium
Material: Aluminium    Max. Angular Offset: 5 Deg    Max Parallel Offset: 0.12 mm    Hub Type: Set Screw    Torsional Stiffness: 2 N.m/Rad
Part Number: CP-016-029-10-020-H-B6-AL-G Spiral 6 Beam Couplings - 1.6 2.900 Pilot Bore 9.52 mm - Aluminium
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$35.00 AUD
$66.50 AUD $35.00 AUD
Each
Bore (B)
1.600
mm
Bore (B)
2.900 Pilot Bore
mm
OD
9.52
mm
1039836 | CP-016-029-10-020-H-B6-AL-G --- Spiral 6 Beam Couplings - 1.6 2.900 Pilot Bore 9.52 mm - Aluminium
Material: Aluminium    Max. Bore: 4.76 mm    Length: 19.56 mm    Max. Angular Offset: 5 Deg    Max Parallel Offset: 0.12 mm    Hub Type: Set Screw    Torsional Stiffness: 2 N.m/Rad
Part Number: CP-016-029-10-020-H-B6-AL-G Spiral 6 Beam Couplings - 1.6 2.900 Pilot Bore 9.52 mm - Aluminium
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$35.00 AUD
$66.50 AUD $35.00 AUD
Each
