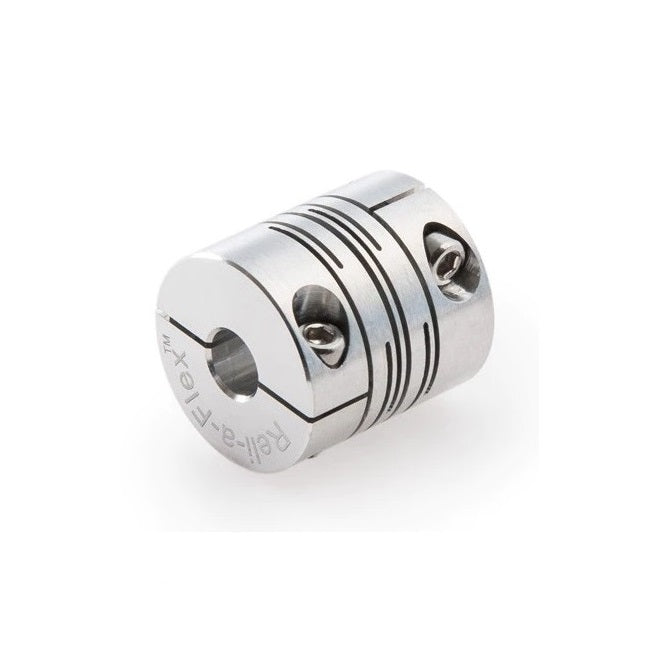

Couplings - Helical - Short Series

2 Products in this selection
This is a combined category of Short Series Helical Couplings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Couplings - Helical - Short Series. Smallparts promote the most popular MBA products.
Bore (B1) Bore (B2) OD (D) / Clearance Dia (OH) Length (L) Working Torque Maximum Speed Indicative
Bore (B1)
1.450
mm
+ 0.010 / - 0.000
Bore (B2)
Pilot Bore 1.450

+ 0.010 / - 0.000
OD (D) / Clearance Dia (OH)
8.0
mm
+/- 0.13
Length (L)
11.7
mm
+/- 0.13
Working Torque
0.30
N.m
Maximum Speed
40000
RPM
1038958 | CP-015-015-08-012-H-RFS-AL --- Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
Material: Aluminium 7075-T6    Hub Length (E): 3.20 mm    Torsional Stiffness: 8.7 Nm/rad
Category: Couplings - Helical - Short Series - Set Screw Type
Part Number: CP-015-015-08-012-H-RFS-AL Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Bore (B1) Bore (B2) OD (D) / Clearance Dia (OH) Length (L) Indicative
Bore (B1)
1.450
mm
+ 0.010 / - 0.000
Bore (B2)
Pilot Bore 1.450

+ 0.010 / - 0.000
OD (D) / Clearance Dia (OH)
8.0
mm
+/- 0.13
Length (L)
11.7
mm
+/- 0.13
1038958 | CP-015-015-08-012-H-RFS-AL --- Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
Material: Aluminium 7075-T6    Working Torque: 0.30 N.m    Maximum Speed: 40000 RPM    Hub Length (E): 3.20 mm    Torsional Stiffness: 8.7 Nm/rad
Category: Couplings - Helical - Short Series - Set Screw Type
Part Number: CP-015-015-08-012-H-RFS-AL Helical Couplings - 1.45 Pilot Bore 1.450 8 mm - Aluminium 7075-T6
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Bore (B1)
1.950 / 1.950
mm
+ 0.020 / - 0.000
Bore (B2)
Pilot Bore - Max 3mm

+ 0.020 / - 0.000
OD (D) / Clearance Dia (OH)
13 / 14.5
mm
+/- 0.13
Length (L)
16.8
mm
+/- 0.13
Working Torque
0.55
N.m
Maximum Speed
12000
RPM
1040214 | CP-020-020-13-017-H-RFC-AL --- Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
Material: Aluminium 7075-T6    Hub Length (E): 5.00 mm    Torsional Stiffness: 45.0 Nm/rad
Category: Couplings - Helical - Short Series - Clamp Type
Part Number: CP-020-020-13-017-H-RFC-AL Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Bore (B1)
1.950 / 1.950
mm
+ 0.020 / - 0.000
Bore (B2)
Pilot Bore - Max 3mm

+ 0.020 / - 0.000
OD (D) / Clearance Dia (OH)
13 / 14.5
mm
+/- 0.13
Length (L)
16.8
mm
+/- 0.13
1040214 | CP-020-020-13-017-H-RFC-AL --- Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
Material: Aluminium 7075-T6    Working Torque: 0.55 N.m    Maximum Speed: 12000 RPM    Hub Length (E): 5.00 mm    Torsional Stiffness: 45.0 Nm/rad
Category: Couplings - Helical - Short Series - Clamp Type
Part Number: CP-020-020-13-017-H-RFC-AL Helical Couplings - 1.950 / 1.950 mm Pilot Bore - Max 3mm - 13 / 14.5 - Aluminium 7075-T6
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
