Collection: Collars - Shaft - Hinged - Stainless Steel

Collars (With Images)

Shaft

Hinged

Stainless Steel
Steel

20 Products in this selection

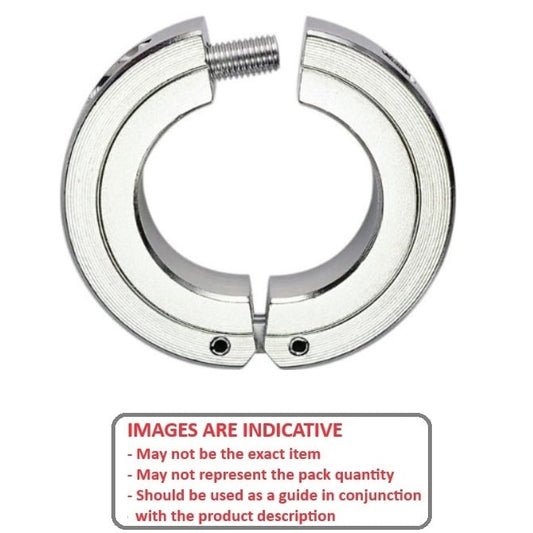

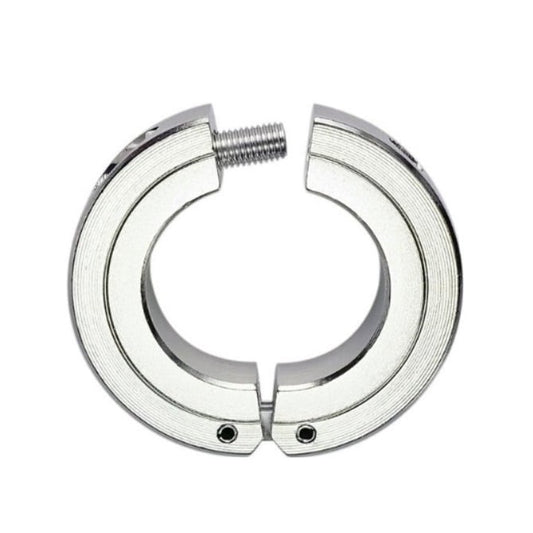

Precision machined. Convenient easy-to-assemble design. 303 Stainless Steel
Same axial load handling capabilities as standard two piece collars.
Captive clamp screw eliminates lost screws.
The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
Easily Machinable / Open Completely.
Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.

Additional resources:
Shaft Collars PDF Catalogue

A more concise listing may be found on the Smallparts store at Collars - Shaft - Hinged - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Screw Size
Shaft Size (d) 6.000 mm	Outside Diameter (D) 16.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00600-016-09-HG-S3 Shaft Collars - 6x16x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d)	Outside Diameter (D)	Overall Width (S)	Indicative Image
Shaft Size (d) 6.000 mm	Outside Diameter (D) 16.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00600-016-09-HG-S3 Shaft Collars - 6x16x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm	Outside Diameter (D) 18.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00800-018-09-HG-S3 Shaft Collars - 8x18x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 8.000 mm	Outside Diameter (D) 18.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00800-018-09-HG-S3 Shaft Collars - 8x18x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.000 mm	Outside Diameter (D) 24.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00900-024-09-HG-S3 Shaft Collars - 9x24x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.000 mm	Outside Diameter (D) 24.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-00900-024-09-HG-S3 Shaft Collars - 9x24x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 9.525 mm	Outside Diameter (D) 27.00 mm	Overall Width (S) 8.0 mm	Screw Size 6-32 UNC (3.5mm)
Material: Stainless Steel
Part Number: COL-00953-027-08-HG-S3 Shaft Collars - 9.525x27x8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, May 27, 2025 Regular price $240.68 AUD Regular price Sale price $240.68 AUD Unit price per Each
Shaft Size (d) 9.525 mm	Outside Diameter (D) 27.00 mm	Overall Width (S) 8.0 mm
Material: Stainless Steel Screw Size: 6-32 UNC (3.5mm)
Part Number: COL-00953-027-08-HG-S3 Shaft Collars - 9.525x27x8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, May 27, 2025 Regular price $240.68 AUD Regular price Sale price $240.68 AUD Unit price per Each View the product page first if you are unsure.
COL-00953-027-08-HG-S3 --- Shaft Collars - 9.525x27x8 mm - Stainless Steel COL-00953-027-08-HG-S3 --- Shaft Collars - 9.525x27x8 mm - Stainless Steel Regular price $240.68 AUD Regular price Sale price $240.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 10.000 mm	Outside Diameter (D) 24.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-01000-024-09-HG-S3 Shaft Collars - 10x24x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 10.000 mm	Outside Diameter (D) 24.00 mm	Overall Width (S) 9.0 mm
Material: Stainless Steel
Part Number: COL-01000-024-09-HG-S3 Shaft Collars - 10x24x9 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 12.000 mm	Outside Diameter (D) 28.00 mm	Overall Width (S) 11.0 mm
Material: Stainless Steel
Part Number: COL-01200-028-11-HG-S3 Shaft Collars - 12x28x11 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $323.77 AUD Regular price Sale price $323.77 AUD Unit price per Each
Shaft Size (d) 12.000 mm	Outside Diameter (D) 28.00 mm	Overall Width (S) 11.0 mm
Material: Stainless Steel
Part Number: COL-01200-028-11-HG-S3 Shaft Collars - 12x28x11 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $323.77 AUD Regular price Sale price $323.77 AUD Unit price per Each View the product page first if you are unsure.
COL-01200-028-11-HG-S3 --- Shaft Collars - 12x28x11 mm - Stainless Steel COL-01200-028-11-HG-S3 --- Shaft Collars - 12x28x11 mm - Stainless Steel Regular price $323.77 AUD Regular price Sale price $323.77 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 14.000 mm	Outside Diameter (D) 30.00 mm	Overall Width (S) 11.0 mm
Material: Stainless Steel
Part Number: COL-01400-030-11-HG-S3 Shaft Collars - 14x30x11 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 14.000 mm	Outside Diameter (D) 30.00 mm	Overall Width (S) 11.0 mm
Material: Stainless Steel
Part Number: COL-01400-030-11-HG-S3 Shaft Collars - 14x30x11 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 15.000 mm	Outside Diameter (D) 34.00 mm	Overall Width (S) 13.0 mm
Material: Stainless Steel
Part Number: COL-01500-034-13-HG-S3 Shaft Collars - 15x34x13 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 15.000 mm	Outside Diameter (D) 34.00 mm	Overall Width (S) 13.0 mm
Material: Stainless Steel
Part Number: COL-01500-034-13-HG-S3 Shaft Collars - 15x34x13 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 16.000 mm	Outside Diameter (D) 34.00 mm	Overall Width (S) 13.0 mm
Material: Stainless Steel
Part Number: COL-01600-034-13-HG-S3 Shaft Collars - 16x34x13 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $357.68 AUD Regular price Sale price $357.68 AUD Unit price per Each
Shaft Size (d) 16.000 mm	Outside Diameter (D) 34.00 mm	Overall Width (S) 13.0 mm
Material: Stainless Steel
Part Number: COL-01600-034-13-HG-S3 Shaft Collars - 16x34x13 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $357.68 AUD Regular price Sale price $357.68 AUD Unit price per Each View the product page first if you are unsure.
COL-01600-034-13-HG-S3 --- Shaft Collars - 16x34x13 mm - Stainless Steel COL-01600-034-13-HG-S3 --- Shaft Collars - 16x34x13 mm - Stainless Steel Regular price $357.68 AUD Regular price Sale price $357.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 18.000 mm	Outside Diameter (D) 36.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-01800-036-15-HG-S3 Shaft Collars - 18x36x15 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 18.000 mm	Outside Diameter (D) 36.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-01800-036-15-HG-S3 Shaft Collars - 18x36x15 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 19.050 mm	Outside Diameter (D) 44.50 mm	Overall Width (S) 12.7 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Stainless Steel
Part Number: COL-01905-044-13-HG-S3 Shaft Collars - 19.05x44.5x12.7 mm - Stainless Steel 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $35.00 AUD Regular price ~~$66.50 AUD~~ Sale price $35.00 AUD Unit price per Each
Shaft Size (d) 19.050 mm	Outside Diameter (D) 44.50 mm	Overall Width (S) 12.7 mm
Material: Stainless Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-01905-044-13-HG-S3 Shaft Collars - 19.05x44.5x12.7 mm - Stainless Steel 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $35.00 AUD Regular price ~~$66.50 AUD~~ Sale price $35.00 AUD Unit price per Each
COL-01905-044-13-HG-S3 --- Shaft Collars - 19.05x44.5x12.7 mm - Stainless Steel Sale COL-01905-044-13-HG-S3 --- Shaft Collars - 19.05x44.5x12.7 mm - Stainless Steel Regular price $35.00 AUD Regular price ~~$66.50 AUD~~ Sale price $35.00 AUD Unit price per 1 Available Now Sale
Shaft Size (d) 20.000 mm	Outside Diameter (D) 40.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-02000-040-15-HG-S3 Shaft Collars - 20x40x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $392.41 AUD Regular price Sale price $392.41 AUD Unit price per Each
Shaft Size (d) 20.000 mm	Outside Diameter (D) 40.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-02000-040-15-HG-S3 Shaft Collars - 20x40x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $392.41 AUD Regular price Sale price $392.41 AUD Unit price per Each View the product page first if you are unsure.
COL-02000-040-15-HG-S3 --- Shaft Collars - 20x40x15 mm - Stainless Steel COL-02000-040-15-HG-S3 --- Shaft Collars - 20x40x15 mm - Stainless Steel Regular price $392.41 AUD Regular price Sale price $392.41 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 22.225 mm	Outside Diameter (D) 47.60 mm	Overall Width (S) 12.7 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Stainless Steel
Part Number: COL-02223-048-13-HG-S3 Shaft Collars - 22.225x47.6x12.7 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 22.225 mm	Outside Diameter (D) 47.60 mm	Overall Width (S) 12.7 mm
Material: Stainless Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-02223-048-13-HG-S3 Shaft Collars - 22.225x47.6x12.7 mm - Stainless Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Size (d) 25.000 mm	Outside Diameter (D) 45.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-02500-045-15-HG-S3 Shaft Collars - 25x45x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $404.68 AUD Regular price Sale price $404.68 AUD Unit price per Each
Shaft Size (d) 25.000 mm	Outside Diameter (D) 45.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-02500-045-15-HG-S3 Shaft Collars - 25x45x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $404.68 AUD Regular price Sale price $404.68 AUD Unit price per Each View the product page first if you are unsure.
COL-02500-045-15-HG-S3 --- Shaft Collars - 25x45x15 mm - Stainless Steel COL-02500-045-15-HG-S3 --- Shaft Collars - 25x45x15 mm - Stainless Steel Regular price $404.68 AUD Regular price Sale price $404.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 25.400 mm	Outside Diameter (D) 50.80 mm	Overall Width (S) 12.7 mm	Screw Size 1/4-28 UNF (6.35mm)
Material: Stainless Steel
Part Number: COL-02540-051-13-HG-S3 Shaft Collars - 25.4x50.8x12.7 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, May 27, 2025 Regular price $322.59 AUD Regular price Sale price $322.59 AUD Unit price per Each
Shaft Size (d) 25.400 mm	Outside Diameter (D) 50.80 mm	Overall Width (S) 12.7 mm
Material: Stainless Steel Screw Size: 1/4-28 UNF (6.35mm)
Part Number: COL-02540-051-13-HG-S3 Shaft Collars - 25.4x50.8x12.7 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, May 27, 2025 Regular price $322.59 AUD Regular price Sale price $322.59 AUD Unit price per Each View the product page first if you are unsure.
COL-02540-051-13-HG-S3 --- Shaft Collars - 25.4x50.8x12.7 mm - Stainless Steel COL-02540-051-13-HG-S3 --- Shaft Collars - 25.4x50.8x12.7 mm - Stainless Steel Regular price $322.59 AUD Regular price Sale price $322.59 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 30.000 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-03000-054-15-HG-S3 Shaft Collars - 30x54x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $418.41 AUD Regular price Sale price $418.41 AUD Unit price per Each
Shaft Size (d) 30.000 mm	Outside Diameter (D) 54.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-03000-054-15-HG-S3 Shaft Collars - 30x54x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $418.41 AUD Regular price Sale price $418.41 AUD Unit price per Each View the product page first if you are unsure.
COL-03000-054-15-HG-S3 --- Shaft Collars - 30x54x15 mm - Stainless Steel COL-03000-054-15-HG-S3 --- Shaft Collars - 30x54x15 mm - Stainless Steel Regular price $418.41 AUD Regular price Sale price $418.41 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 35.000 mm	Outside Diameter (D) 57.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-03500-057-15-HG-S3 Shaft Collars - 35x57x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $459.68 AUD Regular price Sale price $459.68 AUD Unit price per Each
Shaft Size (d) 35.000 mm	Outside Diameter (D) 57.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-03500-057-15-HG-S3 Shaft Collars - 35x57x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $459.68 AUD Regular price Sale price $459.68 AUD Unit price per Each View the product page first if you are unsure.
COL-03500-057-15-HG-S3 --- Shaft Collars - 35x57x15 mm - Stainless Steel COL-03500-057-15-HG-S3 --- Shaft Collars - 35x57x15 mm - Stainless Steel Regular price $459.68 AUD Regular price Sale price $459.68 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 40.000 mm	Outside Diameter (D) 60.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-04000-060-15-HG-S3 Shaft Collars - 40x60x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $449.23 AUD Regular price Sale price $449.23 AUD Unit price per Each
Shaft Size (d) 40.000 mm	Outside Diameter (D) 60.00 mm	Overall Width (S) 15.0 mm
Material: Stainless Steel
Part Number: COL-04000-060-15-HG-S3 Shaft Collars - 40x60x15 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $449.23 AUD Regular price Sale price $449.23 AUD Unit price per Each View the product page first if you are unsure.
COL-04000-060-15-HG-S3 --- Shaft Collars - 40x60x15 mm - Stainless Steel COL-04000-060-15-HG-S3 --- Shaft Collars - 40x60x15 mm - Stainless Steel Regular price $449.23 AUD Regular price Sale price $449.23 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 45.000 mm	Outside Diameter (D) 73.00 mm	Overall Width (S) 19.0 mm
Material: Stainless Steel
Part Number: COL-04500-073-19-HG-S3 Shaft Collars - 45x73x19 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $547.23 AUD Regular price Sale price $547.23 AUD Unit price per Each
Shaft Size (d) 45.000 mm	Outside Diameter (D) 73.00 mm	Overall Width (S) 19.0 mm
Material: Stainless Steel
Part Number: COL-04500-073-19-HG-S3 Shaft Collars - 45x73x19 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $547.23 AUD Regular price Sale price $547.23 AUD Unit price per Each View the product page first if you are unsure.
COL-04500-073-19-HG-S3 --- Shaft Collars - 45x73x19 mm - Stainless Steel COL-04500-073-19-HG-S3 --- Shaft Collars - 45x73x19 mm - Stainless Steel Regular price $547.23 AUD Regular price Sale price $547.23 AUD Unit price per Out of stock! Backorder Now
Shaft Size (d) 50.000 mm	Outside Diameter (D) 78.00 mm	Overall Width (S) 19.0 mm
Material: Stainless Steel
Part Number: COL-05000-078-19-HG-S3 Shaft Collars - 50x78x19 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $625.05 AUD Regular price Sale price $625.05 AUD Unit price per Each
Shaft Size (d) 50.000 mm	Outside Diameter (D) 78.00 mm	Overall Width (S) 19.0 mm
Material: Stainless Steel
Part Number: COL-05000-078-19-HG-S3 Shaft Collars - 50x78x19 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $625.05 AUD Regular price Sale price $625.05 AUD Unit price per Each View the product page first if you are unsure.
COL-05000-078-19-HG-S3 --- Shaft Collars - 50x78x19 mm - Stainless Steel COL-05000-078-19-HG-S3 --- Shaft Collars - 50x78x19 mm - Stainless Steel Regular price $625.05 AUD Regular price Sale price $625.05 AUD Unit price per Out of stock! Backorder Now
