Bushes - Unflanged - Plastic - Iglidur W300

1 Item Available
  • Low co-efficient of friction. High wear resistance. Chemical resistant.
  • Specific Gravity 1.24 g/cm3.
  • Operating Temp 180 C short term / 90 C long term.
  • Tensile Strength at 20 oC = 125 Mpa.
  • Hardness 77 Shore D (DIN53505).
  • Bushing bore tolerance is E10 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Miniature Bearings Australia (Minibearings)

Additional resources:
Bushes PDF Catalogue
Plastic Flanged Bushes
A more concise listing may be found on the Smallparts store at Bushes - Unflanged - Plastic - Iglidur W300. Smallparts promote the most popular MBA products.
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
3.000
mm
+ 0.014 / + 0.054
(0.118 in.)
Nom. OD (D)
4.500
mm

(0.177 in.)
Length (s)
6.000
mm
+ 0.000 / - 0.180
(0.236 in.)

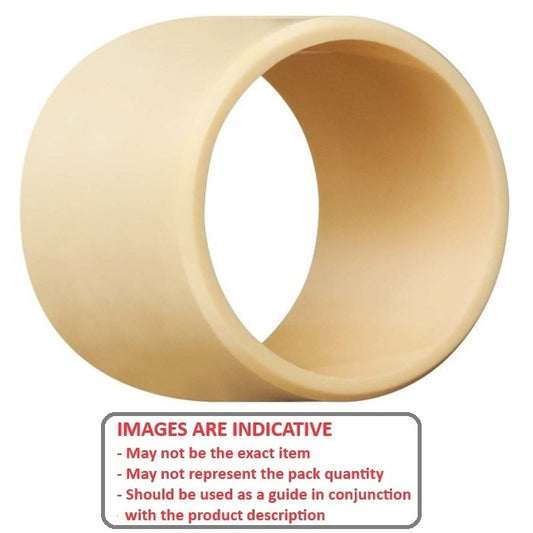

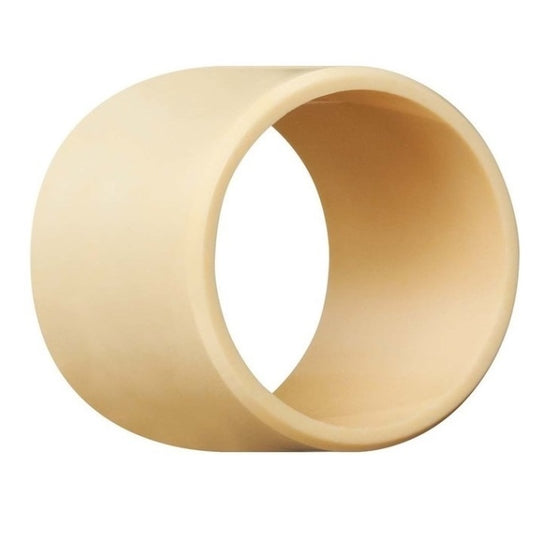

Unflanged Bushes - 3x4.5x6 mm - Iglidur W300
Material: Iglidur W300
Part Number: BP0030-0045-0060-PW Unflanged Bushes - 3x4.5x6 mm Plastic - Iglidur W300
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.05 AUD
$10.75 AUD $6.05 AUD
Each
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
3.000
mm
+ 0.014 / + 0.054
(0.118 in.)
Nom. OD (D)
4.500
mm

(0.177 in.)
Length (s)
6.000
mm
+ 0.000 / - 0.180
(0.236 in.)
Unflanged Bushes - 3x4.5x6 mm - Iglidur W300
Material: Iglidur W300
Part Number: BP0030-0045-0060-PW Unflanged Bushes - 3x4.5x6 mm Plastic - Iglidur W300
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.05 AUD
$10.75 AUD $6.05 AUD
Each
