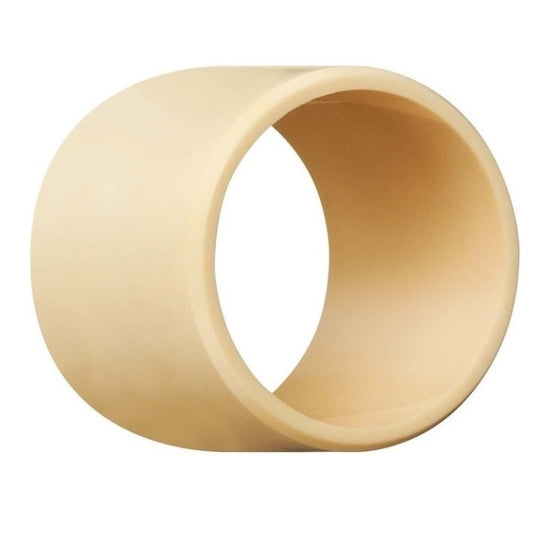

Bushes - Unflanged - Plastic - Iglidur J

3 Products in this selection
  • Low Wear - Dry Running - Vibration Dampening - Chemical Resistance.
  • Specific Gravity 1.49 g/cm3.
  • Operating Temp 120 C short term / 90 C long term.
  • Tensile Strength at 20 oC = 73 Mpa.
  • Hardness 74 Shore D (DIN53505).
  • Bushing bore tolerance is E10 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Miniature Bearings Australia (Minibearings)

Additional resources:
Bushes PDF Catalogue
Plastic Flanged Bushes
A more concise listing may be found on the Smallparts store at Bushes - Unflanged - Plastic - Iglidur J. Smallparts promote the most popular MBA products.

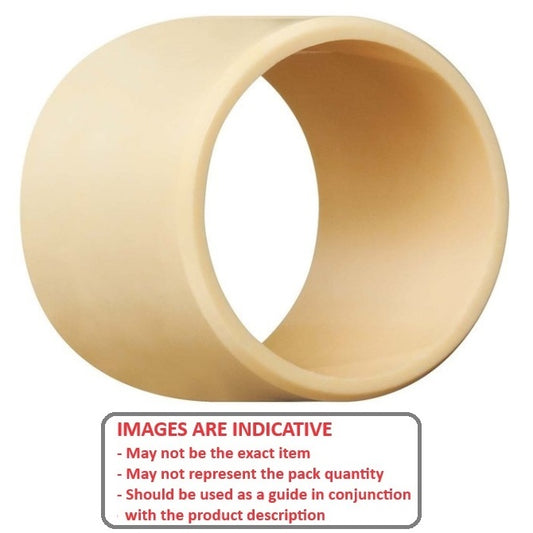

Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
4.763
mm
+ 0.020 / + 0.068
(0.188 in.)
Nom. OD (D)
7.938
mm

(0.313 in.)
Length (s)
7.938
mm
+ 0.000 / - 0.220
(0.313 in.)
Unflanged Bushes - 4.763x7.938x7.938 mm - Iglidur J
Material: Iglidur J
Part Number: BP0048-0079-0079-PJ Unflanged Bushes - 4.763x7.938x7.938 mm Plastic - Iglidur J
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.32 AUD
$7.51 AUD $4.32 AUD
Each
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
4.763
mm
+ 0.020 / + 0.068
(0.188 in.)
Nom. OD (D)
7.938
mm

(0.313 in.)
Length (s)
7.938
mm
+ 0.000 / - 0.220
(0.313 in.)
Unflanged Bushes - 4.763x7.938x7.938 mm - Iglidur J
Material: Iglidur J
Part Number: BP0048-0079-0079-PJ Unflanged Bushes - 4.763x7.938x7.938 mm Plastic - Iglidur J
10 Available Immediately | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.32 AUD
$7.51 AUD $4.32 AUD
Each
Nom. ID (d)
6.350
mm
+ 0.025 / + 0.083
(0.25 in.)
Nom. OD (D)
9.525
mm

(0.375 in.)
Length (s)
12.700
mm
+ 0.000 / - 0.270
(0.5 in.)
Unflanged Bushes - 6.35x9.525x12.7 mm - Iglidur J
Material: Iglidur J
Part Number: BP0064-0095-0127-PJ Unflanged Bushes - 6.35x9.525x12.7 mm Plastic - Iglidur J
80 Available Immediately | Item Discontinued - Up to 80 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.32 AUD
$9.37 AUD $5.32 AUD
Each
Nom. ID (d)
6.350
mm
+ 0.025 / + 0.083
(0.25 in.)
Nom. OD (D)
9.525
mm

(0.375 in.)
Length (s)
12.700
mm
+ 0.000 / - 0.270
(0.5 in.)
Unflanged Bushes - 6.35x9.525x12.7 mm - Iglidur J
Material: Iglidur J
Part Number: BP0064-0095-0127-PJ Unflanged Bushes - 6.35x9.525x12.7 mm Plastic - Iglidur J
80 Available Immediately | Item Discontinued - Up to 80 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.32 AUD
$9.37 AUD $5.32 AUD
Each
Nom. ID (d)
7.000
mm
+ 0.025 / + 0.083
(0.276 in.)
Nom. OD (D)
9.000
mm

(0.354 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(0.354 in.)
Unflanged Bushes - 7x9x9 mm - Iglidur J
Material: Iglidur J
Part Number: BP0070-0090-0090-PJ Unflanged Bushes - 7x9x9 mm Plastic - Iglidur J
5 Available Immediately | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$11.39 AUD $6.41 AUD
Each
Nom. ID (d)
7.000
mm
+ 0.025 / + 0.083
(0.276 in.)
Nom. OD (D)
9.000
mm

(0.354 in.)
Length (s)
9.000
mm
+ 0.000 / - 0.220
(0.354 in.)
Unflanged Bushes - 7x9x9 mm - Iglidur J
Material: Iglidur J
Part Number: BP0070-0090-0090-PJ Unflanged Bushes - 7x9x9 mm Plastic - Iglidur J
5 Available Immediately | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$11.39 AUD $6.41 AUD
Each
