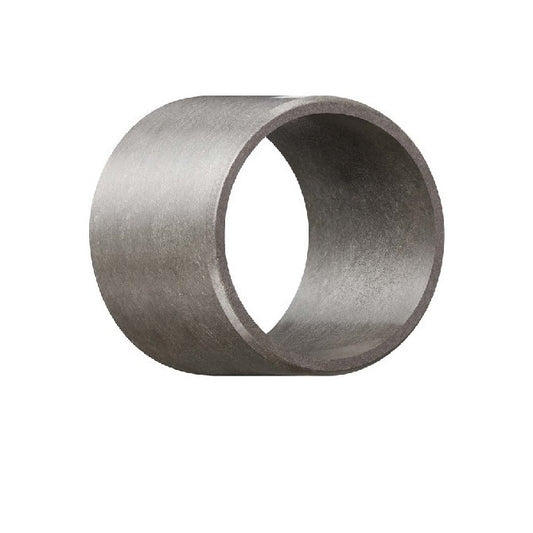

Bushes - Unflanged - Plastic - Iglidur G

1 Item Available
  • General purpose maintenance free dry running.
  • Specific Gravity 1.45 g/cm3.
  • Operating Temp 220 C short term / 130 C long term.
  • Tensile Strength at 20 oC 210 Mpa.
  • Hardness 81 Shore D (DIN53505).
  • Bushing bore tolerance is E10 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Miniature Bearings Australia (Minibearings)

Additional resources:
Bushes PDF Catalogue
Plastic Flanged Bushes
A more concise listing may be found on the Smallparts store at Bushes - Unflanged - Plastic - Iglidur G. Smallparts promote the most popular MBA products.
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
7.000
mm
+ 0.025 / + 0.083
(0.276 in.)
Nom. OD (D)
9.000
mm

(0.354 in.)
Length (s)
10.000
mm
+ 0.000 / - 0.220
(0.394 in.)
Unflanged Bushes - 7x9x10 mm - Iglidur G
Material: Iglidur G
Part Number: BP0070-0090-0100-PG Unflanged Bushes - 7x9x10 mm Plastic - Iglidur G
20 Available Immediately | Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.50 AUD
$7.84 AUD $4.50 AUD
Each
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
7.000
mm
+ 0.025 / + 0.083
(0.276 in.)
Nom. OD (D)
9.000
mm

(0.354 in.)
Length (s)
10.000
mm
+ 0.000 / - 0.220
(0.394 in.)
Unflanged Bushes - 7x9x10 mm - Iglidur G
Material: Iglidur G
Part Number: BP0070-0090-0100-PG Unflanged Bushes - 7x9x10 mm Plastic - Iglidur G
20 Available Immediately | Item Discontinued - Up to 20 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.50 AUD
$7.84 AUD $4.50 AUD
Each
