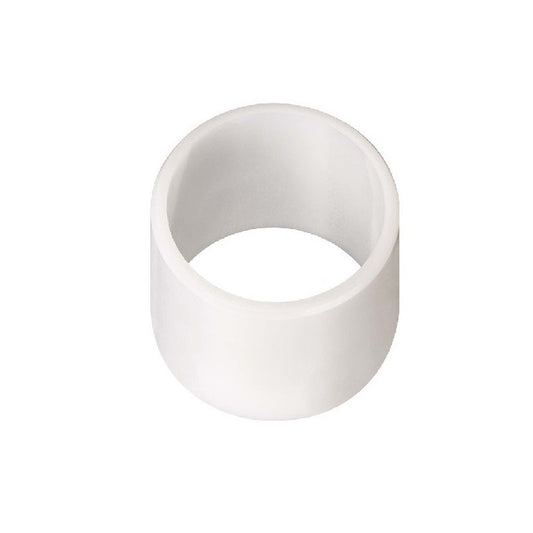

Bushes - Unflanged - Plastic - Iglidur A200

2 Products in this selection
  • Food grade for low speeds and direct contact with food and pharmaceuticals.
  • Specific Gravity 1.14 g/cm3.
  • Operating Temp 170 C short term / 80 C long term.
  • Tensile Strength at 20 oC = 116 Mpa.
  • Hardness 81 Shore D (DIN53505).
  • Bushing bore tolerance is D11 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Miniature Bearings Australia (Minibearings)

Additional resources:
Bushes PDF Catalogue

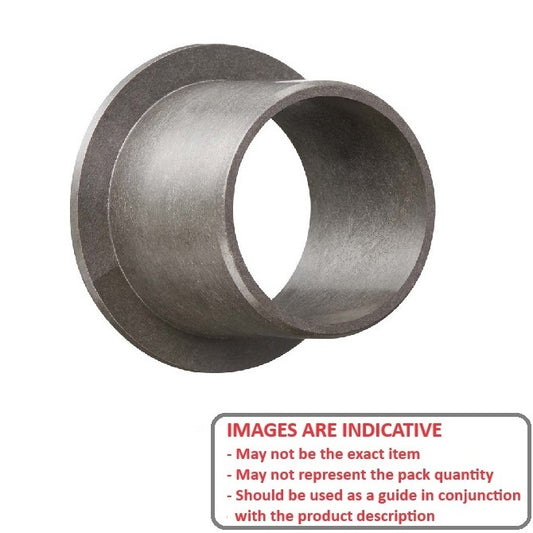

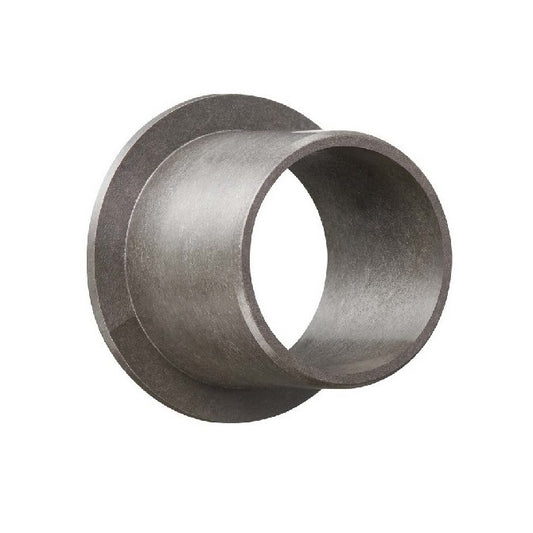

Plastic Flanged Bushes
A more concise listing may be found on the Smallparts store at Bushes - Unflanged - Plastic - Iglidur A200. Smallparts promote the most popular MBA products.
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
16.000
mm
+ 0.050 / + 0.160
(0.63 in.)
Nom. OD (D)
20.000
mm

(0.787 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(0.787 in.)
Unflanged Bushes - 16x20x20 mm - Iglidur A200
Material: Iglidur A200
Part Number: BP0160-0200-0200-PA20 Unflanged Bushes - 16x20x20 mm Plastic - Iglidur A200
50 Available Immediately | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$9.90 AUD $5.59 AUD
Each
Nom. ID (d) Nom. OD (D) Length (s) Indicative
Nom. ID (d)
16.000
mm
+ 0.050 / + 0.160
(0.63 in.)
Nom. OD (D)
20.000
mm

(0.787 in.)
Length (s)
20.000
mm
+ 0.000 / - 0.330
(0.787 in.)
Unflanged Bushes - 16x20x20 mm - Iglidur A200
Material: Iglidur A200
Part Number: BP0160-0200-0200-PA20 Unflanged Bushes - 16x20x20 mm Plastic - Iglidur A200
50 Available Immediately | Item Discontinued - Up to 50 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$9.90 AUD $5.59 AUD
Each
Nom. ID (d)
18.000
mm
+ 0.050 / + 0.160
(0.709 in.)
Nom. OD (D)
24.000
mm

(0.945 in.)
Length (s)
30.000
mm
+ 0.000 / - 0.330
(1.181 in.)
Unflanged Bushes - 18x24x30 mm - Iglidur A200
Material: Iglidur A200
Part Number: BP0180-0240-0300-PA20 Unflanged Bushes - 18x24x30 mm Plastic - Iglidur A200
6 Available Immediately | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$11.39 AUD $6.41 AUD
Each
Nom. ID (d)
18.000
mm
+ 0.050 / + 0.160
(0.709 in.)
Nom. OD (D)
24.000
mm

(0.945 in.)
Length (s)
30.000
mm
+ 0.000 / - 0.330
(1.181 in.)
Unflanged Bushes - 18x24x30 mm - Iglidur A200
Material: Iglidur A200
Part Number: BP0180-0240-0300-PA20 Unflanged Bushes - 18x24x30 mm Plastic - Iglidur A200
6 Available Immediately | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.41 AUD
$11.39 AUD $6.41 AUD
Each
