Balls - Tooling - One Piece - Shoulder

20 Products in this selection
This is a combined category of Shoulder One Piece Tooling Balls.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Balls Master Catalogue PDF
A more concise listing may be found on the Smallparts store at Balls - Tooling - One Piece - Shoulder. Smallparts promote the most popular MBA products.
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Shoulder Diameter (E) Base Type Indicative
Diameter (A)
6.000
mm
+/- 0.0051
(0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0102
(0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(0.394 in.)
Shoulder to Centre (D)
6.000
mm

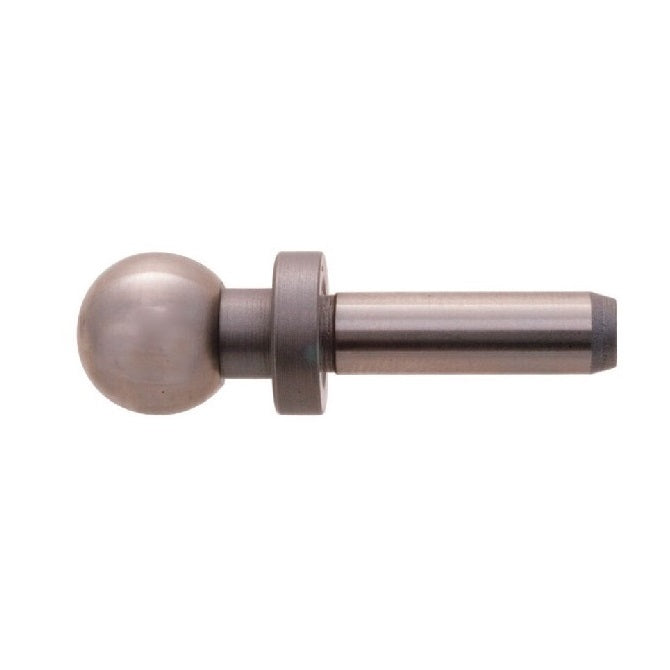

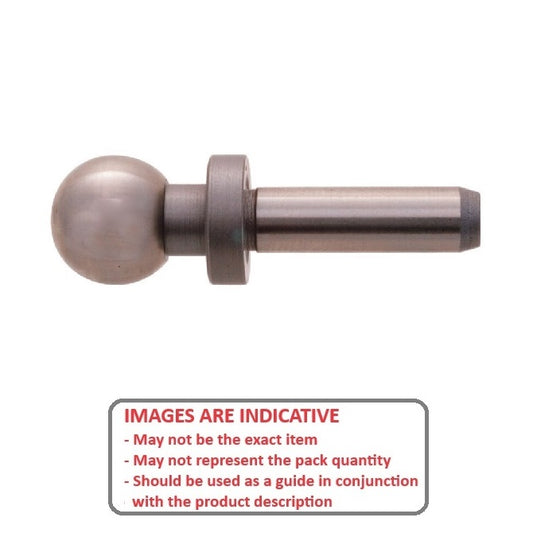

Tooling Balls - 6x3x10 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00600-CS-1S Tooling Balls - 6x3x10 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$85.32 AUD
$85.32 AUD
Each
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Indicative
Diameter (A)
6.000
mm
+/- 0.0051
(0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0102
(0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(0.394 in.)
Shoulder to Centre (D)
6.000
mm
Tooling Balls - 6x3x10 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00600-CS-1S Tooling Balls - 6x3x10 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$85.32 AUD
$85.32 AUD
Each
View the product page first if you are unsure.
Diameter (A)
6.000
mm
+/- 0.0051
(0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0076
(0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(0.394 in.)
Shoulder to Centre (D)
6.000
mm
Tooling Balls - 6x3x10 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00600-S440-1SP Tooling Balls - 6x3x10 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$94.41 AUD
$94.41 AUD
Each
Diameter (A)
6.000
mm
+/- 0.0051
(0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0076
(0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(0.394 in.)
Shoulder to Centre (D)
6.000
mm
Tooling Balls - 6x3x10 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00600-S440-1SP Tooling Balls - 6x3x10 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$94.41 AUD
$94.41 AUD
Each
View the product page first if you are unsure.
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0076
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00635-S440-1SP Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$66.41 AUD
$66.41 AUD
Each
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0076
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00635-S440-1SP Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$66.41 AUD
$66.41 AUD
Each
View the product page first if you are unsure.
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0076
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00635-CS-1SP Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$96.32 AUD
$96.32 AUD
Each
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0076
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00635-CS-1SP Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$96.32 AUD
$96.32 AUD
Each
View the product page first if you are unsure.
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00635-CS-1S Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$66.41 AUD
$66.41 AUD
Each
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00635-CS-1S Tooling Balls - 6.35x3.175x14.3 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$66.41 AUD
$66.41 AUD
Each
View the product page first if you are unsure.
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00635-S440-1S Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$96.32 AUD
$96.32 AUD
Each
Diameter (A)
6.350
mm
+/- 0.0051
(0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00635-S440-1S Tooling Balls - 6.35x3.175x14.3 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$96.32 AUD
$96.32 AUD
Each
View the product page first if you are unsure.
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0076
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00953-S440-1SP Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$67.50 AUD
$67.50 AUD
Each
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0076
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00953-S440-1SP Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$67.50 AUD
$67.50 AUD
Each
View the product page first if you are unsure.
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0076
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00953-CS-1SP Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$97.32 AUD
$97.32 AUD
Each
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0076
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-00953-CS-1SP Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$97.32 AUD
$97.32 AUD
Each
View the product page first if you are unsure.
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00953-S440-1S (200 Pcs) Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$17,912.05 AUD
$17,912.05 AUD
Per 200
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00953-S440-1S (200 Pcs) Tooling Balls - 9.525x4.763x19.05 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$17,912.05 AUD
$17,912.05 AUD
Per 200
View the product page first if you are unsure.
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00953-CS-1S Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$67.50 AUD
$67.50 AUD
Each
Diameter (A)
9.525
mm
+/- 0.0051
(0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-00953-CS-1S Tooling Balls - 9.525x4.763x19.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$67.50 AUD
$67.50 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-CS-1SP-A Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$102.59 AUD
$102.59 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-CS-1SP-A Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$102.59 AUD
$102.59 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-CS-1S-A Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$72.41 AUD
$72.41 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-CS-1S-A Tooling Balls - 12.7x6.35x23.876 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$72.41 AUD
$72.41 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-S440-1SP-A Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$72.50 AUD
$72.50 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-S440-1SP-A Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$72.50 AUD
$72.50 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-S440-1S-A Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$106.41 AUD
$106.41 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-S440-1S-A Tooling Balls - 12.7x6.35x23.876 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$106.41 AUD
$106.41 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-S440-1SP-B Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$73.14 AUD
$73.14 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-S440-1SP-B Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$73.14 AUD
$73.14 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-CS-1S-B Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$73.14 AUD
$73.14 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-CS-1S-B Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$73.14 AUD
$73.14 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-CS-1SP-B Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$115.50 AUD
$115.50 AUD
Each
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0076
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01270-CS-1SP-B Tooling Balls - 12.7x6.35x34.925 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$115.50 AUD
$115.50 AUD
Each
View the product page first if you are unsure.
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-S440-1S-B (200 Pcs) Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$21,476.32 AUD
$21,476.32 AUD
Per 200
Diameter (A)
12.700
mm
+/- 0.0051
(0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01270-S440-1S-B (200 Pcs) Tooling Balls - 12.7x6.35x34.925 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$21,476.32 AUD
$21,476.32 AUD
Per 200
View the product page first if you are unsure.
Diameter (A)
19.050
mm
+/- 0.0051
(0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0076
(0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01905-S440-1SP Tooling Balls - 19.05x9.525x31.75 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$78.95 AUD
$78.95 AUD
Each
Diameter (A)
19.050
mm
+/- 0.0051
(0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0076
(0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm - Stainless Steel
Material: Stainless Steel
Category: Balls - Tooling - One Piece - Shoulder - Press Fit
Part Number: BLTO-01905-S440-1SP Tooling Balls - 19.05x9.525x31.75 mm - Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$78.95 AUD
$78.95 AUD
Each
View the product page first if you are unsure.
Diameter (A)
19.050
mm
+/- 0.0051
(0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0102
(0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01905-CS-1S (200 Pcs) Tooling Balls - 19.05x9.525x31.75 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$14,316.95 AUD
$14,316.95 AUD
Per 200
Diameter (A)
19.050
mm
+/- 0.0051
(0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0102
(0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm - Carbon Steel
Material: Carbon Steel
Category: Balls - Tooling - One Piece - Shoulder - Slip Fit
Part Number: BLTO-01905-CS-1S (200 Pcs) Tooling Balls - 19.05x9.525x31.75 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$14,316.95 AUD
$14,316.95 AUD
Per 200
View the product page first if you are unsure.
