Ball Transfer Units - Flange Mount - Standard - Stainless

5 Products in this selection
This is a combined category of Stainless Standard Flange Mount Ball Transfer Units.
  • Single ball bearing units for conveyor systems
  • Max Load is applicable when used as a transfer, not as a castor

Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Ball Transfer Units - Flange Mount - Standard - Stainless. Smallparts promote the most popular MBA products.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Max Load
54
kg
Ball Height from Flange (B)
12.0
mm
+/- 0.2
(0.472 in.)
Body Diameter (D)
46.5
mm
+/- 0.065
(1.831 in.)
Overall Height (L)
36.1
mm
Ball Diameter
31.7
mm

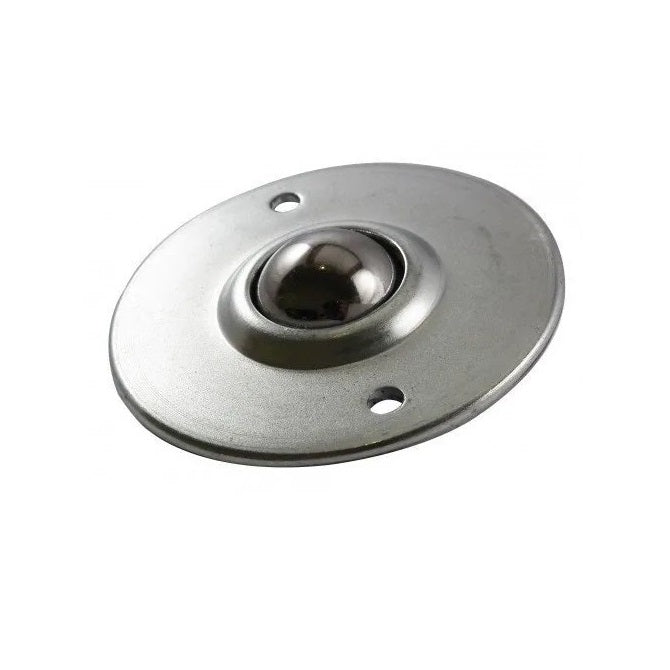

Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
Material: Stainless Steel AISI 420C Rc 46-52    Body Height: 19.9 mm    Flange Diameter: 73.7 mm    Flange Thickness: 4.2 mm    Fixing Hole Size: M5 (5x0.8mm) mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim
Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
Max Load
54
kg
Ball Height from Flange (B)
12.0
mm
+/- 0.2
(0.472 in.)
Body Diameter (D)
46.5
mm
+/- 0.065
(1.831 in.)
Overall Height (L)
36.1
mm
Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
Material: Stainless Steel AISI 420C Rc 46-52    Ball Diameter: 31.7 mm    Body Height: 19.9 mm    Flange Diameter: 73.7 mm    Flange Thickness: 4.2 mm    Fixing Hole Size: M5 (5x0.8mm) mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim
Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
Max Load
55
kg
Ball Height from Flange (B)
6.7
mm
+/- 0.2
(0.264 in.)
Body Diameter (D)
24
mm
+/- 0.065
(0.945 in.)
Overall Height (L)
21.0
mm
Ball Diameter
15.0
mm

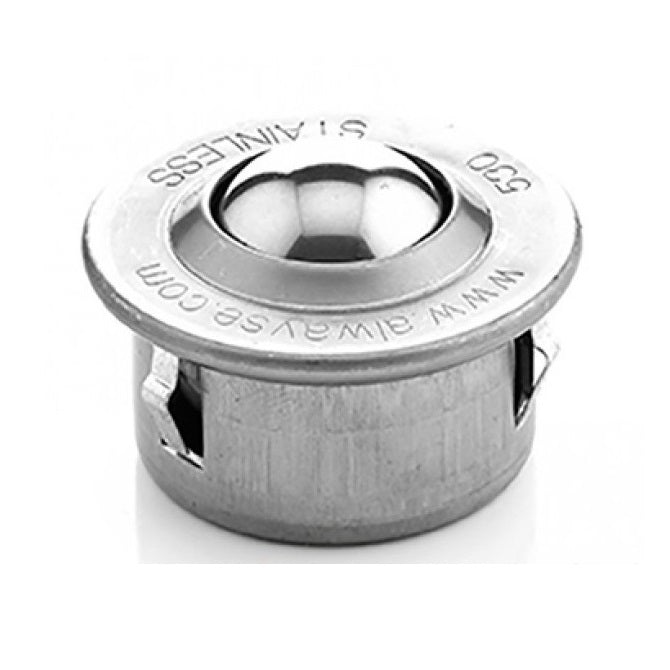

Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$47.32 AUD
$47.32 AUD
Each
Max Load
55
kg
Ball Height from Flange (B)
6.7
mm
+/- 0.2
(0.264 in.)
Body Diameter (D)
24
mm
+/- 0.065
(0.945 in.)
Overall Height (L)
21.0
mm
Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$47.32 AUD
$47.32 AUD
Each
View the product page first if you are unsure.
Max Load
160
kg
Ball Height from Flange (B)
9.8
mm
+/- 0.2
(0.386 in.)
Body Diameter (D)
36
mm
+/- 0.080
(1.417 in.)
Overall Height (L)
30.0
mm
Ball Diameter
15.0
mm
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.05 AUD
$65.05 AUD
Each
Max Load
160
kg
Ball Height from Flange (B)
9.8
mm
+/- 0.2
(0.386 in.)
Body Diameter (D)
36
mm
+/- 0.080
(1.417 in.)
Overall Height (L)
30.0
mm
Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$65.05 AUD
$65.05 AUD
Each
View the product page first if you are unsure.
Max Load
295
kg
Ball Height from Flange (B)
13.8
mm
+/- 0.3
(0.543 in.)
Body Diameter (D)
45
mm
+/- 0.080
(1.772 in.)
Overall Height (L)
37.0
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$162.68 AUD
$162.68 AUD
Each
Max Load
295
kg
Ball Height from Flange (B)
13.8
mm
+/- 0.3
(0.543 in.)
Body Diameter (D)
45
mm
+/- 0.080
(1.772 in.)
Overall Height (L)
37.0
mm
Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 22.0 mm    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$162.68 AUD
$162.68 AUD
Each
View the product page first if you are unsure.
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(2.441 in.)
Overall Height (L)
53.5
mm
Ball Diameter
30.0
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025
$264.14 AUD
$264.14 AUD
Each
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(2.441 in.)
Overall Height (L)
53.5
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Immediately | Further orders can be expected around Tue, Jun 03, 2025
$264.14 AUD
$264.14 AUD
Each
View the product page first if you are unsure.
