Collection: Ball Transfer Units - Flange Mount
- Ball Transfer Units (With Images)
- Flange Mount
12 Products in this selection

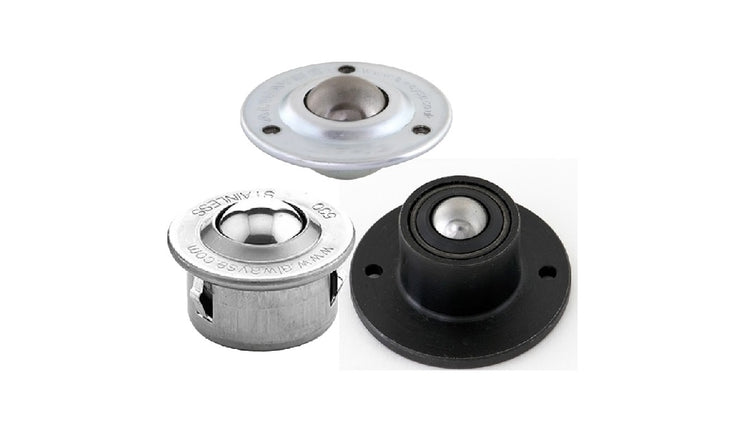

This is a combined category of Flange Mount Ball Transfer Units.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
A more concise listing may be found on the Smallparts store at Ball Transfer Units - Flange Mount. Smallparts promote the most popular MBA products.
| Max Load | Ball Height from Flange (B) | Body Diameter (D) | Overall Height (L) | Ball Diameter |
Indicative Image |
|---|---|---|---|---|---|
|
Max Load
15
kg |
Ball Height from Flange (B)
10.2
mm (0.402 in.) |
Body Diameter (D)
22.2
mm +/- 0.2 (0.874 in.) |
Overall Height (L)
18.5
mm |
Ball Diameter
15.8
mm |
|
|
Material: Carbon Steel
Body Height (E): 8.3 mm
Flange Diameter (A): 41.3 mm

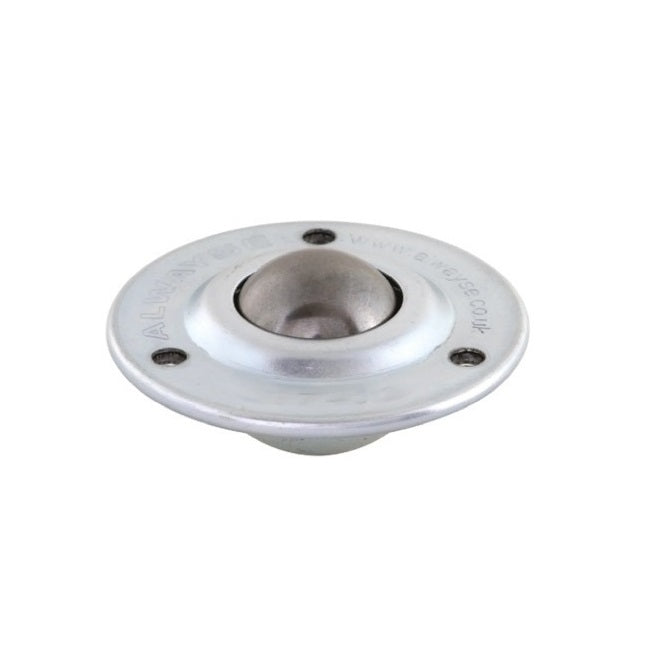

Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|

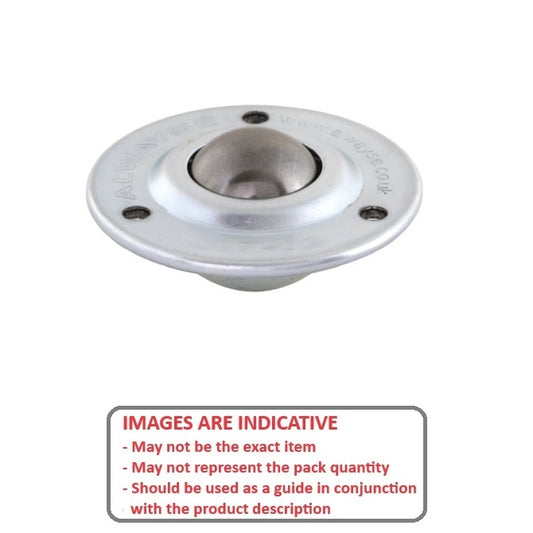

Part Number: BTU0012-010-F-C Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Mon, Jun 02, 2025 Regular price
$32.59 AUD
Regular price
Unit price
per
Each
|
|||||
| Max Load | Ball Height from Flange (B) | Body Diameter (D) | Overall Height (L) |
Indicative Image |
|
|
Max Load
15
kg |
Ball Height from Flange (B)
10.2
mm (0.402 in.) |
Body Diameter (D)
22.2
mm +/- 0.2 (0.874 in.) |
Overall Height (L)
18.5
mm |
|
|
|
Material: Carbon Steel
Ball Diameter: 15.8 mm
Body Height (E): 8.3 mm
Flange Diameter (A): 41.3 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0012-010-F-C Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Mon, Jun 02, 2025 Regular price
$32.59 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
25
kg |
Ball Height from Flange (B)
10
mm (0.394 in.) |
Body Diameter (D)
61.0
mm +/- 0.2 (2.402 in.) |
Overall Height (L)
22.0
mm |
Ball Diameter
19.0
mm |
|
|
Material: Carbon Steel
Body Height (E): 12.0 mm
Flange Diameter (A): 61.0 mm +/- 0.2
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0025-010-F-C Flange Mount Ball Transfer Units - 25 kg - 10x61 mm - Carbon Steel
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$5.00 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
25
kg |
Ball Height from Flange (B)
10
mm (0.394 in.) |
Body Diameter (D)
61.0
mm +/- 0.2 (2.402 in.) |
Overall Height (L)
22.0
mm |
|
|
|
Material: Carbon Steel
Ball Diameter: 19.0 mm
Body Height (E): 12.0 mm
Flange Diameter (A): 61.0 mm +/- 0.2
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0025-010-F-C Flange Mount Ball Transfer Units - 25 kg - 10x61 mm - Carbon Steel
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$5.00 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
54
kg |
Ball Height from Flange (B)
12.0
mm +/- 0.2 (0.472 in.) |
Body Diameter (D)
46.5
mm +/- 0.065 (1.831 in.) |
Overall Height (L)
36.1
mm |
Ball Diameter
31.7
mm |
|
|
Material: Stainless Steel AISI 420C Rc 46-52
Body Height (E): 19.9 mm
Flange Diameter (A): 73.7 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|

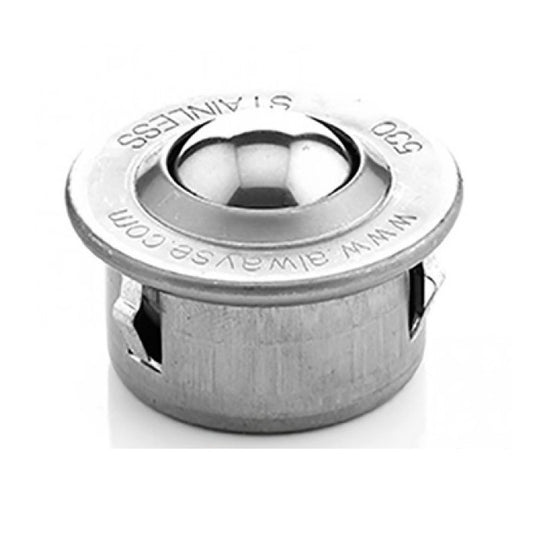

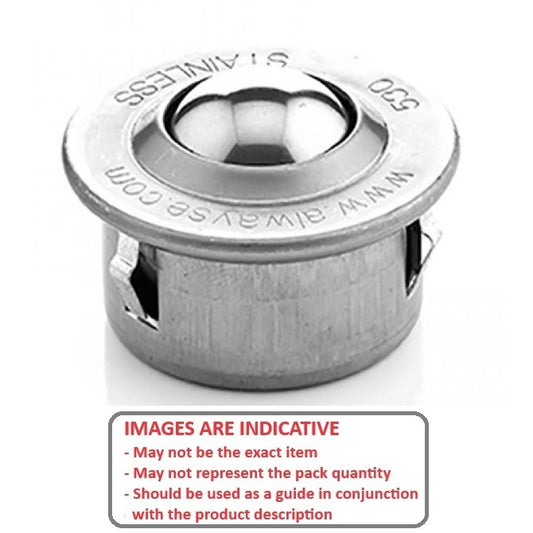

Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
54
kg |
Ball Height from Flange (B)
12.0
mm +/- 0.2 (0.472 in.) |
Body Diameter (D)
46.5
mm +/- 0.065 (1.831 in.) |
Overall Height (L)
36.1
mm |
|
|
|
Material: Stainless Steel AISI 420C Rc 46-52
Ball Diameter: 31.7 mm
Body Height (E): 19.9 mm
Flange Diameter (A): 73.7 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
55
kg |
Ball Height from Flange (B)
6.7
mm +/- 0.2 (0.264 in.) |
Body Diameter (D)
24
mm +/- 0.065 (0.945 in.) |
Overall Height (L)
21.0
mm |
Ball Diameter
15.0
mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height (E): 11.5 mm
Flange Diameter (A): 31.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|

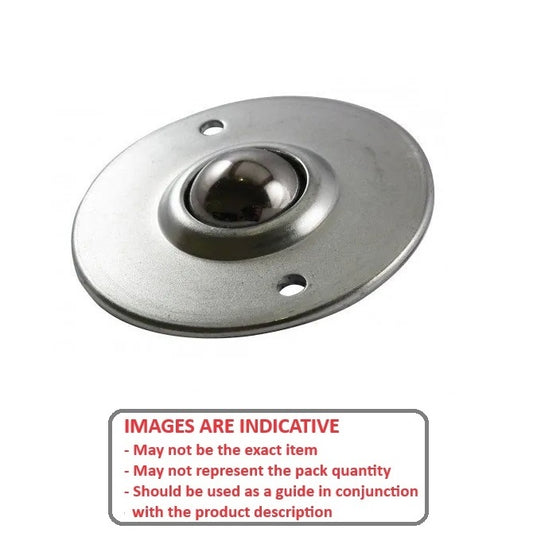

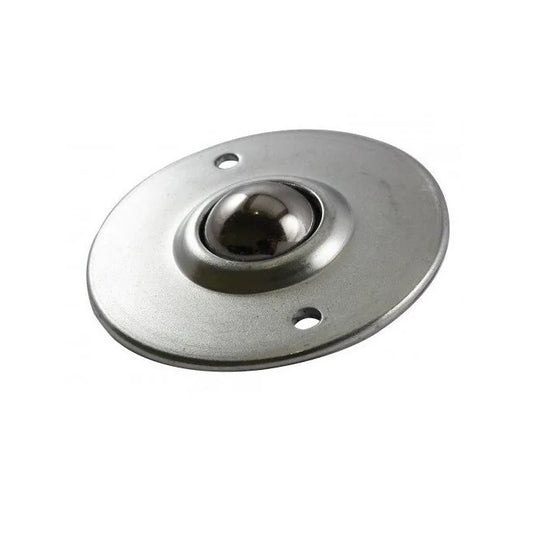

Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$47.32 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
55
kg |
Ball Height from Flange (B)
6.7
mm +/- 0.2 (0.264 in.) |
Body Diameter (D)
24
mm +/- 0.065 (0.945 in.) |
Overall Height (L)
21.0
mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 15.0 mm
Body Height (E): 11.5 mm
Flange Diameter (A): 31.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg - 6.7x24 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$47.32 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
120
kg |
Ball Height from Flange (B)
9.8
mm (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.08 (1.417 in.) |
Overall Height (L)
30.5
mm |
Ball Diameter
22.0
mm |
|
|
Material: Stainless Steel AISI 420C and 303 Grades
Body Height (E): 20.7 mm
Flange Diameter (A): 45.0 mm

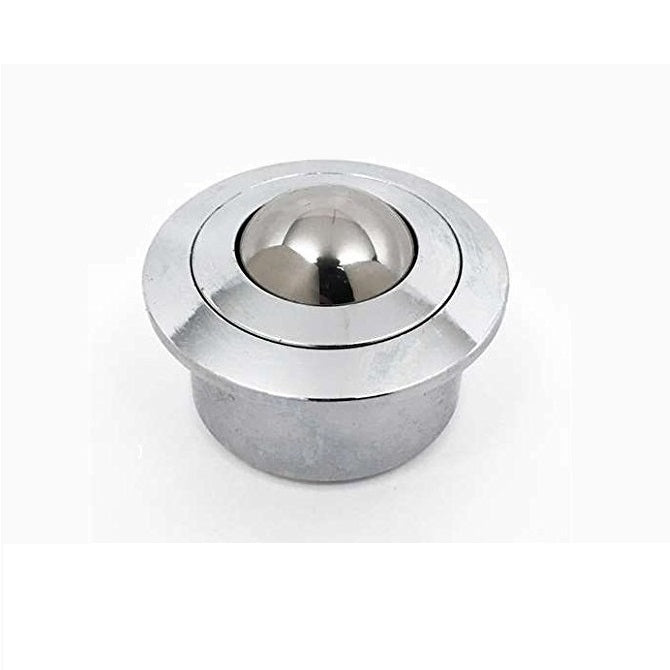

Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|

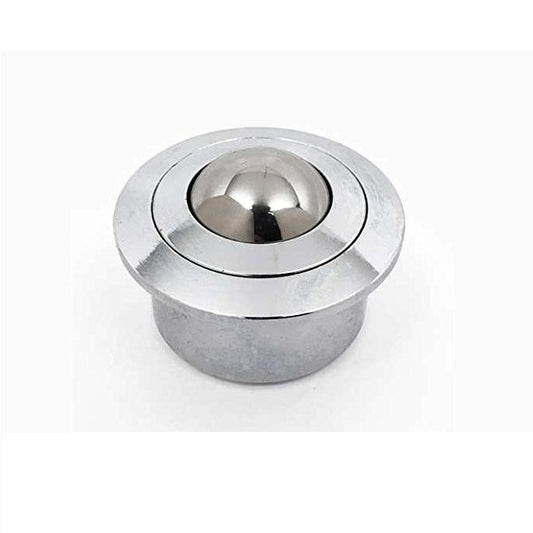

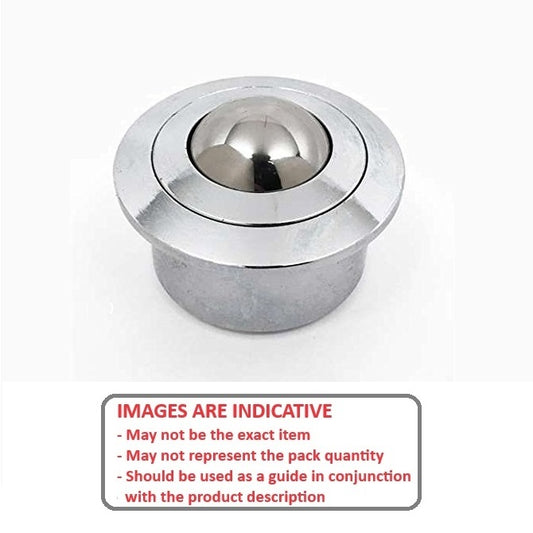

Part Number: BTU0120-010-F-SS-HD Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$313.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
120
kg |
Ball Height from Flange (B)
9.8
mm (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.08 (1.417 in.) |
Overall Height (L)
30.5
mm |
|
|
|
Material: Stainless Steel AISI 420C and 303 Grades
Ball Diameter: 22.0 mm
Body Height (E): 20.7 mm
Flange Diameter (A): 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU0120-010-F-SS-HD Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$313.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
160
kg |
Ball Height from Flange (B)
9.8
mm +/- 0.2 (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.080 (1.417 in.) |
Overall Height (L)
30.0
mm |
Ball Diameter
15.0
mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height (E): 20.2 mm
Flange Diameter (A): 31.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$65.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
160
kg |
Ball Height from Flange (B)
9.8
mm +/- 0.2 (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.080 (1.417 in.) |
Overall Height (L)
30.0
mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 15.0 mm
Body Height (E): 20.2 mm
Flange Diameter (A): 31.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg - 9.8x36 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$65.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
180
kg |
Ball Height from Flange (B)
9.8
mm (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.08 (1.417 in.) |
Overall Height (L)
30.5
mm |
Ball Diameter
22.0
mm |
|
|
Material: Chrome hardened and Zinc Plated Mild Steel
Body Height (E): 20.7 mm
Flange Diameter (A): 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU0180-010-F-Z-HD Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$131.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
180
kg |
Ball Height from Flange (B)
9.8
mm (0.386 in.) |
Body Diameter (D)
36
mm +/- 0.08 (1.417 in.) |
Overall Height (L)
30.5
mm |
|
|
|
Material: Chrome hardened and Zinc Plated Mild Steel
Ball Diameter: 22.0 mm
Body Height (E): 20.7 mm
Flange Diameter (A): 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU0180-010-F-Z-HD Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$131.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
200
kg |
Ball Height from Flange (B)
21.2
mm (0.835 in.) |
Body Diameter (D)
62
mm +/- 0.095 (2.441 in.) |
Overall Height (L)
48.5
mm |
Ball Diameter
25.4
mm |
|
|
Material: Carbon Steel
Body Height (E): 27.3 mm
Flange Diameter (A): 94.6 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0200-021-F-C Flange Mount Ball Transfer Units - 200 kg - 21.2x62 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$177.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
200
kg |
Ball Height from Flange (B)
21.2
mm (0.835 in.) |
Body Diameter (D)
62
mm +/- 0.095 (2.441 in.) |
Overall Height (L)
48.5
mm |
|
|
|
Material: Carbon Steel
Ball Diameter: 25.4 mm
Body Height (E): 27.3 mm
Flange Diameter (A): 94.6 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0200-021-F-C Flange Mount Ball Transfer Units - 200 kg - 21.2x62 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$177.41 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
295
kg |
Ball Height from Flange (B)
13.8
mm +/- 0.3 (0.543 in.) |
Body Diameter (D)
45
mm +/- 0.080 (1.772 in.) |
Overall Height (L)
37.0
mm |
Ball Diameter
22.0
mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height (E): 23.2 mm
Flange Diameter (A): 45.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$162.68 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
295
kg |
Ball Height from Flange (B)
13.8
mm +/- 0.3 (0.543 in.) |
Body Diameter (D)
45
mm +/- 0.080 (1.772 in.) |
Overall Height (L)
37.0
mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 22.0 mm
Body Height (E): 23.2 mm
Flange Diameter (A): 45.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg - 13.8x45 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$162.68 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
350
kg |
Ball Height from Flange (B)
13.8
mm (0.543 in.) |
Body Diameter (D)
45
mm +/- 0.08 (1.772 in.) |
Overall Height (L)
30.5
mm |
Ball Diameter
30.0
mm |
|
|
Material: Chrome hardened and Zinc Plated Mild Steel
Body Height (E): 23.0 mm
Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU0350-014-F-Z-HD Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$183.86 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
350
kg |
Ball Height from Flange (B)
13.8
mm (0.543 in.) |
Body Diameter (D)
45
mm +/- 0.08 (1.772 in.) |
Overall Height (L)
30.5
mm |
|
|
|
Material: Chrome hardened and Zinc Plated Mild Steel
Ball Diameter: 30.0 mm
Body Height (E): 23.0 mm
Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU0350-014-F-Z-HD Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$183.86 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
610
kg |
Ball Height from Flange (B)
19
mm +/- 0.4 (0.748 in.) |
Body Diameter (D)
62
mm +/- 0.095 (2.441 in.) |
Overall Height (L)
53.5
mm |
Ball Diameter
30.0
mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height (E): 34.5 mm
Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Immediately | Further orders can be expected around Mon, Jun 02, 2025 Regular price
$264.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
610
kg |
Ball Height from Flange (B)
19
mm +/- 0.4 (0.748 in.) |
Body Diameter (D)
62
mm +/- 0.095 (2.441 in.) |
Overall Height (L)
53.5
mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 30.0 mm
Body Height (E): 34.5 mm
Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Standard |
|||||
|
Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
4 Available Immediately | Further orders can be expected around Mon, Jun 02, 2025 Regular price
$264.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Max Load
1000
kg |
Ball Height from Flange (B)
25.4
mm (1 in.) |
Body Diameter (D)
60.45
mm (2.38 in.) |
Overall Height (L)
60.5
mm |
Ball Diameter
38.1
mm |
|
|
Material: Carbon Steel
Body Height (E): 35.8 mm
Flange Diameter (A): 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU1000-025-F-PC-HD Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$1,260.86 AUD
Regular price
Unit price
per
Each
|
|||||
|
Max Load
1000
kg |
Ball Height from Flange (B)
25.4
mm (1 in.) |
Body Diameter (D)
60.45
mm (2.38 in.) |
Overall Height (L)
60.5
mm |
|
|
|
Material: Carbon Steel
Ball Diameter: 38.1 mm
Body Height (E): 35.8 mm
Flange Diameter (A): 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty |
|||||
|
Part Number: BTU1000-025-F-PC-HD Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$1,260.86 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
