KM080M-040-5L16B - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 40.00 mm
    (Equiv. 1.575 in.)
  • Thread Length 16.0 mm
    (Equiv. 0.63 in.)
  • Colour Black
  • Hub Diameter (C) 20.00 mm
  • Hub Length (D) 14.00 mm
  • Knob Height (B) 28.00 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KPB1041
  • KPB-1041
View full details

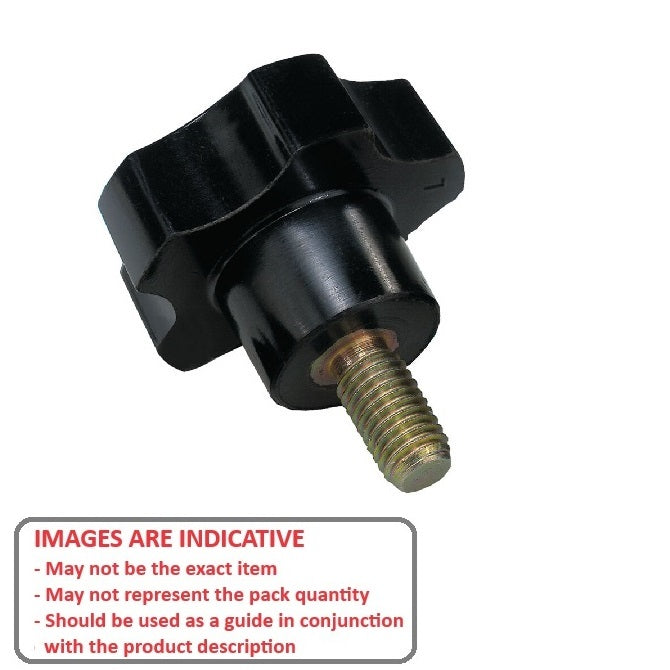

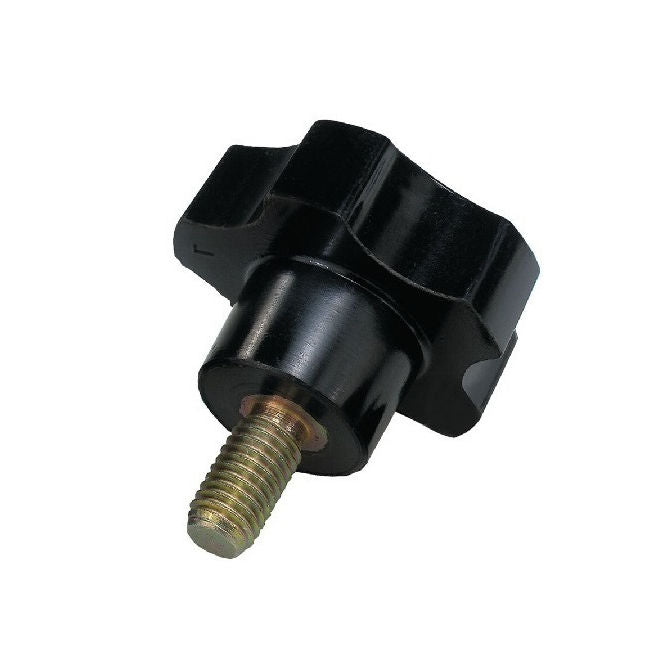

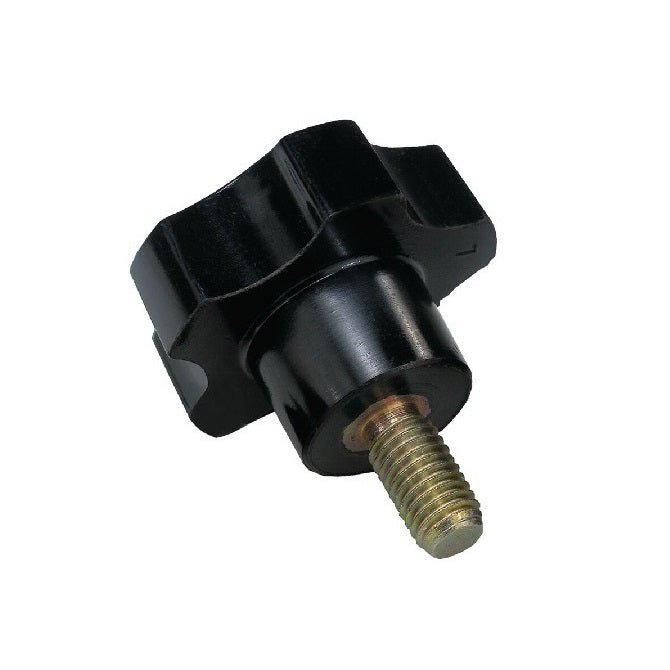

KM080M-040-5L16BDiagramKM080M-040-5L16BImage
