SC100M-260-C-SK-4 - Datasheet
MBA
Category Information

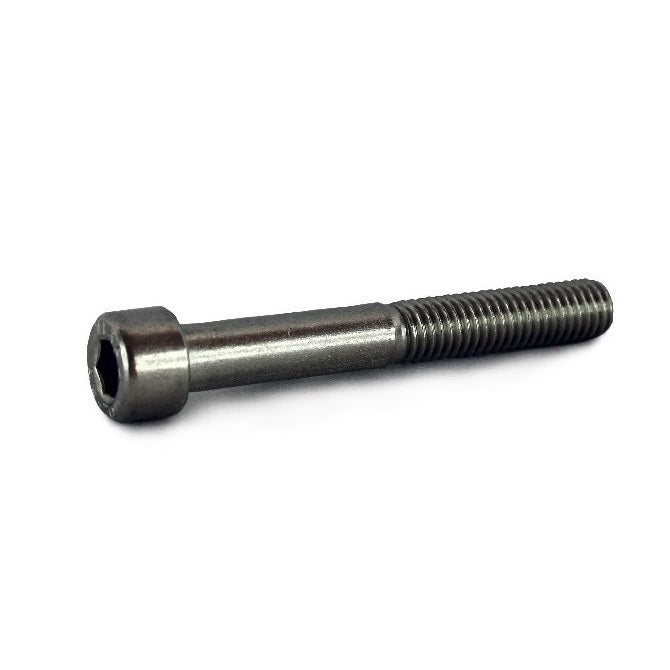

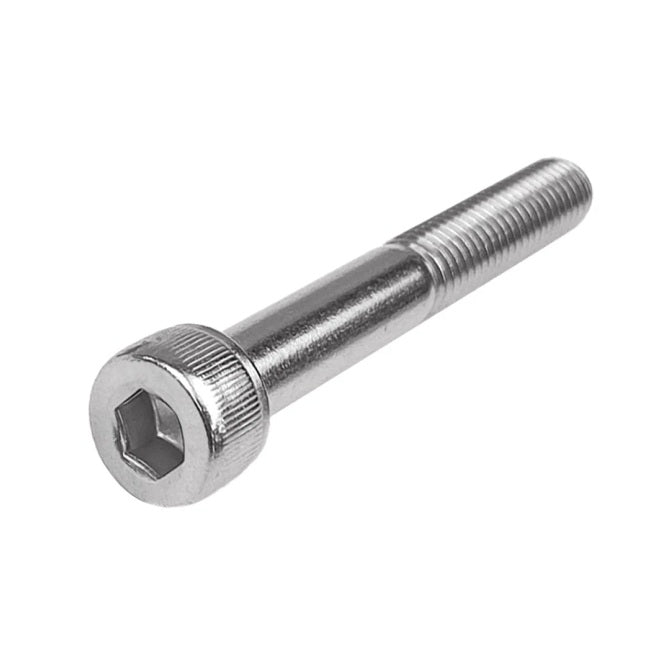

Screws - Socket Cap - Stainless - 303-304303-304 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M10 (10x1.5mm)
- Thread Length (L)
260
mm
(Equiv. 10.236 in.) - Material 304 Stainless
- Head Length (B Max.) 10 mm
- Head Diameter (A Max.) 16.0 mm
- Drive Depth (E) 5.00 mm
- Shank Diameter (C) 9.78 - 10.00 mm
- Hex Key (D) 8.00 mm
- Pitch 1.50 mm
- Threads Per Inch 16.930 TPI
- Min thread Length 32.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-SUS-M10-260
- CSHSUSM10260
