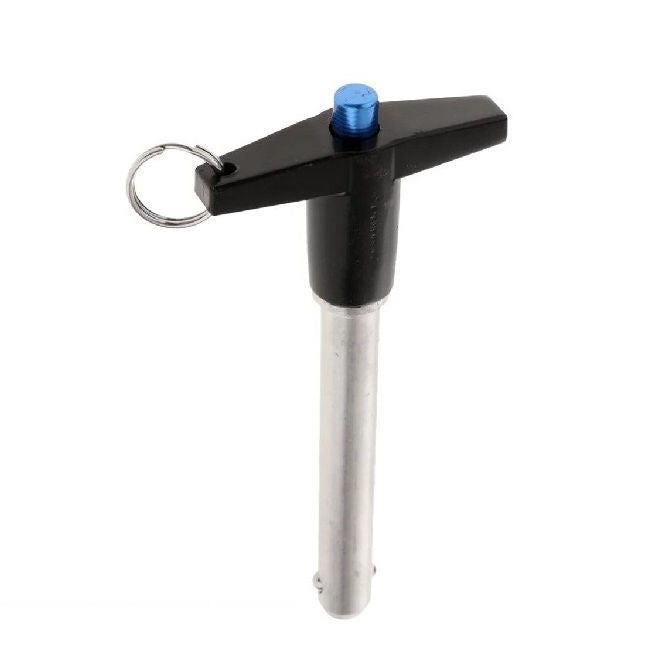

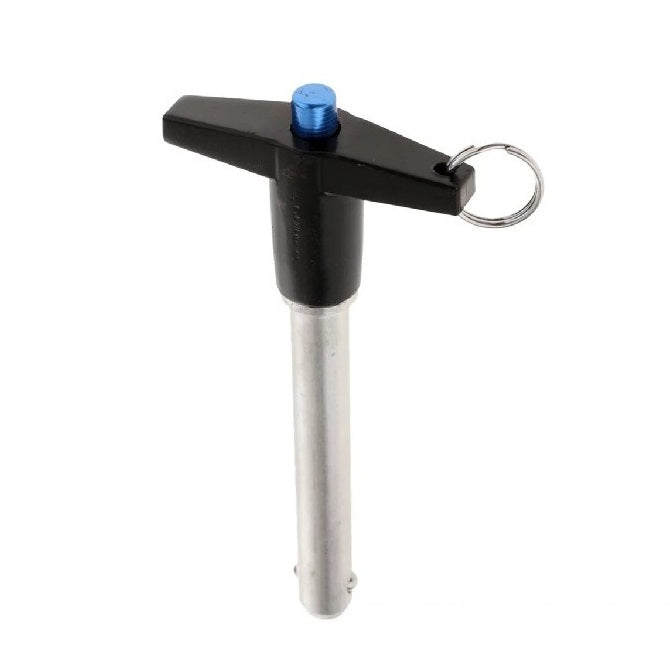

Ball Lock Pins - 6.35 mm x 25.4 mm 304 Stainless Steel
BLP-064-0254-T-S4

Ball Lock Pins - 6.35 mm x 25.4 mm 304 Stainless Steel
BLP-064-0254-T-S4

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$44.14 AUD
$44.14 AUD
Each
Out Of Stock
Order 50 or more for $39.73 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 20, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - No Shoulder - Tee Handle - Commercial 304 Stainless Steel

Product Details:

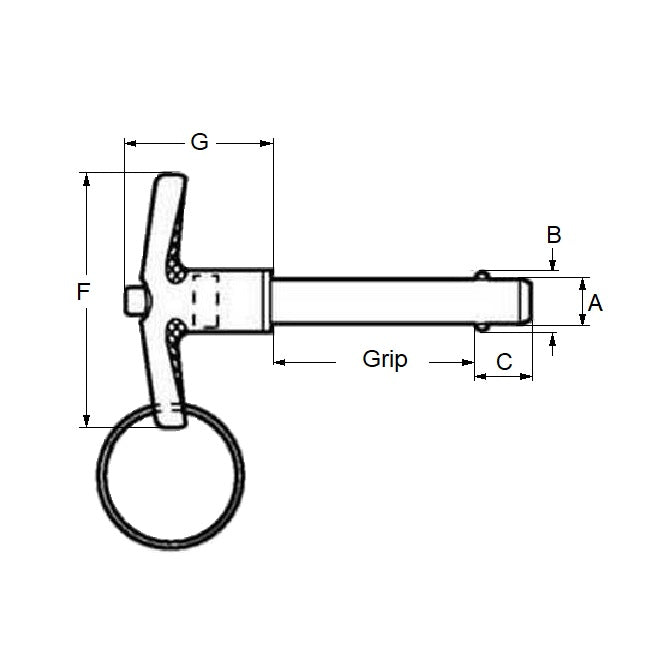

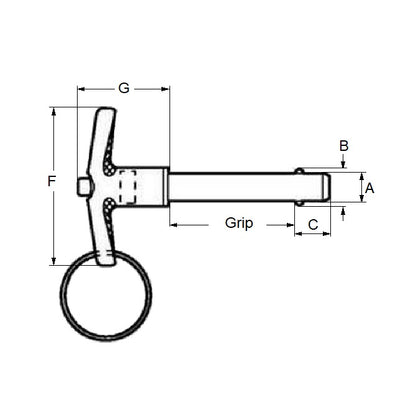

Nominal Diameter: 6.35mm
Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Grip Length (B): 25.40mm
  • Pin Material Grade: 304 Stainless Steel
  • Locking Ball to End (C): 7.37mm
  • Open Ball Distance (B): 7.34mm
  • Handle Diameter (F): 46.10mm
  • Handle Height (G): 32.26mm
  • Pull Out Strength: 80.00Kg
  • Calc. Double Shear Strength: 980Kg
  • Pin Diameter (A): 6.31mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: PLT-0250-1000, CPT-010, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
