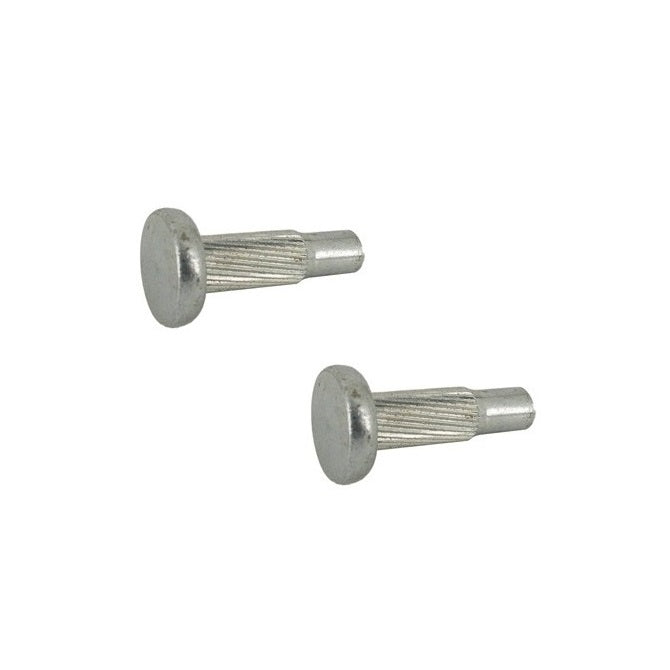

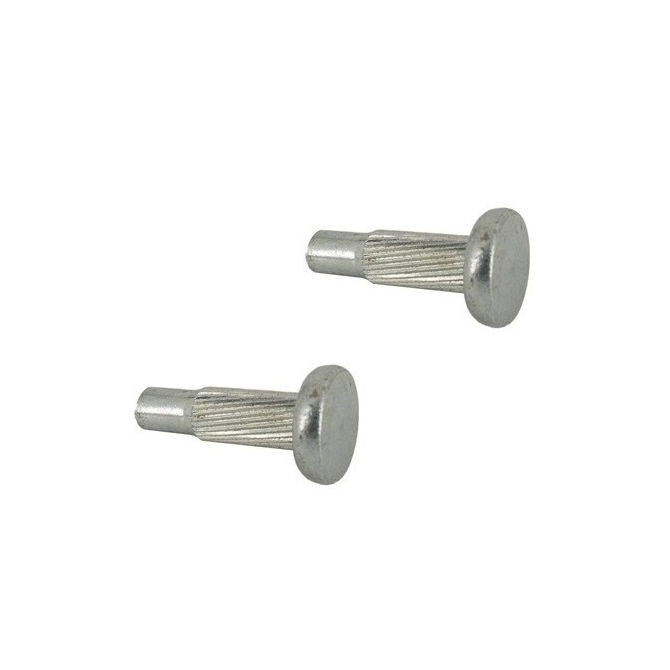

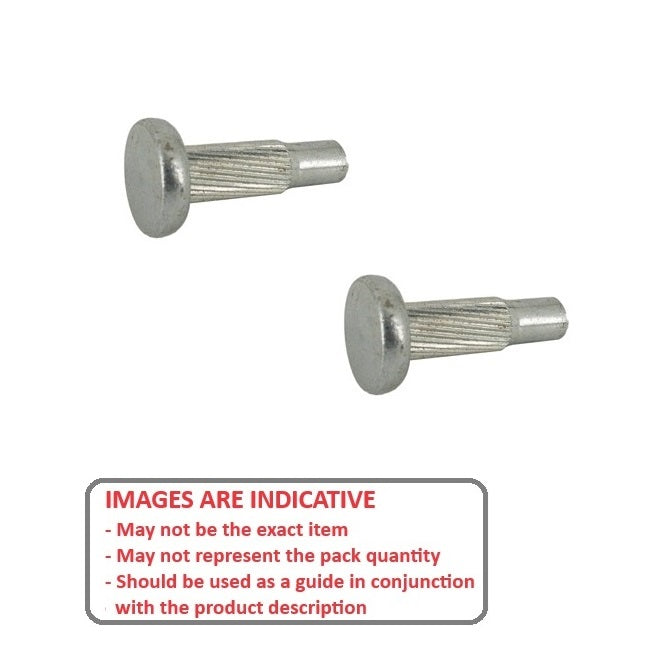

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Hammer Drive Pins - 4 mm x 12 mm x 4.08 mm
HDP040-12F (10 Pcs)

Hammer Drive Pins - 4 mm x 12 mm x 4.08 mm
HDP040-12F (10 Pcs)

MBA

Additional resources:
Master Pins Catalogue PDF
Price:
$3.79 AUD
$17.35 AUD $3.79 AUD
per 10
Qty: 52 available now (520 pcs)
Order 50 or more (500 pcs) for $3.41 AUD per 10
Only 52 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Flat Head

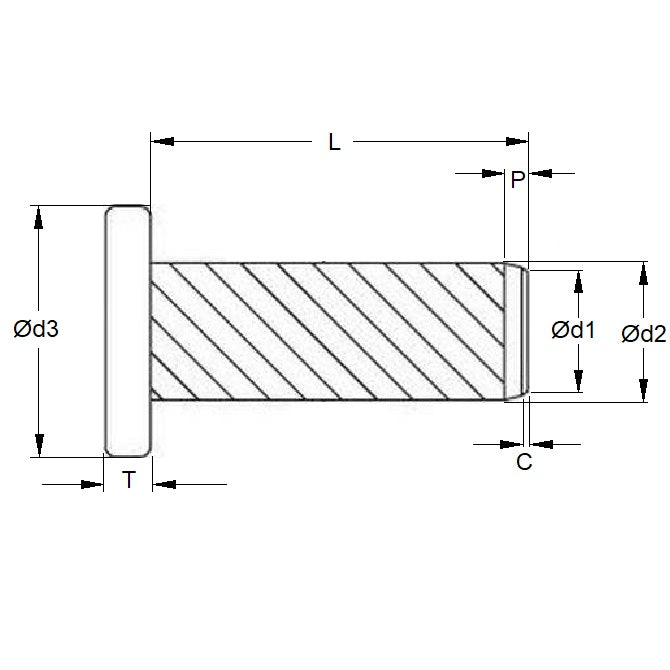

Product Details:

Min Hole Dia (d1): 4.00mm
Carbon Steel
  • Approx. Length (L): 12.0mm
  • Max Hole Dia.: 4.08mm
  • Approx Pin Diameter (d2): 4.35mm
  • Max Head Diameter (d3): 7.25mm
  • Max Head Thickness (T): 1.50mm
  • Nom. Pilot Length (P): 2.0mm

Brand: MBA
Country of Origin: GB

Alternative Parts Include: DSF4-12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
