SK025C-013-SK-C - Datasheet
Brighton Best
Category Information

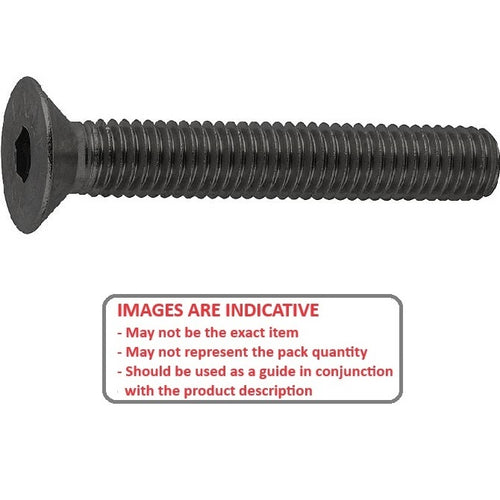

Screws - Countersunk - Socket - Steel - StandardStandard Steel Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Alloy Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- Rc38-42
- ASTM F835 - alloy steel. ISO 10642.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 3-48 UNC (2.52mm)
- Overall Length (L)
12.7
mm
+ 0.0 / - 0.76
(Equiv. 0.5 in.) - Material High Tensile Steel / Black Oxide
- Max Head Diameter 5.7 mm
- Max Head Height 1.9 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 1.59 (1/16) mm
- Countersunk Angle 82 °
- Pitch 0.529 mm
- Threads Per Inch 48 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 211016
- 91253A096
