IP-202RS - Datasheet
MBA
Category Information

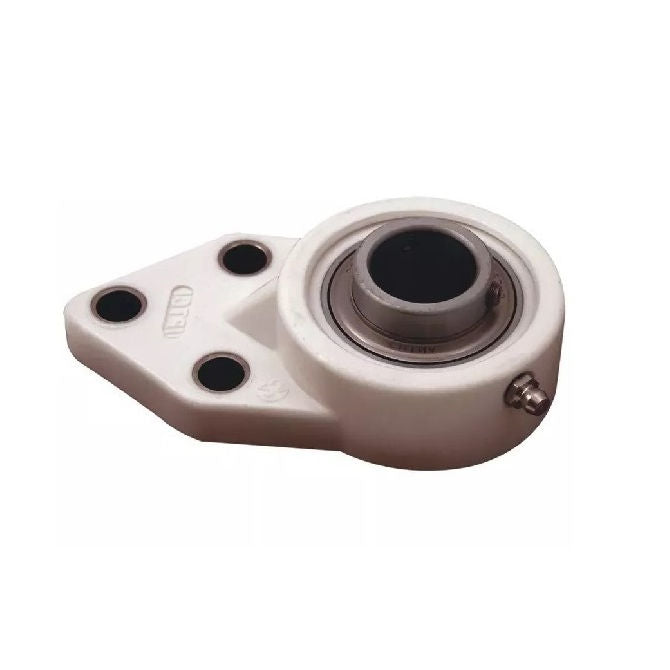

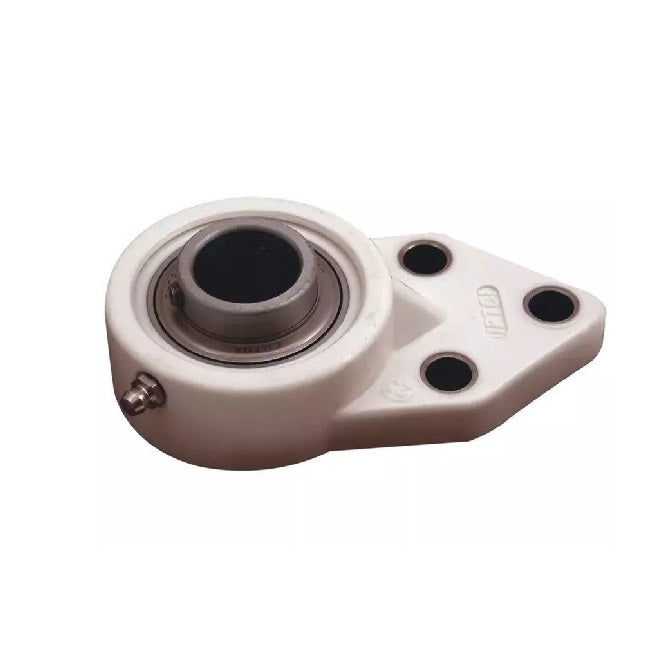

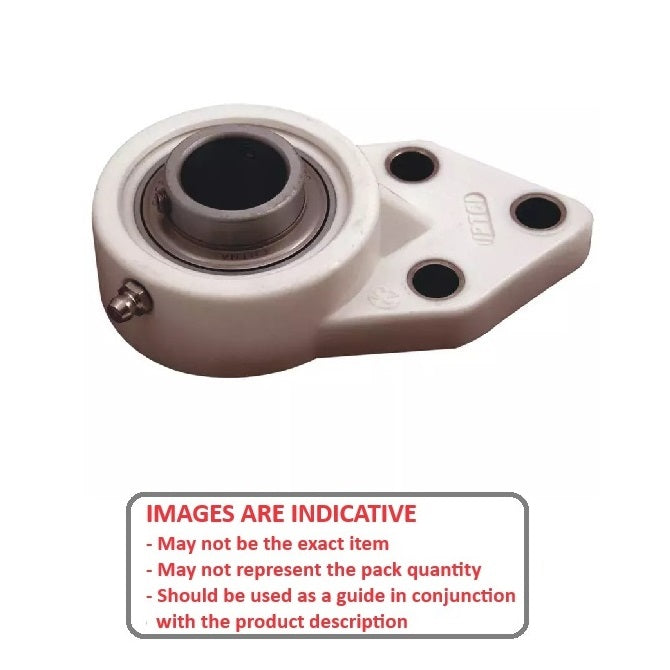

Housing Assembly - Offset - Thermoplastic and StainlessThermoplastic and Stainless Offset Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- An expanded range may be available on special order. Please enquire.
- Food grade.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
- Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.
Product Data
- Inside Diameter
:
25.400
mm

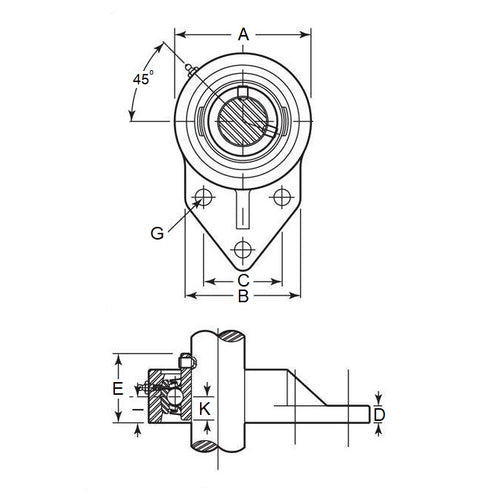

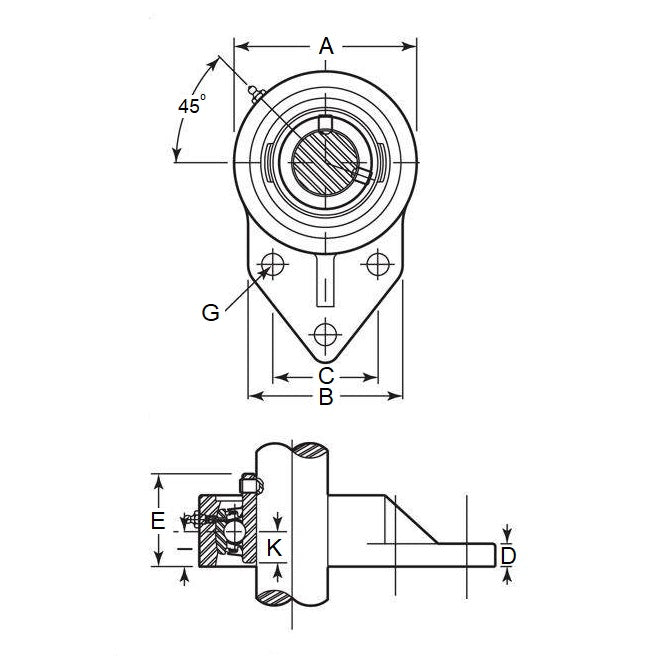

(Equiv. 1 in.) - Centre Height (A)
69.850
mm
(Equiv. 2.75 in.) - Length (B)
63.500
mm
(Equiv. 2.5 in.) - Width (C) 41.275 mm
- Foot Height (D) 11.100 mm
- Bolt Centres (E) 37.306 mm
- Bolt Hole Size (G) 9.922 mm
- Height (H) 14.300 mm
