BTU1000-025-F-PC-HD - Datasheet
MBA
Category Information

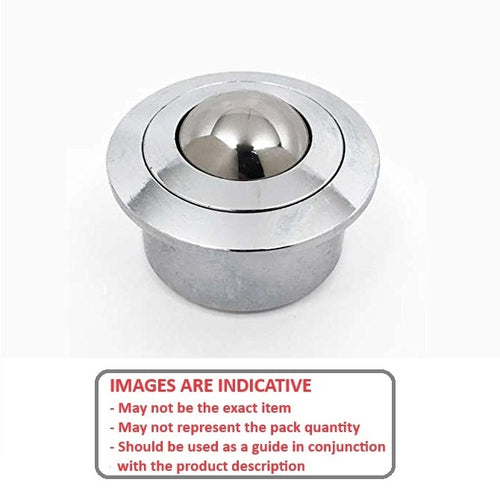

Ball Transfer Units - Flange Mount - Heavy Duty - Pressed SteelPressed Steel Heavy Duty Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 1000 kg

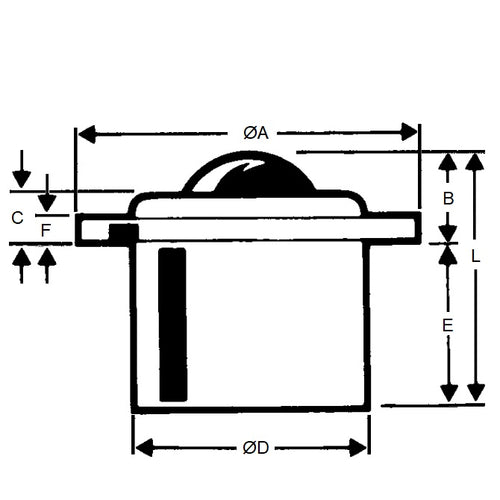

- Ball Height from Flange (B)
25.4
mm
(Equiv. 1 in.) - Body Diameter (D)
60.45
mm
(Equiv. 2.38 in.) - Overall Height (L) 60.5 mm
- Ball Diameter 38.1 mm
- Body Height 35.8 mm
- Flange Diameter 76.2 mm
- Flange Thickness 12.7 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-7152
- SKF7152
