EZL-064C-111C-111-S3 - Datasheet
MBA
Category Information

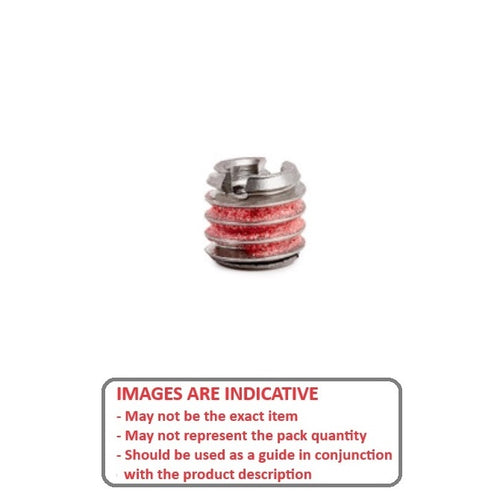

Thread Repair - Inserts - EZ-Lok - Solid Stainless SteelSolid Stainless Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required. Simply drill and tap the hole to suit the external thread.
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : 1/4-20 UNC (6.35mm)
- Length
11.10
mm
(Equiv. 0.437 in.) - External Tap Size 7/16-14 UNC (11.11mm)
- Tapping Hole Size 9.13 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 303-4
- 90247A012
- 3034
