Collection: Springs - Extension

Springs (With Images)

Extension

1098 Products in this selection

This is a combined category of Extension Springs.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Springs - Extension

Additional resources:
Spings Catalogue PDF
Spring Anchors

A more concise listing may be found on the Smallparts store at Springs - Extension. Smallparts promote the most popular MBA products.

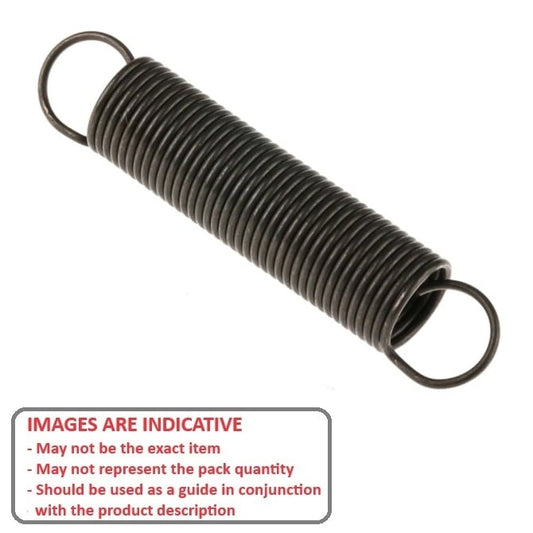

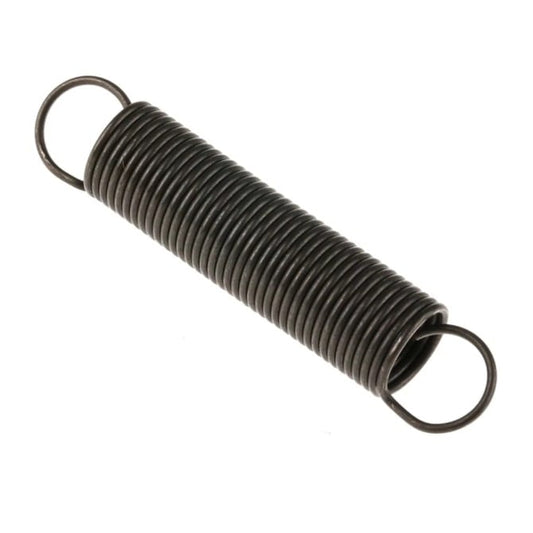

OD (D0)	Overall Length (L0)	Wire Diameter (d)	Max. Extension (L1)	Spring Rate	Initial Tension (IT)	Indicative Image
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 152.4 mm _{(6 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 348.490 mm	Spring Rate 0.543 N/mm	Initial Tension (IT) 15.1 N
Material: Steel Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1524-25-M Extension Springs - 28.58x152.4x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each
OD (D0)	Overall Length (L0)	Wire Diameter (d)	Max. Extension (L1)	Indicative Image
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 152.4 mm _{(6 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 348.490 mm
Material: Steel Spring Rate: 0.543 N/mm Initial Tension (IT): 15.1 N Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1524-25-M Extension Springs - 28.58x152.4x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1524-25-M --- Extension Springs - 28.58x152.4x2.49 mm - Steel ES-2858-1524-25-M --- Extension Springs - 28.58x152.4x2.49 mm - Steel Regular price $67.05 AUD Regular price Sale price $67.05 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 152.4 mm _{(6 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 279.910 mm	Spring Rate 1.944 N/mm	Initial Tension (IT) 24.5 N
Material: Steel Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1524-31-M Extension Springs - 28.58x152.4x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 152.4 mm _{(6 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 279.910 mm
Material: Steel Spring Rate: 1.944 N/mm Initial Tension (IT): 24.5 N Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1524-31-M Extension Springs - 28.58x152.4x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1524-31-M --- Extension Springs - 28.58x152.4x3.15 mm - Steel ES-2858-1524-31-M --- Extension Springs - 28.58x152.4x3.15 mm - Steel Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 2.01 mm _{(0.079 in.)}	Max. Extension (L1) 533.910 mm	Spring Rate 0.228 N/mm	Initial Tension (IT) 8.4 N
Material: Steel Load at L1: 93.280 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-20-M Extension Springs - 28.58x165.1x2.01 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 2.01 mm _{(0.079 in.)}	Max. Extension (L1) 533.910 mm
Material: Steel Spring Rate: 0.228 N/mm Initial Tension (IT): 8.4 N Load at L1: 93.280 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-20-M Extension Springs - 28.58x165.1x2.01 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1651-20-M --- Extension Springs - 28.58x165.1x2.01 mm - Steel ES-2858-1651-20-M --- Extension Springs - 28.58x165.1x2.01 mm - Steel Regular price $57.41 AUD Regular price Sale price $57.41 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 386.590 mm	Spring Rate 0.473 N/mm	Initial Tension (IT) 15.1 N
Material: Steel Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-25-M Extension Springs - 28.58x165.1x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $70.77 AUD Regular price Sale price $70.77 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 386.590 mm
Material: Steel Spring Rate: 0.473 N/mm Initial Tension (IT): 15.1 N Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-25-M Extension Springs - 28.58x165.1x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $70.77 AUD Regular price Sale price $70.77 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1651-25-M --- Extension Springs - 28.58x165.1x2.49 mm - Steel ES-2858-1651-25-M --- Extension Springs - 28.58x165.1x2.49 mm - Steel Regular price $70.77 AUD Regular price Sale price $70.77 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 308.610 mm	Spring Rate 1.734 N/mm	Initial Tension (IT) 24.5 N
Material: Steel Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-31-M Extension Springs - 28.58x165.1x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $93.23 AUD Regular price Sale price $93.23 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 165.1 mm _{(6.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 308.610 mm
Material: Steel Spring Rate: 1.734 N/mm Initial Tension (IT): 24.5 N Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1651-31-M Extension Springs - 28.58x165.1x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $93.23 AUD Regular price Sale price $93.23 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1651-31-M --- Extension Springs - 28.58x165.1x3.15 mm - Steel ES-2858-1651-31-M --- Extension Springs - 28.58x165.1x3.15 mm - Steel Regular price $93.23 AUD Regular price Sale price $93.23 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 2.01 mm _{(0.079 in.)}	Max. Extension (L1) 589.280 mm	Spring Rate 0.210 N/mm	Initial Tension (IT) 8.4 N
Material: Steel Load at L1: 93.280 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-20-M Extension Springs - 28.58x177.8x2.01 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $59.59 AUD Regular price Sale price $59.59 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 2.01 mm _{(0.079 in.)}	Max. Extension (L1) 589.280 mm
Material: Steel Spring Rate: 0.210 N/mm Initial Tension (IT): 8.4 N Load at L1: 93.280 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-20-M Extension Springs - 28.58x177.8x2.01 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $59.59 AUD Regular price Sale price $59.59 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1778-20-M --- Extension Springs - 28.58x177.8x2.01 mm - Steel ES-2858-1778-20-M --- Extension Springs - 28.58x177.8x2.01 mm - Steel Regular price $59.59 AUD Regular price Sale price $59.59 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 424.430 mm	Spring Rate 0.438 N/mm	Initial Tension (IT) 15.1 N
Material: Steel Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-25-M Extension Springs - 28.58x177.8x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $74.77 AUD Regular price Sale price $74.77 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 424.430 mm
Material: Steel Spring Rate: 0.438 N/mm Initial Tension (IT): 15.1 N Load at L1: 121.040 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-25-M Extension Springs - 28.58x177.8x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $74.77 AUD Regular price Sale price $74.77 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1778-25-M --- Extension Springs - 28.58x177.8x2.49 mm - Steel ES-2858-1778-25-M --- Extension Springs - 28.58x177.8x2.49 mm - Steel Regular price $74.77 AUD Regular price Sale price $74.77 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 337.570 mm	Spring Rate 1.559 N/mm	Initial Tension (IT) 24.5 N
Material: Steel Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-31-M Extension Springs - 28.58x177.8x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $100.23 AUD Regular price Sale price $100.23 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 177.8 mm _{(7 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 337.570 mm
Material: Steel Spring Rate: 1.559 N/mm Initial Tension (IT): 24.5 N Load at L1: 272.450 N Category: Springs - Extension - Music Wire
Part Number: ES-2858-1778-31-M Extension Springs - 28.58x177.8x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $100.23 AUD Regular price Sale price $100.23 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-1778-31-M --- Extension Springs - 28.58x177.8x3.15 mm - Steel ES-2858-1778-31-M --- Extension Springs - 28.58x177.8x3.15 mm - Steel Regular price $100.23 AUD Regular price Sale price $100.23 AUD Unit price per Out of stock! Backorder Now

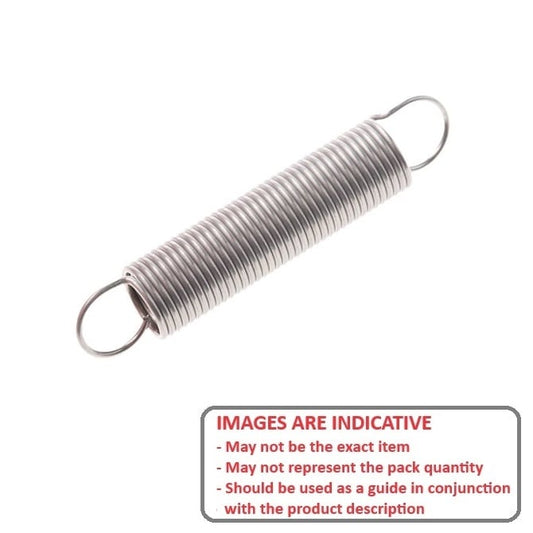

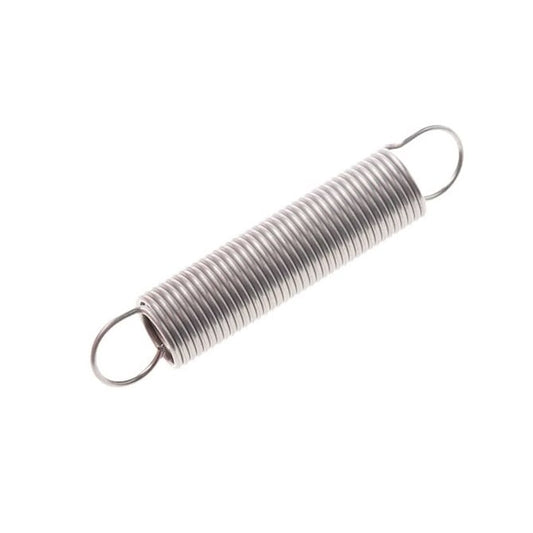

OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 914.0 mm _{(35.984 in.)}	Wire Diameter (d) 3.43 mm _{(0.135 in.)}		Spring Rate 11.88 N/mm	Initial Tension (IT) 11.9 N
Material: Steel - None Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-9140-34-S2 Extension Springs - 28.58x914x3.43 mm - Steel - None Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $232.77 AUD Regular price Sale price $232.77 AUD Unit price per Each
OD (D0) 28.58 mm _{(1.125 in.)}	Overall Length (L0) 914.0 mm _{(35.984 in.)}	Wire Diameter (d) 3.43 mm _{(0.135 in.)}
Material: Steel - None Spring Rate: 11.88 N/mm Initial Tension (IT): 11.9 N Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-9140-34-S2 Extension Springs - 28.58x914x3.43 mm - Steel - None Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $232.77 AUD Regular price Sale price $232.77 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-9140-34-S2 --- Extension Springs - 28.58x914x3.43 mm - Steel - None ES-2858-9140-34-S2 --- Extension Springs - 28.58x914x3.43 mm - Steel - None Regular price $232.77 AUD Regular price Sale price $232.77 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 278.5 mm _{(10.965 in.)}	Wire Diameter (d) 3.60 mm _{(0.142 in.)}			Initial Tension (IT) 1.6 N
Material: Music Wire Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-2785-36-M Extension Springs - 28.6x278.5x3.6 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $118.86 AUD Regular price Sale price $118.86 AUD Unit price per Each
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 278.5 mm _{(10.965 in.)}	Wire Diameter (d) 3.60 mm _{(0.142 in.)}
Material: Music Wire Initial Tension (IT): 1.6 N Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-2785-36-M Extension Springs - 28.6x278.5x3.6 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $118.86 AUD Regular price Sale price $118.86 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-2785-36-M --- Extension Springs - 28.6x278.5x3.6 mm - Music Wire ES-2858-2785-36-M --- Extension Springs - 28.6x278.5x3.6 mm - Music Wire Regular price $118.86 AUD Regular price Sale price $118.86 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 353.9 mm _{(13.933 in.)}	Wire Diameter (d) 4.00 mm _{(0.157 in.)}			Initial Tension (IT) 2.3 N
Material: Music Wire Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-3539-40-M Extension Springs - 28.6x353.9x4 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Each
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 353.9 mm _{(13.933 in.)}	Wire Diameter (d) 4.00 mm _{(0.157 in.)}
Material: Music Wire Initial Tension (IT): 2.3 N Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-3539-40-M Extension Springs - 28.6x353.9x4 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-3539-40-M --- Extension Springs - 28.6x353.9x4 mm - Music Wire ES-2858-3539-40-M --- Extension Springs - 28.6x353.9x4 mm - Music Wire Regular price $176.86 AUD Regular price Sale price $176.86 AUD Unit price per Out of stock! Backorder Now
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 355.6 mm _{(14 in.)}	Wire Diameter (d) 3.20 mm _{(0.126 in.)}			Initial Tension (IT) 0.6 N
Material: Music Wire Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-3556-32-M Extension Springs - 28.6x355.6x3.2 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $122.95 AUD Regular price Sale price $122.95 AUD Unit price per Each
OD (D0) 28.60 mm _{(1.126 in.)}	Overall Length (L0) 355.6 mm _{(14 in.)}	Wire Diameter (d) 3.20 mm _{(0.126 in.)}
Material: Music Wire Initial Tension (IT): 0.6 N Category: Springs - Extension - Stainless Steel
Part Number: ES-2858-3556-32-M Extension Springs - 28.6x355.6x3.2 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $122.95 AUD Regular price Sale price $122.95 AUD Unit price per Each View the product page first if you are unsure.
ES-2858-3556-32-M --- Extension Springs - 28.6x355.6x3.2 mm - Music Wire ES-2858-3556-32-M --- Extension Springs - 28.6x355.6x3.2 mm - Music Wire Regular price $122.95 AUD Regular price Sale price $122.95 AUD Unit price per Out of stock! Backorder Now
OD (D0) 30.20 mm _{(1.189 in.)}	Overall Length (L0) 358.0 mm _{(14.094 in.)}	Wire Diameter (d) 3.60 mm _{(0.142 in.)}			Initial Tension (IT) 1.0 N
Material: Music Wire Category: Springs - Extension - Stainless Steel
Part Number: ES-3016-3580-36-M Extension Springs - 30.2x358x3.6 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $157.05 AUD Regular price Sale price $157.05 AUD Unit price per Each
OD (D0) 30.20 mm _{(1.189 in.)}	Overall Length (L0) 358.0 mm _{(14.094 in.)}	Wire Diameter (d) 3.60 mm _{(0.142 in.)}
Material: Music Wire Initial Tension (IT): 1.0 N Category: Springs - Extension - Stainless Steel
Part Number: ES-3016-3580-36-M Extension Springs - 30.2x358x3.6 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $157.05 AUD Regular price Sale price $157.05 AUD Unit price per Each View the product page first if you are unsure.
ES-3016-3580-36-M --- Extension Springs - 30.2x358x3.6 mm - Music Wire ES-3016-3580-36-M --- Extension Springs - 30.2x358x3.6 mm - Music Wire Regular price $157.05 AUD Regular price Sale price $157.05 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 177.800 mm	Spring Rate 1.384 N/mm	Initial Tension (IT) 10.4 N
Material: Steel Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-25-M Extension Springs - 31.75x88.9x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $50.77 AUD Regular price Sale price $50.77 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 177.800 mm
Material: Steel Spring Rate: 1.384 N/mm Initial Tension (IT): 10.4 N Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-25-M Extension Springs - 31.75x88.9x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $50.77 AUD Regular price Sale price $50.77 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-0889-25-M --- Extension Springs - 31.75x88.9x2.49 mm - Steel ES-3175-0889-25-M --- Extension Springs - 31.75x88.9x2.49 mm - Steel Regular price $50.77 AUD Regular price Sale price $50.77 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 147.570 mm	Spring Rate 4.432 N/mm	Initial Tension (IT) 17.6 N
Material: Steel Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-31-M Extension Springs - 31.75x88.9x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $63.23 AUD Regular price Sale price $63.23 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 147.570 mm
Material: Steel Spring Rate: 4.432 N/mm Initial Tension (IT): 17.6 N Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-31-M Extension Springs - 31.75x88.9x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $63.23 AUD Regular price Sale price $63.23 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-0889-31-M --- Extension Springs - 31.75x88.9x3.15 mm - Steel ES-3175-0889-31-M --- Extension Springs - 31.75x88.9x3.15 mm - Steel Regular price $63.23 AUD Regular price Sale price $63.23 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 122.430 mm	Spring Rate 7.854 N/mm	Initial Tension (IT) 35.4 N
Material: Steel Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-36-M Extension Springs - 31.75x88.9x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $76.68 AUD Regular price Sale price $76.68 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 88.9 mm _{(3.5 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 122.430 mm
Material: Steel Spring Rate: 7.854 N/mm Initial Tension (IT): 35.4 N Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-0889-36-M Extension Springs - 31.75x88.9x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $76.68 AUD Regular price Sale price $76.68 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-0889-36-M --- Extension Springs - 31.75x88.9x3.56 mm - Steel ES-3175-0889-36-M --- Extension Springs - 31.75x88.9x3.56 mm - Steel Regular price $76.68 AUD Regular price Sale price $76.68 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 231.900 mm	Spring Rate 0.946 N/mm	Initial Tension (IT) 10.4 N
Material: Steel Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-25-M Extension Springs - 31.75x101.6x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 231.900 mm
Material: Steel Spring Rate: 0.946 N/mm Initial Tension (IT): 10.4 N Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-25-M Extension Springs - 31.75x101.6x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1016-25-M --- Extension Springs - 31.75x101.6x2.49 mm - Steel ES-3175-1016-25-M --- Extension Springs - 31.75x101.6x2.49 mm - Steel Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 185.930 mm	Spring Rate 3.164 N/mm	Initial Tension (IT) 17.6 N
Material: Steel Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-31-M Extension Springs - 31.75x101.6x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 185.930 mm
Material: Steel Spring Rate: 3.164 N/mm Initial Tension (IT): 17.6 N Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-31-M Extension Springs - 31.75x101.6x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1016-31-M --- Extension Springs - 31.75x101.6x3.15 mm - Steel ES-3175-1016-31-M --- Extension Springs - 31.75x101.6x3.15 mm - Steel Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 148.590 mm	Spring Rate 5.651 N/mm	Initial Tension (IT) 35.4 N
Material: Steel Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-36-M Extension Springs - 31.75x101.6x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $84.77 AUD Regular price Sale price $84.77 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 101.6 mm _{(4 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 148.590 mm
Material: Steel Spring Rate: 5.651 N/mm Initial Tension (IT): 35.4 N Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1016-36-M Extension Springs - 31.75x101.6x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $84.77 AUD Regular price Sale price $84.77 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1016-36-M --- Extension Springs - 31.75x101.6x3.56 mm - Steel ES-3175-1016-36-M --- Extension Springs - 31.75x101.6x3.56 mm - Steel Regular price $84.77 AUD Regular price Sale price $84.77 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 286.000 mm	Spring Rate 0.718 N/mm	Initial Tension (IT) 10.4 N
Material: Steel Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-25-M Extension Springs - 31.75x114.3x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 286.000 mm
Material: Steel Spring Rate: 0.718 N/mm Initial Tension (IT): 10.4 N Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-25-M Extension Springs - 31.75x114.3x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1143-25-M --- Extension Springs - 31.75x114.3x2.49 mm - Steel ES-3175-1143-25-M --- Extension Springs - 31.75x114.3x2.49 mm - Steel Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 224.540 mm	Spring Rate 2.410 N/mm	Initial Tension (IT) 17.6 N
Material: Steel Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-31-M Extension Springs - 31.75x114.3x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 224.540 mm
Material: Steel Spring Rate: 2.410 N/mm Initial Tension (IT): 17.6 N Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-31-M Extension Springs - 31.75x114.3x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1143-31-M --- Extension Springs - 31.75x114.3x3.15 mm - Steel ES-3175-1143-31-M --- Extension Springs - 31.75x114.3x3.15 mm - Steel Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 174.750 mm	Spring Rate 4.400 N/mm	Initial Tension (IT) 35.4 N
Material: Steel Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-36-M Extension Springs - 31.75x114.3x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $96.95 AUD Regular price Sale price $96.95 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 114.3 mm _{(4.5 in.)}	Wire Diameter (d) 3.56 mm _{(0.14 in.)}	Max. Extension (L1) 174.750 mm
Material: Steel Spring Rate: 4.400 N/mm Initial Tension (IT): 35.4 N Load at L1: 300.460 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1143-36-M Extension Springs - 31.75x114.3x3.56 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $96.95 AUD Regular price Sale price $96.95 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1143-36-M --- Extension Springs - 31.75x114.3x3.56 mm - Steel ES-3175-1143-36-M --- Extension Springs - 31.75x114.3x3.56 mm - Steel Regular price $96.95 AUD Regular price Sale price $96.95 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 127.0 mm _{(5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 340.110 mm	Spring Rate 0.560 N/mm	Initial Tension (IT) 10.4 N
Material: Steel Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1270-25-M Extension Springs - 31.75x127x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 127.0 mm _{(5 in.)}	Wire Diameter (d) 2.49 mm _{(0.098 in.)}	Max. Extension (L1) 340.110 mm
Material: Steel Spring Rate: 0.560 N/mm Initial Tension (IT): 10.4 N Load at L1: 147.780 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1270-25-M Extension Springs - 31.75x127x2.49 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1270-25-M --- Extension Springs - 31.75x127x2.49 mm - Steel ES-3175-1270-25-M --- Extension Springs - 31.75x127x2.49 mm - Steel Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Out of stock! Backorder Now
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 127.0 mm _{(5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 262.890 mm	Spring Rate 1.960 N/mm	Initial Tension (IT) 17.6 N
Material: Steel Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1270-31-M Extension Springs - 31.75x127x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Each
OD (D0) 31.75 mm _{(1.25 in.)}	Overall Length (L0) 127.0 mm _{(5 in.)}	Wire Diameter (d) 3.15 mm _{(0.124 in.)}	Max. Extension (L1) 262.890 mm
Material: Steel Spring Rate: 1.960 N/mm Initial Tension (IT): 17.6 N Load at L1: 283.910 N Category: Springs - Extension - Music Wire
Part Number: ES-3175-1270-31-M Extension Springs - 31.75x127x3.15 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 07, 2025 Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Each View the product page first if you are unsure.
ES-3175-1270-31-M --- Extension Springs - 31.75x127x3.15 mm - Steel ES-3175-1270-31-M --- Extension Springs - 31.75x127x3.15 mm - Steel Regular price $82.32 AUD Regular price Sale price $82.32 AUD Unit price per Out of stock! Backorder Now
