Collection: Screws - Shoulder - Slotted Shallow Head

Screws (With Images)

Shoulder

Socket Head

57 Products in this selection

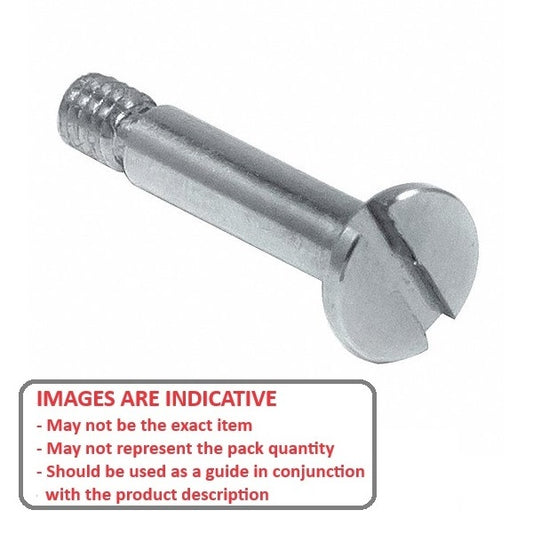

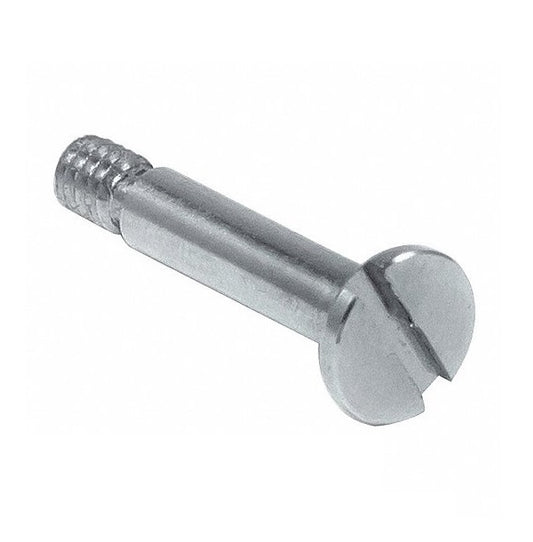

This is a combined category of Slotted Shallow Head Shoulder Screws.

Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
PDF Screws Catalogue
Washers
Nuts

A more concise listing may be found on the Smallparts store at Screws - Shoulder - Slotted Shallow Head. Smallparts promote the most popular MBA products.

Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (S)	Head Height (H)	Head Diameter (D)	Indicative Image
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 4.000 mm _{(0.157 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-004-SLL-C (50 Pcs) Shoulder Screws - 10x4 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Per 50
Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (S)	Indicative Image
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 4.000 mm _{(0.157 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-004-SLL-C (50 Pcs) Shoulder Screws - 10x4 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-004-SLL-C (50 Pcs) --- Shoulder Screws - 10x4 mm - M8x1.25 - Carbon Steel SHLD100-004-SLL-C (50 Pcs) --- Shoulder Screws - 10x4 mm - M8x1.25 - Carbon Steel Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 5.000 mm _{(0.197 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-005-SLL-C (50 Pcs) Shoulder Screws - 10x5 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 5.000 mm _{(0.197 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-005-SLL-C (50 Pcs) Shoulder Screws - 10x5 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-005-SLL-C (50 Pcs) --- Shoulder Screws - 10x5 mm - M8x1.25 - Carbon Steel SHLD100-005-SLL-C (50 Pcs) --- Shoulder Screws - 10x5 mm - M8x1.25 - Carbon Steel Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 6.000 mm _{(0.236 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-006-SLL-C Shoulder Screws - 10x6 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Per 5
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 6.000 mm _{(0.236 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-006-SLL-C Shoulder Screws - 10x6 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Per 5 View the product page first if you are unsure.
SHLD100-006-SLL-C --- Shoulder Screws - 10x6 mm - M8x1.25 - Carbon Steel SHLD100-006-SLL-C --- Shoulder Screws - 10x6 mm - M8x1.25 - Carbon Steel Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 8.000 mm _{(0.315 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-008-SLL-C (50 Pcs) Shoulder Screws - 10x8 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $188.59 AUD Regular price Sale price $188.59 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 8.000 mm _{(0.315 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-008-SLL-C (50 Pcs) Shoulder Screws - 10x8 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $188.59 AUD Regular price Sale price $188.59 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-008-SLL-C (50 Pcs) --- Shoulder Screws - 10x8 mm - M8x1.25 - Carbon Steel SHLD100-008-SLL-C (50 Pcs) --- Shoulder Screws - 10x8 mm - M8x1.25 - Carbon Steel Regular price $188.59 AUD Regular price Sale price $188.59 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 10.000 mm _{(0.394 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-010-SLL-C (50 Pcs) Shoulder Screws - 10x10 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $203.59 AUD Regular price Sale price $203.59 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 10.000 mm _{(0.394 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-010-SLL-C (50 Pcs) Shoulder Screws - 10x10 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $203.59 AUD Regular price Sale price $203.59 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-010-SLL-C (50 Pcs) --- Shoulder Screws - 10x10 mm - M8x1.25 - Carbon Steel SHLD100-010-SLL-C (50 Pcs) --- Shoulder Screws - 10x10 mm - M8x1.25 - Carbon Steel Regular price $203.59 AUD Regular price Sale price $203.59 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 12.000 mm _{(0.472 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-012-SLL-C (50 Pcs) Shoulder Screws - 10x12 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $218.68 AUD Regular price Sale price $218.68 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 12.000 mm _{(0.472 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-012-SLL-C (50 Pcs) Shoulder Screws - 10x12 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $218.68 AUD Regular price Sale price $218.68 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-012-SLL-C (50 Pcs) --- Shoulder Screws - 10x12 mm - M8x1.25 - Carbon Steel SHLD100-012-SLL-C (50 Pcs) --- Shoulder Screws - 10x12 mm - M8x1.25 - Carbon Steel Regular price $218.68 AUD Regular price Sale price $218.68 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 16.000 mm _{(0.63 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-016-SLL-C (50 Pcs) Shoulder Screws - 10x16 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $235.14 AUD Regular price Sale price $235.14 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 16.000 mm _{(0.63 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-016-SLL-C (50 Pcs) Shoulder Screws - 10x16 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $235.14 AUD Regular price Sale price $235.14 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-016-SLL-C (50 Pcs) --- Shoulder Screws - 10x16 mm - M8x1.25 - Carbon Steel SHLD100-016-SLL-C (50 Pcs) --- Shoulder Screws - 10x16 mm - M8x1.25 - Carbon Steel Regular price $235.14 AUD Regular price Sale price $235.14 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 20.000 mm _{(0.787 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-020-SLL-C (50 Pcs) Shoulder Screws - 10x20 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $261.32 AUD Regular price Sale price $261.32 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 20.000 mm _{(0.787 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-020-SLL-C (50 Pcs) Shoulder Screws - 10x20 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $261.32 AUD Regular price Sale price $261.32 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-020-SLL-C (50 Pcs) --- Shoulder Screws - 10x20 mm - M8x1.25 - Carbon Steel SHLD100-020-SLL-C (50 Pcs) --- Shoulder Screws - 10x20 mm - M8x1.25 - Carbon Steel Regular price $261.32 AUD Regular price Sale price $261.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 25.000 mm _{(0.984 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm	Head Height (H) 3.80 mm	Head Diameter (D) 16.00 mm
Material: Carbon Steel Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-025-SLL-C (50 Pcs) Shoulder Screws - 10x25 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Per 50
Shoulder Diameter (E) 10.000 mm _{(0.394 in.)}	Shoulder Length (A) 25.000 mm _{(0.984 in.)}	Thread (D) M8x1.25	Max. Thread Length (S) 10.00 mm
Material: Carbon Steel Head Height (H): 3.80 mm Head Diameter (D): 16.00 mm Category: Screws - Shoulder - Slotted Shallow Head - Carbon Steel
Part Number: SHLD100-025-SLL-C (50 Pcs) Shoulder Screws - 10x25 mm - M8x1.25 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD100-025-SLL-C (50 Pcs) --- Shoulder Screws - 10x25 mm - M8x1.25 - Carbon Steel SHLD100-025-SLL-C (50 Pcs) --- Shoulder Screws - 10x25 mm - M8x1.25 - Carbon Steel Regular price $278.14 AUD Regular price Sale price $278.14 AUD Unit price per Out of stock! Backorder Now
