Retaining Rings - Internal - Spiral Rings

109 Products in this selection
This is a combined category of Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Spiral Rings and Snap Rings PDF
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Spiral Rings. Smallparts promote the most popular MBA products.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
109.98
mm

(4.33 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(0.061 in.)
Groove Dia. (Dg)
113.29
mm

(4.46 in.)
Approx. Loose Circlip OD (Dr)
114.82
mm
+ 0.89 / - 0.00
Radial Wall (S)
5.79
mm
+/- 0.13
Groove Width (W)
1.79
mm
+/- 0.16

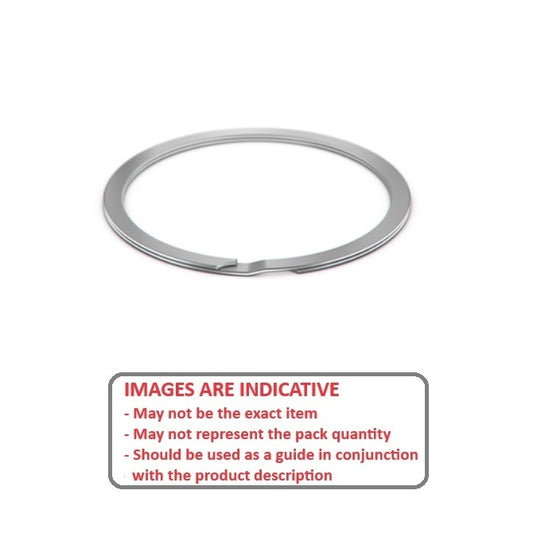

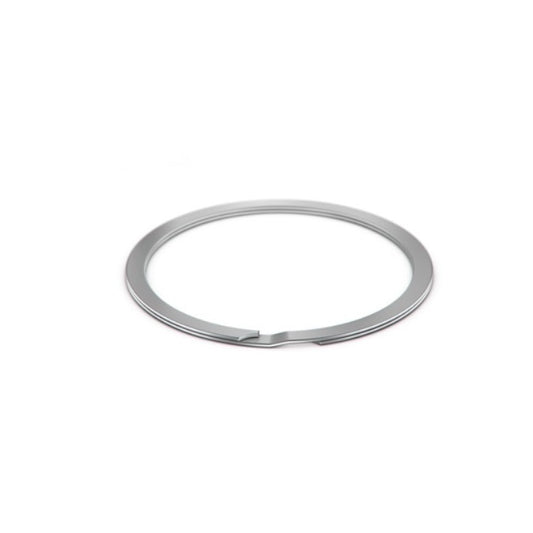

Internal Retaining Rings - 109.98x1.55x113.29 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 103.24 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-433 Internal Retaining Rings - 109.98x1.55x113.29 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.77 AUD
$15.77 AUD
Each
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
109.98
mm

(4.33 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(0.061 in.)
Groove Dia. (Dg)
113.29
mm

(4.46 in.)
Approx. Loose Circlip OD (Dr)
114.82
mm
+ 0.89 / - 0.00
Internal Retaining Rings - 109.98x1.55x113.29 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 5.79 mm +/- 0.13    Groove Width (W): 1.79 mm +/- 0.16   Approx. Loose Clip ID: 103.24 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-433 Internal Retaining Rings - 109.98x1.55x113.29 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.77 AUD
$15.77 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
109.98
mm

(4.33 in.)
Clip Thickness (T)
2.82
mm
+/- 0.08
(0.111 in.)
Groove Dia. (Dg)
115.72
mm

(4.556 in.)
Approx. Loose Circlip OD (Dr)
117.35
mm
+ 0.89 / - 0.00
Radial Wall (S)
7.93
mm
+/- 0.16
Groove Width (W)
3.12
mm
+/- 0.15

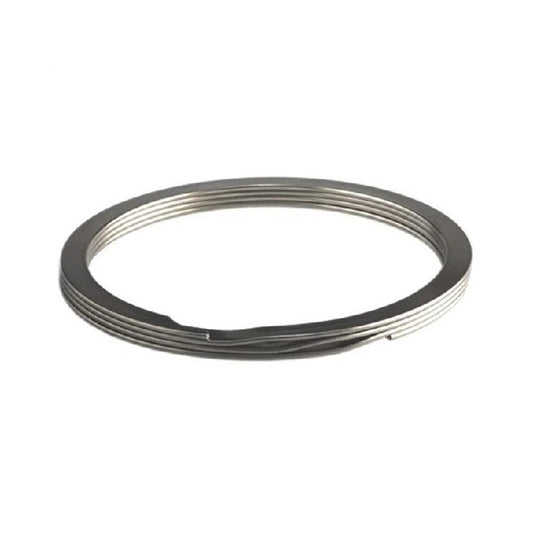

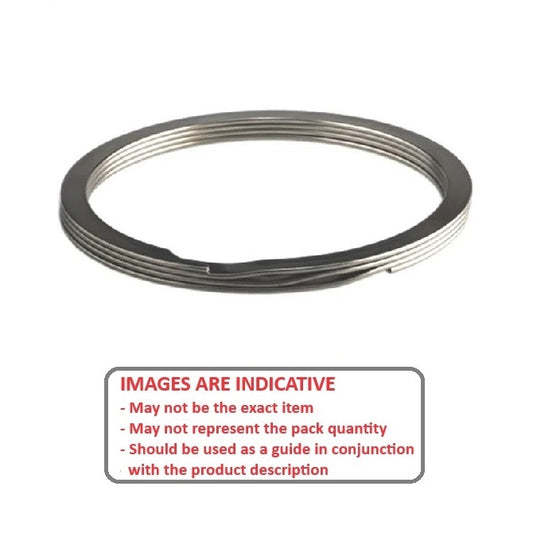

Internal Retaining Rings - 109.98x2.82x115.72 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 101.49 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-433 (5 Pcs) Internal Retaining Rings - 109.98x2.82x115.72 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$281.59 AUD
$281.59 AUD
Per 5
Housing Bore (B)
109.98
mm

(4.33 in.)
Clip Thickness (T)
2.82
mm
+/- 0.08
(0.111 in.)
Groove Dia. (Dg)
115.72
mm

(4.556 in.)
Approx. Loose Circlip OD (Dr)
117.35
mm
+ 0.89 / - 0.00
Internal Retaining Rings - 109.98x2.82x115.72 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 7.93 mm +/- 0.16    Groove Width (W): 3.12 mm +/- 0.15   Approx. Loose Clip ID: 101.49 +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-433 (5 Pcs) Internal Retaining Rings - 109.98x2.82x115.72 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$281.59 AUD
$281.59 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
120.65
mm

(4.75 in.)
Clip Thickness (T)
1.83
mm
+/- 0.08
(0.072 in.)
Groove Dia. (Dg)
124.21
mm

(4.89 in.)
Approx. Loose Circlip OD (Dr)
125.96
mm
+ 0.89 / - 0.00
Radial Wall (S)
6.35
mm
+/- 0.13
Groove Width (W)
2.01
mm
+/- 0.16
Internal Retaining Rings - 120.65x1.83x124.21 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 113.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-475 Internal Retaining Rings - 120.65x1.83x124.21 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$30.86 AUD
$30.86 AUD
Each
Housing Bore (B)
120.65
mm

(4.75 in.)
Clip Thickness (T)
1.83
mm
+/- 0.08
(0.072 in.)
Groove Dia. (Dg)
124.21
mm

(4.89 in.)
Approx. Loose Circlip OD (Dr)
125.96
mm
+ 0.89 / - 0.00
Internal Retaining Rings - 120.65x1.83x124.21 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 6.35 mm +/- 0.13    Groove Width (W): 2.01 mm +/- 0.16   Approx. Loose Clip ID: 113.26 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-475 Internal Retaining Rings - 120.65x1.83x124.21 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$30.86 AUD
$30.86 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
127.00
mm

(5 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
130.66
mm

(5.144 in.)
Approx. Loose Circlip OD (Dr)
132.59
mm
+ 0.89 / - 0.00
Radial Wall (S)
6.35
mm
+/- 0.13
Groove Width (W)
2.07
mm
+/- 0.15
Internal Retaining Rings - 127x1.83x130.66 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 119.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-500 (6 Pcs) Internal Retaining Rings - 127x1.83x130.66 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$115.68 AUD
$115.68 AUD
Per 6
Housing Bore (B)
127.00
mm

(5 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
130.66
mm

(5.144 in.)
Approx. Loose Circlip OD (Dr)
132.59
mm
+ 0.89 / - 0.00
Internal Retaining Rings - 127x1.83x130.66 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 6.35 mm +/- 0.13    Groove Width (W): 2.07 mm +/- 0.15   Approx. Loose Clip ID: 119.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-500 (6 Pcs) Internal Retaining Rings - 127x1.83x130.66 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$115.68 AUD
$115.68 AUD
Per 6
View the product page first if you are unsure.
Housing Bore (B)
139.70
mm

(5.5 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
143.44
mm

(5.647 in.)
Approx. Loose Circlip OD (Dr)
145.85
mm
+ 1.14 / - 0.00
Radial Wall (S)
6.35
mm
+/- 0.13
Groove Width (W)
2.07
mm
+/- 0.18
Internal Retaining Rings - 139.7x1.83x143.44 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 133.15 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-550 Internal Retaining Rings - 139.7x1.83x143.44 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.95 AUD
$15.95 AUD
Each
Housing Bore (B)
139.70
mm

(5.5 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
143.44
mm

(5.647 in.)
Approx. Loose Circlip OD (Dr)
145.85
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 139.7x1.83x143.44 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 6.35 mm +/- 0.13    Groove Width (W): 2.07 mm +/- 0.18   Approx. Loose Clip ID: 133.15 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-550 Internal Retaining Rings - 139.7x1.83x143.44 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.95 AUD
$15.95 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
146.05
mm

(5.75 in.)
Clip Thickness (T)
3.23
mm
+/- 0.11
(0.127 in.)
Groove Dia. (Dg)
152.91
mm

(6.02 in.)
Approx. Loose Circlip OD (Dr)
155.11
mm
+ 1.02 / - 0.00
Radial Wall (S)
9.53
mm
+/- 0.16
Groove Width (W)
3.61
mm
+/- 0.18
Internal Retaining Rings - 146.05x3.23x152.91 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 136.05 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-575 Internal Retaining Rings - 146.05x3.23x152.91 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$34.05 AUD
$34.05 AUD
Each
Housing Bore (B)
146.05
mm

(5.75 in.)
Clip Thickness (T)
3.23
mm
+/- 0.11
(0.127 in.)
Groove Dia. (Dg)
152.91
mm

(6.02 in.)
Approx. Loose Circlip OD (Dr)
155.11
mm
+ 1.02 / - 0.00
Internal Retaining Rings - 146.05x3.23x152.91 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 9.53 mm +/- 0.16    Groove Width (W): 3.61 mm +/- 0.18   Approx. Loose Clip ID: 136.05 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-575 Internal Retaining Rings - 146.05x3.23x152.91 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$34.05 AUD
$34.05 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
149.99
mm

(5.905 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
153.88
mm

(6.058 in.)
Approx. Loose Circlip OD (Dr)
156.59
mm
+ 1.14 / - 0.00
Radial Wall (S)
6.35
mm
+/- 0.13
Groove Width (W)
2.07
mm
+/- 0.18
Internal Retaining Rings - 149.99x1.83x153.88 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 143.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-590 (5 Pcs) Internal Retaining Rings - 149.99x1.83x153.88 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$118.14 AUD
$118.14 AUD
Per 5
Housing Bore (B)
149.99
mm

(5.905 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
153.88
mm

(6.058 in.)
Approx. Loose Circlip OD (Dr)
156.59
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 149.99x1.83x153.88 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 6.35 mm +/- 0.13    Groove Width (W): 2.07 mm +/- 0.18   Approx. Loose Clip ID: 143.89 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-590 (5 Pcs) Internal Retaining Rings - 149.99x1.83x153.88 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$118.14 AUD
$118.14 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
152.40
mm

(6 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
156.29
mm

(6.153 in.)
Approx. Loose Circlip OD (Dr)
159.11
mm
+ 1.14 / - 0.00
Radial Wall (S)
6.35
mm
+/- 0.13
Groove Width (W)
2.07
mm
+/- 0.17
Internal Retaining Rings - 152.4x1.83x156.29 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 146.41 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-600 Internal Retaining Rings - 152.4x1.83x156.29 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$6.77 AUD
$6.77 AUD
Each
Housing Bore (B)
152.40
mm

(6 in.)
Clip Thickness (T)
1.83
mm
+/- 0.10
(0.072 in.)
Groove Dia. (Dg)
156.29
mm

(6.153 in.)
Approx. Loose Circlip OD (Dr)
159.11
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 152.4x1.83x156.29 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 6.35 mm +/- 0.13    Groove Width (W): 2.07 mm +/- 0.17   Approx. Loose Clip ID: 146.41 +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-600 Internal Retaining Rings - 152.4x1.83x156.29 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$6.77 AUD
$6.77 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
168.28
mm

(6.625 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
172.90
mm

(6.807 in.)
Approx. Loose Circlip OD (Dr)
175.68
mm
+ 1.40 / - 0.00
Radial Wall (S)
7.93
mm
+/- 0.16
Groove Width (W)
2.47
mm
+/- 0.20
Internal Retaining Rings - 168.28x2.19x172.9 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip ID: 159.82 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-662-S02 Internal Retaining Rings - 168.28x2.19x172.9 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$51.41 AUD
$51.41 AUD
Each
Housing Bore (B)
168.28
mm

(6.625 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
172.90
mm

(6.807 in.)
Approx. Loose Circlip OD (Dr)
175.68
mm
+ 1.40 / - 0.00
Internal Retaining Rings - 168.28x2.19x172.9 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 7.93 mm +/- 0.16    Groove Width (W): 2.47 mm +/- 0.20   Approx. Loose Clip ID: 159.82 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-662-S02 Internal Retaining Rings - 168.28x2.19x172.9 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$51.41 AUD
$51.41 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
177.80
mm

(7 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
182.43
mm

(7.182 in.)
Approx. Loose Circlip OD (Dr)
185.62
mm
+ 1.40 / - 0.00
Radial Wall (S)
7.93
mm
+/- 0.16
Groove Width (W)
2.47
mm
+/- 0.20
Internal Retaining Rings - 177.8x2.19x182.43 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 169.76 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-700 (2 Pcs) Internal Retaining Rings - 177.8x2.19x182.43 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.68 AUD
$15.68 AUD
Per 2
Housing Bore (B)
177.80
mm

(7 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
182.43
mm

(7.182 in.)
Approx. Loose Circlip OD (Dr)
185.62
mm
+ 1.40 / - 0.00
Internal Retaining Rings - 177.8x2.19x182.43 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 7.93 mm +/- 0.16    Groove Width (W): 2.47 mm +/- 0.20   Approx. Loose Clip ID: 169.76 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-700 (2 Pcs) Internal Retaining Rings - 177.8x2.19x182.43 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$15.68 AUD
$15.68 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
177.80
mm

(7 in.)
Clip Thickness (T)
4.19
mm
+/- 0.13
(0.165 in.)
Groove Dia. (Dg)
185.80
mm

(7.315 in.)
Approx. Loose Circlip OD (Dr)
188.82
mm
+ 1.40 / - 0.00
Radial Wall (S)
7.93
mm
+/- 0.16
Groove Width (W)
4.52
mm
+/- 0.20
Internal Retaining Rings - 177.8x4.19x185.8 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 172.96 +/- 0.10
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-700 (2 Pcs) Internal Retaining Rings - 177.8x4.19x185.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$24.05 AUD
$24.05 AUD
Per 2
Housing Bore (B)
177.80
mm

(7 in.)
Clip Thickness (T)
4.19
mm
+/- 0.13
(0.165 in.)
Groove Dia. (Dg)
185.80
mm

(7.315 in.)
Approx. Loose Circlip OD (Dr)
188.82
mm
+ 1.40 / - 0.00
Internal Retaining Rings - 177.8x4.19x185.8 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 7.93 mm +/- 0.16    Groove Width (W): 4.52 mm +/- 0.20   Approx. Loose Clip ID: 172.96 +/- 0.10
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-700 (2 Pcs) Internal Retaining Rings - 177.8x4.19x185.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$24.05 AUD
$24.05 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
180.98
mm

(7.125 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
185.86
mm

(7.317 in.)
Approx. Loose Circlip OD (Dr)
188.94
mm
+ 1.40 / - 0.00
Radial Wall (S)
7.93
mm
+/- 0.16
Groove Width (W)
2.47
mm
+/- 0.20
Internal Retaining Rings - 180.98x2.19x185.86 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 173.08 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-712 (7 Pcs) Internal Retaining Rings - 180.98x2.19x185.86 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$228.59 AUD
$228.59 AUD
Per 7
Housing Bore (B)
180.98
mm

(7.125 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
185.86
mm

(7.317 in.)
Approx. Loose Circlip OD (Dr)
188.94
mm
+ 1.40 / - 0.00
Internal Retaining Rings - 180.98x2.19x185.86 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 7.93 mm +/- 0.16    Groove Width (W): 2.47 mm +/- 0.20   Approx. Loose Clip ID: 173.08 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-712 (7 Pcs) Internal Retaining Rings - 180.98x2.19x185.86 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$228.59 AUD
$228.59 AUD
Per 7
View the product page first if you are unsure.
Housing Bore (B)
209.55
mm

(8.25 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
214.94
mm

(8.462 in.)
Approx. Loose Circlip OD (Dr)
218.77
mm
+ 1.65 / - 0.00
Radial Wall (S)
9.53
mm
+/- 0.16
Groove Width (W)
2.47
mm
+/- 0.20
Internal Retaining Rings - 209.55x2.19x214.94 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip ID: 199.71 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-825 (5 Pcs) Internal Retaining Rings - 209.55x2.19x214.94 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$244.23 AUD
$244.23 AUD
Per 5
Housing Bore (B)
209.55
mm

(8.25 in.)
Clip Thickness (T)
2.19
mm
+/- 0.11
(0.086 in.)
Groove Dia. (Dg)
214.94
mm

(8.462 in.)
Approx. Loose Circlip OD (Dr)
218.77
mm
+ 1.65 / - 0.00
Internal Retaining Rings - 209.55x2.19x214.94 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 9.53 mm +/- 0.16    Groove Width (W): 2.47 mm +/- 0.20   Approx. Loose Clip ID: 199.71 +/- 0.08
Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-825 (5 Pcs) Internal Retaining Rings - 209.55x2.19x214.94 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$244.23 AUD
$244.23 AUD
Per 5
View the product page first if you are unsure.
