| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

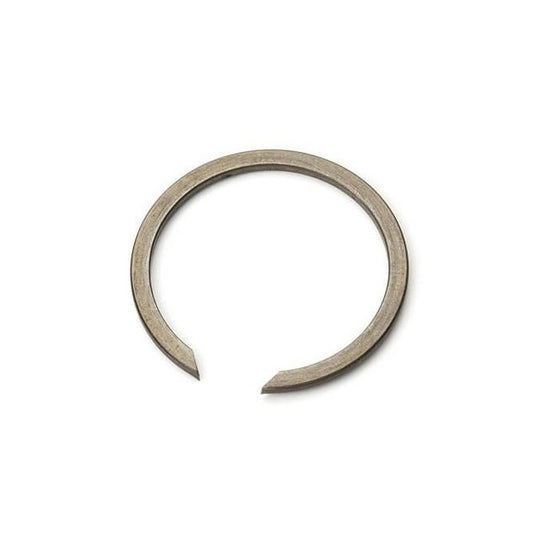

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
95.83
mm +/- 0.15 (3.773 in.) |
Approx. Loose Circlip OD (Dr)
97.31
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 84.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0921-LS-O Internal Retaining Rings - 92.08x2.77x95.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
95.83
mm +/- 0.15 (3.773 in.) |
Approx. Loose Circlip OD (Dr)
97.31
mm + 2.00 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 84.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0921-LS-O Internal Retaining Rings - 92.08x2.77x95.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.15 (3.841 in.) |
Approx. Loose Circlip OD (Dr)
98.93
mm + 2.55 / - 0.00 |
Section (Rd)
5.94
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 87.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0921-LS-N Internal Retaining Rings - 92.08x2.77x97.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.15 (3.841 in.) |
Approx. Loose Circlip OD (Dr)
98.93
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 5.94 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 87.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0921-LS-N Internal Retaining Rings - 92.08x2.77x97.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
93.00
mm (3.661 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
95.00
mm + 0.22 / - 0.00 (3.74 in.) |
Approx. Loose Circlip OD (Dr)
96.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 89.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0930-LS Internal Retaining Rings - 93x2.5x95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
93.00
mm (3.661 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
95.00
mm + 0.22 / - 0.00 (3.74 in.) |
Approx. Loose Circlip OD (Dr)
96.00
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 89.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0930-LS Internal Retaining Rings - 93x2.5x95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.00
mm (3.74 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
97.00
mm + 0.22 / - 0.00 (3.819 in.) |
Approx. Loose Circlip OD (Dr)
98.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 91.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS Internal Retaining Rings - 95x2.5x97 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
95.00
mm (3.74 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
97.00
mm + 0.22 / - 0.00 (3.819 in.) |
Approx. Loose Circlip OD (Dr)
98.00
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 91.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS Internal Retaining Rings - 95x2.5x97 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
95.00
mm (3.74 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
100.69
mm +/- 0.15 (3.964 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS-N Internal Retaining Rings - 95x2.77x100.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.00
mm (3.74 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
100.69
mm +/- 0.15 (3.964 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS-N Internal Retaining Rings - 95x2.77x100.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
98.40
mm +/- 0.15 (3.874 in.) |
Approx. Loose Circlip OD (Dr)
99.16
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 89.66 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-O Internal Retaining Rings - 95.25x1.58x98.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
98.40
mm +/- 0.15 (3.874 in.) |
Approx. Loose Circlip OD (Dr)
99.16
mm + 1.98 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 89.66 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-O Internal Retaining Rings - 95.25x1.58x98.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
99.11
mm +/- 0.15 (3.902 in.) |
Approx. Loose Circlip OD (Dr)
100.64
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 87.94 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-HO Internal Retaining Rings - 95.25x2.77x99.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
99.11
mm +/- 0.15 (3.902 in.) |
Approx. Loose Circlip OD (Dr)
100.64
mm + 2.00 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 87.94 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-HO Internal Retaining Rings - 95.25x2.77x99.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.15 (3.974 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-N Internal Retaining Rings - 95.25x2.77x100.94 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.15 (3.974 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-N Internal Retaining Rings - 95.25x2.77x100.94 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
97.00
mm (3.819 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 93.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0970-LS Internal Retaining Rings - 97x2.5x99 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
97.00
mm (3.819 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 93.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0970-LS Internal Retaining Rings - 97x2.5x99 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.00
mm (3.858 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
100.0
mm + 0.22 / - 0.00 (3.937 in.) |
Approx. Loose Circlip OD (Dr)
101.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 94.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0980-LS Internal Retaining Rings - 98x2.5x100 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$18.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
98.00
mm (3.858 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
100.0
mm + 0.22 / - 0.00 (3.937 in.) |
Approx. Loose Circlip OD (Dr)
101.00
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 94.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0980-LS Internal Retaining Rings - 98x2.5x100 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$18.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 91.16 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-O Internal Retaining Rings - 98.43x2.77x102.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 91.16 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-O Internal Retaining Rings - 98.43x2.77x102.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 93.09 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-N Internal Retaining Rings - 98.43x2.77x104.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 93.09 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-N Internal Retaining Rings - 98.43x2.77x104.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.00
mm (3.937 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
102.0
mm + 0.22 / - 0.00 (4.016 in.) |
Approx. Loose Circlip OD (Dr)
103.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 96.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS Internal Retaining Rings - 100x2.5x102 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 09, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
100.00
mm (3.937 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
102.0
mm + 0.22 / - 0.00 (4.016 in.) |
Approx. Loose Circlip OD (Dr)
103.00
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 96.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS Internal Retaining Rings - 100x2.5x102 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 09, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
100.03
mm (3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 92.86 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-O Internal Retaining Rings - 100.03x2.77x103.99 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.03
mm (3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 92.86 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-O Internal Retaining Rings - 100.03x2.77x103.99 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.03
mm (3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 94.84 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-N Internal Retaining Rings - 100.03x2.77x106.02 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.03
mm (3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 94.84 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-N Internal Retaining Rings - 100.03x2.77x106.02 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (4 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 96.04 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-O Internal Retaining Rings - 101.6x1.58x104.78 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (4 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 96.04 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-O Internal Retaining Rings - 101.6x1.58x104.78 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 94.51 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-HO Internal Retaining Rings - 101.6x2.77x105.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 94.51 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-HO Internal Retaining Rings - 101.6x2.77x105.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
102.00
mm (4.016 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 98.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1020-LS Internal Retaining Rings - 102x2.5x104.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
102.00
mm (4.016 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 98.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1020-LS Internal Retaining Rings - 102x2.5x104.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
103.00
mm (4.055 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 99.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1030-LS Internal Retaining Rings - 103x2.5x105.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
103.00
mm (4.055 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 99.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1030-LS Internal Retaining Rings - 103x2.5x105.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 97.92 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-O Internal Retaining Rings - 104.78x2.77x108.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 97.92 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-O Internal Retaining Rings - 104.78x2.77x108.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 99.82 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-N Internal Retaining Rings - 104.78x2.77x110.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 99.82 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-N Internal Retaining Rings - 104.78x2.77x110.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
105.00
mm (4.134 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 101.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1050-LS Internal Retaining Rings - 105x2.5x107.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
105.00
mm (4.134 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 101.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1050-LS Internal Retaining Rings - 105x2.5x107.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.00
mm (4.213 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 103.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1070-LS Internal Retaining Rings - 107x2.5x109.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.00
mm (4.213 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
|
||
| Material: Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 103.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1070-LS Internal Retaining Rings - 107x2.5x109.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.95
mm (4.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 103 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-O Internal Retaining Rings - 107.95x1.58x111.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.95
mm (4.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.18 mm Approx. Loose Clip ID: 103 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-O Internal Retaining Rings - 107.95x1.58x111.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
