| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

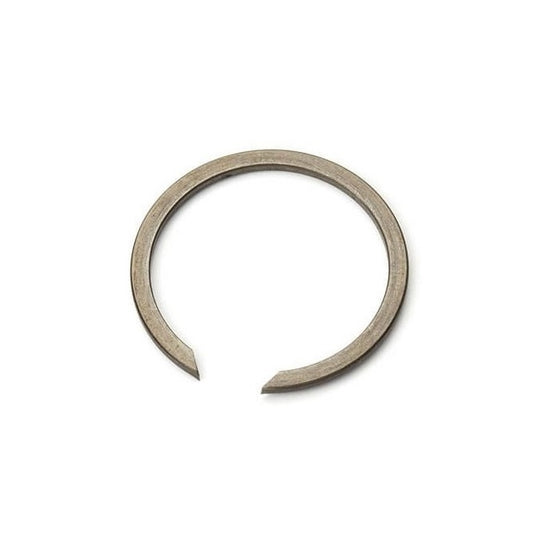

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
195.00
mm (7.677 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
198.0
mm + 0.29 / - 0.00 (7.795 in.) |
Approx. Loose Circlip OD (Dr)
199.90
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 189.9 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1950-LS Internal Retaining Rings - 195x3x198 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
195.00
mm (7.677 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
198.0
mm + 0.29 / - 0.00 (7.795 in.) |
Approx. Loose Circlip OD (Dr)
199.90
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 189.9 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1950-LS Internal Retaining Rings - 195x3x198 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
196.85
mm (7.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
205.74
mm +/- 0.20 (8.1 in.) |
Approx. Loose Circlip OD (Dr)
209.30
mm + 4.60 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 190.24 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1969-LS-N Internal Retaining Rings - 196.85x4.75x205.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
196.85
mm (7.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
205.74
mm +/- 0.20 (8.1 in.) |
Approx. Loose Circlip OD (Dr)
209.30
mm + 4.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 9.53 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 190.24 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1969-LS-N Internal Retaining Rings - 196.85x4.75x205.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
200.00
mm (7.874 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
203.0
mm + 0.29 / - 0.00 (7.992 in.) |
Approx. Loose Circlip OD (Dr)
205.00
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 195 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2000-LS Internal Retaining Rings - 200x3x203 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
200.00
mm (7.874 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
203.0
mm + 0.29 / - 0.00 (7.992 in.) |
Approx. Loose Circlip OD (Dr)
205.00
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 195 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2000-LS Internal Retaining Rings - 200x3x203 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (0.093 in.) |
Groove Dia. (Dg)
207.26
mm +/- 0.20 (8.16 in.) |
Approx. Loose Circlip OD (Dr)
210.44
mm + 4.75 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 197.74 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-O Internal Retaining Rings - 203.2x2.36x207.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (0.093 in.) |
Groove Dia. (Dg)
207.26
mm +/- 0.20 (8.16 in.) |
Approx. Loose Circlip OD (Dr)
210.44
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 197.74 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-O Internal Retaining Rings - 203.2x2.36x207.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
209.55
mm +/- 0.20 (8.25 in.) |
Approx. Loose Circlip OD (Dr)
213.36
mm + 4.75 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 194.3 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-HO Internal Retaining Rings - 203.2x4.75x209.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
209.55
mm +/- 0.20 (8.25 in.) |
Approx. Loose Circlip OD (Dr)
213.36
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 9.53 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 194.3 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-HO Internal Retaining Rings - 203.2x4.75x209.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
212.34
mm +/- 0.20 (8.36 in.) |
Approx. Loose Circlip OD (Dr)
216.03
mm + 5.60 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 193.83 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-N Internal Retaining Rings - 203.2x4.75x212.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
203.20
mm (8 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
212.34
mm +/- 0.20 (8.36 in.) |
Approx. Loose Circlip OD (Dr)
216.03
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 193.83 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2032-LS-N Internal Retaining Rings - 203.2x4.75x212.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
205.00
mm (8.071 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
208.0
mm + 0.29 / - 0.00 (8.189 in.) |
Approx. Loose Circlip OD (Dr)
210.00
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 200 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2050-LS Internal Retaining Rings - 205x3x208 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
205.00
mm (8.071 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
208.0
mm + 0.29 / - 0.00 (8.189 in.) |
Approx. Loose Circlip OD (Dr)
210.00
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 200 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2050-LS Internal Retaining Rings - 205x3x208 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
209.55
mm (8.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
216.92
mm +/- 0.20 (8.54 in.) |
Approx. Loose Circlip OD (Dr)
220.09
mm + 4.75 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 197.89 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2096-LS-O Internal Retaining Rings - 209.55x4.75x216.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
209.55
mm (8.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
216.92
mm +/- 0.20 (8.54 in.) |
Approx. Loose Circlip OD (Dr)
220.09
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 197.89 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2096-LS-O Internal Retaining Rings - 209.55x4.75x216.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
209.55
mm (8.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
218.95
mm +/- 0.20 (8.62 in.) |
Approx. Loose Circlip OD (Dr)
222.76
mm + 5.60 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 200.56 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2096-LS-N Internal Retaining Rings - 209.55x4.75x218.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
209.55
mm (8.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
218.95
mm +/- 0.20 (8.62 in.) |
Approx. Loose Circlip OD (Dr)
222.76
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 200.56 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2096-LS-N Internal Retaining Rings - 209.55x4.75x218.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
210.00
mm (8.268 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
213.0
mm + 0.29 / - 0.00 (8.386 in.) |
Approx. Loose Circlip OD (Dr)
215.10
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 205.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2100-LS Internal Retaining Rings - 210x3x213 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
210.00
mm (8.268 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
213.0
mm + 0.29 / - 0.00 (8.386 in.) |
Approx. Loose Circlip OD (Dr)
215.10
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 205.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2100-LS Internal Retaining Rings - 210x3x213 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.00
mm (8.465 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
218.0
mm + 0.29 / - 0.00 (8.583 in.) |
Approx. Loose Circlip OD (Dr)
220.10
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 210.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2150-LS Internal Retaining Rings - 215x3x218 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.00
mm (8.465 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
218.0
mm + 0.29 / - 0.00 (8.583 in.) |
Approx. Loose Circlip OD (Dr)
220.10
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 210.1 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2150-LS Internal Retaining Rings - 215x3x218 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
223.27
mm +/- 0.20 (8.79 in.) |
Approx. Loose Circlip OD (Dr)
226.44
mm + 4.75 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 204.24 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2159-LS-O Internal Retaining Rings - 215.9x4.75x223.27 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
223.27
mm +/- 0.20 (8.79 in.) |
Approx. Loose Circlip OD (Dr)
226.44
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 204.24 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2159-LS-O Internal Retaining Rings - 215.9x4.75x223.27 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
225.55
mm +/- 0.20 (8.88 in.) |
Approx. Loose Circlip OD (Dr)
229.49
mm + 5.60 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 207.29 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2159-LS-N Internal Retaining Rings - 215.9x4.75x225.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
215.90
mm (8.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
225.55
mm +/- 0.20 (8.88 in.) |
Approx. Loose Circlip OD (Dr)
229.49
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 207.29 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2159-LS-N Internal Retaining Rings - 215.9x4.75x225.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
220.00
mm (8.661 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
223.0
mm + 0.29 / - 0.00 (8.78 in.) |
Approx. Loose Circlip OD (Dr)
225.20
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 215.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2200-LS Internal Retaining Rings - 220x3x223 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
220.00
mm (8.661 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
223.0
mm + 0.29 / - 0.00 (8.78 in.) |
Approx. Loose Circlip OD (Dr)
225.20
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 215.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2200-LS Internal Retaining Rings - 220x3x223 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
230.63
mm +/- 0.20 (9.08 in.) |
Approx. Loose Circlip OD (Dr)
233.81
mm + 4.75 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 208.41 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2223-LS-O Internal Retaining Rings - 222.25x4.75x230.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
230.63
mm +/- 0.20 (9.08 in.) |
Approx. Loose Circlip OD (Dr)
233.81
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 12.70 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 208.41 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2223-LS-O Internal Retaining Rings - 222.25x4.75x230.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
232.26
mm +/- 0.20 (9.144 in.) |
Approx. Loose Circlip OD (Dr)
236.35
mm + 5.60 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 214.15 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2223-LS-N Internal Retaining Rings - 222.25x4.75x232.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
232.26
mm +/- 0.20 (9.144 in.) |
Approx. Loose Circlip OD (Dr)
236.35
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 214.15 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2223-LS-N Internal Retaining Rings - 222.25x4.75x232.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
225.00
mm (8.858 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
228.0
mm + 0.29 / - 0.00 (8.976 in.) |
Approx. Loose Circlip OD (Dr)
230.20
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 220.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2250-LS Internal Retaining Rings - 225x3x228 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
225.00
mm (8.858 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
228.0
mm + 0.29 / - 0.00 (8.976 in.) |
Approx. Loose Circlip OD (Dr)
230.20
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 220.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2250-LS Internal Retaining Rings - 225x3x228 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
236.98
mm +/- 0.20 (9.33 in.) |
Approx. Loose Circlip OD (Dr)
240.16
mm + 4.75 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 214.76 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2286-LS-O Internal Retaining Rings - 228.6x4.75x236.98 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
236.98
mm +/- 0.20 (9.33 in.) |
Approx. Loose Circlip OD (Dr)
240.16
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 12.70 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 214.76 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2286-LS-O Internal Retaining Rings - 228.6x4.75x236.98 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
238.86
mm +/- 0.20 (9.404 in.) |
Approx. Loose Circlip OD (Dr)
242.93
mm + 5.60 / - 0.00 |
Section (Rd)
11.10
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 220.73 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2286-LS-N Internal Retaining Rings - 228.6x4.75x238.86 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.60
mm (9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
238.86
mm +/- 0.20 (9.404 in.) |
Approx. Loose Circlip OD (Dr)
242.93
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 11.10 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 220.73 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2286-LS-N Internal Retaining Rings - 228.6x4.75x238.86 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
230.00
mm (9.055 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
233.0
mm + 0.29 / - 0.00 (9.173 in.) |
Approx. Loose Circlip OD (Dr)
235.30
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 225.3 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2300-LS Internal Retaining Rings - 230x3x233 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
230.00
mm (9.055 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
233.0
mm + 0.29 / - 0.00 (9.173 in.) |
Approx. Loose Circlip OD (Dr)
235.30
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 225.3 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2300-LS Internal Retaining Rings - 230x3x233 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
230.00
mm (9.055 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
238.35
mm +/- 0.20 (9.384 in.) |
Approx. Loose Circlip OD (Dr)
241.53
mm + 4.75 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 216.13 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2300-LS-O Internal Retaining Rings - 230x4.75x238.35 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
230.00
mm (9.055 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
238.35
mm +/- 0.20 (9.384 in.) |
Approx. Loose Circlip OD (Dr)
241.53
mm + 4.75 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 12.70 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 216.13 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2300-LS-O Internal Retaining Rings - 230x4.75x238.35 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
234.95
mm (9.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
245.57
mm +/- 0.20 (9.668 in.) |
Approx. Loose Circlip OD (Dr)
249.76
mm + 5.60 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 224.36 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2350-LS-N Internal Retaining Rings - 234.95x4.75x245.57 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
234.95
mm (9.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
245.57
mm +/- 0.20 (9.668 in.) |
Approx. Loose Circlip OD (Dr)
249.76
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 12.70 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 224.36 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2350-LS-N Internal Retaining Rings - 234.95x4.75x245.57 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
240.00
mm (9.449 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
243.0
mm + 0.29 / - 0.00 (9.567 in.) |
Approx. Loose Circlip OD (Dr)
245.40
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 235.4 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2400-LS Internal Retaining Rings - 240x3x243 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
240.00
mm (9.449 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
243.0
mm + 0.29 / - 0.00 (9.567 in.) |
Approx. Loose Circlip OD (Dr)
245.40
mm |
|
||
| Material: Spring Steel Section (Rd): 5.00 mm + 0 / - 0.10 Groove Width (W): 3.20 mm Approx. Loose Clip ID: 235.4 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2400-LS Internal Retaining Rings - 240x3x243 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
236.22
mm +/- 0.20 (9.3 in.) |
Approx. Loose Circlip OD (Dr)
256.54
mm + 5.60 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
| Material: Spring Steel Approx. Loose Clip ID: 231.14 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2413-LS-N Internal Retaining Rings - 241.3x4.75x236.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
236.22
mm +/- 0.20 (9.3 in.) |
Approx. Loose Circlip OD (Dr)
256.54
mm + 5.60 / - 0.00 |
|
||
| Material: Spring Steel Section (Rd): 12.70 mm +/- 0.13 Groove Width (W): 5.31 mm Approx. Loose Clip ID: 231.14 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-2413-LS-N Internal Retaining Rings - 241.3x4.75x236.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
