Collection: Retaining Rings - Internal - Circlips

Retaining Rings (With Images)

Internal

Circlips

718 Products in this selection

This is a combined category of Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 168.28 mm _{(6.625 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 178.87 mm +/- 0.08 _{(7.042 in.)}	Approx. Loose Circlip OD (Dr) 183.59 mm + 4.10 / - 0.00	Radial Wall (S) 5.61 - 11.35 mm	Groove Width (W) 3.28 mm + 0.08 / - 0.00
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled

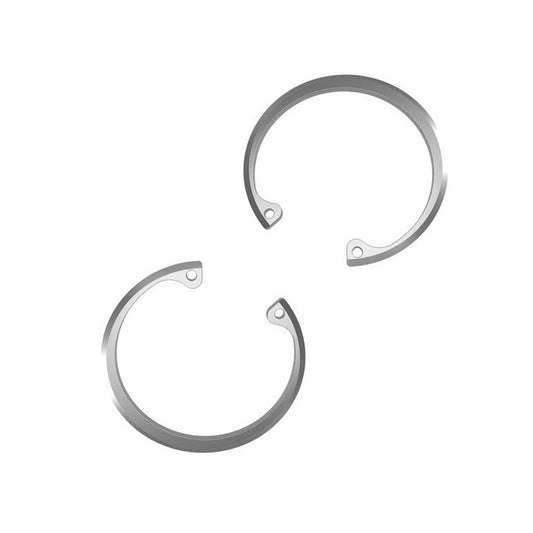

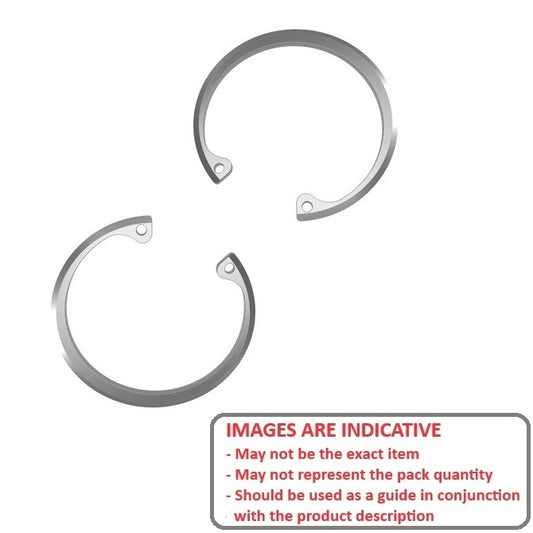

Part Number: CIB-16828-C Internal Retaining Rings - 168.28x3.84x178.87 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 168.28 mm _{(6.625 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 178.87 mm +/- 0.08 _{(7.042 in.)}	Approx. Loose Circlip OD (Dr) 183.59 mm + 4.10 / - 0.00
Material: Spring Steel Radial Wall (S): 5.61 - 11.35 mm Groove Width (W): 3.28 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-16828-C Internal Retaining Rings - 168.28x3.84x178.87 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 168.28 mm _{(6.625 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 175.90 mm + 0.00 / - 0.10 _{(6.925 in.)}	Approx. Loose Circlip OD (Dr) 186.79 mm + 2.03 / - 2.03		Groove Width (W) 4.42 mm + 0.20 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-16828-C Internal Retaining Rings - 168.28x4.09x175.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $111.05 AUD Regular price Sale price $111.05 AUD Unit price per Each
Housing Bore (B) 168.28 mm _{(6.625 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 175.90 mm + 0.00 / - 0.10 _{(6.925 in.)}	Approx. Loose Circlip OD (Dr) 186.79 mm + 2.03 / - 2.03
Material: Carbon Steel Groove Width (W): 4.42 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-16828-C Internal Retaining Rings - 168.28x4.09x175.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $111.05 AUD Regular price Sale price $111.05 AUD Unit price per Each View the product page first if you are unsure.
CCI-16828-C --- Internal Retaining Rings - 168.28x4.09x175.9 mm - Carbon Steel CCI-16828-C --- Internal Retaining Rings - 168.28x4.09x175.9 mm - Carbon Steel Regular price $111.05 AUD Regular price Sale price $111.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 170.00 mm _{(6.693 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 175.00 mm + 0.00 / - 0.10 _{(6.89 in.)}	Approx. Loose Circlip OD (Dr) 179.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 141.60 mm Clearance in Groove (C1): 148.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17000-C Internal Retaining Rings - 170x4x175 mm - Carbon Steel 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each
Housing Bore (B) 170.00 mm _{(6.693 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 175.00 mm + 0.00 / - 0.10 _{(6.89 in.)}	Approx. Loose Circlip OD (Dr) 179.50 mm + 1.70 / - 0.72
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.20 / - 0.00 Clearance in Bore (C): 141.60 mm Clearance in Groove (C1): 148.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17000-C Internal Retaining Rings - 170x4x175 mm - Carbon Steel 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-17000-C --- Internal Retaining Rings - 170x4x175 mm - Carbon Steel CCI-17000-C --- Internal Retaining Rings - 170x4x175 mm - Carbon Steel Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per 10 Available Now
Housing Bore (B) 170.00 mm _{(6.693 in.)}	Clip Thickness (T) 5.00 mm + 0.63 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 175.00 mm + 0.00 / - 0.12 _{(6.89 in.)}	Approx. Loose Circlip OD (Dr) 179.50 mm + 2.00 / - 0.81		Groove Width (W) 5.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17000H-C Internal Retaining Rings - 170x5x175 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 170.00 mm _{(6.693 in.)}	Clip Thickness (T) 5.00 mm + 0.63 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 175.00 mm + 0.00 / - 0.12 _{(6.89 in.)}	Approx. Loose Circlip OD (Dr) 179.50 mm + 2.00 / - 0.81
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17000H-C Internal Retaining Rings - 170x5x175 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 182.22 mm +/- 0.08 _{(7.174 in.)}	Approx. Loose Circlip OD (Dr) 187.07 mm + 4.10 / - 0.00	Radial Wall (S) 5.69 - 11.58 mm	Groove Width (W) 3.25 mm + 0.08 / - 0.00
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-17145-C (2 Pcs) Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,046.77 AUD Regular price Sale price $2,046.77 AUD Unit price per Per 2
Housing Bore (B) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 182.22 mm +/- 0.08 _{(7.174 in.)}	Approx. Loose Circlip OD (Dr) 187.07 mm + 4.10 / - 0.00
Material: Spring Steel Radial Wall (S): 5.69 - 11.58 mm Groove Width (W): 3.25 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-17145-C (2 Pcs) Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,046.77 AUD Regular price Sale price $2,046.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CIB-17145-C (2 Pcs) --- Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel CIB-17145-C (2 Pcs) --- Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel Regular price $2,046.77 AUD Regular price Sale price $2,046.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 179.20 mm + 0.00 / - 0.10 _{(7.055 in.)}	Approx. Loose Circlip OD (Dr) 190.31 mm + 2.03 / - 2.03		Groove Width (W) 4.42 mm + 0.20 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17145-C Internal Retaining Rings - 171.45x4.09x179.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $146.50 AUD Regular price Sale price $146.50 AUD Unit price per Each
Housing Bore (B) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 179.20 mm + 0.00 / - 0.10 _{(7.055 in.)}	Approx. Loose Circlip OD (Dr) 190.31 mm + 2.03 / - 2.03
Material: Carbon Steel Groove Width (W): 4.42 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17145-C Internal Retaining Rings - 171.45x4.09x179.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $146.50 AUD Regular price Sale price $146.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-17145-C --- Internal Retaining Rings - 171.45x4.09x179.2 mm - Carbon Steel CCI-17145-C --- Internal Retaining Rings - 171.45x4.09x179.2 mm - Carbon Steel Regular price $146.50 AUD Regular price Sale price $146.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 172.00 mm _{(6.772 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 177.00 mm + 0.00 / - 0.10 _{(6.969 in.)}	Approx. Loose Circlip OD (Dr) 181.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17200-C Internal Retaining Rings - 172x4x177 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 172.00 mm _{(6.772 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 177.00 mm + 0.00 / - 0.10 _{(6.969 in.)}	Approx. Loose Circlip OD (Dr) 181.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17200-C Internal Retaining Rings - 172x4x177 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 175.00 mm _{(6.89 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 180.00 mm + 0.00 / - 0.10 _{(7.087 in.)}	Approx. Loose Circlip OD (Dr) 184.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 146.60 mm Clearance in Groove (C1): 153.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17500-C (5 Pcs) Internal Retaining Rings - 175x4x180 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 5
Housing Bore (B) 175.00 mm _{(6.89 in.)}	Clip Thickness (T) 4.00 mm + 0.63 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 180.00 mm + 0.00 / - 0.10 _{(7.087 in.)}	Approx. Loose Circlip OD (Dr) 184.50 mm + 1.70 / - 0.72
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.20 / - 0.00 Clearance in Bore (C): 146.60 mm Clearance in Groove (C1): 153.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17500-C (5 Pcs) Internal Retaining Rings - 175x4x180 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 5
CCI-17500-C (5 Pcs) --- Internal Retaining Rings - 175x4x180 mm - Carbon Steel Sale CCI-17500-C (5 Pcs) --- Internal Retaining Rings - 175x4x180 mm - Carbon Steel Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 1 Available Now Sale
Housing Bore (B) 175.00 mm _{(6.89 in.)}	Clip Thickness (T) 5.00 mm + 0.63 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 180.00 mm + 0.00 / - 0.12 _{(7.087 in.)}	Approx. Loose Circlip OD (Dr) 184.50 mm + 1.70 / - 0.72		Groove Width (W) 5.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17500H-C Internal Retaining Rings - 175x5x180 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 175.00 mm _{(6.89 in.)}	Clip Thickness (T) 5.00 mm + 0.63 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 180.00 mm + 0.00 / - 0.12 _{(7.087 in.)}	Approx. Loose Circlip OD (Dr) 184.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17500H-C Internal Retaining Rings - 175x5x180 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 177.00 mm _{(6.969 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 182.00 mm + 0.00 / - 0.10 _{(7.165 in.)}	Approx. Loose Circlip OD (Dr) 187.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17700-C Internal Retaining Rings - 177x4x182 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 177.00 mm _{(6.969 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 182.00 mm + 0.00 / - 0.10 _{(7.165 in.)}	Approx. Loose Circlip OD (Dr) 187.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17700-C Internal Retaining Rings - 177x4x182 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 177.80 mm _{(7 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 189.00 mm +/- 0.08 _{(7.441 in.)}	Approx. Loose Circlip OD (Dr) 194.06 mm + 4.10 / - 0.00	Radial Wall (S) 5.89 - 12.04 mm	Groove Width (W) 3.25 mm + 0.08 / - 0.00
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-17780-C (2 Pcs) Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,145.14 AUD Regular price Sale price $2,145.14 AUD Unit price per Per 2
Housing Bore (B) 177.80 mm _{(7 in.)}	Clip Thickness (T) 3.84 mm + 0.20 / - 0.00 _{(0.151 in.)}	Groove Dia. (Dg) 189.00 mm +/- 0.08 _{(7.441 in.)}	Approx. Loose Circlip OD (Dr) 194.06 mm + 4.10 / - 0.00
Material: Spring Steel Radial Wall (S): 5.89 - 12.04 mm Groove Width (W): 3.25 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-17780-C (2 Pcs) Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,145.14 AUD Regular price Sale price $2,145.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CIB-17780-C (2 Pcs) --- Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel CIB-17780-C (2 Pcs) --- Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel Regular price $2,145.14 AUD Regular price Sale price $2,145.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 177.80 mm _{(7 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 185.60 mm + 0.00 / - 0.12 _{(7.307 in.)}	Approx. Loose Circlip OD (Dr) 197.36 mm + 2.03 / - 2.03		Groove Width (W) 4.42 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 150.11 mm Clearance in Groove (C1): 157.99 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17780-C Internal Retaining Rings - 177.8x4.09x185.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Each
Housing Bore (B) 177.80 mm _{(7 in.)}	Clip Thickness (T) 4.09 mm +/- 0.204 _{(0.161 in.)}	Groove Dia. (Dg) 185.60 mm + 0.00 / - 0.12 _{(7.307 in.)}	Approx. Loose Circlip OD (Dr) 197.36 mm + 2.03 / - 2.03
Material: Carbon Steel Groove Width (W): 4.42 mm + 0.20 / - 0.00 Clearance in Bore (C): 150.11 mm Clearance in Groove (C1): 157.99 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17780-C Internal Retaining Rings - 177.8x4.09x185.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-17780-C --- Internal Retaining Rings - 177.8x4.09x185.6 mm - Carbon Steel CCI-17780-C --- Internal Retaining Rings - 177.8x4.09x185.6 mm - Carbon Steel Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 178.00 mm _{(7.008 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 183.00 mm + 0.00 / - 0.10 _{(7.205 in.)}	Approx. Loose Circlip OD (Dr) 187.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17800-C Internal Retaining Rings - 178x4x183 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 178.00 mm _{(7.008 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 183.00 mm + 0.00 / - 0.10 _{(7.205 in.)}	Approx. Loose Circlip OD (Dr) 187.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-17800-C Internal Retaining Rings - 178x4x183 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 180.00 mm _{(7.087 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.10 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 189.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 150.20 mm Clearance in Groove (C1): 156.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18000-C Internal Retaining Rings - 180x4x185 mm - Carbon Steel 44 Available Immediately \| Further orders can be expected around Wed, Sep 10, 2025 Regular price $33.05 AUD Regular price Sale price $33.05 AUD Unit price per Each
Housing Bore (B) 180.00 mm _{(7.087 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.10 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 189.50 mm + 1.70 / - 0.72
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.20 / - 0.00 Clearance in Bore (C): 150.20 mm Clearance in Groove (C1): 156.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18000-C Internal Retaining Rings - 180x4x185 mm - Carbon Steel 44 Available Immediately \| Further orders can be expected around Wed, Sep 10, 2025 Regular price $33.05 AUD Regular price Sale price $33.05 AUD Unit price per Each View the product page first if you are unsure.
CCI-18000-C --- Internal Retaining Rings - 180x4x185 mm - Carbon Steel CCI-18000-C --- Internal Retaining Rings - 180x4x185 mm - Carbon Steel Regular price $33.05 AUD Regular price Sale price $33.05 AUD Unit price per 44 Available Now
Housing Bore (B) 180.00 mm _{(7.087 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.12 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 189.50 mm + 1.70 / - 0.72		Groove Width (W) 5.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18000H-C Internal Retaining Rings - 180x5x185 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 180.00 mm _{(7.087 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.12 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 189.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18000H-C Internal Retaining Rings - 180x5x185 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 182.00 mm _{(7.165 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.10 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 191.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18200-C Internal Retaining Rings - 182x4x185 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 182.00 mm _{(7.165 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 185.00 mm + 0.00 / - 0.10 _{(7.283 in.)}	Approx. Loose Circlip OD (Dr) 191.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18200-C Internal Retaining Rings - 182x4x185 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 184.15 mm _{(7.25 in.)}	Clip Thickness (T) 4.62 mm + 0.20 / - 0.00 _{(0.182 in.)}	Groove Dia. (Dg) 195.78 mm +/- 0.08 _{(7.708 in.)}	Approx. Loose Circlip OD (Dr) 200.79 mm + 4.60 / - 0.00	Radial Wall (S) 6.05 - 12.42 mm	Groove Width (W) 4.04 mm + 0.08 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-18415-C (5 Pcs) Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $8,615.14 AUD Regular price Sale price $8,615.14 AUD Unit price per Per 5
Housing Bore (B) 184.15 mm _{(7.25 in.)}	Clip Thickness (T) 4.62 mm + 0.20 / - 0.00 _{(0.182 in.)}	Groove Dia. (Dg) 195.78 mm +/- 0.08 _{(7.708 in.)}	Approx. Loose Circlip OD (Dr) 200.79 mm + 4.60 / - 0.00
Material: Carbon Steel Radial Wall (S): 6.05 - 12.42 mm Groove Width (W): 4.04 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-18415-C (5 Pcs) Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $8,615.14 AUD Regular price Sale price $8,615.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-18415-C (5 Pcs) --- Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel CIB-18415-C (5 Pcs) --- Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel Regular price $8,615.14 AUD Regular price Sale price $8,615.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 184.15 mm _{(7.25 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 192.41 mm + 0.00 / - 0.12 _{(7.575 in.)}	Approx. Loose Circlip OD (Dr) 203.07 mm + 2.03 / - 2.03		Groove Width (W) 5.31 mm + 0.20 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18415-C Internal Retaining Rings - 184.15x4.75x192.41 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $160.95 AUD Regular price Sale price $160.95 AUD Unit price per Each
Housing Bore (B) 184.15 mm _{(7.25 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 192.41 mm + 0.00 / - 0.12 _{(7.575 in.)}	Approx. Loose Circlip OD (Dr) 203.07 mm + 2.03 / - 2.03
Material: Carbon Steel Groove Width (W): 5.31 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18415-C Internal Retaining Rings - 184.15x4.75x192.41 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $160.95 AUD Regular price Sale price $160.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-18415-C --- Internal Retaining Rings - 184.15x4.75x192.41 mm - Carbon Steel CCI-18415-C --- Internal Retaining Rings - 184.15x4.75x192.41 mm - Carbon Steel Regular price $160.95 AUD Regular price Sale price $160.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 185.00 mm _{(7.283 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 190.00 mm + 0.00 / - 0.10 _{(7.48 in.)}	Approx. Loose Circlip OD (Dr) 194.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 155.20 mm Clearance in Groove (C1): 161.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18500-C (13 Pcs) Internal Retaining Rings - 185x4x190 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $438.95 AUD Regular price Sale price $438.95 AUD Unit price per Per 13
Housing Bore (B) 185.00 mm _{(7.283 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 190.00 mm + 0.00 / - 0.10 _{(7.48 in.)}	Approx. Loose Circlip OD (Dr) 194.50 mm + 1.70 / - 0.72
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.20 / - 0.00 Clearance in Bore (C): 155.20 mm Clearance in Groove (C1): 161.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18500-C (13 Pcs) Internal Retaining Rings - 185x4x190 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $438.95 AUD Regular price Sale price $438.95 AUD Unit price per Per 13 View the product page first if you are unsure.
CCI-18500-C (13 Pcs) --- Internal Retaining Rings - 185x4x190 mm - Carbon Steel CCI-18500-C (13 Pcs) --- Internal Retaining Rings - 185x4x190 mm - Carbon Steel Regular price $438.95 AUD Regular price Sale price $438.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 185.00 mm _{(7.283 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 190.00 mm + 0.00 / - 0.12 _{(7.48 in.)}	Approx. Loose Circlip OD (Dr) 194.50 mm + 1.70 / - 0.72		Groove Width (W) 5.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18500H-C Internal Retaining Rings - 185x5x190 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 185.00 mm _{(7.283 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 190.00 mm + 0.00 / - 0.12 _{(7.48 in.)}	Approx. Loose Circlip OD (Dr) 194.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18500H-C Internal Retaining Rings - 185x5x190 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 187.00 mm _{(7.362 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 192.00 mm + 0.00 / - 0.10 _{(7.559 in.)}	Approx. Loose Circlip OD (Dr) 197.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18700-C Internal Retaining Rings - 187x4x192 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 187.00 mm _{(7.362 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 192.00 mm + 0.00 / - 0.10 _{(7.559 in.)}	Approx. Loose Circlip OD (Dr) 197.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18700-C Internal Retaining Rings - 187x4x192 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 188.00 mm _{(7.402 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 193.00 mm + 0.00 / - 0.10 _{(7.598 in.)}	Approx. Loose Circlip OD (Dr) 197.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18800-C Internal Retaining Rings - 188x4x193 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 188.00 mm _{(7.402 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 193.00 mm + 0.00 / - 0.10 _{(7.598 in.)}	Approx. Loose Circlip OD (Dr) 197.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-18800-C Internal Retaining Rings - 188x4x193 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 190.00 mm _{(7.48 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 195.00 mm + 0.00 / - 0.10 _{(7.677 in.)}	Approx. Loose Circlip OD (Dr) 199.50 mm + 1.70 / - 0.72		Groove Width (W) 4.15 mm + 0.20 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 160.20 mm Clearance in Groove (C1): 166.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-19000-C Internal Retaining Rings - 190x4x195 mm - Carbon Steel 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $36.86 AUD Regular price Sale price $36.86 AUD Unit price per Each
Housing Bore (B) 190.00 mm _{(7.48 in.)}	Clip Thickness (T) 4.00 mm + 0.72 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 195.00 mm + 0.00 / - 0.10 _{(7.677 in.)}	Approx. Loose Circlip OD (Dr) 199.50 mm + 1.70 / - 0.72
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.20 / - 0.00 Clearance in Bore (C): 160.20 mm Clearance in Groove (C1): 166.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-19000-C Internal Retaining Rings - 190x4x195 mm - Carbon Steel 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $36.86 AUD Regular price Sale price $36.86 AUD Unit price per Each View the product page first if you are unsure.
CCI-19000-C --- Internal Retaining Rings - 190x4x195 mm - Carbon Steel CCI-19000-C --- Internal Retaining Rings - 190x4x195 mm - Carbon Steel Regular price $36.86 AUD Regular price Sale price $36.86 AUD Unit price per 10 Available Now
Housing Bore (B) 190.00 mm _{(7.48 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 195.00 mm + 0.00 / - 0.12 _{(7.677 in.)}	Approx. Loose Circlip OD (Dr) 199.50 mm + 1.70 / - 0.72		Groove Width (W) 5.15 mm + 0.20 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-19000H-C Internal Retaining Rings - 190x5x195 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 190.00 mm _{(7.48 in.)}	Clip Thickness (T) 5.00 mm + 0.72 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 195.00 mm + 0.00 / - 0.12 _{(7.677 in.)}	Approx. Loose Circlip OD (Dr) 199.50 mm + 1.70 / - 0.72
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.20 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-19000H-C Internal Retaining Rings - 190x5x195 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
