Collection: Retaining Rings - Internal - Circlips

Retaining Rings (With Images)

Internal

Circlips

718 Products in this selection

This is a combined category of Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 0.60 mm + 0.11 / - 0.00 _{(0.024 in.)}	Groove Dia. (Dg) 12.60 mm + 0.00 / - 0.05 _{(0.496 in.)}	Approx. Loose Circlip OD (Dr) 13.10 mm + 0.42 / - 0.13	Radial Wall (S) 1.7 - 1.8 mm	Groove Width (W) 0.70 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Per 250
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 0.60 mm + 0.11 / - 0.00 _{(0.024 in.)}	Groove Dia. (Dg) 12.60 mm + 0.00 / - 0.05 _{(0.496 in.)}	Approx. Loose Circlip OD (Dr) 13.10 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 1.7 - 1.8 mm Groove Width (W): 0.70 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-01200-C-V (250 Pcs) --- Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel CCI-01200-C-V (250 Pcs) --- Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00

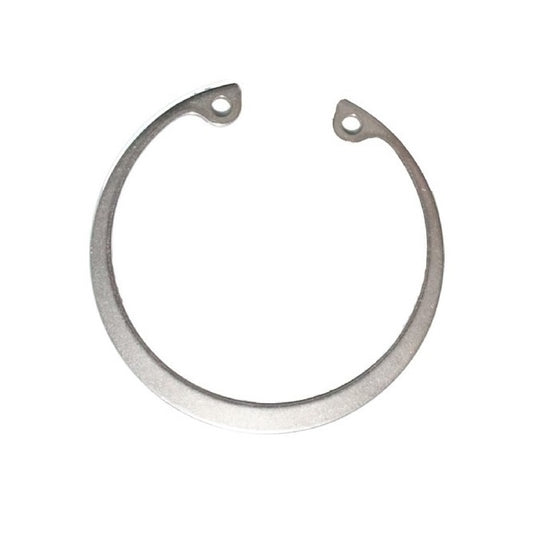

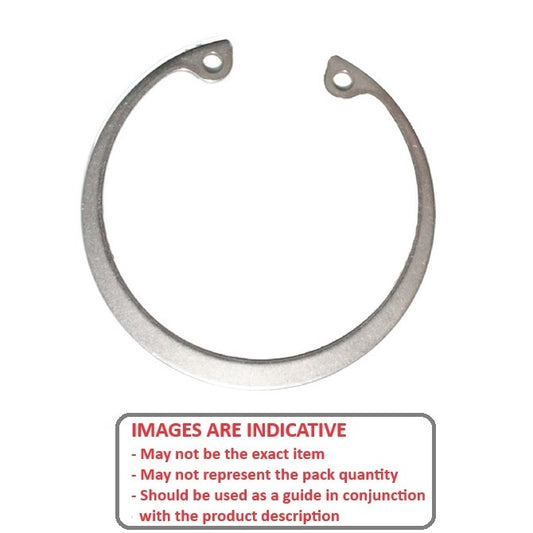

Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 6 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 50
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per 9 Available Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 12 Available Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00

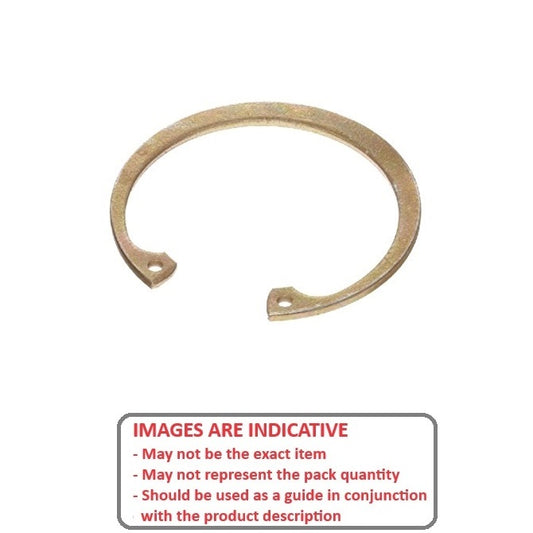

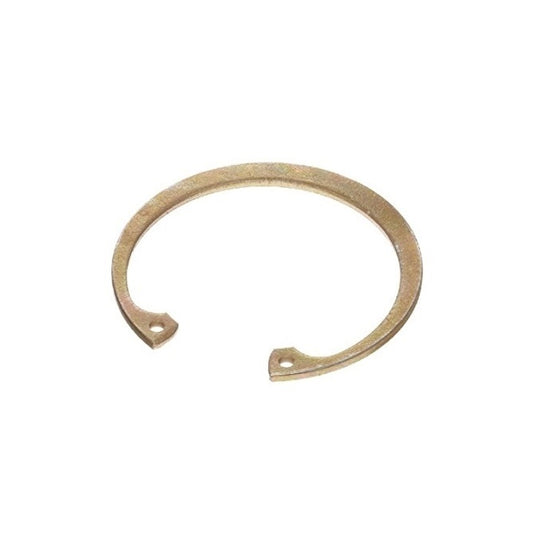

Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated 148 units (740 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated 148 units (740 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per 148 Available Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-C (100 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Per 100
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01270-C (100 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01270-C (100 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel CCI-01270-C (100 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.95 mm _{(0.51 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.72 mm + 0.00 / - 0.06 _{(0.54 in.)}	Approx. Loose Circlip OD (Dr) 14.22 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.86 mm Clearance in Groove (C1): 7.62 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01295-C (100 Pcs) Internal Retaining Rings - 12.95x0.89x13.72 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Per 100
Housing Bore (B) 12.95 mm _{(0.51 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.72 mm + 0.00 / - 0.06 _{(0.54 in.)}	Approx. Loose Circlip OD (Dr) 14.22 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.86 mm Clearance in Groove (C1): 7.62 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01295-C (100 Pcs) Internal Retaining Rings - 12.95x0.89x13.72 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01295-C (100 Pcs) --- Internal Retaining Rings - 12.95x0.89x13.72 mm - Carbon Steel CCI-01295-C (100 Pcs) --- Internal Retaining Rings - 12.95x0.89x13.72 mm - Carbon Steel Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo 58 units (290 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo 58 units (290 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 58 Available Now
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01300-C (50 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Carbon Steel 74 units (3700 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 50
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 13.60 mm + 0.00 / - 0.06 _{(0.535 in.)}	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01300-C (50 Pcs) Internal Retaining Rings - 13x1x13.6 mm - Carbon Steel 74 units (3700 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01300-C (50 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Carbon Steel CCI-01300-C (50 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm - Carbon Steel Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 74 Available Now
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01400-C (50 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 50
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01400-C (50 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01400-C (50 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Carbon Steel CCI-01400-C (50 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Carbon Steel Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo 165 units (825 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 14.60 mm + 0.00 / - 0.06 _{(0.575 in.)}	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo 165 units (825 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 165 Available Now
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-C (100 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Per 100
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-C (100 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01429-C (100 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel CCI-01429-C (100 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-S15 (4 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 4
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-S15 (4 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-01429-S15 (4 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo CCI-01429-S15 (4 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $161.14 AUD Regular price Sale price $161.14 AUD Unit price per Per 250
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm + 0.00 / - 0.06 _{(0.596 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $161.14 AUD Regular price Sale price $161.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated Regular price $161.14 AUD Regular price Sale price $161.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 0.80 mm + 0.11 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.05 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.10 mm + 0.42 / - 0.13	Radial Wall (S) 1.9 - 2.0 mm	Groove Width (W) 0.90 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01500-C-V Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 0.80 mm + 0.11 / - 0.00 _{(0.031 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.05 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.10 mm + 0.42 / - 0.13
Material: Spring Steel Radial Wall (S): 1.9 - 2.0 mm Groove Width (W): 0.90 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01500-C-V Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.06 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01500-S15 (5 Pcs) Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 5
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.06 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01500-S15 (5 Pcs) Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01500-S15 (5 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo CCI-01500-S15 (5 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.06 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01500-C (50 Pcs) Internal Retaining Rings - 15x1x15.7 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 50
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 15.70 mm + 0.00 / - 0.06 _{(0.618 in.)}	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01500-C (50 Pcs) Internal Retaining Rings - 15x1x15.7 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01500-C (50 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm - Carbon Steel CCI-01500-C (50 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm - Carbon Steel Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per 1 Available Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 16.89 mm +/- 0.052 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm	Radial Wall (S) 0.91 - 1.83 mm	Groove Width (W) 0.74 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01588-C-V (100 Pcs) Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $81.32 AUD Regular price Sale price $81.32 AUD Unit price per Per 100
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 16.89 mm +/- 0.052 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm
Material: Carbon Steel Radial Wall (S): 0.91 - 1.83 mm Groove Width (W): 0.74 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01588-C-V (100 Pcs) Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $81.32 AUD Regular price Sale price $81.32 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01588-C-V (100 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel CCI-01588-C-V (100 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel Regular price $81.32 AUD Regular price Sale price $81.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo 44 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo 44 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each View the product page first if you are unsure.
CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per 44 Available Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated 10 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated 10 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per 10 Available Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-C (20 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 20
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 16.89 mm + 0.00 / - 0.06 _{(0.665 in.)}	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01588-C (20 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01588-C (20 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel CCI-01588-C (20 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 12 Available Now
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo 67 units (335 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo 67 units (335 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 67 Available Now
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01600-C (20 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel 33 units (660 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Per 20
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01600-C (20 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel 33 units (660 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01600-C (20 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel CCI-01600-C (20 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 33 Available Now
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.42 / - 0.13	Radial Wall (S) 2.0 - 2.1 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01600-C-V (100 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $58.14 AUD Regular price Sale price $58.14 AUD Unit price per Per 100
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 16.80 mm + 0.00 / - 0.06 _{(0.661 in.)}	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 2.0 - 2.1 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01600-C-V (100 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $58.14 AUD Regular price Sale price $58.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01600-C-V (100 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel CCI-01600-C-V (100 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel Regular price $58.14 AUD Regular price Sale price $58.14 AUD Unit price per Out of stock! Backorder Now
